Sony Digital Signage Current

FW-65EZ20L

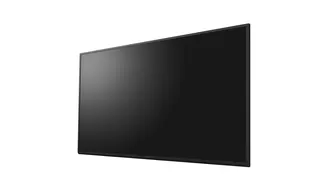

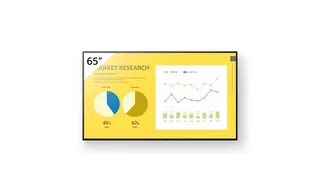

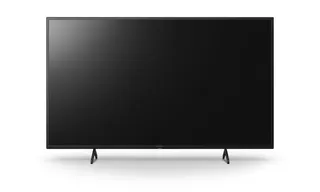

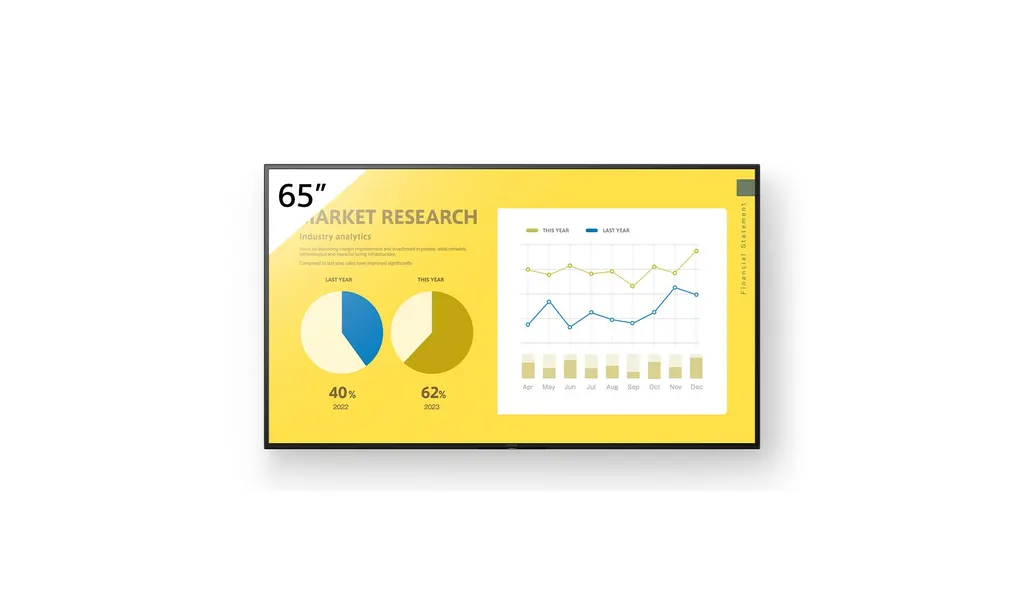

Sony FW-65EZ20L 65-inch 4K Professional Display

Screen size: 65"
Resolution: 3840 x 2160
Brightness: 350 nit
Operation: 16/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-65EZ20L is a 65-inch 4K professional display from the Pro BRAVIA EZ20L series, rated for 16/7 operation. It offers 3840 x 2160 resolution, 350 cd/m² brightness, HDR10 and HLG support, three side HDMI inputs, and networked control over IP or RS-232C. It suits corporate meeting rooms, reception areas and digital signage across Doha. Request a quote from SmartRooms Qatar.

What the FW-65EZ20L is built for

The Sony FW-65EZ20L is a 65-inch LCD professional display in the Pro BRAVIA EZ20L series. It uses an IPS panel with direct LED backlighting and frame dimming, and it is rated for 16/7 operation, meaning 16 hours a day, seven days a week. That rating matters for a reception screen, a menu board or a meeting room display that stays on through a long working day.

Picture and sound specifications that matter

The panel delivers 3840 x 2160 resolution with 350 cd/m² brightness and a 1,200:1 contrast ratio. Viewing angles are rated at 178 degrees horizontally and vertically, so people seated at the side of a room still see a clear image. HDR10 and HLG are supported, and the 4K X-Reality PRO processing sharpens lower-resolution content toward 4K detail. Typical gray-to-gray response time is 8 ms. Two 10 W down-firing speakers provide clear voice audio for short video calls and announcements.

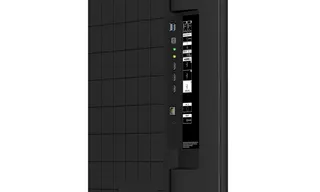

Three side-mounted HDMI inputs, two USB ports and one Ethernet input
RS-232C and IP control, plus HDMI-CEC for linked devices
Integrated Wi-Fi with Chromecast built-in and Apple AirPlay
16GB internal storage for signage content, with HTML5 support and USB playback
Scheduled on/off timers, sleep timer and HDMI auto wake-up

Where it fits in Qatar

In a West Bay corporate office, a 65-inch panel suits a boardroom or a training room where a team in Doha joins a call with colleagues abroad. In Msheireb or Lusail, the same display can run wayfinding or promotional loops in a hotel lobby or bank branch, with content loaded from a USB stick or pushed over the network. For a private school in Al Wakrah fitting out a classroom, the RS-232C and IP control options let the facilities team switch the display on and off remotely across several rooms.

What to plan before ordering

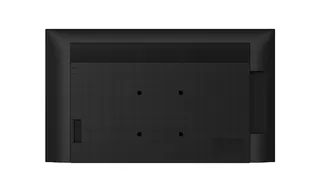

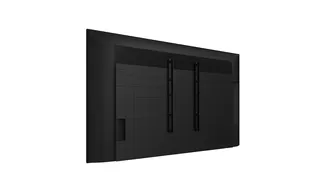

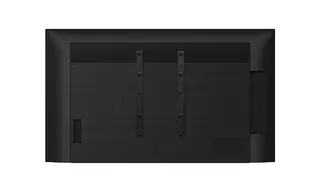

The FW-65EZ20L is supplied without a stand, so plan for a wall or VESA mount using the 300 x 300 mm hole pattern. The panel measures 1462 x 842 x 71 mm and weighs 20.4 kg without a stand, so the wall structure should be checked before installation. The display can be mounted in portrait orientation, with signal connections on the side for easier access. Rated power consumption is 226 W, and standby draw is 0.5 W. The source data does not list an operating temperature range, so confirm the installation environment with the SmartRooms Qatar team before placing the display near windows or in spaces that are not air-conditioned.

SmartRooms Qatar offers free site surveys, which help confirm wall loading, cable routes and viewing distances before the unit is mounted. Request a quote for this model and our team will respond with a detailed proposal, usually within one working day.

Highlights

65-inch 4K display with 3840 x 2160 resolution
Rated for 16/7 operation
350 cd/m² brightness and 178-degree viewing angles
Three side HDMI inputs, two USB ports, one Ethernet input
IP and RS-232C control with HDMI-CEC
Integrated Wi-Fi, Chromecast built-in and Apple AirPlay

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

69 specifications · Source: manufacturer · checked Oct 2026

General Features9

Screen Size: 65"
Brightness (cd/m²): 350
Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 400,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG)
Aspect Ratio: 16:9
Portrait/Tilt Compatibility: Yes

Display Features11

Dimming Type: Frame Dimming
Display Device: LCD
Panel Type: IPS
Backlight Type: Direct LED
Colour Gamut (DCI-P3): 75%
Picture Processor: 4K Processor X1
Operation Time: 16/7
Deep Black Non-Glare: No
Haze (%): 1%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification3

Video Processing: 4K X-Reality PRO
Motion Enhancer: Motionflow XR 200/240Hz (Native 50/60Hz)
HDMI Signal: 4096 x 2160p (24, 50, 60 Hz), 3840 x 2160p (24, 25, 30, 50, 60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i 480p, 480

Audio Specification2

Speaker Position: Down Firing
Audio Power Output: 10W + 10W

Professional Features4

Pro Mode: Yes (Simplified)
HDMI Auto Wake-Up: Yes
Operating System: Android TV
On-board Storage (GB): 16GB

Network Specification2

Wi-Fi Certified: Yes
Wireless LAN: Integrated

Convenience Features6

USB Playback Codecs: MPEG1:MPEG1/MPEG2 PS:MPEG2/MPEG2 TS(HDV,AVCHD):MPEG2,AVC/MP4(XAVC S):AVC,MPEG4,HEVC,AV1/AVI:MotionJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4/MKV:AVC,MPEG4,VP8,HEVC/3GPP:MPEG4,AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC/JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs7

HDCP: HDCP2.3 (for HDMI1/2/3)
Composite Video Input (s): 1 (Side, Mini jack)
HDMI Inputs Total: 3 (3 Side)
Analog Audio Input (s) (Total): 1 (Side Analog Conversion)
Digital Audio Output (s): 1 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features4

Frame Colour: Hairline Black
Stand Design: No Stand
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 300 x 300 mm / 11 7/8 x 11 7/8 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 111 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 226W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates1

EMC: Class-B

Measurements3

Dimension of TV without Stand (W x H x D): 1462 x 842 x 71 mm / 57 5/8 x 33 1/4 x 2 7/8 inch
Dimension of TV with Stand (W x H x D): 1462 x 842 x 71 mm / 57 5/8 x 33 1/4 x 2 7/8 inch
Dimension of Package Carton (W x H x D): 1588 x 965 x 184 mm / 62 5/8 x 38 x 7 1/4 inch

Weight3

Weight of TV without Stand: 20.4 kg / 45 lb
Weight of TV with Stand: 21.3 kg / 47 lb
Weight of Package Carton (Gross): 28 kg / 61.7 lb

Further Information1

Product Information Sheet (Europe Only): https://eprel.ec.europa.eu/qr/1393001

Downloads

23 files from the manufacturer

Questions about FW-65EZ20L

Who is the Sony FW-65EZ20L designed for?

The FW-65EZ20L suits organisations that need a large, always-on screen for corporate communication, reception areas, menu boards and meeting rooms. In Qatar, typical users include a West Bay office fitting out a boardroom, a hotel lobby in Lusail or a bank branch in Msheireb. Its 16/7 rating and remote control options make it practical for daily, scheduled use.

What does 16/7 operation mean for this display?

The FW-65EZ20L is rated for 16/7 operation, which means 16 hours a day, seven days a week. This suits a reception or wayfinding screen in a government building or hospital that runs through the working day and into evenings. Confirm your expected daily hours with the SmartRooms Qatar team when planning usage.

What resolution and brightness does the panel offer?

The panel has a 3840 x 2160 resolution and 350 cd/m² brightness, with a 1,200:1 contrast ratio and a 178-degree viewing angle horizontally and vertically. These figures suit indoor spaces such as classrooms, lobbies and meeting rooms, where people view the screen from different positions across the room.

Does the display support HDR content?

Yes, the FW-65EZ20L supports HDR10 and HLG. This helps content creators, marketing teams and media rooms show richer highlights and contrast when the source material is HDR. The 4K X-Reality PRO processing also refines lower-resolution content, which helps when older video or standard-definition material is shown on the screen.

Can the display be mounted in portrait orientation?

Yes, the display is compatible with portrait and tilt installation, and its signal connections are side-mounted for easier access in portrait position. This suits digital signage in a retail corridor or a narrow lobby in Doha. Check the wall structure and cable routing before mounting, because the unit weighs 20.4 kg without a stand.

Is a stand included with the FW-65EZ20L?

No stand is supplied with this model. The product is designed for wall or VESA mounting, using a 300 x 300 mm hole pattern. Measuring 1462 x 842 x 71 mm, the panel needs a suitable mount rated for its weight. SmartRooms Qatar offers free site surveys to confirm the wall and mounting details before installation.

How can the display be controlled remotely?

The display can be controlled over IP networks or through RS-232C, and it supports HDMI-CEC for linked devices. Power on and off, input source and volume can be managed remotely. An IT or facilities team in a multi-site school or hospital can therefore manage several screens from a central point, though the exact control software should be confirmed during the quotation.

Can I show content without a media player or PC?

Yes, the display has 16GB of internal storage and built-in HTML5 support, and it can play content from a USB stick. Android TV is the operating system. This means a simple signage playlist can run without a separate set-top box or PC, which reduces the equipment needed for a small retail counter or a reception wall.

Does it support wireless screen sharing from phones or laptops?

The FW-65EZ20L has integrated Wi-Fi, with Chromecast built-in and Apple AirPlay support. Staff can mirror content from a handheld device onto the screen for presentations in a meeting room. For organisations with strict network policies, confirm the Wi-Fi setup with your IT team before the display is connected to the corporate network.

Is this display suitable for a video conference room in Doha?

The display includes two 10 W down-firing speakers and three HDMI inputs, which allow it to connect to a conferencing system. It suits a small or medium meeting room where a team in Doha speaks with colleagues abroad. Confirm the specific codec and camera with the SmartRooms Qatar team, as the source data does not list certified conferencing integrations.

Can I schedule when the display turns on and off?

Yes, the display supports on/off timers and a sleep timer, and it can wake when an input signal is detected through HDMI auto wake-up. These features help a school in Al Wakrah or an office in Al Sadd reduce unnecessary running time outside working hours. The rated power consumption is 226 W, with standby draw of 0.5 W.

Can this display be installed in an outdoor or unconditioned area?

The source data does not list an operating temperature range for this model, so it should not be treated as an outdoor or unconditioned-area display. Summer temperatures in Qatar regularly exceed 45°C, so confirm the installation environment with the SmartRooms Qatar team before placing the unit near windows, entrances or semi-enclosed spaces.

How do I request a quote for several units for a school or ministry?

Send your requirements, including the number of units, mounting type and locations, and SmartRooms Qatar will prepare a quotation, usually within one working day. We accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A free site survey can be arranged before ordering.
