Sony Digital Signage Current

FW-75BZ30P

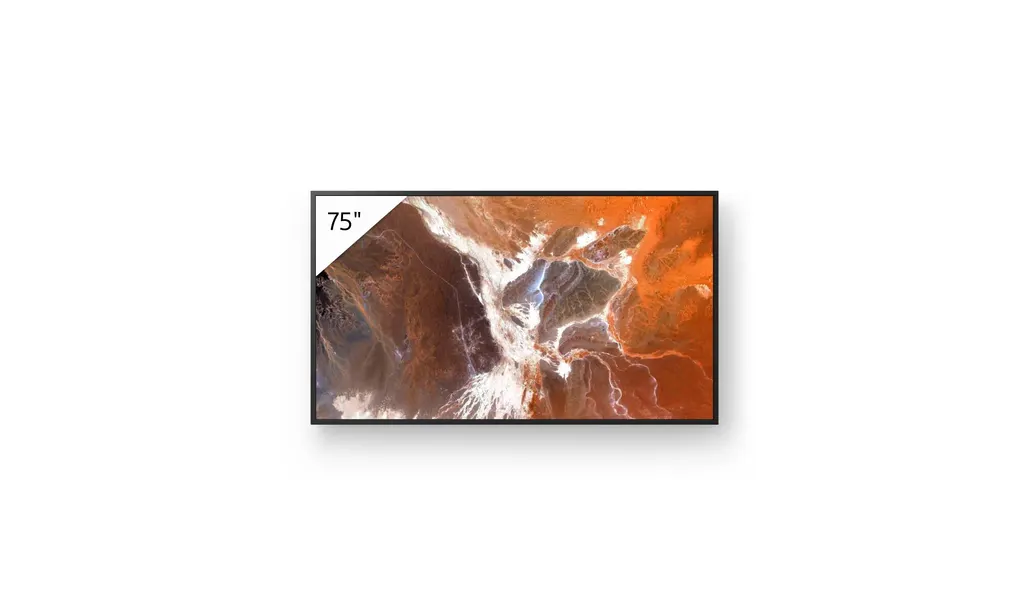

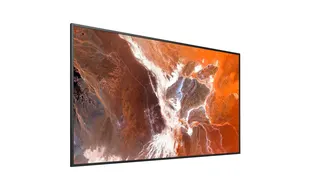

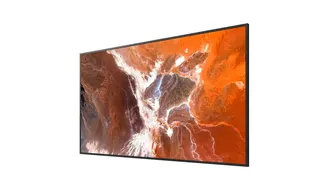

Sony FW-75BZ30P 75-inch 4K HDR Professional Display

Screen size: 75"
Resolution: 3840 x 2160
Brightness: 400 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-75BZ30P is a 75-inch 4K HDR professional display built for digital signage, corporate lobbies and meeting spaces. It offers 400 nit brightness, a 3840 x 2160 IPS panel, an XR Processor and a built-in Android platform that runs signage without an external set-top box. Suited to retail fronts, boardrooms and public areas across Qatar. Request a quote from SmartRooms Qatar.

A 75-inch 4K panel for signage that runs without a set-top box

The Sony FW-75BZ30P is a 75-inch professional display with a 3840 x 2160 IPS panel, 400 cd/m² brightness and HDR10 and HLG support. Its built-in Android platform runs digital signage content directly, so a separate media player is not needed. The real-time clock keeps scheduled playlists running even when the screen is switched off.

Picture performance in brightly lit rooms

Deep Black Non-Glare Standard combines a high-haze, glare-reducing coating rated at 25 percent haze with contrast processing from the XR Processor, which reduces reflections from windows and overhead lights. Rated contrast is 1200:1, dynamic contrast is 300,000:1, and the panel covers 92 percent of DCI-P3 colour. The 178-degree viewing angle horizontally and vertically means people seated off-centre in a boardroom or walking across a retail floor still see a clear image. Lower resolution content is upscaled to near-4K quality.

Where it fits in Qatar

Retail and malls: a shop front or mall corridor in West Bay or The Pearl running promotional loops, with physical buttons and remote restricted to discourage tampering.
Boardrooms and offices: a 75-inch screen for a meeting room in Msheireb or Lusail, where HDMI auto wake-up powers the display and selects the input when a laptop is connected.
Hotels and reception areas: an information or wayfinding display in a Doha hotel lobby, running continuously with power saving mode enabled.

Planning the installation

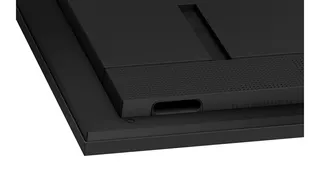

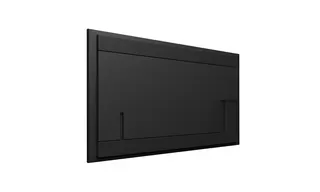

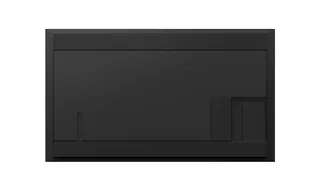

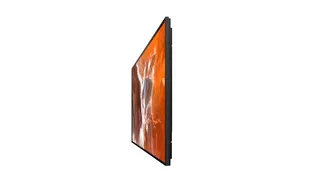

The screen weighs approximately 29.2 kg without a stand and measures about 168.4 x 96.2 x 7.2 cm without stand, so the wall or bracket must be rated for that load and matched to the 300 x 300 mm VESA pattern. The centrally placed mounting holes allow horizontal or vertical mounting, and the integral carry handles help with lifting. SmartRooms Qatar offers free site surveys, which are worth booking before wall-mounting a panel this size in a lobby or corridor.

Plan the power circuit around the rated consumption of 204 W, noting that standby is listed at 0.5 W. The manufacturer states power consumption is up to 31 percent lower than previous models. The data does not list a dust-resistance rating or an operating temperature range, so keep the display indoors and confirm the exact environment with the SmartRooms Qatar team before placing it near a window or entrance.

Managing several screens remotely

Support for remote management applications, with availability varying by sales region, allows control, monitoring and maintenance from the cloud. Zero touch provisioning reduces setup effort across multi-screen deployments, and tilt and temperature sensors can feed data to third-party management systems through an API. Connectivity includes RS-232C, IP control, HDMI-CEC, integrated Wi-Fi and one Ethernet port, with four side HDMI inputs and two side USB ports.

Planning a signage network or a boardroom display? Request a quote from SmartRooms Qatar and we will confirm the mounting, power and connectivity details for your site.

Highlights

75-inch 4K (3840 x 2160) IPS panel with HDR10 and HLG
400 nit brightness with Deep Black Non-Glare Standard
Built-in Android platform, no external set-top box needed
Real-time clock keeps schedules running when powered off
Integrated Wi-Fi, Apple AirPlay and one Ethernet port
300 x 300 mm VESA pattern for horizontal or vertical mounting

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

58 specifications · Source: manufacturer · checked Oct 2026

General Features8

Screen Size: 75"
Brightness (cd/m²): 400
Contrast Ratio: 1200:1
Dynamic Contrast Ratio: 300,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG)
Portrait/Tilt Compatibility: Yes

Display Features10

Dimming Type: Frame Dimming
Panel Type: IPS
Backlight Type: Direct LED
Colour Gamut (DCI-P3): 92%
Picture Processor: XR Processor
Operation Time: 24/7
Deep Black Non-Glare: Standard
Haze (%): 25%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification1

HDMI Signal: 4096x2160p(24, 50, 60Hz), 3840x2160p(24, 25, 30, 50, 60Hz), 1080p(24, 30, 50, 60Hz), 1080i(50, 60Hz), 720p(24, 30, 50, 60Hz), 576p 480p

Audio Specification1

Audio Power Output: 20W

Professional Features8

IP Rating (Dust resistant): No
Real-Time Clock: Yes
Pro Mode: Yes
HDMI Auto Wake-Up: Yes
HTML5 Platform: Yes
Multicast/IPTV: TBD
Operating System: Android
On-board Storage (GB): 32GB

Network Specification1

Wireless LAN: Integrated

Convenience Features5

USB Playback Codecs: MPEG1:MPEG1 / MPEG2PS:MPEG2 / MPEG2TS(HDV,AVCHD):MPEG2,AVC / MP4(XAVCS):AVC,MPEG4,HEVC / AVI,MotionJpeg / MOV:AVC,MPEG4,MotionJpeg / MKV,AVC,MPEG4,VP8.HEVC / WEBM:VP8 / 3GPP:MPEG4,AVC / MP3 / ASF(WMA) / LPCM / WAV / MP4AAC / FLAC / JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs4

HDCP: HDCP2.3 (for HDMI1/2/3/4)
HDMI Inputs Total: 4 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features1

VESA® Hole Pitch (W x H): 300 x 300 mm / 11 7/8 x 11 7/8 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 106 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 204 W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates2

EPEAT: TBD
EMC: TBD

Measurements2

Dimension of TV without Stand (W x H x D): Approx. 168.4 x 96.2 x 7.2 cm
Dimension of Package Carton (W x H x D): TBD

Weight2

Weight of TV without Stand: Approx. 29.2 kg
Weight of Package Carton (Gross): TBD

Downloads

25 files from the manufacturer

Questions about FW-75BZ30P

What is the Sony FW-75BZ30P designed for?

It is a 75-inch 4K professional display for digital signage, corporate lobbies, retail spaces and meeting rooms. Its 400 cd/m2 brightness and glare-reducing coating suit spaces with daylight or overhead lighting, and its built-in signage platform means a retail front in Doha can run promotional content without an external player. Organisations that need one screen for both information and presentations will find it covers both roles.

How bright is the screen, and will it stay readable in a sunlit lobby?

The panel is rated at 400 cd/m2, and its Deep Black Non-Glare Standard treatment, with 25 percent haze, reduces reflections from windows and lights. In a lobby or corridor that gets direct daylight, position the screen away from the glass and avoid facing it toward a window. Confirm the placement with the SmartRooms Qatar team during a site survey before you order.

Do I need a media player for digital signage?

No external set-top box is needed. The FW-75BZ30P uses a built-in system-on-chip platform running Android with 32GB of on-board storage, so content management apps can run directly on the display. The real-time clock keeps schedules running when the screen is switched off, which helps with opening-hour playlists at a bank branch or clinic reception in Al Sadd or Al Rayyan.

What resolution and HDR formats does it support?

The panel has a 3840 x 2160 resolution and supports HDR10 and HLG. Rated colour coverage is 92 percent of DCI-P3. The HDMI inputs accept 3840 x 2160 at 24, 25, 30, 50 and 60 Hz, and lower resolution content is upscaled to near-4K quality, so older HD video still looks sharp on this screen.

Can it be mounted in portrait orientation?

Yes. The data lists portrait and tilt compatibility, and the centrally placed 300 x 300 mm VESA pattern allows horizontal or vertical mounting. This suits menu boards, wayfinding panels and vertical digital posters in a Lusail shopping mall or a hotel corridor. Integral carry handles help during installation. Confirm the bracket and orientation with the installer before fixing the panel to the wall.

How heavy is the panel, and what wall preparation is needed?

The screen weighs approximately 29.2 kg without a stand and measures about 168.4 x 96.2 x 7.2 cm without stand. Use a bracket rated for that load and matched to the 300 x 300 mm VESA pattern. The wall construction should be assessed on site. SmartRooms Qatar offers free site surveys, which we recommend before mounting a panel of this size in a public area.

Which connections does it have?

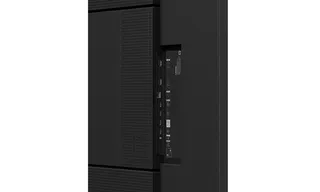

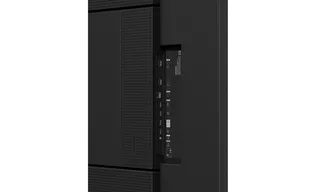

On the side are four HDMI inputs, two USB ports and one Ethernet port. Wireless LAN is integrated, and Apple AirPlay lets staff mirror content from handheld devices. The HDMI ports support HDCP 2.3 for protected sources. HDMI-CEC lets the display follow a connected source, and HDMI auto wake-up turns it on when a laptop or HDMI device is connected.

Can it be controlled by a building or AV control system?

Yes. The data lists IP control, RS-232C control and HDMI-CEC. Physical buttons, the remote control, inputs and selected functions can also be restricted to discourage tampering in stores and public spaces. For an integrated AV room, a control processor can send IP or RS-232C commands, and the SmartRooms Qatar team can confirm command support when you share your room details for a quote.

How are several screens managed across different sites?

The panel supports remote management applications from Sony and other developers, with support varying by sales region. Zero touch provisioning reduces setup effort in multi-screen deployments, and tilt and temperature sensors can feed data to third-party systems through an API. Confirm which remote management application is available in Qatar before planning a rollout across several schools or branches.

Is it suitable for continuous operation in a hospital or hotel?

The manufacturer lists 24/7 operation, and power saving mode and dynamic backlight control reduce consumption during long running hours. The data does not list a dust-resistance rating, so the display should be kept indoors. Ask the SmartRooms Qatar team to confirm the environment before installing it in a hospital corridor or hotel reception that will run continuously.

What is its power consumption?

Rated power consumption is 204 W, and standby consumption is listed as 0.5 W. The manufacturer states that power consumption is up to 31 percent lower than previous models. Use the rated figure with your electrician to plan circuits and cabling at the wall position, and rely on power saving mode to reduce energy use over long periods of operation.

Can we order through an LPO for a government or school project?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. For a school fitting out several corridor displays, send the quantity, mounting locations and LPO details, and we will return a quotation usually within one working day. Products are covered by the manufacturer's warranty.
