Sony Digital Signage Current

FW-75EZ20L

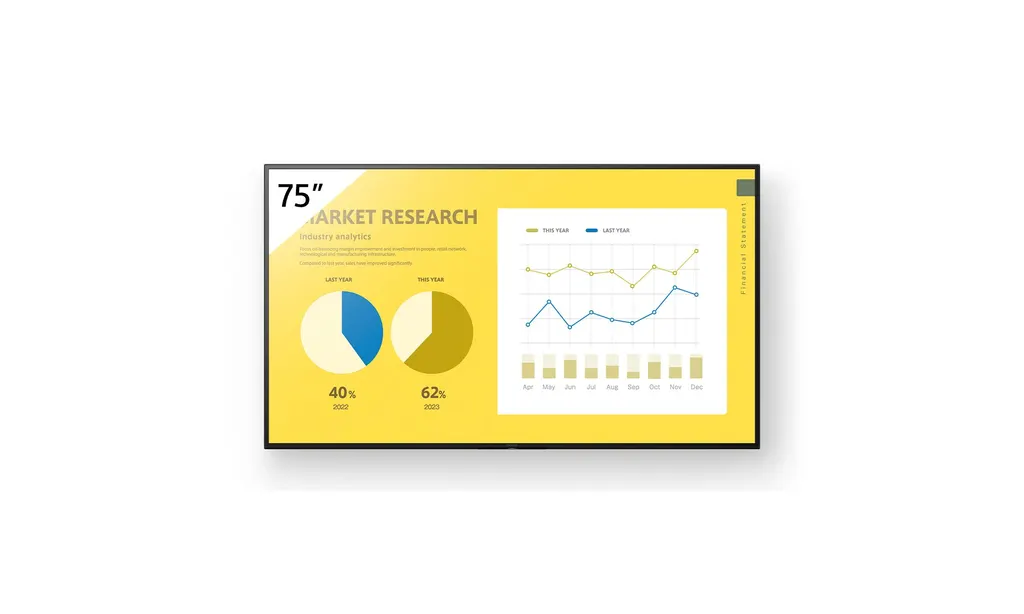

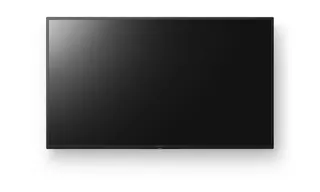

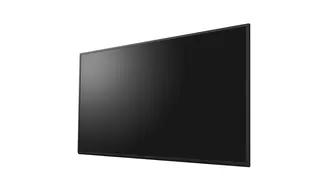

Sony FW-75EZ20L 75-inch 4K Professional Display for Digital Signage

Screen size: 75"
Resolution: 3840 x 2160
Brightness: 350 nit
Operation: 16/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony FW-75EZ20L is a 75-inch 4K professional display built for 16/7 operation, suited to digital signage in lobbies, reception areas and corporate spaces. It pairs a 3840 x 2160 IPS panel rated at 350 cd/m² with HDR10 and HLG support, a 10W + 10W speaker system and built-in Wi-Fi. Organisations in Doha, Lusail and West Bay can request a quote from SmartRooms Qatar.

A 75-inch 4K panel built for long daily schedules

The Sony FW-75EZ20L is a 75-inch professional display from the Pro BRAVIA EZ20L series. Its 3840 x 2160 IPS panel is rated for 16/7 operation, meaning 16 hours a day across seven days a week. That pattern suits a lobby information screen, a hospital waiting area or a shopping mall entrance. Unlike a home television, it is set up for scheduled playback, a locked input source and remote management.

Brightness is rated at 350 cd/m², with a 1,200:1 contrast ratio and a 400,000:1 dynamic contrast ratio. The panel uses direct LED backlighting with frame dimming and covers 75% of the DCI-P3 colour gamut, so menus, photography and brand colours keep their character on screen.

Picture processing, sound and viewing angles

The 4K X1 processor and 4K X-Reality PRO processing scale lower-resolution sources toward 4K detail. Motionflow XR at 200/240 Hz (native 50/60 Hz) keeps fast motion smooth, which helps with scrolling news tickers and video clips. The panel supports HDR10 and HLG, and its 178-degree horizontal and vertical viewing angles keep text readable for people standing well off-centre in a corridor or meeting space.

Audio comes from a down-firing speaker system rated at 10W + 10W. That suits voice announcements and light video audio in small to medium rooms. Larger halls should plan a separate audio system fed from the digital audio output. HDMI Auto Wake-Up switches the screen on when a source signal is detected, which is useful when a presenter connects a laptop.

Connections, control and content without a separate player

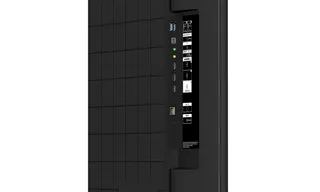

The side of the cabinet carries three HDMI inputs, a composite input, an analog audio input, a digital audio output, two USB ports and one Ethernet port. These stay reachable when the display is mounted in portrait. The display runs Android TV and includes 16GB of internal storage. It can play HTML5 content, videos and photos from internal storage or a USB stick, so simple looping content does not need an external media player. Wi-Fi is integrated, and Apple AirPlay and Google Chromecast are built in for wireless mirroring.

For facilities teams, IP control, RS-232C and HDMI-CEC allow a building management system or a room controller to monitor power, switch inputs and adjust volume. Scheduled on and off times and an input selected at switch-on help keep a group of screens consistent.

Where it fits in Qatar and what to plan for

Corporate reception in Lusail or West Bay: a portrait or landscape wall display for visitor information, company news and wayfinding.
Private school in Al Wakrah: a classroom or corridor screen showing timetables and announcements, scheduled to switch on before the school day begins.
Clinic waiting area in Msheireb: looping patient information and queue updates running through the working week.

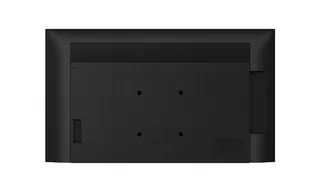

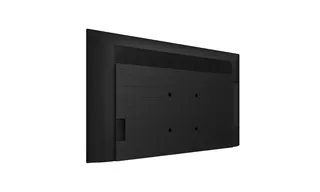

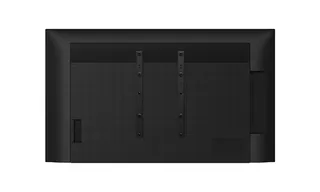

Plan the mounting before ordering. The display is supplied without a stand, so it needs a wall mount or VESA-compatible bracket matched to its 300 x 300 mm hole pattern. At 30.4 kg without the stand, it needs a secure wall or structure. Its dimensions are 1686 x 969 x 72 mm and the packed carton weighs 45 kg, so confirm access to the installation point. SmartRooms Qatar offers a free site survey to check the wall, viewing distance and cable routes before installation.

Rated power consumption is 315 W and standby draw is 0.5 W. The EPREL on-mode figure is 139 kWh per 1,000 hours, which helps when estimating running costs across several screens. Confirm the operating environment with the SmartRooms Qatar team before placing the display near windows or in spaces without air conditioning, because the manufacturer data we hold does not list an operating temperature range. The EMC rating is Class B.

Request a quote from SmartRooms Qatar for the FW-75EZ20L and tell us your site plan, mounting approach and quantity. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tender submissions.

Highlights

75-inch 3840 x 2160 IPS panel rated at 350 cd/m²
Rated for 16/7 operation
HDR10 and HLG compatibility
Three side-mounted HDMI inputs and two USB ports
Built-in Wi-Fi with AirPlay and Chromecast support
IP, RS-232C and HDMI-CEC control

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

69 specifications · Source: manufacturer · checked Oct 2026

General Features9

Screen Size: 75"
Brightness (cd/m²): 350
Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 400,000:1
Response Time (Gray to gray, Typical, ms): 8
Display Resolution (H x V, pixels): 3840 x 2160
HDR (High Dynamic Range) Compatibility: Yes (HDR10,HLG)
Aspect Ratio: 16:9
Portrait/Tilt Compatibility: Yes

Display Features11

Dimming Type: Frame Dimming
Display Device: LCD
Panel Type: IPS
Backlight Type: Direct LED
Colour Gamut (DCI-P3): 75%
Picture Processor: 4K Processor X1
Operation Time: 16/7
Deep Black Non-Glare: No
Haze (%): 1%
Viewing Angle (Right/Left): 178 (89 / 89) degree (CR >10)
Viewing Angle (Up/Down): 178 (89 / 89) degree (CR >10)

Video Specification3

Video Processing: 4K X-Reality PRO
Motion Enhancer: Motionflow XR 200/240Hz (Native 50/60Hz)
HDMI Signal: 4096 x 2160p (24, 50, 60 Hz), 3840 x 2160p (24, 25, 30, 50, 60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i 480p, 480i

Audio Specification2

Speaker Position: Down Firing
Audio Power Output: 10W + 10W

Professional Features4

Pro Mode: Yes (Simplified)
HDMI Auto Wake-Up: Yes
Operating System: Android TV
On-board Storage (GB): 16GB

Network Specification2

Wi-Fi Certified: Yes
Wireless LAN: Integrated

Convenience Features6

USB Playback Codecs: MPEG1:MPEG1/MPEG2 PS:MPEG2/MPEG2 TS(HDV,AVCHD):MPEG2,AVC/MP4(XAVC S):AVC,MPEG4,HEVC,AV1/AVI:MotionJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4/MKV:AVC,MPEG4,VP8,HEVC/3GPP:MPEG4,AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC/JPEG
On Screen Clock: Yes
Sleep Timer: Yes
On/Off Timer: Yes
Chromecast Built-In: Yes
Apple AirPlay: Yes

Control Specifications3

IP Control: Yes
RS-232C Control: Yes
HDMI-CEC: Yes

Inputs and Outputs7

HDCP: HDCP2.3 (for HDMI1/2/3)
Composite Video Input (s): 1 (Side, Mini jack)
HDMI Inputs Total: 3 (3 Side)
Analog Audio Input (s) (Total): 1 (Side Analog Conversion)
Digital Audio Output (s): 1 (Side)
USB Ports: 2 (Side)
Ethernet Inputs: 1 (Side)

Design Features4

Frame Colour: Hairline Black
Stand Design: No Stand
VESA® Hole Spacing Compatible: Yes
VESA® Hole Pitch (W x H): 300 x 300 mm / 11 7/8 x 11 7/8 inch

Environment Specifications10

On-Mode Power Consumption (EPREL): 139 kWh/1000h
Power Consumption (in Standby): 0.5 W
Dynamic Backlight Control: Yes
Power Saving Mode: Yes
Rated Power Consumption: 315W
Power Consumption (Networked Standby) (for Saudi Arabia only): 2.00 W (Wi-Fi) / 2.00 W (Ethernet) / 2.00 W (HDMI)
Power Consumption (Off Mode) (for Saudi Arabia only): Not applicable
Standby Mode Activated (Default) (for Saudi Arabia only): Within 4 hours
Power Consumption (in standby with all network ports connected) (for Saudi Arabia only): Less than 5.00 W
Wireless Network(s) On / Off Switch (Energy) (for Saudi Arabia only): To turn on / off Wi-Fi, press HOME / MENU button on the remote control, then select [Settings] - [Network and Internet] - [Wi-Fi].

Certificates1

EMC: Class-B

Measurements3

Dimension of TV without Stand (W x H x D): 1686 x 969 x 72 mm / 66 1/2 x 38 1/4 x 2 7/8 inch
Dimension of Package Carton (W x H x D): 1824 x 1114 x 187 mm / 71 7/8 x 43 7/8 x 7 3/8 inch
Dimension of TV with Stand (W x H x D): 1686 x 1045 x 410 mm / 66 1/2 x 41 1/4 x 16 1/4 inch

Weight3

Weight of TV without Stand: 30.4 kg / 67 lb
Weight of Package Carton (Gross): 45 kg / 99.2 lb
Weight of TV with Stand: 31.6 kg / 69.7 lb

Further Information1

Product Information Sheet (Europe Only): https://eprel.ec.europa.eu/screen/product/electronicdisplays/1589636

Downloads

23 files from the manufacturer

Questions about FW-75EZ20L

What is the Sony FW-75EZ20L designed for?

It is a 75-inch 4K professional display rated for 16/7 operation, aimed at digital signage and corporate use such as reception screens, information walls and meeting room displays. Its 350 cd/m² panel and 3840 x 2160 resolution suit indoor screens that carry text and video all day. Organisations that need one screen or a group of screens running continuously in Doha and beyond will find it a good fit.

Can it run continuously in a hotel lobby or clinic waiting area in Doha?

Yes, that is the usage pattern it is rated for: 16 hours a day, seven days a week. For a hotel lobby or a clinic waiting area in Msheireb, combine it with scheduled on and off times and a looping playlist stored in internal memory or on a USB stick. Confirm the room's ventilation with SmartRooms Qatar before installation, because the manufacturer data does not list an operating temperature range.

How bright is the screen, and can it work in a lobby with windows?

The panel is rated at 350 cd/m² with a 1,200:1 contrast ratio. The data lists 1% haze but no deep black non-glare finish, so do not assume anti-glare performance. In a window-facing lobby in West Bay, position the screen away from direct sunlight and check reflections on site during the free survey, before deciding on placement.

Does it support HDR content?

Yes, it supports HDR10 and HLG. Combined with the 4K X1 processor and 75% DCI-P3 coverage, it suits marketing content, product visuals and video played from a USB stick or a connected source. It is not a reference monitor for professional colour grading, because its listed DCI-P3 coverage is 75%.

How many inputs are there, and where are they located?

There are three HDMI inputs, one composite input, one analog audio input, one digital audio output, two USB ports and one Ethernet port. All of them are on the side of the cabinet, so they remain accessible when the display is set in portrait. HDCP 2.3 is supported on all three HDMI inputs for protected content.

Can it be mounted in portrait for a corridor or digital menu board?

Yes. The data lists portrait and tilt compatibility, and the side-mounted connections are designed for portrait installation. Choose a bracket for portrait use and confirm that its VESA pattern of 300 x 300 mm matches the display. Route cables before fixing the bracket, because the connectors sit on the side and a tight gap behind the wall can restrict them.

Is a stand included?

No. The FW-75EZ20L is supplied without a stand. Source a wall mount or VESA-compatible bracket separately and check that its load rating covers 30.4 kg without the stand. For a site in Lusail or Al Khor, the SmartRooms Qatar team can survey the wall construction and advise on suitable fixings before the display arrives.

Can it show content without a media player or PC?

Yes, for straightforward content. It supports HTML5 and includes an on-board signage app that plays HTML content, videos and photos from 16GB of internal storage or from a USB stick. Complex playlists or content managed centrally from a server may still need an external player. Confirm your content workflow with the SmartRooms Qatar team before ordering.

How can facilities teams control it from a building management system?

Use IP control or RS-232C. Network control lets you monitor and change power, input source and volume remotely, while RS-232C suits older control systems. HDMI-CEC is also supported. A university in Education City, for example, could switch inputs and set volume centrally across several screens in different rooms.

Can it support wireless screen sharing in meetings?

Yes. Wi-Fi is integrated, and Apple AirPlay and Google Chromecast are built in. A presenter can mirror a handheld device onto the screen without a cable, which suits a meeting room in West Bay where staff share content from their phones. The data also lists Wi-Fi certification.

Is the built-in audio enough for a large room?

The display has a down-firing speaker system rated at 10W + 10W and a digital audio output on the side. That suits voice announcements and light video audio in small rooms. For a lecture hall or event space, plan a separate amplified audio system connected through the digital audio output.

How much power does it use, and what is its energy rating?

Rated power consumption is 315 W, standby draw is 0.5 W and the EPREL on-mode figure is 139 kWh per 1,000 hours. These figures help facilities teams estimate running costs across a school, office or government building. The data also lists Power Saving Mode and Dynamic Backlight Control.
