Name: Sony PT-LIFTHL-4075 Electric Lift for 40-75 inch Touch Displays
Brand: Sony
SKU: sony-pt-lifthl-4075
Availability: InStock

Overview

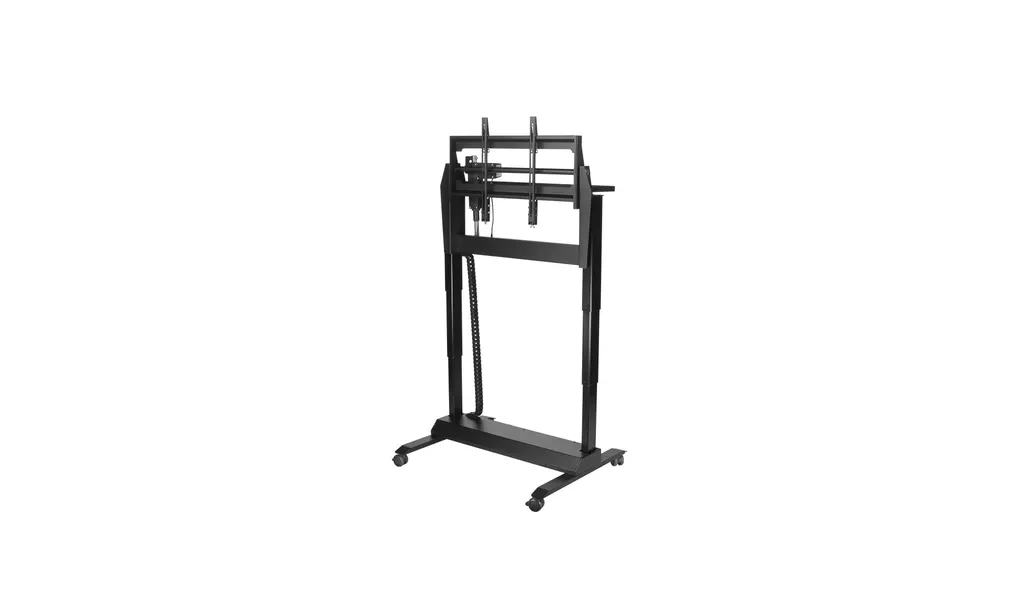

The Sony PT-LIFTHL-4075 is an electric, height-adjustable lift for touch displays from 40 to 75 inches. It raises and lowers a panel over 650 mm of travel, carries up to 137 kg, and includes brackets, a PC holder and two casters with brakes. Anti-collision technology and a wheelchair-accessible design make it suited to schools, offices and meeting rooms across Qatar that need one display at different heights.

What the Sony PT-LIFTHL-4075 does for a touch display

The Sony PT-LIFTHL-4075 is an electric height-adjustable lift that carries a touch display from 40 to 75 inches on a mobile base. Instead of fixing a panel to a wall at one height, staff can raise it for a standing presenter, lower it for seated participants or wheelchair users, and then move the whole unit to another room. It suits organisations that share one interactive screen across several spaces.

The specifications that matter when you plan

Travel: 650 mm (25.6 inch) of electrically driven height adjustment.
Lift speed: 38 mm/s (1.5 inch/s), so a full stroke takes roughly 17 seconds.
Load: up to 137 kg (302 lbs), with the lift itself weighing 38 kg (74 lbs).
Mounting: VESA 100 to 600, extendable to 800 with an optional bracket for VESA 800x400.
Safety: anti-collision technology and a wheelchair-accessible design.

Two casters have brakes, so the unit can be wheeled into position and locked there. A PC holder is fitted, which keeps a presentation computer close to the screen. The base has no tilt function and no built-in cable management, so both need planning. The power socket takes an exchangeable standard mains cable. The finish is a black powder coat, and other colours are available on request.

Where it fits in Qatar

In a secondary classroom in Education City, one lift can serve a science lab on one day and a language room on another, with the height set for the teacher or for students seated at tables. In a West Bay boardroom, the display can be raised for a presentation to a team in another time zone and lowered for discussion around the table. In a clinic reception in Al Sadd, the panel can be lowered for a patient information session that includes a wheelchair user.

What to plan before you order

Confirm your exact display model, weight and VESA pattern against the lift's ratings.
Choose an indoor, climate-controlled area, because the source data gives no operating temperature range.
Plan cable routing separately, since the lift does not include cable management.
Check floor surfaces and door widths along the route the lift will travel.
The shipping carton measures 920 x 975 x 395 mm and weighs 65 kg, so confirm it can reach the room.

SmartRooms Qatar supplies the lift across all eight municipalities of Qatar and can arrange professional installation. A free site survey lets our team check floor space, power access and the route to the room before the unit arrives. Request a quote for the Sony PT-LIFTHL-4075 and we will return a quotation, usually within one working day.

Highlights

Electric height adjustment across 650 mm of travel
Suits touch displays from 40 to 75 inches
Carries up to 137 kg with VESA 100 to 600 mounting
Anti-collision technology and wheelchair-accessible design
Two casters with brakes and a PC holder
One-year warranty, with brackets included

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

27 specifications · Source: manufacturer · checked Oct 2026

Specifications27

Type: High Low Lift / Cart / Stand / Trolley
Manufacturing Country: The Netherlands
Dutch Design: Yes
Electric / Powered Adjustable: Yes (height)
Wheelchair accessible: Yes
Anti-Collision Technology: Yes
Minimum Screen Size: 40 inch
Maximum Screen Size: 80 inch
Maximum Weight Load: 137 kg / 302 lbs
VESA: 100 - 600 (800 with optional bracket)
Lift Speed: 38 mm/s / 1.5 inch/s
Travel: 650 mm / 25.6 inch
Tilt: None
Brackets included: Yes
Wheels / Casters: Yes. Two with brakes
PC Holder: Yes
Cable Management: No
Socket: Power (exchangeable standard mains cable)
Colour: Black (other colours optional)
Finish: Powder Coat
Weight: 38 kg / 74 lbs
Ship Dimensions: 920x975x395 mm / 36.2x38.4x15.6 inch
Shipping Weight: 65 kg / 143 lbs
Woodenbox: ISMP-15 certified
Warranty: 1 year
EAN Number: 8718274260656
Options: Remote Control, brackets for VESA 800x400, other colours, PC Holder

Downloads

1 file from the manufacturer

PDF Datasheets PT-LIFTHL-4075_spec_sheet_en_GB.pdf 147 KB

Questions about PT-LIFTHL-4075

What is the Sony PT-LIFTHL-4075 used for?

It is an electric height-adjustable lift that holds a touch display between 40 and 75 inches on a mobile base. It is used when one screen must suit a standing presenter and seated users, or when the screen needs to move between rooms. Schools, offices and clinics in Qatar often choose this approach to avoid fixing a panel permanently to a wall. Confirm your display model before ordering.

Which screen sizes does the lift support?

The product overview describes the lift as suitable for 40 to 75 inch touch displays, but the specification table lists a maximum screen size of 80 inches. Because the two figures differ, confirm your exact panel size with the SmartRooms Qatar team before ordering an 80-inch display. The listed minimum is 40 inches, and the lift carries up to 137 kg.

How much weight can it carry, including the display?

The maximum weight load is 137 kg (302 lbs), and the lift itself weighs 38 kg (74 lbs). When you calculate the total, add the touch display, its bracket and any computer placed on the PC holder. Large interactive panels can be heavy, so compare the panel's own weight against the rating before you order. The SmartRooms Qatar team can help you check this when preparing your quotation.

How fast does it raise and lower the display?

Lift speed is 38 mm/s (1.5 inch/s), and travel is 650 mm (25.6 inch). At that speed a full stroke takes roughly 17 seconds. This pace suits a teacher adjusting height between lessons or a presenter changing position during a meeting. If you need to change height often, build the adjustment into your session plan.

Can I plug it into a standard wall socket in Qatar?

The source data lists a power socket that takes an exchangeable standard mains cable, but it does not state a voltage rating or plug type. Qatar uses 240 V, 50 Hz mains and BS 1363 (Type G) sockets, so ask the SmartRooms Qatar team to confirm the cable fitted before you order. We can check this while preparing your quotation.

Is it a good fit for a classroom in Education City or Al Wakrah?

Yes, particularly for classrooms that share one screen between two rooms or teach pupils of different ages. A display in the 40 to 75 inch range is common in teaching spaces. The 650 mm of travel lets a teacher lower the screen for seated pupils and raise it for a whole-class demonstration. Because the lift has no cable management, plan the cable route to the wall socket before installation.

Would it work in a boardroom in West Bay or Lusail?

It can, provided there is space to park the unit beside the table and a clear path to it. The PC holder keeps a presentation computer close to the screen, and the two casters with brakes lock the lift in place during meetings. The base has no tilt, so set the viewing angle through seating layout rather than the lift. A site survey confirms the floor and route before delivery.

Can it be used in an outdoor area or near a window in summer?

The source data gives no operating temperature range and no outdoor rating, so do not plan it for an open courtyard, a terrace or a window-facing lobby without confirmation. Summer temperatures in Qatar can exceed 45 degrees Celsius, and dust storms are common. Ask the SmartRooms Qatar team to confirm the right environment for your location before quoting for any space exposed to sun or dust.

Which mounting patterns does it accept?

The lift accepts VESA patterns from 100 to 600, and up to 800 with the optional bracket for VESA 800x400. Brackets are included with the unit. Check the VESA pattern on the back of your touch display and confirm the mounting holes before ordering. If your panel needs an 800x400 pattern, add the optional bracket to your request.

Does it include cable management or a remote control?

No, the lift has no cable management, so route cables with your own trunking or ties during installation. A remote control is listed as an option, so request it in your quotation if you want to adjust height from a distance. Other colours are also available on request, while the standard finish is black.

Can a school or government office order several units through a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. When fitting out several classrooms, send a room list with display sizes so the quotation matches each space. Quotations are usually issued within one working day.

How does anti-collision technology help in a busy clinic or hotel lobby?

The lift includes anti-collision technology and a wheelchair-accessible design. In a busy clinic in Al Sadd or a hotel lobby in Msheireb, these features matter when staff and visitors move around a screen whose height changes. The source data does not describe how the sensing works, so ask the SmartRooms Qatar team to explain its operation before you plan the layout.
