TD-43DHDTU
Trend TD-43DHDTU 43-inch Dual-Sided Ultra HD Hanging Display
- Screen size
- 43 Inch
- Resolution
- 3840x2160 UHD
- Brightness
- 350-700cd/㎡
- Operating temp.
- 0℃~50℃ / 20%～80% RH，40℃ non…
The Trend TD-43DHDTU is a 43-inch dual-sided hanging display with two TFT-LCD screens set behind tempered glass, one rated 700 nits and the other 350 nits. It offers 3840x2160 UHD resolution, a minimum 89-degree viewing angle in each direction, HDMI, USB, LAN and Wi-Fi connectivity, and is rated for 24/7 operation with a 1-year warranty. It suits corridors, lobbies and malls across Doha and wider Qatar where messages must reach people approaching from both sides.
What the Trend TD-43DHDTU provides

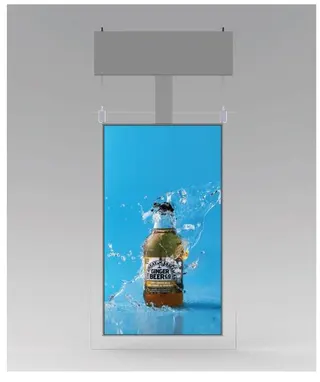

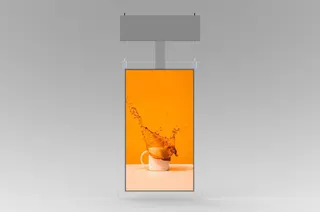

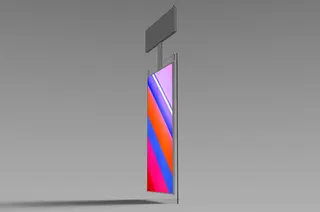

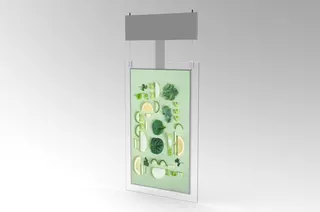

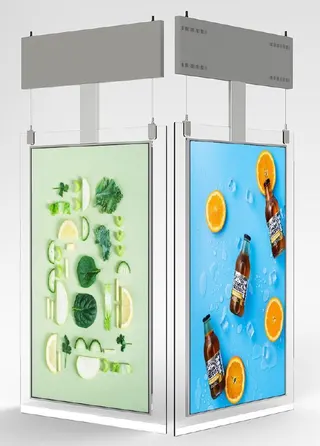

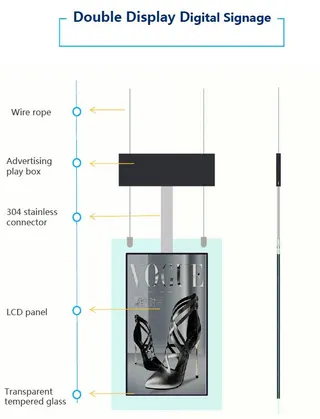

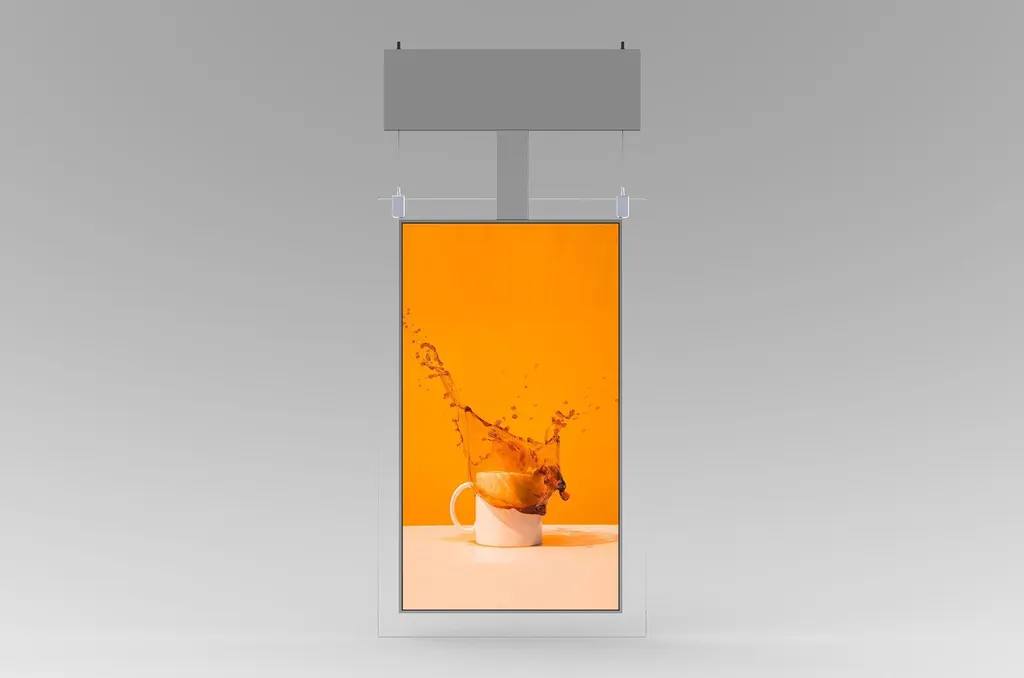

The Trend TD-43DHDTU is a 43-inch digital signage unit built around two TFT-LCD screens, one facing each direction, set behind tempered glass. It hangs from a fixed point, so a single unit can show content to people walking toward it from either side of a corridor, lobby or walkway. Each face has its own brightness rating: Display 1 is rated at 700 nits and Display 2 at 350 nits, so the brighter face can be aimed at the busier or better-lit approach.
Specifications that matter on site
- Resolution: 3840x2160 UHD on a 16:9 panel.
- Viewing angle: at least 89 degrees in each direction, so content stays readable away from the centre line.
- Brightness: 700 nits on Display 1 and 350 nits on Display 2.
- Thickness: listed at 20mm, which keeps the unit slim when hung.
- Operation: rated for 24/7 use with a 50,000-hour life.
Playback, connectivity and control
The unit runs a quad-core Rockchip RK3288 processor with 2GB memory and 8GB storage under Android 5.1. Content can come from one HDMI input, two USB ports or a TF card slot, and the RJ45 LAN port provides a wired network connection. Wi-Fi and Bluetooth are listed, with 4G available as an option. Playback modes include cycle, timed and insertion, and the real-time clock supports timed start-up and shut-down. Images in BMP, PNG, GIF and JPEG are supported, along with video formats such as MP4, WMV, AVI and MPEG. An infrared remote control is supported, and the two displays can show the same content, different content or a split screen.
Where it fits in Qatar

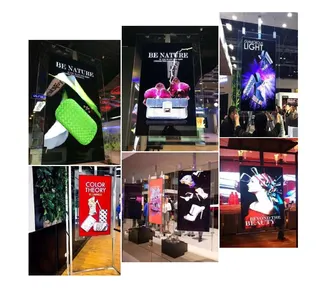

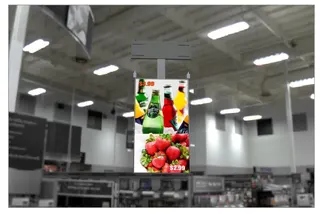

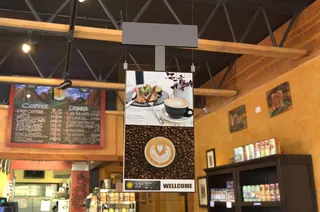

A shopping mall walkway in Doha can use the two faces to direct shoppers arriving from the car park and those heading toward the atrium. In Al Sadd, a clinic or medical centre corridor can show wayfinding to consultation rooms on one side and patient information on the other. In West Bay or Lusail, a hotel or office lobby can use one hanging unit to share notices across a reception area without taking up floor space. The unit is rated for indoor use only, with an operating range of 0 to 50°C and 20 to 80% relative humidity, non-condensing at 40°C. During Qatar summers, when outdoor temperatures can exceed 45°C, it should sit inside an air-conditioned space rather than near an open entrance.
What to plan before installation
- Load: the listed weight is 15 kg plus 3 kg per piece, so the ceiling or structure should be checked before mounting.
- Power: the AC input is 100-240V at 50/60Hz with a maximum consumption of 85W, which covers Qatar's 240V, 50Hz supply.
- Network: decide between a LAN drop and Wi-Fi coverage, and confirm where the content source will sit.
- Viewing: decide which face carries priority content and set the location accordingly.
SmartRooms Qatar offers free site surveys, professional installation and delivery to all eight municipalities of Qatar. Send us your floor plan, mounting height and intended content, and the SmartRooms Qatar team will return a quotation, usually within one working day. The unit carries a 1-year manufacturer warranty. Request a quote today to plan a dual-sided display for your corridor, lobby or entrance.
Highlights
- Two screens: 700 nits on Display 1, 350 nits on Display 2
- 3840x2160 UHD resolution on 16:9 TFT-LCD panels
- Minimum 89-degree viewing angle in each direction
- Hanging installation with a listed thickness of 20mm
- Rated for 24/7 operation, 50,000-hour life, 1-year warranty
- Cycle, timed and insertion playback with Wi-Fi and LAN
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Quick Details8
- Brand Name
- Trend Displays
- Model Number
- TD-43DHDTU
- Resolution
- 3840x2160 UHD
- Brightness
- 350-700cd/㎡
- Warranty
- 1 Year
- Output
- Display signal×2（Double screen display） Infrared receiver Remote control） Audio output( left and right channel output 8W×2 loudspeakers
- Video
- Support WMV、AVI、RM、RMVB、FLV、MPEG、TS etc，MP4。 Picture format supports BMP、PNG、GIF、JPEG Support multiple play modes such as cycle, timing and insertion
- Color
- White & Black
Technical22
- Aspect Ratio
- 16：9
- Input
- HDMI interface×1/USB interface×2/TF card slots×1 LAN Ethernet interface×1
- Life
- 50000 hours
- Operating temperature
- 0℃~50℃ / 20%～80% RH，40℃ non condensation
- Operations
- 24/7
- Others
- Real time clock supports time start up and shut down expanding SATA hardware

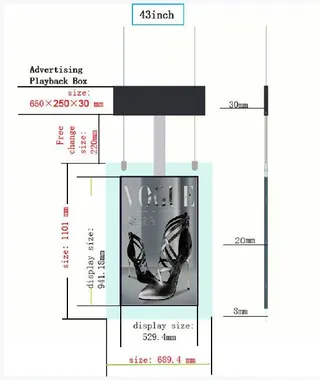

- Physical dimension
- 1260*400*950mm
- Power supply
- AC100-240V 50/60Hz
- Support network
- RJ45 wirde network interface,3G,support Wifi / BT,4G function(optional)
- working environment
- Indoor
- Type
- TFT-LCD
- Viewing Angle
- 89/89/89/89 (Min.)(CR≥10)
- Storage
- 8GB
- CPU
- Rockchip RK3288 Superstreng quad core 1.8GHz Cortex-A17 framework，quad core GPU mail-T764 memory：DDR3 2G storage EMMC 8G（Android 5.1）
- Maximum Power Consumption
- 85W
- Touch screen
- Optional
- Memory
- 2GB
- Size
- 43 Inch
- Weight
- 15Kg+3Kg/pcs
- Storage Temperature
- 0℃~50℃
- Humidity
- 20%～80% RH，40℃ non condensation
- Power
- 85W
