ViewSonic Digital Signage Current

CDE105UW

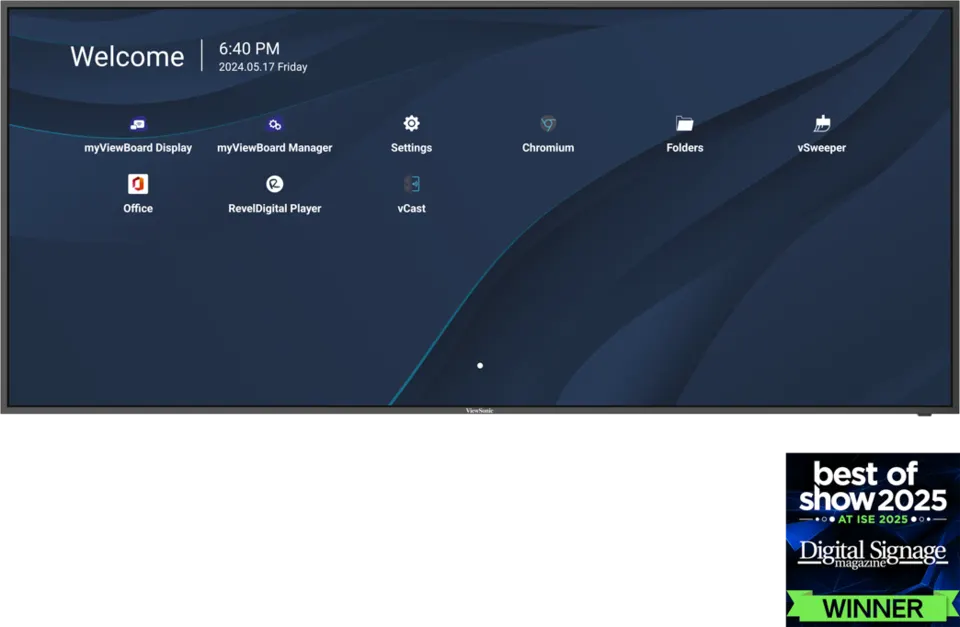

ViewSonic CDE105UW 105-inch 5K Ultrawide Presentation Display

Screen size: 105"
Resolution: 5120 x 2160
Brightness: 500nits (typ.)
Contrast: 5000:1 (typ.)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic CDE105UW is a 105-inch ultrawide display with 5K resolution (5120 x 2160) in a 21:9 format, built for 24/7 commercial use. It runs Android 13, provides a USB-C port rated at 100W, and supports wireless sharing and Microsoft Teams Rooms Front Row mode. It suits boardrooms, command rooms and corporate lobbies in Qatar that need one wide screen for content and video calls.

A 105-inch 5K ultrawide panel for wide-format rooms

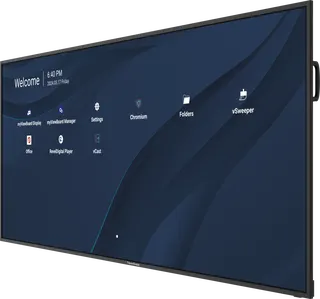

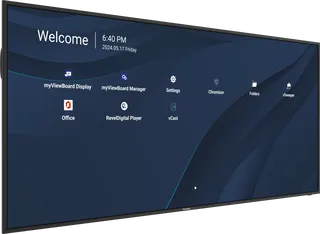

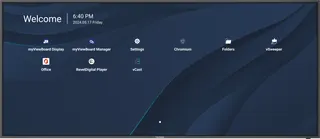

The ViewSonic CDE105UW is a 105-inch digital display with a 5120 x 2160 native resolution and a 21:9 aspect ratio. The panel is a VA-type LCD with DLED backlight, giving 500 nits typical brightness and a 5000:1 typical contrast ratio. Its screen area measures 2449.92 mm wide by 1033.56 mm high, and the viewing angle is rated at 178 degrees both horizontally and vertically, so people seated well off-centre still read the same content.

Compared with a 16:9 panel of the same diagonal, the wider format offers 33% more screen space. That extra width lets a meeting show a document beside a video call, or a live feed next to a schedule, without shrinking either one.

Specifications that shape the buying decision

Four areas matter most for procurement. The first is the input set: one HDMI 2.1 port carries 5K at 60Hz, three more carry 4K at 60Hz, and a DisplayPort input is also fitted. The second is the rear USB-C port, which delivers up to 100W of power when no OPS module is fitted and 65W when one is. The third is the internal platform, an octa-core processor with 8GB DDR4 memory and 128GB eMMC storage running Android 13. The fourth is the operating rating of 0°C to 40°C and 20% to 80% humidity, non-condensing, for 24/7 operation.

An 80-pin OPS slot for a plug-in computing module
RS-232 port for control, and one RJ45 Ethernet port in and one out
Two speakers at 20W each plus a 20W subwoofer

Where the CDE105UW fits in Qatar

In a boardroom in West Bay or Msheireb, the panel can serve as the main display for hybrid meetings, with a camera or video bar added from the optional accessory range. Its landscape and portrait orientation also suits a Teams-based command room, where one side shows operational dashboards and the other shows the video call.

A school in Al Wakrah or Education City fitting out a large lecture hall can use it for presentations and recorded lessons. In a property sales gallery in Lusail or a mall lobby in Doha, the same format supports digital signage, and portrait mode suits vertical menus and wayfinding.

What to plan before installation

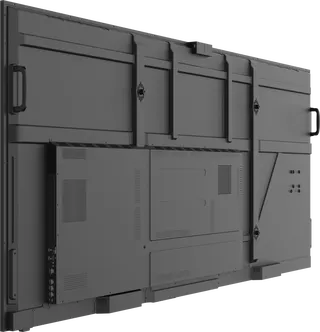

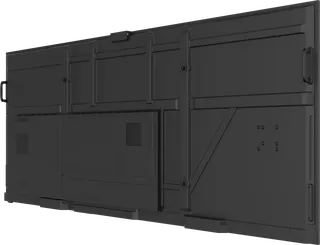

Plan the mount before the panel arrives. The VESA pattern is 1000 x 600 mm, and the net weight is 53.05 kg, or 74 kg gross in packaging, so at least two people are needed to lift it. The physical dimensions are 2489.9 x 1081.4 x 77 mm. SmartRooms Qatar offers a free site survey to check wall structure, fixing points and cable routes to the rear inputs before the quotation is confirmed.

Summer temperatures in Qatar can exceed 45°C. Because the rated operating range stops at 40°C, the panel should sit in an air-conditioned space, and the ventilation plan should be confirmed before installation. Rated power consumption is 405W with Energy Star. The power cord is supplied per shipping area, so confirm the plug type with the SmartRooms Qatar team.

Ready to specify the CDE105UW for your room? Request a quote from SmartRooms Qatar. Our team will confirm options such as the Wi-Fi module and slot-in PC, along with installation details, usually within one working day. Purchase orders and government tender documents are welcome.

Highlights

105-inch 21:9 panel at 5120 x 2160 native resolution
500 nits typical brightness and 5000:1 typical contrast
USB-C port with up to 100W power delivery
Android 13 with octa-core processor, 8GB RAM and 128GB storage
Rated 0°C to 40°C for 24/7 operation
Landscape and portrait use with 1000 x 600 mm VESA mount

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

49 specifications · Source: manufacturer · checked Oct 2026

Display13

Panel Size: 105"
Type/ Tech: TFT LCD Module with DLED Backlight, VA
Display Area (mm): 2449.92(H) x 1033.56(V) (105" diagonal)
Native Resolution: 5120 x 2160
Aspect Ratio: 21:9
Colors: 1.07G colors (8bits+ 2bits FRC)
Brightness: 500nits (typ.)
Contrast Ratio: 5000:1 (typ.)
Viewing Angles: H = 178, V = 178 (Typ.)
Backlight Life: 50,000 hrs (typ.)
Surface Treatment: Panel Hard Coating 3H
Bezel: 18/18/18/18 mm

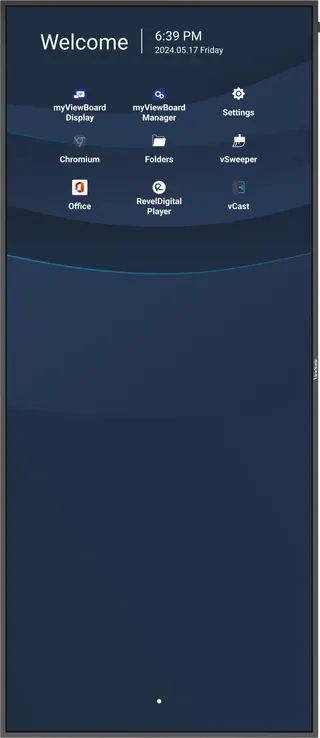

Orientation: Landscape & Portrait

Platform3

Processor: Octa-Core CPU (A76*4 + A55*4)
RAM: DDR4 8GB
Storage: 128GB (eMMC)

INPUT6

HDMI: REAR x 4 (1x HDMI 2.1 5K@60Hz/ 3x HDMI 2.1 4K@60Hz)
DisplayPort: 1
Audio: 1 (3.5mm phone jack)
RS-232: 1
OPS Slot: 1 (OPS Slot 80pin)
WiFi Slot: 1 (Module Slot)

OUTPUT3

HDMI: 1
Audio: 1 (Line Out)
SPDIF: 1

LAN1

RJ45: 1 in 1 out (Android & PC 10M/100M/1000Mbps)

USB2

Type A: REAR x 1 (USB2.0 support OTG) REAR x 2 (USB 3.2 Gen 1) TOP x 2 (USB3.2 Gen 1) support Smart USB
Type C: REAR x1 (PD100W+ DP1.2 + USB2.0, 100M ethernet) support smart USB (dynamic PD: W/OPS 65W, W/O OPS 100W)

SPEAKERS1

Value: 20W x 2 + 20W x 1 (Subwoofer)

COMPATIBILITY2

HDMI: HDMI 1: 5120x2160 @60Hz (YUV444) 5120x2160 @30Hz (YUV420) HDMI 2/3/4: 3840x2160 @60Hz
DisplayPort: 5120 x 2160

Embedded OS1

Value: Android 13

Bundled Software4

Wireless Presentation: myViewBoard Display, vCast, AirSync* *myViewBoard Display will be replaced by AirSync in Q1 2025.
Device Management: ViewSonic® Manager
ViewSonic Launcher: Yes
Revel Digital: Yes

POWER2

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 405W with Energy Star

ERGONOMICS1

Wall Mount (VESA® ): 1000 x 600 mm

OPERATING CONDITIONS2

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

Operating Hours1

Value: 24/7

DIMENSIONS (W x H x D)2

Physical (inch / mm): 98.03 x 42.57 x 3.03 in / 2489.9 x 1081.4 x 77 mm
Packaging (inch / mm): 105.04 x 48.54 x 11.02 in/2668 x 1233 x 280 mm

WEIGHT2

Net (lb / kg): 116.96 lb/ 53.05 kg
Gross (lb / kg): 163.14 lb/74 kg

REGULATIONS1

Value: cTUVus,FCC/ICES003,CE/EMC,CB/LVD,EAC,UkrSEPRO,UKCA,UK-EEL,LBL,FF,ErP-EEL,WEEE,Green BOM,RoHS DoC,ErP-Eco,REACH, EPEAT

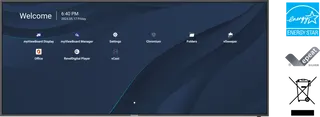

Energy Star1

Value: ES 8.0

PACKAGE CONTENTS1

Value: 1. 3m power cord by ship area 2. Type C cable 1.8m(USB-IF certified) 3. Remote control with AAA battery x2 4. Quick Start Guide 5. RS232 adapter 6. Clamp x 5 7. Camera Plate x 2(1 for VB-CAM-201, 1 for UMB202) 8. Screw x 8 (camera 2+2, wall mount 4) 9. HDMI cable 3m(HDMI LA certified) 10. Compliance statement

Downloads

9 files from the manufacturer

PDF Datasheets CDE105UW_Datasheet.pdf 490 KB PDF Manuals & guides CDE105UW_QSG.pdf 1.1 MB PDF Manuals & guides CDE105UW_UG_ENG.pdf 18.1 MB URL Manuals & guides · Opens on manufacturer site CDE105UW UserGuide (ﺍﻟﻌﺭﺑﻳﺔ) PDF Drawings & CAD CDE105UW_2D_drawing.pdf 2.7 MB URL Drawings & CAD · Opens on manufacturer site CDE105UW 3D drawing(stp) RFA Drawings & CAD · Opens on manufacturer site ViewSonic_Commercial Display_CDE105UW.rfa URL Software & firmware · Opens on manufacturer site CDE105UW Firmware_Pack_20241224 URL Software & firmware · Opens on manufacturer site vCast 4-in-1

Questions about CDE105UW

What is the ViewSonic CDE105UW designed for?

The CDE105UW is a 105-inch commercial display for rooms where one wide screen has to carry content and video calls at the same time. Its 21:9 panel at 5120 x 2160 suits boardrooms, command and control rooms, corporate lobbies and digital signage. The 24/7 operating rating means it can run as an information screen all day, and landscape and portrait orientation covers both kinds of use.

How much more screen space does the 21:9 format give?

The manufacturer rates it at 33% more screen space than a 16:9 display of the same size. On a 105-inch diagonal, that wider format fits a document, a shared application and a live video window side by side. In a meeting room in Doha where people switch between a presenter and remote colleagues abroad, this layout reduces the need for a second screen.

Can the CDE105UW sit in a lobby facing a window in Doha?

Keep it out of direct sunlight and in an air-conditioned space. The rated operating temperature is 0°C to 40°C with 20% to 80% humidity, non-condensing. Qatar summer temperatures often exceed 45°C, so a lobby with a glazed frontage needs cooling and shading planned before the panel is placed. Confirm the room conditions with the SmartRooms Qatar team when requesting a quote.

Does it work with Microsoft Teams Rooms?

The display is optimized for Microsoft Teams Rooms Front Row mode, which shows remote attendees, shared content and chat on one screen. Cameras, video bars and Teams Rooms bundles are optional accessories listed separately. For a boardroom in West Bay, state the room system you need when requesting a quote, so the panel and accessories are specified together.

Which ports should I plan for when connecting laptops and sources?

The rear USB-C port carries video, data, Ethernet and up to 100W of power to a laptop through a single cable when no OPS module is fitted. There are four HDMI inputs, one HDMI 2.1 port at 5K 60Hz and three at 4K 60Hz, plus a DisplayPort input and a 3.5mm audio input. An RS-232 port supports control, and one HDMI output is also provided.

What does the OPS slot do, and does it change USB-C power?

The 80-pin OPS slot takes a plug-in computing module. The manufacturer lists a slot-in PC with Intel processors and Windows support as an optional accessory. When an OPS module is fitted, USB-C power delivery drops from 100W to 65W. Teams planning a Windows-based room should factor this in, because a laptop that needs the full 100W may not receive it.

What wall mount does the CDE105UW need?

The panel follows a 1000 x 600 mm VESA pattern. The box includes eight screws, four of them for the wall mount, and the rest for camera plates. Net weight is 53.05 kg and gross weight is 74 kg, so two people should lift it. Physical dimensions are 2489.9 x 1081.4 x 77 mm. A free site survey lets our team check the wall and fixing points before the mount is ordered.

Is Wi-Fi included, and can the panel act as a hotspot?

Wi-Fi is added through an optional Wi-Fi module that fits the module slot. The manufacturer states the display can then double as a hotspot for meeting rooms and hallways. For an office in Al Sadd or a school in Education City, the RJ45 Ethernet port can be used instead where network policy requires a wired connection. Ask for the module to be included in your quotation.

How do IT teams manage several panels across a school or campus?

The panel ships with ViewSonic Manager pre-installed. It lets IT staff manage one or many devices centrally, schedule automatic on and off times to reduce power use, broadcast messages and troubleshoot issues remotely. A private school in Al Wakrah fitting out classrooms across several buildings can set one schedule for the whole site and push announcements to every screen from a single console.

What comes in the box?

The box includes a 3m power cord matched to the shipping area, a 1.8m USB-C cable, a remote control with two AAA batteries, a quick start guide, an RS-232 adapter, five clamps, two camera plates, eight screws, a 3m HDMI cable and a compliance statement. Confirm the plug type for Qatar sockets with the SmartRooms Qatar team before installation.

Will it run on Qatar's 240V mains supply?

The power specification is 100-240VAC with a plus or minus 10% tolerance, a wide range that includes the 240V supply used across Qatar. Rated consumption is 405W with Energy Star, and the source lists Energy Star version ES 8.0. The panel also carries EPEAT Silver certification, which some procurement teams ask for when comparing bids for schools and government offices.

Can a government ministry or school buy it through an LPO or Monaqasat tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. Send the room size, the number of panels and the mounting location, and the team usually returns a quotation within one working day. For several CDE105UW units in one building, a single quotation can list each unit with its mount and installation.
