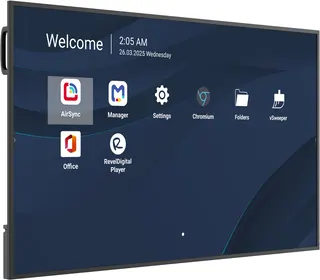

CDE6514-2C

A 65-inch 4K commercial display for continuous use

The ViewSonic CDE6514-2C is a 65-inch commercial display with a native 3840 x 2160 resolution and a 16:9 TFT LCD panel with DLED backlight. It is rated for 24/7 operation, so it suits lobbies, customer areas and information points that stay switched on through long opening hours. The anti-glare coating with 25% haze helps screens stay readable in bright rooms, where reflections from windows would otherwise wash out the picture.

Key specifications that matter for buyers

• Brightness: 500 nits typical, suited to well-lit offices and shopping areas.
• Contrast: 1500:1 typical, rising to 2000:1 with DCR enabled.
• Response time: 11 ms, with viewing angles of 178 degrees horizontal and vertical.
• Backlight life: 50,000 hours.

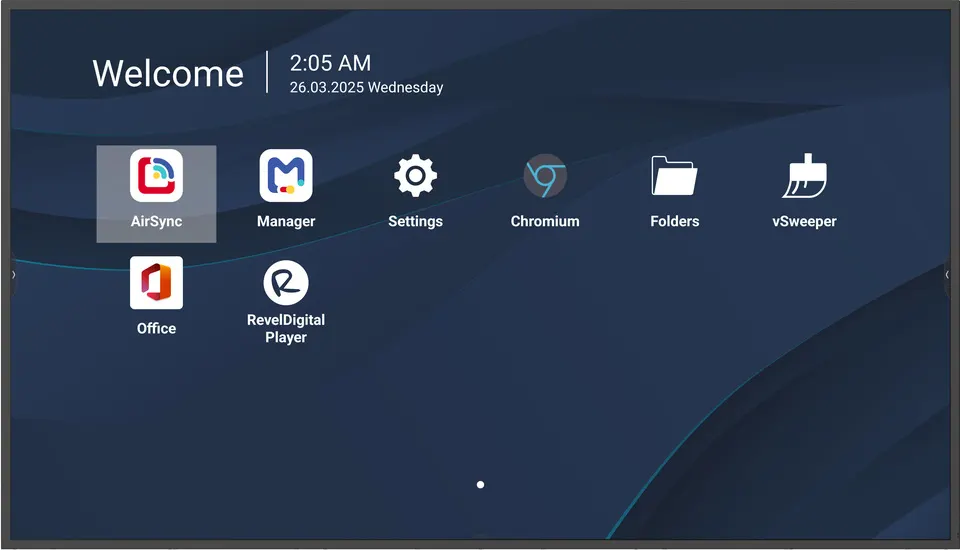

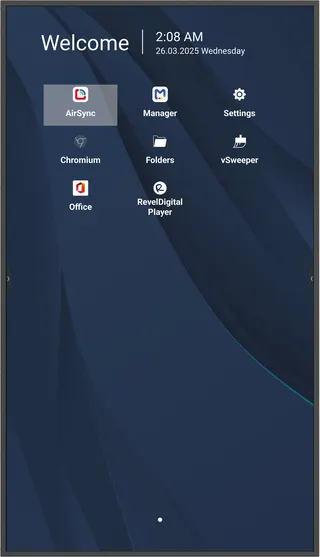

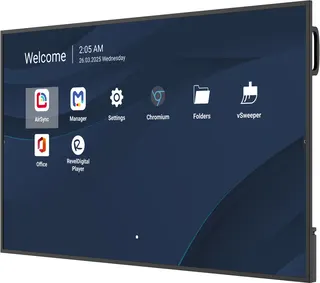

The unit runs Android 14 (AOSP) on a quad-core ARM Cortex-A73 processor with 4GB DDR4 RAM and 32GB storage. It can play scheduled content from a USB drive, and its signal failover switches to that USB playback when the primary source is lost, so a reception or wayfinding screen does not go blank during an outage. Landscape and portrait orientation let one model serve a wide corporate screen or a tall directory screen.

Connectivity and control for AV and IT teams

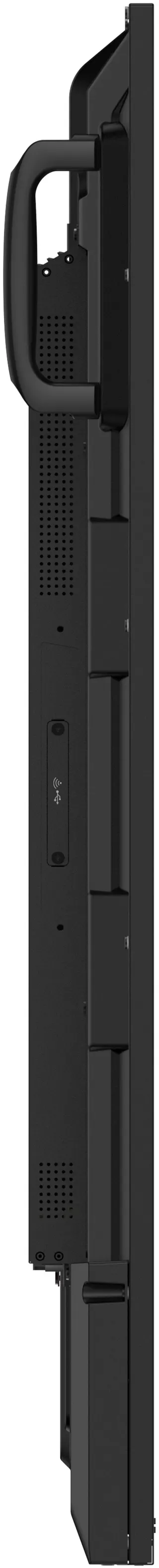

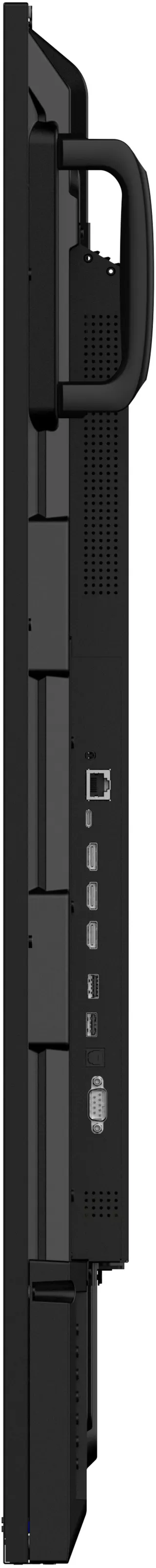

The rear panel provides three HDMI inputs (HDMI 2.1 at 4K 60 Hz, with ARC on HDMI 3), an RS-232 control port, a WiFi module slot, one RJ45 LAN port (10/100M), two USB 2.0 Type-A ports and one USB Type-C port. The USB-C port carries DisplayPort 1.2, USB 2.0, 15 W power delivery and Ethernet sharing, so a compatible laptop can connect over a single cable. Audio leaves through a 3.5 mm output and an SPDIF output, and two 10 W speakers are built in.

For larger installations, the display is compatible with Crestron XiO Cloud and carries Crestron Connected certification, holds Extron IP Link certification, offers a Q-SYS Verified Plugin and supports AMX. These integrations let a control system manage the screen alongside lighting and audio, whether the room is on site or managed remotely. ViewSonic Manager and web-based device management support deployment and monitoring across several units.

Where it fits in Qatar

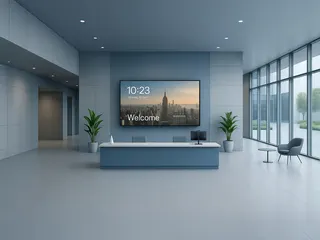

• Corporate lobbies in West Bay or Lusail: a visitor information screen running around the clock, with USB content as a fallback if the main player stops.

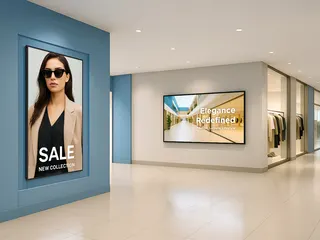

• Retail and malls: portrait-mode promotional or wayfinding screens at shop entrances and in mall corridors.
• Meeting and training rooms in Doha: a 65-inch display for teams that connect with colleagues abroad, paired with the control system already used in the building.

What to plan before you order

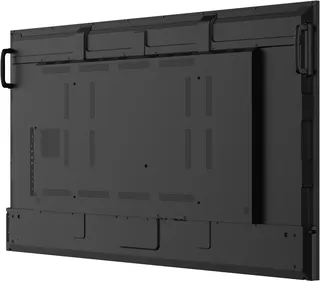

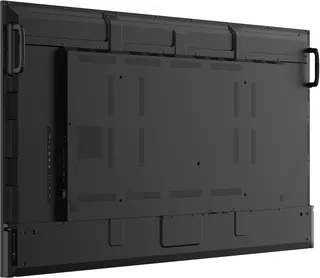

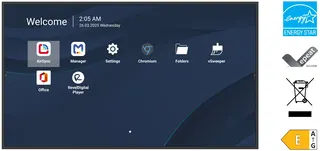

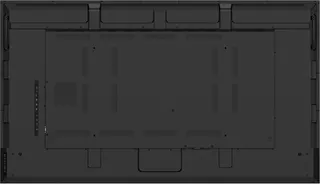

At 23.85 kg net, the unit needs a wall bracket that matches its VESA 600 x 400 mm pattern and a wall that can carry its weight. The box includes four wall-mount screws, but the bracket itself should be specified for this weight. SmartRooms Qatar offers free site surveys, which are worth booking before you wall-mount a unit in a lobby or corridor. Keep the installation area air-conditioned: the operating range is 0 to 40°C with 20% to 80% RH non-condensing, and summer temperatures in Qatar can pass 45°C. The power input is rated 100 to 240 VAC with ±10% tolerance, which covers the 240 V mains supply in Qatar, and listed consumption is 80.65 W with Energy Star.

SmartRooms Qatar delivers to all eight municipalities, installs the display and usually issues quotations within one working day. Organisations buying several units can order through purchase orders (LPOs) or government tenders, including Monaqasat. Request a quote for the CDE6514-2C and we will confirm availability, the lead time and the mounting accessories for your site.
