ViewSonic Digital Signage Current

CDE6530

ViewSonic CDE6530 65-inch 4K Presentation Display

Screen size: 65"
Resolution: 3840 x 2160
Brightness: 450 nits (typ.)
Contrast: 1200:1 (typ.)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic CDE6530 is a 65-inch 4K Ultra HD presentation display from the CDE30 Series, built for continuous 24/7 use. It offers 450 nits typical brightness, landscape or portrait orientation, a USB-C port that carries video, data and up to 65W power over one cable, and wireless screen sharing. Its Android 11 platform and optional Windows slot-in PC suit lobbies, corporate meeting rooms and campus communication points across Qatar. Request a quote from SmartRooms Qatar for your next project.

A 65-inch 4K display built for continuous use

The ViewSonic CDE6530 is a 65-inch display from the CDE30 Series for organisations that need a screen running all day. It has a 3840 x 2160 native panel, 450 nits typical brightness and 1200:1 typical contrast, rising to 5000:1 when dynamic contrast is enabled. The panel is rated for 7/24 operation, and its backlight is specified at 50,000 hours.

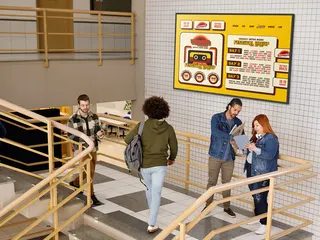

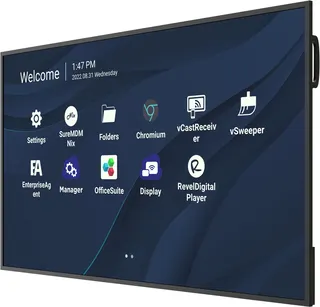

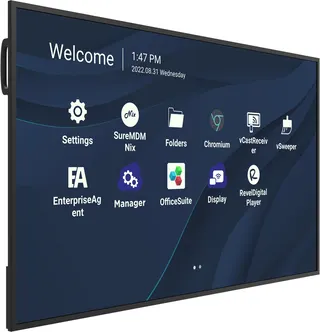

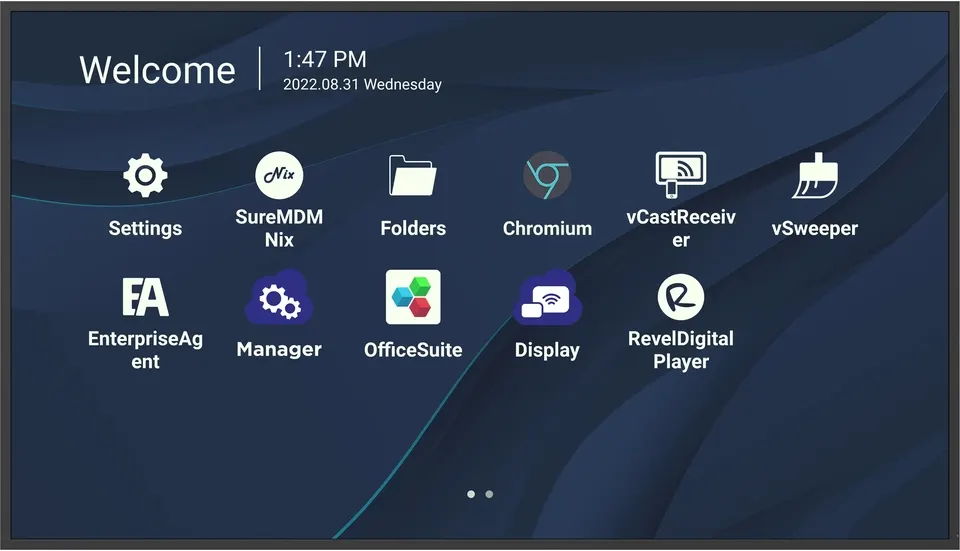

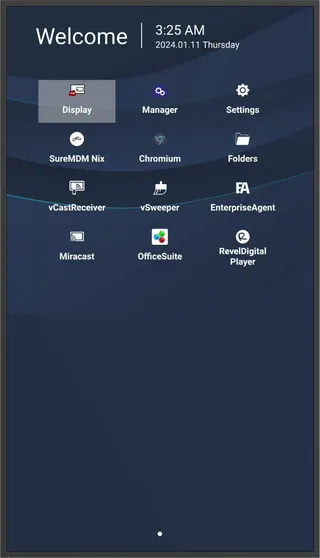

The display runs a quad-core ARM Cortex A55 processor with 4GB RAM and 32GB storage under Android 11, so it can play content without an external media player. It works in landscape or portrait orientation, which suits digital signage in a corridor or lift lobby.

Connections for laptops, media players and control systems

The USB-C port is the main link for a presenter. One cable carries video over DisplayPort 1.2, USB 2.0 data, 100M Ethernet and up to 65W of power delivery, so a laptop can connect and charge at the same time.

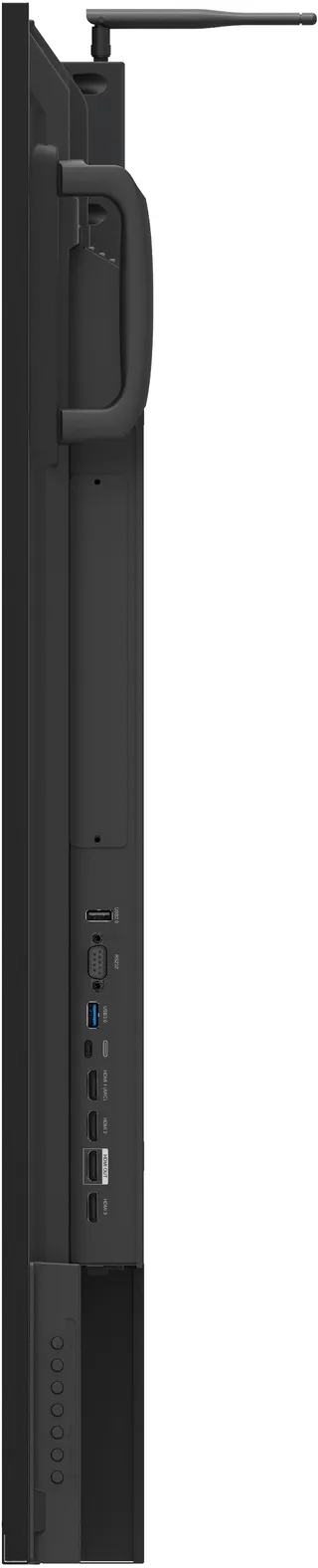

Other connections include three HDMI 2.1 inputs (one with ARC), an HDMI 2.0 output, an OPS slot, a Wi-Fi slot, an RS-232 port for control, an RJ45 LAN port, USB 2.0 and USB 3.0 Type-A ports and an SPDIF output. An optional Windows slot-in PC is available for this model, with an Intel Core i7 processor, 8GB RAM expandable to 64GB and 256GB SSD storage, for rooms that need Windows software on the screen itself.

Sharing content wirelessly and managing many screens

Wireless sharing comes through myViewBoard Display for browser-based mirroring with no cable or download, and vCast for split, extended and grouped layouts from any device. AirPlay and Chromecast are also supported. This suits a university seminar room where visitors need to present quickly.

For IT teams, myViewBoard Manager is a web-based platform for broadcasting messages, pushing content and applying software updates across many panels from one place. Remote Desktop support avoids a site visit. Device usage insights require the Advanced edition.

Planning the wall, power and room environment

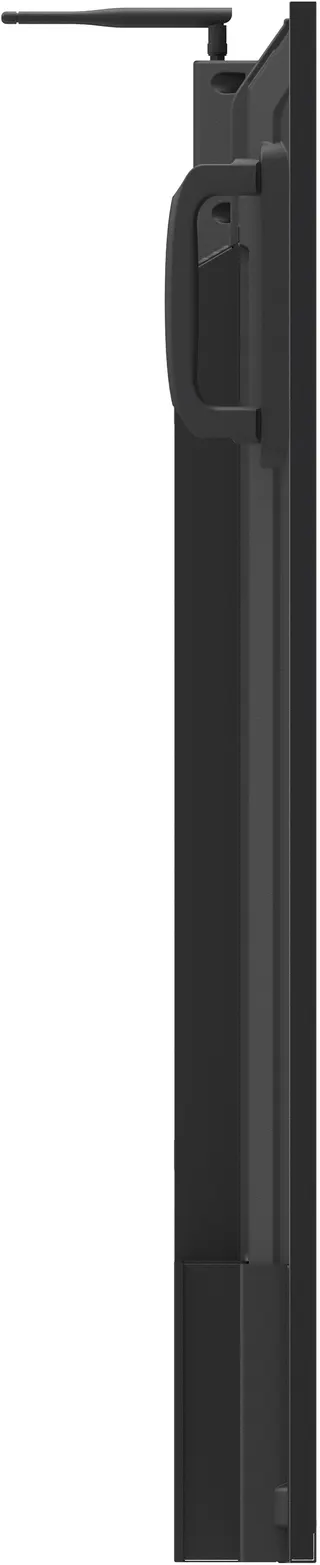

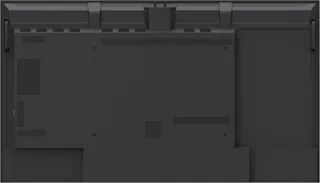

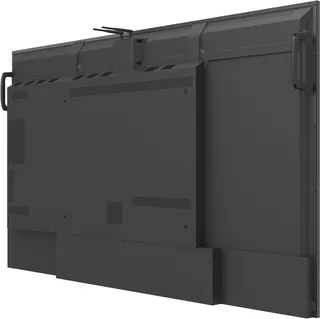

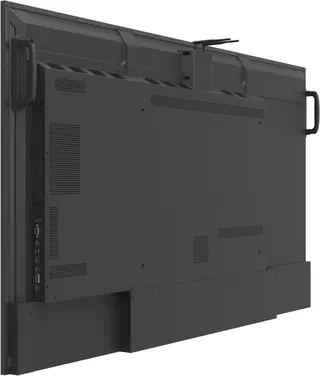

Physical size is 1463.3 x 838.3 x 81.6 mm and net weight is 25.4 kg, with a gross shipping weight of 33.25 kg. Mount it to a VESA 600 x 400 mm pattern on a wall that can carry the load, using the four wall mount screws in the box. A free site survey from SmartRooms Qatar helps confirm wall construction and outlet position before installation.

Power input is 100-240 VAC plus or minus 10%, drawing about 88 W typical and under 0.5 W when off. That input range covers Qatar's 240 V mains. The rated operating range is 0 to 40 degrees Celsius, so keep the display in air-conditioned rooms rather than outdoor or unconditioned spaces during the summer.

Where the CDE6530 fits in Qatar

Corporate reception in West Bay: a 65-inch screen showing visitor information, schedules and internal announcements.
Classrooms and lecture spaces at a campus in Education City: presenting lessons and campus notices, with wireless sharing for guest lecturers.

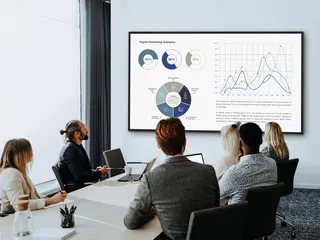

Government meeting room in Doha: a presentation display for boardroom briefings, connected through one USB-C cable.

To request a quotation for the ViewSonic CDE6530, send the room type, quantity and mounting location to the SmartRooms Qatar team. Quotations are usually returned within one working day, and we supply under purchase orders (LPOs) or government tenders.

Highlights

65-inch panel with 3840 x 2160 native resolution
450 nits typical brightness and 1200:1 typical contrast

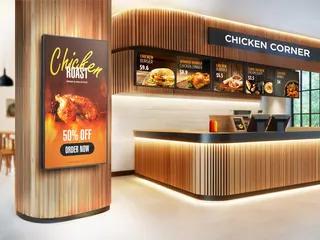

Landscape and portrait display orientation
Single USB-C cable with up to 65W power delivery
Quad-core ARM Cortex A55, Android 11, 4GB RAM, 32GB storage
Rated for 7/24 operation between 0 and 40 degrees Celsius

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Size: 65"
Type/ Tech: TFT LCD Module. ADS type, DLED backlight
Display Area (mm): 1428.48 (H) ×803.52 (V) (64.5” diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G (8bits + FRC-)
Brightness: 450 nits (typ.)
Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Bezel: 14.7/14.7/14.7/14.7 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform3

Processor: Quad-core ARM Cortex A55
RAM: 4GB
Storage: 32GB

INPUT4

HDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC)
RS-232: x 1
OPS Slot: x 1
WiFi Slot: x 1

OUTPUT2

HDMI: 2.0 x1 ( 3840x2160 @60Hz )
SPDIF: x 1

LAN1

RJ45: x 1

USB2

Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS1

Value: 10W x2

Embedded OS1

Value: Android 11

POWER2

Voltage: 100-240 VAC +/- 10%
Consumption: 88 W(typ.) < 0.5W(off)

OPERATING CONDITIONS2

Temperature (º C): 0 to 40℃
Humidity: 10%-90% RH

Operating Hours1

Value: 7/24

DIMENSIONS (W x H x D)2

Physical (inch / mm): 57.61 x 33.0 x 3.21in/ 1463.3 x 838.3 x 81.6mm
Packaging (inch / mm): 63.78 x 37.09 x 8.19 in./1620 x 942 x 208 mm

WEIGHT2

Net (lb / kg): 56.0 lbs/25.4 kg
Gross (lb / kg): 73.3 lbs/33.25 kg

REGULATIONS1

Value: cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS1

Value: 1. Remote Control with batteries 2. Quick Start Guide 3. Power Cables 4. HDMI cable 5. USB-C cable 6. Wall Mount Screw x 4 7. RS232 adapter 8. Compliance statement

Downloads

16 files from the manufacturer

Questions about CDE6530

Who is the ViewSonic CDE6530 designed for?

It suits organisations that need a large screen running all day for announcements, schedules, wayfinding and presentations. It is a 65-inch display with 3840 x 2160 native resolution and 450 nits typical brightness, so it stays readable in bright reception areas and corporate offices. Its Android 11 platform plays content without a separate media player, which helps facilities teams in Doha manage displays centrally.

Can it run continuously in a busy hotel lobby in West Bay?

Yes, within its rated environment. The CDE6530 is rated for 7/24 operation and an operating temperature of 0 to 40 degrees Celsius with 10 to 90% relative humidity. A hotel lobby in West Bay that is air-conditioned and runs all day can suit it, with the panel kept away from direct sun and heat sources. Ask the SmartRooms Qatar team to confirm room conditions in your quotation request, since outdoor temperatures in Qatar summers can exceed 45 degrees Celsius.

How does the single USB-C cable work with a laptop?

One USB-C cable carries video, data and power. The port supports DisplayPort 1.2, USB 2.0, 100M Ethernet and power delivery of up to 65W, so a laptop can charge while its screen is shown on the panel. The same port also gives a connected device network access. Check your laptop's USB-C output before buying, because 65W is the maximum the panel can deliver.

Which ports are on the CDE6530 and what do they do?

The CDE6530 has three HDMI 2.1 inputs, one of which supports ARC, and an HDMI 2.0 output for passing a signal on to another screen. Other connections include a USB-C port, one USB 2.0 and one USB 3.0 Type-A port, an RJ45 LAN port, an RS-232 control port, an SPDIF output, an OPS slot and a Wi-Fi slot. Two 10W speakers are built in. Map your sources and control devices to these ports before ordering cabling.

Can staff share their screen wirelessly from an iPhone or a Chromecast-enabled device?

Yes. The series includes myViewBoard Display, which mirrors a browser-based screen with no cable or download, and vCast, which offers split, extended and grouped screen layouts from any device. The panel also supports AirPlay and Chromecast. This suits a visitor who needs to present a few slides in a meeting in Doha. Ask your IT team which sharing method your network and security policies allow.

What does the optional Windows slot-in PC add?

The optional Windows slot-in PC lets the display run Windows applications on the screen itself. The data lists this option for the CDE6530 with up to an Intel Core i7 processor, 8GB RAM expandable to 64GB, 256GB SSD storage and dual-band Wi-Fi with Bluetooth. It is useful in a training room or engineering space that needs Windows software. Specify the configuration you need when requesting a quote, because the slot-in PC is an option rather than a standard feature.

How do IT teams manage several CDE6530 screens across a campus?

myViewBoard Manager is a web-based tool that lets administrators broadcast messages, push content and apply software updates across many displays from one place. On a campus with several buildings, it can send emergency notices or timetable changes to every screen at once. Remote Desktop support lets IT staff fix issues without a site visit. Device usage insights require the Advanced edition of myViewBoard Manager, so confirm which edition your team needs.

Will it fit a classroom wall, and how heavy is it?

Yes, with planning. The CDE6530 measures 1463.3 x 838.3 x 81.6 mm and weighs 25.4 kg net, so it needs a VESA mount matching the 600 x 400 mm pattern and a solid wall. Four wall mount screws are included. A free site survey from SmartRooms Qatar lets our team check wall construction, outlet position and cable routes before installation in a school or college building.

Can it be placed near a sunny window or outdoors in Qatar's summer?

No, it should not. The CDE6530 is rated for operation between 0 and 40 degrees Celsius, while Qatar summer temperatures can exceed 45 degrees Celsius and dust storms do occur. Place it in an air-conditioned room, such as a classroom or meeting room in Al Rayyan, away from direct sunlight through glazing. Entrances, loading bays and open atriums need a separate environmental assessment before you choose a display.

Does it work with Crestron, Extron or AMX control systems?

Yes. The manufacturer lists ProAV compatibility with Crestron, Extron and AMX systems, and the panel has an RS-232 port for serial control. An AV integrator working on a university or corporate headquarters project in Education City can bring the display into an existing control interface. Provide your control system model and required command set when requesting a quote so the integration scope is confirmed before ordering.

Can a ministry meeting room in Doha order the CDE6530 through an LPO?

Yes. Ministries and government bodies can order through a purchase order (LPO) or a government tender, and SmartRooms Qatar supports both routes. Send the model name, quantity and room type when requesting a quote, and our team usually returns quotations within one working day. Payment is accepted by bank transfer, cheque or purchase order, and the product is covered by the manufacturer's warranty.

Can several CDE6530 panels form a video wall in a shopping mall in Lusail?

Yes. The CDE30 Series supports tiling up to nine screens over HDMI, so the CDE6530 can form part of a video wall. Its bezels measure 14.7 mm on all four sides, keeping seams narrow in a mall atrium or retail entrance. Before ordering, decide the number of panels, the mounting frame and the signal source, and confirm the layout with the SmartRooms Qatar team so the content lines up across every screen.
