ViewSonic CDE7514-2C 75-inch 4K Commercial Display

Name: ViewSonic CDE7514-2C 75-inch 4K Commercial Display
Brand: ViewSonic
SKU: viewsonic-cde7514-2c
Availability: InStock

Overview

The ViewSonic CDE7514-2C is a 75-inch commercial display with a native 4K panel, 500 nits typical brightness and Android 14 built in, so it can run signage without an external player. It switches between landscape and portrait, falls back to USB media when the main source drops, and works with Crestron, Q-SYS, Extron and AMX control. Suited to corporate lobbies, schools and meeting rooms across Qatar. Request a quote.

A 75-inch 4K display that runs its own content

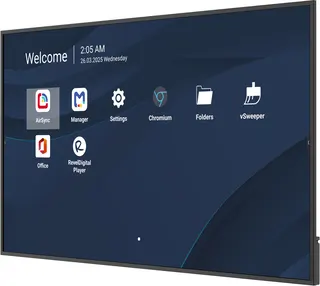

The ViewSonic CDE7514-2C is a 75-inch commercial display with a native 3840 x 2160 panel and an Android 14 platform built in. Because the screen runs its own operating system, a lobby or corridor can show scheduled content, a live feed or a presentation without a separate media player sitting beside it. It is rated for 24/7 operation, so it suits screens that stay on through the working day.

Panel and picture facts that matter

The TFT LCD panel uses a DLED backlight and is rated at 500 nits typical brightness with a 1500:1 typical contrast ratio, rising to 2000:1 with DCR enabled. The surface has an anti-glare coating with 3H hardness and 25% haze, which helps where sunlight falls on the screen through a window. The 11 ms response time and 178-degree horizontal and vertical viewing angles let people seated across a room read the same content. The manufacturer rates the backlight at 50,000 hours.

Size: 75 inches, 16:9, landscape or portrait
Bezel: 15.9 mm on all four sides
Platform: quad-core ARM Cortex-A73, 4GB DDR4 RAM, 32GB storage
Speakers: two 10W speakers

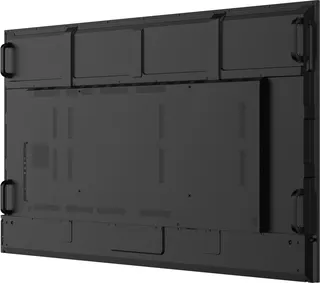

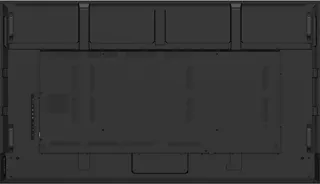

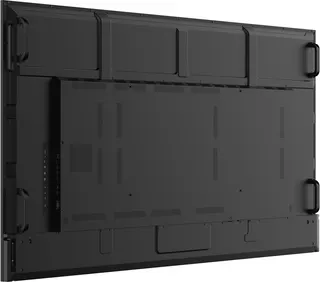

Mount: VESA 600 x 400 mm

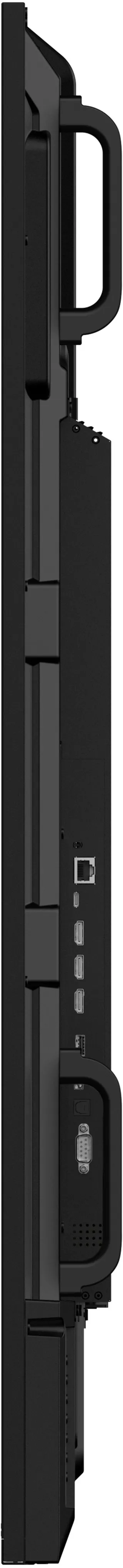

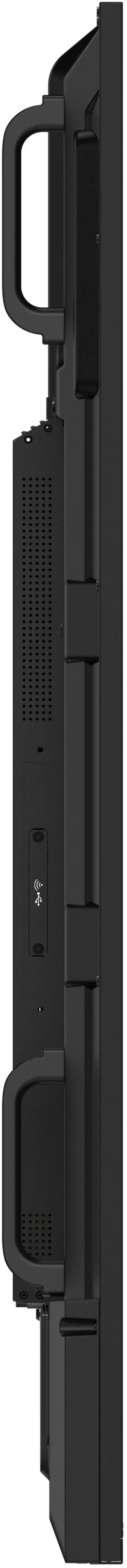

Inputs, USB playback and control systems

Three HDMI inputs take laptops, media players and cameras, with HDMI 2.1 at 4K 60Hz on each, and HDMI 3 supports ARC for audio return. The USB Type-C port carries DisplayPort 1.2, USB 2.0, up to 15W power delivery and Ethernet sharing, so one cable can bring video and power from a compatible laptop. An RS-232 port supports serial control and a WiFi slot is fitted. Scheduled USB media playback keeps running when the primary source is lost, switching over automatically to keep content on screen.

The display is Crestron Connected certified, compatible with Crestron XiO Cloud, Extron IP Link certified, offers a Q-SYS Verified Plugin and supports AMX. Integrators can control it alongside lighting and audio, on site or remotely.

Where it fits in Qatar

A private school in Al Wakrah fitting out a new corridor can mount the panel in portrait orientation to show announcements, timetables and student work on a narrow wall. In a bank branch in West Bay, the same model can run queue information and product messages in landscape from scheduled USB content, and keep showing them if the feed drops. A ministry meeting room in Msheireb can use it as a shared screen for Arabic and English presentations, with laptops connected by HDMI and control handled by a Crestron or Q-SYS system.

What to plan before installation

At 34.15 kg net and 48.44 kg gross, the panel needs two people to lift and a wall or structure that can carry the load on a 600 x 400 mm VESA pattern. SmartRooms Qatar offers a free site survey to check the wall and sightlines before mounting. The operating range is 0 to 40 degrees Celsius at 20 to 80% RH non-condensing, so place it in an air-conditioned space, because Qatar summer temperatures can exceed 45 degrees Celsius. The 100-240 VAC input range covers Qatar's 240 V mains, and consumption is rated at 93.89W with Energy Star. The package includes a 3m power cord, a remote with two AAA batteries, an RS-232 adapter, four wall-mount screws and a 3m HDMI cable.

Send SmartRooms Qatar your room size, wall type and number of units, and our team will prepare a quotation, usually within one working day. Request a quote for the CDE7514-2C today.

Highlights

75-inch 4K panel with native 3840 x 2160 resolution
500 nits typical brightness with anti-glare surface coating
Android 14 platform with quad-core CPU, 4GB RAM and 32GB storage
Three HDMI inputs and USB-C with 15W power delivery
Automatic signal failover to scheduled USB media playback
Operating range 0 to 40 degrees Celsius, rated for 24/7 operation

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

42 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Size: 75"
Type/ Tech: TFT LCD Module. DLED backlight
Display Area (mm): 1650.24(H) × 928.26(V) 75" diagonal
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 8bit+FRC
Brightness: 500 nits (typ.)
Contrast Ratio: 1500:1 (typ.) / 2000:1 (DCR enabled)
Response Time: 11ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours
Surface Treatment: Hardness: 3H, Anti-glare coating, Haze 25%
Bezel: 15.9/15.9/15.9/15.9 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform3

Processor: Quad-core ARM Cortex-A73
RAM: 4GB DDR4
Storage: 32GB

INPUT3

HDMI: x3 (HDMI 2.1 4K@60Hz*3, HDMI 3 supports ARC)
RS-232: x 1
WiFi Slot: x 1

OUTPUT2

Audio: 3.5mm x1
SPDIF: x 1

LAN1

RJ45: x1 (10/100M for USB Type-C)

USB2

Type A: USB2.0 x 2
Type C: x1 (DP 1.2, USB 2.0, 15W PD, Ethernet sharing, Smart USB)

SPEAKERS1

Value: 10W x 2

COMPATIBILITY1

HDMI: 3840X2160 @60Hz

Embedded OS1

Value: Android 14 AOSP

Bundled Software3

Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes

POWER2

Voltage: 100-240 VAC +/- 10%
Consumption: 93.89W with Energy Star

ERGONOMICS1

Wall Mount (VESA® ): 600x400 mm

OPERATING CONDITIONS2

Temperature (º C): 0 to 40℃
Humidity: 20% ~ 80% RH non-condensing

Operating Hours1

Value: 24/7

DIMENSIONS (W x H x D)1

Physical (inch / mm): 1685.6 x 963.7 x 68 mm

WEIGHT2

Net (lb / kg): 34.15kg
Gross (lb / kg): 48.44kg

REGULATIONS1

Value: cTUVus, FCC/ICES003, Energy star 8, EPEAT Silver, EEI, EMC/CE Report, CB, EAC, UkrSEPRO, RCM, Green BOM, RoHS DoC, ErP-Eco, REACH DoC, SCIP, WEEE report, Annex I, Annex II, TPCH DoC, Packing waste, CA65 DoC

PACKAGE CONTENTS1

Value: 1. 3M power cord 2. Remote control 3. AAA battery x 2 4. Quick Start Guide 5. RS232 adapter 6. Wall mount Screw x 4 7. HDMI cable 3 M(HDMI LA certified) 8. Compliance statement

Downloads

6 files from the manufacturer

PDF Datasheets CDE7514-2C_Datasheet.pdf 395 KB PDF Manuals & guides CDE14_QSG.pdf 15.3 MB PDF Manuals & guides CDE14_Series_UG_ENG.pdf 11.3 MB URL Drawings & CAD · Opens on manufacturer site CDE7514-2C 2D drawing(PDF) URL Drawings & CAD · Opens on manufacturer site CDE7514-2C 3D drawing(STP) URL Software & firmware · Opens on manufacturer site CDE14-series_Firmware_Pack_20260415

Questions about CDE7514-2C

What is the ViewSonic CDE7514-2C best used for?

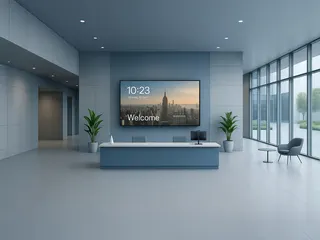

It is a 75-inch commercial display built for signage and presentations in offices, schools, lobbies and meeting rooms. Its native 3840 x 2160 panel, 500 nits typical brightness and built-in Android 14 let you schedule content without a separate player. It suits an indoor reception area in a Doha office tower where the screen runs for long hours and visitors need clear information from several metres away.

Can I install it outdoors or in a hot, unventilated room in Qatar?

No. The rated operating temperature is 0 to 40 degrees Celsius with 20 to 80% RH non-condensing, so it should not be placed where temperatures can exceed that range. Qatar summer temperatures above 45 degrees Celsius can push an poorly cooled room past the limit. Install it in an air-conditioned space and confirm the room conditions during the free site survey.

Is it rated for continuous operation in a busy transit or waiting area?

Yes, the manufacturer lists 24/7 operating hours and rates the backlight at 50,000 hours. This suits a waiting area in a clinic, a hotel lobby or a transit hub that keeps signage on through the day. Keep the unit within its 0 to 40 degrees Celsius range and allow for airflow behind the panel when planning the mounting position.

Will the screen be readable if the room has large windows?

The panel has a 500 nits typical brightness and an anti-glare coating with 25% haze and 3H hardness, which helps reduce reflections. Direct sunlight on the glass can still wash out content, so position the screen away from the window line where possible. The site survey can check the sightlines and sun angle before the wall is prepared.

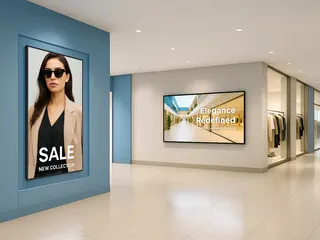

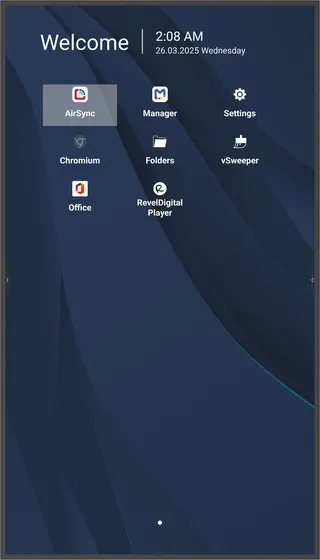

Can it be mounted in portrait orientation for a narrow corridor?

Yes, the CDE7514-2C supports both landscape and portrait orientation. A private school in Al Wakrah fitting out a narrow corridor can use portrait mode for announcements, timetables and student work. Plan the bracket and wall around the 600 x 400 mm VESA pattern and confirm the orientation before drilling, because the panel is 75 inches across.

How heavy is it and what does the wall need to carry?

The net weight is 34.15 kg and the gross weight with packaging is 48.44 kg, so two people should handle the lift. The overall dimensions are 1685.6 x 963.7 x 68 mm. The wall or structure must be able to carry this load on the 600 x 400 mm VESA pattern, and SmartRooms Qatar can check this during a free site survey.

Which inputs and outputs does it have?

It has three HDMI inputs, with HDMI 2.1 at 4K 60Hz on each and ARC support on HDMI 3. The USB Type-C port carries DisplayPort 1.2, USB 2.0, 15W power delivery and Ethernet sharing. Other ports include an RS-232 control port, a LAN RJ45 port at 10/100M, two USB 2.0 Type-A ports, a 3.5mm audio output, an SPDIF output and a WiFi slot.

Does it work with Crestron, Q-SYS or Extron control systems?

Yes. The manufacturer lists Crestron Connected certification, compatibility with Crestron XiO Cloud, Extron IP Link certification, a Q-SYS Verified Plugin and AMX support. This lets a control processor manage the display together with lighting and audio, on site or remotely. Ask the SmartRooms Qatar team to confirm your exact control processor model before you order.

What happens to content if the main signal drops during a bank's queue display?

The display performs automatic signal failover to scheduled USB media playback, so content keeps running when the primary source is lost. In a bank branch in West Bay, this means queue information and product messages stay on screen even if a media player or laptop disconnects. Load the USB content with the schedule you need before installation.

Do I need a separate media player or does it manage content on its own?

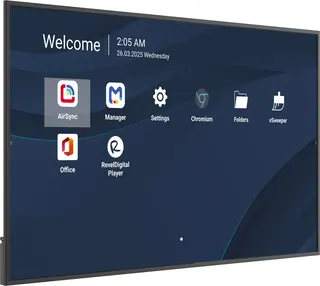

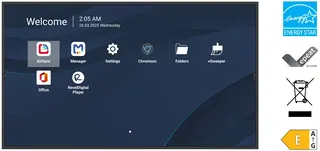

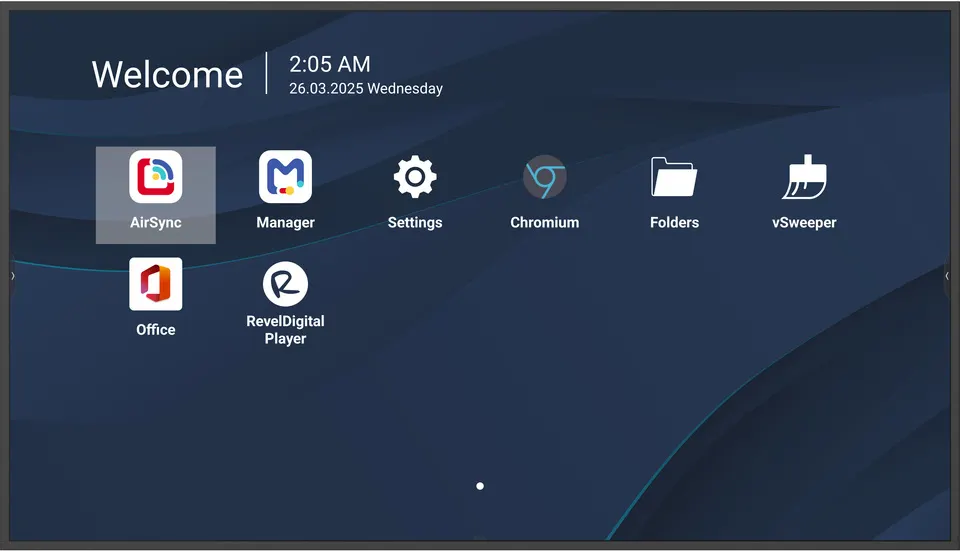

The unit runs Android 14 AOSP with a quad-core ARM Cortex-A73 processor, 4GB DDR4 RAM and 32GB storage. It includes AirSync for wireless presentation, the ViewSonic Manager for device management and the ViewSonic Launcher. Web-based remote device management is also supported, so IT staff can monitor and update several units from one place.

What is included in the box?

The package includes a 3m power cord, a remote control with two AAA batteries, a Quick Start Guide, an RS-232 adapter, four wall-mount screws, a 3m HDMI cable and a compliance statement. The listed contents do not include a wall bracket, so confirm the bracket and any other mounting parts in your quotation before the installation date is planned.

Can a school or government office buy it through a purchase order or tender?

Yes, SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. A school ordering several units for new classrooms can send one LPO for the full quantity, and the quotation is usually issued within one working day. The product is covered by the manufacturer's warranty.
