ViewSonic Digital Signage Current

CDE7530

ViewSonic CDE7530 75-inch 4K Presentation Display

Screen size: 75"
Resolution: 3840 x 2160
Brightness: 500 nits (typ.)
Contrast: 1200:1 (typ.)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

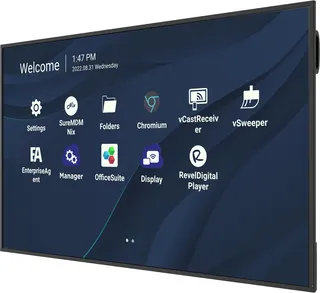

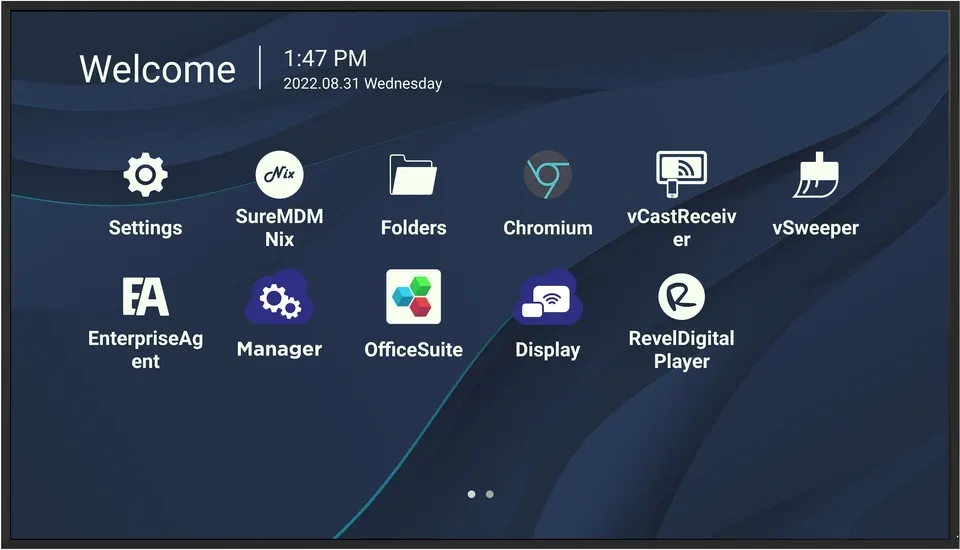

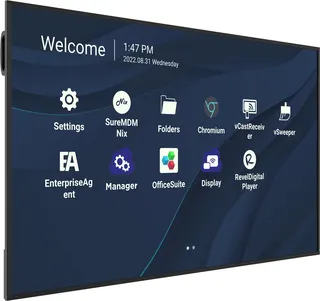

ViewSonic CDE7530 is a 75-inch 4K display built for round-the-clock operation in corporate, campus and retail use. It offers 3840 x 2160 resolution, landscape or portrait mounting, and a built-in Android 11 platform that plays content without an external media player. A single USB-C cable carries video, data and up to 65W of power to a connected laptop. It suits Qatari organisations that need dependable signage or presentation screens.

What the CDE7530 is built for

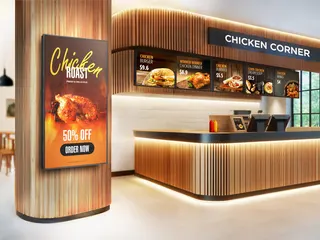

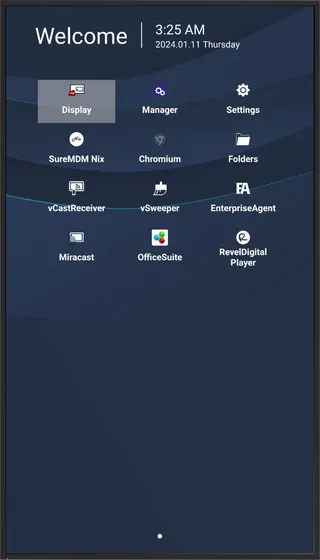

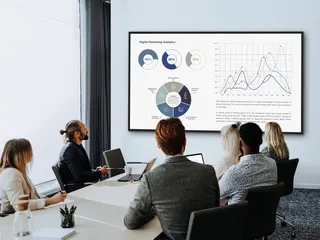

The ViewSonic CDE7530 is a 75-inch display with a 3840 x 2160 native resolution and a 16:9 aspect ratio, part of the CDE30 Series. The series is rated for 7/24 operation, so the panel is designed to run content through the working day and beyond, not only during meetings. It can be set to landscape for presentations and boardroom walls, or portrait for menus, wayfinding and vertical signage.

The panel has 1,200:1 typical contrast, rising to 5,000:1 with DCR enabled, a 178-degree horizontal and vertical viewing angle, and an 8ms response time. Its anti-glare surface with 3H hardness helps in rooms with large windows, and the backlight is rated for 50,000 hours.

Connections that keep cabling tidy

USB-C: one cable for video, 65W power delivery, USB 2.0 data and 100M Ethernet to a connected laptop.
HDMI: three HDMI 2.1 inputs at 3840 x 2160 @60Hz, with HDMI 1 supporting ARC, plus an HDMI 2.0 output.
Expansion: an OPS slot and a WiFi slot, plus two USB ports, RS-232 and an RJ45 LAN port.
Audio: two 10W speakers and an SPDIF output.

Wireless sharing and central control

Guests can mirror their screen through myViewBoard Display in a browser, with no cable or download needed, which suits visiting presenters. vCast adds split, extended and grouped screen layouts, and AirPlay and Chromecast are supported. For IT teams, myViewBoard Manager is a web-based tool for sending messages, managing devices and applying software updates across several displays. Device usage status requires myViewBoard Manager Advanced.

Where it fits in Qatar

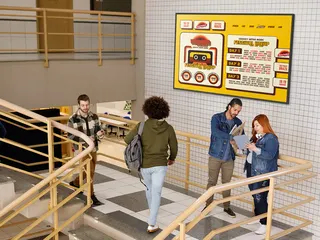

A corporate reception in West Bay or Lusail can show welcome messages, visitor directions and meeting schedules on the portrait panel, while the Android platform loops video without a separate media player. A university department in Education City could use the same model in a seminar room, connecting a lecturer's laptop over USB-C and letting students share their screens wirelessly. A clinic or hospital in Doha might place a portrait unit beside a waiting area for wayfinding, provided the spot is air-conditioned.

Planning the installation

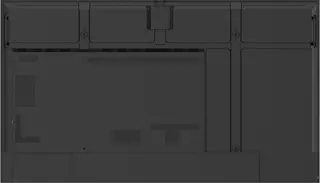

The panel weighs 34.65 kg net and 48.15 kg in its packaging, with physical dimensions of 1685.6 x 963.7 x 81.6 mm. It uses a VESA 800 x 600 mm wall mount, and four wall mount screws are included. Given its size and weight, a free site survey is worth booking before wall-mounting, so the structure, the bracket and the cable route are checked in advance.

Power input is 100-240 VAC with a 10% tolerance, typical consumption is 126 W and standby is under 0.5 W. The operating range is 0 to 40°C with 10% to 90% humidity, so keep it out of unconditioned or outdoor areas where Qatar's summer heat can exceed that limit. The box includes the remote control with batteries, power cables, HDMI and USB-C cables, and an RS-232 adapter.

For schools, ministries or companies ordering several units, SmartRooms Qatar usually issues one quotation within one working day, and purchase orders (LPOs) and government tenders are welcome. Request a quote for the CDE7530 today, and our team will confirm the details with your quotation.

Highlights

75-inch 4K panel with 3840 x 2160 native resolution
Landscape and portrait orientation for flexible mounting
Single USB-C cable with 65W power delivery
Quad-core processor, Android 11, 4GB RAM, 32GB storage
OPS and WiFi slots for expansion modules
Remote device management through myViewBoard Manager

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Size: 75"
Type/ Tech: TFT LCD Module. ADS type, DLED backlight
Display Area (mm): 1649.664 (H) ×927.936 (V) (75” diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G (8bits + FRC-)
Brightness: 500 nits (typ.)
Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Bezel: 14.7/14.7/14.7/14.7 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform3

Processor: Quad-core ARM Cortex A55
RAM: 4GB
Storage: 32GB

INPUT4

HDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC)
RS-232: x 1
OPS Slot: x 1
WiFi Slot: x 1

OUTPUT2

HDMI: 2.0 x1 ( 3840x2160 @60Hz )
SPDIF: x 1

LAN1

RJ45: x 1

USB2

Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS1

Value: 10W x2

Embedded OS1

Value: Android 11

POWER2

Voltage: 100-240 VAC +/- 10%
Consumption: 126 W(typ.) < 0.5W(off)

OPERATING CONDITIONS2

Temperature (º C): 0 to 40℃
Humidity: 10%-90% RH

Operating Hours1

Value: 7/24

DIMENSIONS (W x H x D)2

Physical (inch / mm): 66.36 x 37.94 x 3.21in/ 1685.6 x 963.7 x 81.6mm
Packaging (inch / mm): 73.35 x 42.91 x 8.86 in./1863 x 1090 x 225 mm

WEIGHT2

Net (lb / kg): 76.39 lbs/34.65 kg
Gross (lb / kg): 106.15 lbs/48.15 kg

REGULATIONS1

Value: cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS1

Value: 1. Remote Control with batteries 2. Quick Start Guide 3. Power Cables 4. HDMI cable 5. USB-C cable 6. Wall Mount Screw x 4 7. RS232 adapter 8. Compliance statement

Downloads

16 files from the manufacturer

Questions about CDE7530

Who is the ViewSonic CDE7530 designed for?

It suits organisations that need a large screen running content for long periods. In West Bay or Lusail, a corporate reception might use it in portrait orientation for visitor information and welcome messages, while a meeting room uses landscape mode for presentations. The 3840 x 2160 panel carries a 7/24 operating rating, and its listed operating range is 0 to 40°C, so it belongs in air-conditioned spaces.

Do I need a media player or PC to run content on it?

Not necessarily. The CDE7530 has a built-in Quad-core ARM Cortex A55 processor with 4GB RAM and 32GB storage, running Android 11, so it can play multimedia content without an external media player. If you need a Windows environment, the OPS slot can take an optional Windows slot-in PC, so confirm the exact module with your quotation.

What does the USB-C port do?

The single USB-C port supports DisplayPort 1.2 video, 65W power delivery, USB 2.0 data and 100M Ethernet. A laptop connected by one USB-C cable can charge, display its screen and reach the network at the same time. This keeps presentation points tidy in boardrooms, lecture theatres and training rooms, where cable clutter is most noticeable.

Can it be mounted in portrait orientation?

Yes. The CDE30 Series supports both landscape and portrait orientation, and the CDE7530 suits vertical signage such as directories, queue information or corridor displays. Mount it on the VESA 800 x 600 mm pattern, check that the bracket suits the 34.65 kg net weight, and plan the cable route before installation. A free site survey from SmartRooms Qatar can check the wall first.

Will it work with Qatar's 240 V mains supply?

The listed power input is 100-240 VAC with a 10% tolerance, so the 240 V supply used across Qatar falls within the stated range. Typical consumption is 126 W, and standby is under 0.5 W. Power cables are included in the box. The specification sheet does not give the socket type, so confirm the plug and outlet arrangement with your electrical contractor when planning.

Can I install it in a sun-facing lobby or outdoors?

Outdoor installation is not suitable. The listed operating range is 0 to 40°C with 10% to 90% humidity, while summer temperatures in Qatar can exceed 45°C. Choose an air-conditioned indoor position away from direct sunlight through glazing, and confirm the planned location with the SmartRooms Qatar team before fixing the bracket to the wall.

Which brightness figure is correct?

Two specification sheets for this model list typical brightness differently, at 500 nits in one and 450 nits in the other. Typical contrast is 1200:1, rising to 5000:1 with DCR enabled, and the anti-glare surface with 3H hardness suits rooms with windows. Ask the SmartRooms Qatar team to confirm the figure for the exact unit you are quoting before comparing it with other displays.

Can staff share screens from phones and laptops without cables?

Yes, in several ways. myViewBoard Display lets any device with a browser mirror its screen without a cable or download, which suits visiting presenters. vCast offers split, extended and grouped screen layouts from any device, and the display supports AirPlay and Chromecast. Wireless sharing relies on the network the display and devices share, so check the Wi-Fi setup during planning.

Can IT teams manage several CDE7530 displays from one place?

Yes, through myViewBoard Manager, a web-based tool for IT administrators. It broadcasts messages to multiple displays at once, whether the content is a general announcement, an urgent notice or a multimedia file. Remote Desktop support allows instant assistance without an on-site visit. Device usage status and insight reports require myViewBoard Manager Advanced, so decide early whether your team needs them.

Does it work with Crestron, Extron or AMX control systems?

ViewSonic lists ProAV compatibility with Crestron, Extron and AMX systems, which matters for boardrooms and lecture halls controlled from a central touch panel. The RS-232 port provides a serial control connection, and the adapter for it is included in the box. Before ordering, confirm the exact control commands with your systems integrator, since control depends on how your system is programmed.

How should a school in Al Rayyan order several units?

Send SmartRooms Qatar the number of units, the mounting locations and the intended use for each room, and a quotation is usually issued within one working day. Schools can pay by bank transfer, cheque or purchase order, and an LPO can be raised against the quotation. Ask the team to confirm power and mounting requirements for each classroom or corridor, and use the 0 to 40°C operating range to decide which rooms qualify.

What should we plan before mounting a 75-inch panel?

Start with a free site survey that checks the wall, the bracket position, the VESA 800 x 600 mm pattern and the cable route to power and network outlets. The unit weighs 34.65 kg net and 48.15 kg in its packaging, so plan for two people to lift it. Its physical size is 1685.6 x 963.7 x 81.6 mm, so leave clearance behind the screen for connections.
