ViewSonic Digital Signage Current

CDE8630

ViewSonic CDE8630 86-inch 4K Presentation Display

Screen size: 86"
Resolution: 3840 x 2160
Brightness: 450 nits (typ.)
Contrast: 1200:1 (typ.)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic CDE8630 is an 86-inch 4K presentation display for continuous corporate and campus communication. Its 3840 x 2160 panel, 450 nits typical brightness and landscape or portrait orientation suit boardrooms, lecture halls and lobbies. A single USB-C cable delivers video, data and 65W power, while built-in Android 11 plays content without a media player. It suits Qatari organisations that need reliable signage or presentation screens indoors.

What the CDE8630 is built for

The CDE8630 is an 86-inch presentation display from the CDE30 Series, built for long daily running in corporate lobbies, campus buildings and retail floors. Its 3840 x 2160 panel has four times the pixels of a Full HD screen, and it supports both landscape and portrait orientation.

Panel details that matter in a bright room

Brightness: 450 nits typical, useful in rooms with daylight from windows.
Contrast: 1200:1 typical, rising to 5000:1 with dynamic contrast enabled.
Response time: 8 ms, with viewing angles of 178 degrees horizontal and vertical.
Surface: anti-glare treatment with 3H hardness and 25% haze.
Bezel: 14.7 mm on all four sides, so joins on a multi-screen wall stay narrow.
Backlight life: rated at 50,000 hours.

Connectivity, playback and wireless sharing

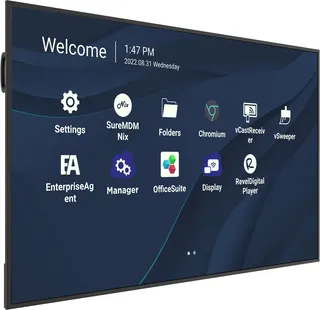

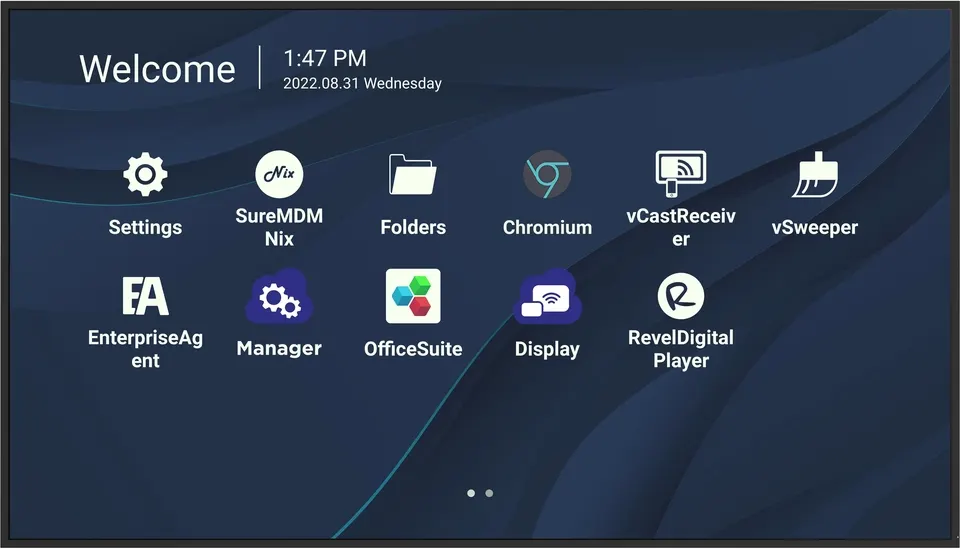

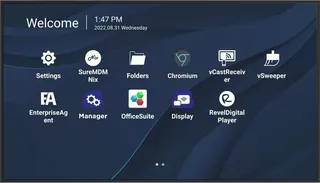

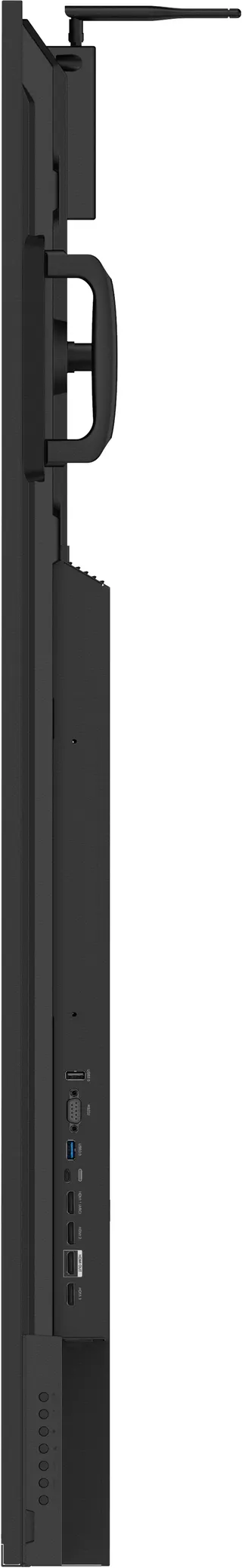

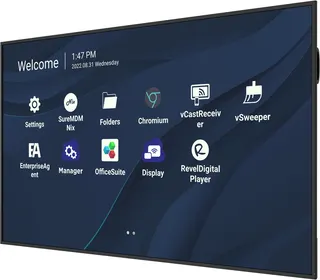

Three HDMI inputs, with HDMI 1 supporting ARC, and one HDMI output at 3840 x 2160 and 60Hz cover most source devices. The USB-C port carries video, data, 100M Ethernet and 65W power delivery, so a laptop connects with one cable. Built-in Android 11 runs on a quad-core processor with 4GB RAM and 32GB storage, so content plays without an external media player. Staff can share screens through myViewBoard Display with no download, and vCast adds split, extended and grouped layouts. AirPlay and Chromecast are also supported.

Managing several screens from one office

myViewBoard Manager is a web-based tool for IT teams and facilities staff. From one browser, administrators can change content, broadcast an urgent notice to multiple displays, push software updates and open a Remote Desktop session for support. Device usage tracking, including apps and input sources, requires the Advanced edition of myViewBoard Manager, so confirm that before you specify it for reporting.

Where it fits in Qatar

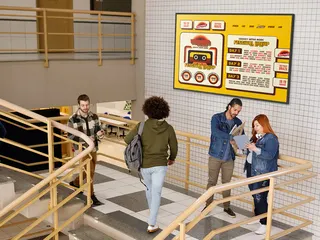

A university training centre in Education City showing timetables and event notices in a foyer, with the 24/7 rating covering daily opening hours.

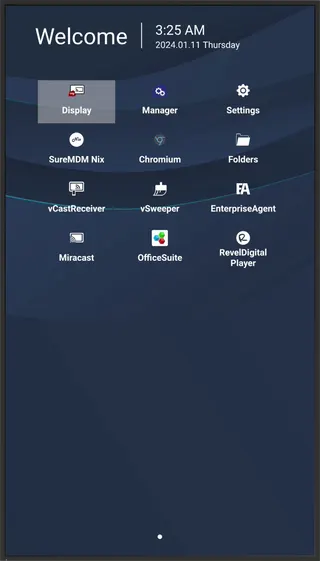

A hotel in West Bay using portrait orientation for a tall welcome or wayfinding panel beside a lift lobby.

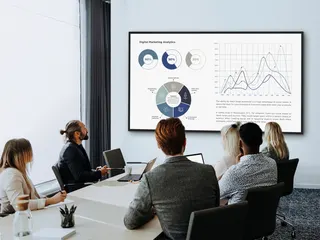

A ministry office in Msheireb fitting out a boardroom with an 86-inch display for presentations prepared in English and Arabic.

Planning the installation

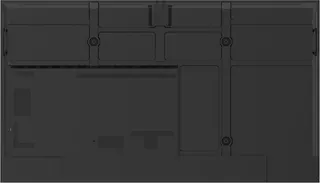

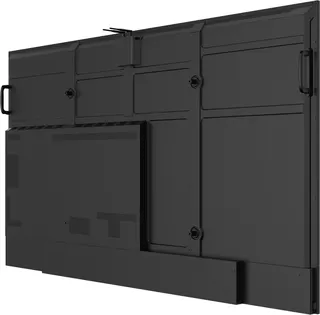

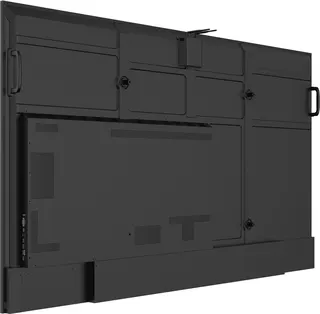

Plan the wall before the panel arrives. Net weight is 43.15 kg and packed gross weight is 60.75 kg, with physical dimensions of 1930.8 x 1101.8 x 81.6 mm. The VESA pattern is 800 x 600 mm and four wall mount screws are in the box. The operating range is 0 to 40°C at 10% to 90% relative humidity, so install in an air-conditioned indoor room away from unconditioned or sun-exposed areas, where Qatari summer temperatures can exceed 45°C. Power is 100-240 VAC ±10%, drawing about 172 W typical. A free site survey lets the SmartRooms Qatar team check the wall, power and sightlines first.

Request a quote

Send us your room size, wall type and number of units, and the SmartRooms Qatar team will return a quotation, usually within one working day. We handle purchase orders (LPOs) and government tenders, including Monaqasat, and accept payment by bank transfer, cheque or purchase order. Delivery covers all 8 municipalities of Qatar, and the product is covered by the manufacturer's warranty. Request a quote for the CDE8630 today.

Highlights

86-inch 4K panel at 3840 x 2160, landscape or portrait
450 nits typical brightness and 1200:1 typical contrast
Single USB-C cable with 65W power delivery
Quad-core processor, Android 11, 4GB RAM, 32GB storage
Rated for 7/24 operation with 50,000-hour backlight life
Operating range 0 to 40°C with 100-240 VAC power input

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Size: 86"
Type/ Tech: TFT LCD Module. ADS type, DLED backlight
Display Area (mm): 1895.04 (H) ×1065.96 (V) (86” diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G (8bits + FRC-)
Brightness: 450 nits (typ.)
Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Bezel: 14.7/14.7/14.7/14.7 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform3

Processor: Quad-core ARM Cortex A55
RAM: 4GB
Storage: 32GB

INPUT4

HDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC)
RS-232: x 1
OPS Slot: x 1
WiFi Slot: x 1

OUTPUT2

HDMI: 2.0 x1 ( 3840x2160 @60Hz )
SPDIF: x 1

LAN1

RJ45: x 1

USB2

Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS1

Value: 10W x2

Embedded OS1

Value: Android 11

POWER2

Voltage: 100-240 VAC +/- 10%
Consumption: 172 W(typ.) < 0.5W(off)

OPERATING CONDITIONS2

Temperature (º C): 0 to 40℃
Humidity: 10%-90% RH

Operating Hours1

Value: 7/24

DIMENSIONS (W x H x D)2

Physical (inch / mm): 76.02 x 43.38 x 3.21in/ 1930.8 x 1101.8 x 81.6mm
Packaging (inch / mm): 83.07 x 48.3 x 8.86 in./2110 x 1227 x 225 mm

WEIGHT2

Net (lb / kg): 95.13 lbs/43.15 kg
Gross (lb / kg): 133.93 lbs/60.75 kg

REGULATIONS1

Value: cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS1

Value: 1. Remote Control with batteries 2. Quick Start Guide 3. Power Cables 4. HDMI cable 5. USB-C cable 6. Wall Mount Screw x 4 7. RS232 adapter 8. Compliance statement

Downloads

15 files from the manufacturer

Questions about CDE8630

What is the ViewSonic CDE8630 designed for?

The CDE8630 is a large-format presentation and signage display for corporate and campus communication. At 86 inches with a 3840 x 2160 panel, it suits lecture halls, boardrooms and atriums where people view it from several metres away. Typical uses include meeting presentations, looping announcements, event schedules and welcome screens in offices, schools, hotels and retail units across Doha and beyond.

Can it run 24 hours a day in a Qatar office or school?

Yes, the data lists 7/24 operating hours and a backlight life of 50,000 hours, so the panel is built for continuous running. The operating range is 0 to 40°C at 10% to 90% relative humidity, so keep it in an air-conditioned room. In Qatar, summer heat in unconditioned corridors or outdoor areas can exceed 45°C, so a room with reliable cooling is the right place for a unit that runs all day.

Does it need a separate media player or PC?

No separate media player is needed for everyday playback. The CDE8630 has a quad-core ARM Cortex A55 processor, 4GB RAM and 32GB storage running Android 11, so it plays and schedules content on its own. For Windows applications, the OPS slot can take an optional slot-in PC, which helps a classroom or boardroom that needs desktop software on the same screen.

How does the USB-C connection work with a laptop?

A single USB-C cable handles video, data and power. The port supports DP1.2, 65W power delivery, USB 2.0 and 100M Ethernet, so a laptop can charge, display its content on the panel and stay on the network at the same time. A USB-C cable is included in the box. If a laptop lacks USB-C video output, the three HDMI inputs provide a direct alternative.

Can teachers or staff share screens without cables?

Yes. myViewBoard Display provides browser-based screen mirroring with no cable or download, which suits guest presenters and short meetings. vCast adds split, extended and grouped screen layouts from any device, and the panel also supports AirPlay and Chromecast. This suits a university seminar room or corporate meeting space where visitors bring their own devices and need to present quickly.

How do IT teams manage several CDE8630 units across a campus?

myViewBoard Manager is a web-based tool that lets administrators change content, broadcast urgent messages, push software updates and run Remote Desktop support across multiple displays from one browser. For a campus with several buildings, this avoids visiting each screen. Device usage tracking, including apps and input sources, needs myViewBoard Manager Advanced, so confirm which edition your IT team needs before ordering.

Will it connect to Qatar mains power?

The power input is rated 100-240 VAC ±10%, so the supply range covers the 240 V mains used in Qatar, and power cables are included in the box. Typical consumption is 172 W, and draw is under 0.5 W when the unit is off. The SmartRooms Qatar team can confirm the socket position and cable route during the site survey, particularly where a wall-mounted unit sits close to a BS 1363 socket.

Can it be mounted in portrait for a hotel or retail entrance?

Yes, the panel supports portrait orientation, which suits tall directional signs, menus and welcome panels in a hotel lobby in West Bay or a mall entrance in Lusail. Portrait mounting changes the load and bracket layout, so choose a VESA 800 x 600 mm bracket rated above the 43.15 kg net weight, and ask the bracket supplier how that pattern is oriented for portrait use.

Can several units be tiled into a video wall?

The CDE30 Series is specified for tiling up to nine screens through its HDMI connections, which suits a corporate atrium or retail wall built from several panels. The 14.7 mm bezel on all four sides keeps the gaps between panels narrow. Confirm the input and output routing with the SmartRooms Qatar team, as the HDMI output is rated 2.0 at 3840 x 2160 and 60Hz.

How heavy is it and what should we check before mounting?

The net weight is 43.15 kg and the packed gross weight is 60.75 kg, so mounting needs two people and a bracket designed for that load. The VESA pattern is 800 x 600 mm, and four wall mount screws are supplied. Check the wall type, the structural fixing points and the cable route. The free site survey covers these points before installation, which matters for an 86-inch panel in a boardroom or lobby in Msheireb or West Bay.

Is the CDE8630 certified, and can government buyers order it?

The regulatory list includes cTUVus, FCC, Energy Star 8.0, EPEAT, RoHS and WEEE, among others. For government and public-sector buyers, SmartRooms Qatar handles purchase orders (LPOs) and government tenders, including Monaqasat submissions, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually returned within one working day.
