CDE86G3-1C

What the CDE86G3-1C is built to do

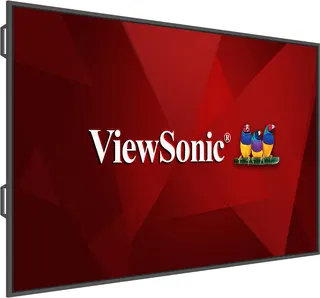

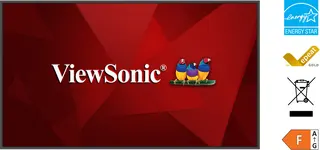

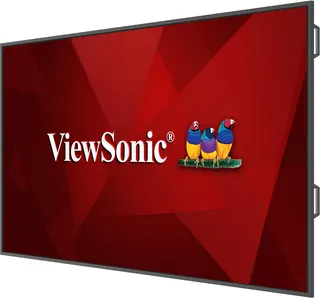

The ViewSonic CDE86G3-1C is an 86-inch commercial display that ships without a pre-installed operating system. Removing preloaded software means fewer background services for an IT team to monitor and patch, and fewer entry points to review. That suits government offices, clinics and university departments that run screens on a managed network. The unit is rated for 24/7 operation, so it can carry announcements, room schedules or wayfinding content through a full working day and beyond.

Panel facts that matter on a large screen

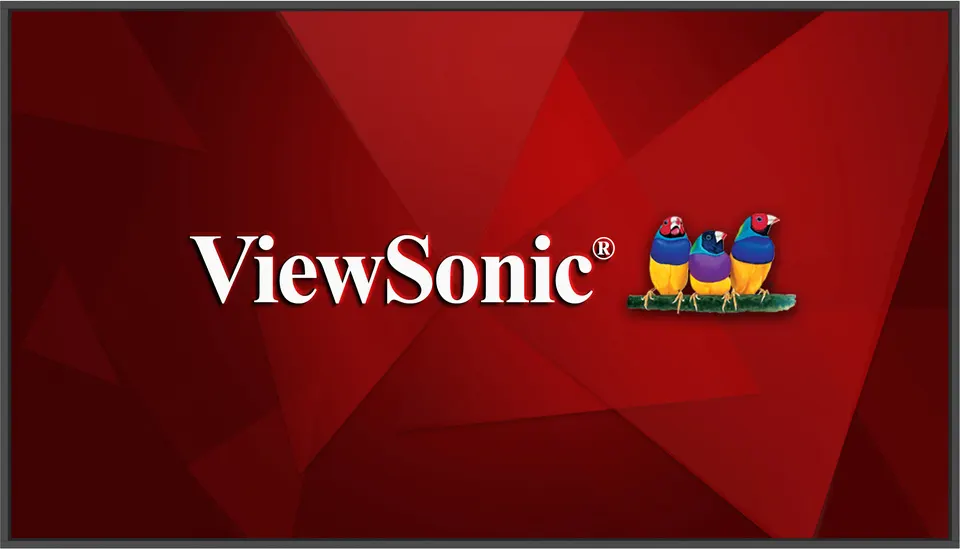

The panel has a native 3840 x 2160 resolution, the 4K UHD standard, across a display area of 1895.04 mm by 1065.96 mm. Typical brightness is 500 nits, with a 1,200:1 contrast ratio and an 8 ms response time. The anti-glare coating, rated 3H hardness with 25% haze, reduces reflections from windows and ceiling lights. Viewing angles are rated at 178 degrees horizontally and vertically, and the backlight is rated for 50,000 hours.

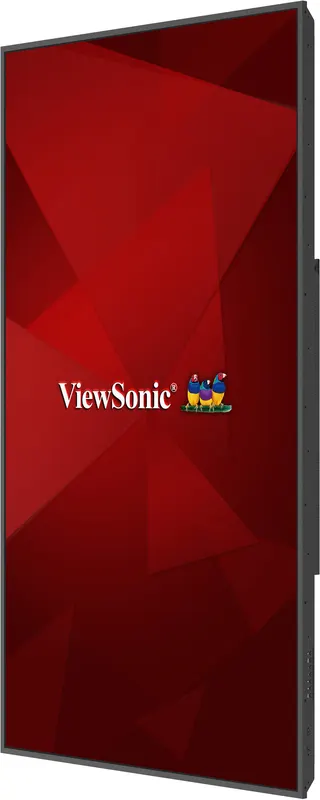

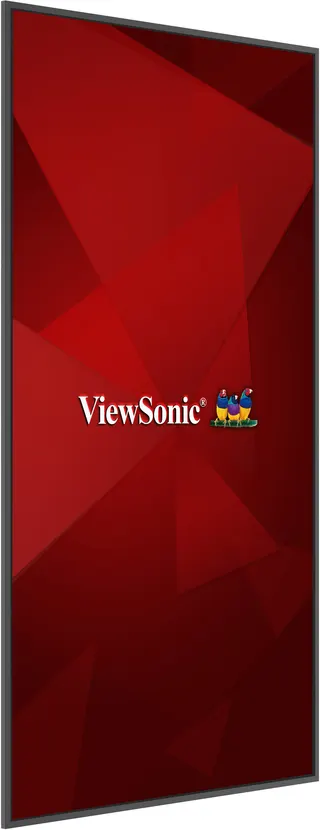

The panel supports both landscape and portrait orientation, so one model can show a 16:9 presentation in a meeting room or a vertical sign in a corridor. The bezel measures 15.9 mm on every side, which keeps the picture dominant when the screen is wall mounted.

Connecting laptops, media and control systems

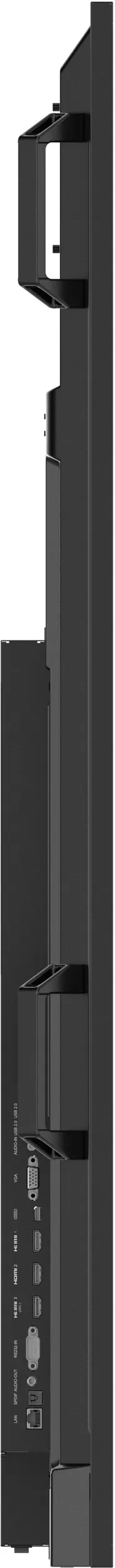

For bring-your-own-device meetings, the USB-C port carries DisplayPort 1.2 video with HDCP support and data, so a compatible laptop can share its screen over a single cable without an extra adapter. Three HDMI inputs support HDMI 2.1 at 4K and 60 Hz, with HDMI-CEC and HDCP 1.4 and 2.2. Only HDMI 3 supports ARC. A VGA input handles 1080p at 60 Hz, and two USB Type A ports serve system updates and media playback from a drive.

For central control, the unit has an RJ45 LAN port with Wake-on-LAN, an RS-232 port, a 3.5 mm audio output and an S/PDIF output. It is Crestron Connected certified, compatible with Crestron XiO Cloud, Extron IP Link certified, offers a Q-SYS Verified Plugin and supports AMX. An AV programmer can therefore manage power and inputs from a central system, on site or remotely.

Where it fits in Qatar

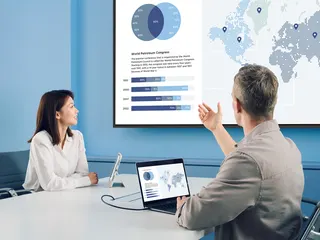

• Boardrooms and executive meeting rooms: an 86-inch panel suits a boardroom in West Bay or Msheireb where bilingual presentations must be readable from the far end of the table.
• Clinic and hospital waiting areas: a screen with no extra software layer, in a clinic in Al Sadd, can show queue numbers and health information, and its network connection lets IT manage it centrally.
• Lecture halls and training rooms: a training centre in Education City can use the panel for lectures, with its audio output feeding the room sound system.

Qatar summers push outdoor temperatures above 45°C, so the CDE86G3-1C belongs indoors in an air-conditioned room, away from direct sunlight. Its rated operating range is 0 to 40°C, with automatic overheat shutdown, and humidity must stay between 20% and 80% RH, non-condensing.

What to plan before ordering

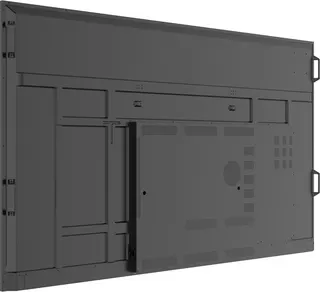

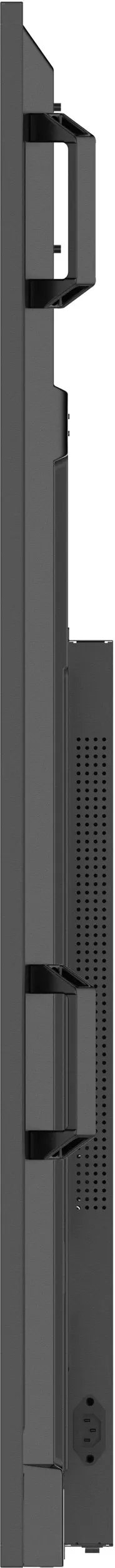

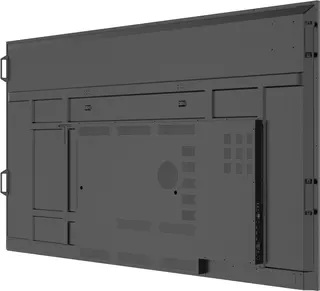

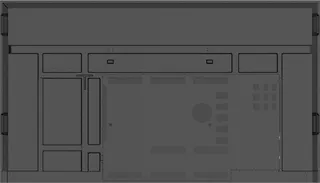

The panel weighs 39.45 kg net and 53.8 kg gross, so the wall must carry the load and the bracket must match the 600 x 400 mm VESA pattern. Overall dimensions are 1933.8 mm wide, 1103.8 mm high and 79.7 mm deep. A free site survey from SmartRooms Qatar lets the team check the wall, cable routes and sightlines before professional installation.

The input range is 100 to 240 VAC plus or minus 10%, which covers Qatar's 240 V supply. Typical consumption is 138.3 W. The power cord is selected by shipping area, so confirm the plug type for your BS 1363 (Type G) socket when you request a quote. The box also includes a remote control, clamps, screws, an HDMI cable and an RS-232 adapter.

Request a quote for one unit or several units on a single LPO, and SmartRooms Qatar will confirm the expected delivery time with the quotation, based on stock.
