ViewSonic Digital Signage Current

CDE9830

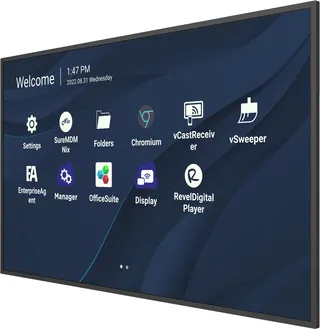

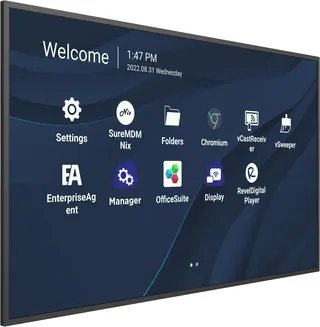

ViewSonic CDE9830 98-inch 4K Presentation Display

Screen size: 98"
Resolution: 3840 x 2160
Brightness: 500 nits (typ.)
Contrast: 1200:1 (typ.)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic CDE9830 is a 98-inch 4K display for boardrooms, lecture halls and reception areas. It delivers 3840 x 2160 resolution, 500 nits typical brightness and a USB-C port that carries video, data and up to 65W of power. Android 11 runs content without a separate media player, and the panel can be used in portrait for signage. Ideal for large Qatari organisations planning a wall-mounted installation.

A 98-inch 4K display for large rooms

The ViewSonic CDE9830 is a 98-inch presentation display from the CDE30 Series, which is offered in six sizes from 43 to 98 inches. At this size, a whole room can read the same slide, timetable or announcement from the back row. It fits boardrooms, lecture halls and reception areas where the screen is the focal point of the space, and it is built for continuous use rather than occasional meetings.

Picture quality and brightness that matter

The panel has a native resolution of 3840 x 2160 on a 16:9 format, with a display area of 2158.848 mm by 1214.352 mm. Typical brightness is 500 nits and typical contrast is 1200:1, rising to 5000:1 when dynamic contrast is enabled. The surface has an anti-glare treatment with 3H hardness and 25% haze, which reduces reflections from windows and ceiling lights. Viewing angles are rated at 178 degrees horizontally and vertically, and the backlight is rated for 50,000 hours. The bezel measures 25 mm on every side.

Connections, computing and wireless sharing

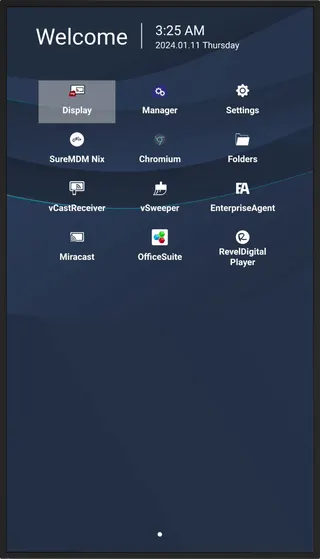

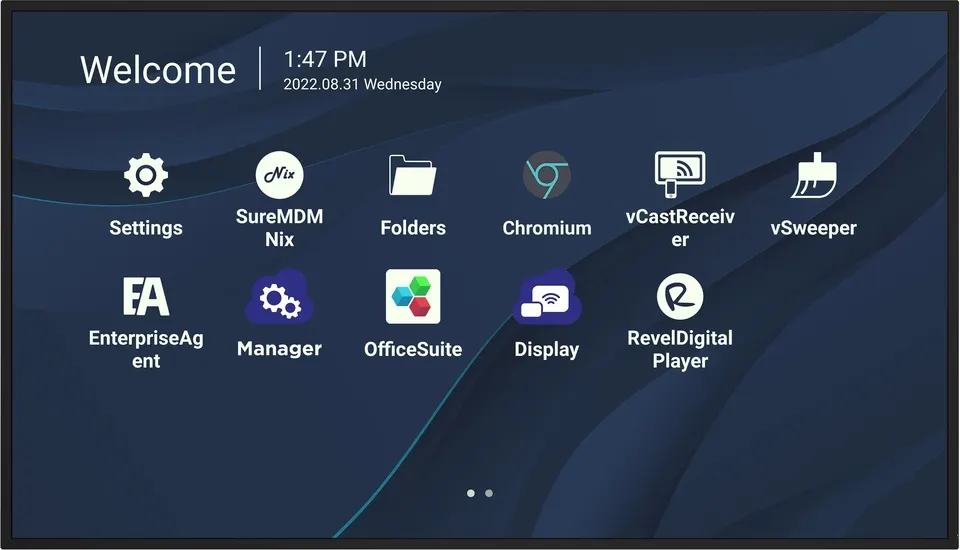

One USB-C port carries video, USB data and up to 65W of power to a connected laptop, so a presenter needs only one cable. The display also has three HDMI inputs, with HDMI 1 supporting ARC, and an HDMI 2.0 output. Inside, a quad-core ARM Cortex A55 processor, 4GB of RAM and 32GB of storage run Android 11, so content plays without an external media player. An OPS slot accepts an optional Windows slot-in PC, and a WiFi slot and an RJ45 LAN port are also provided.

For wireless sharing, myViewBoard Display mirrors a screen from a browser with no cable and no download, while vCast adds split, extended and grouped layouts from any device. AirPlay and Chromecast are also supported. Central management comes through myViewBoard Manager, a web-based tool for IT teams. Device usage tracking and detailed reports require myViewBoard Manager Advanced.

Where it fits in Qatar

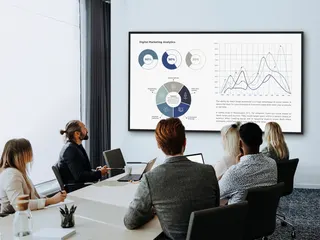

Boardroom in Lusail or West Bay: a head office running meetings with teams abroad can share a presenter's laptop wirelessly or through USB-C, so people in the room and on the line see the same material.

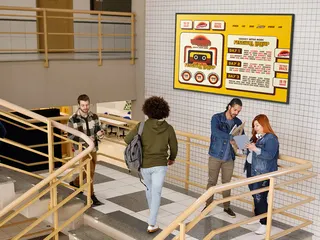

Lecture hall in Education City: lecturers show slides in landscape, while daily notices run in portrait, with the built-in 10W speakers checked against the room size.

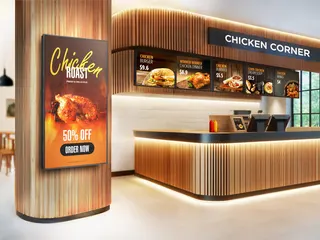

Hotel lobby in The Pearl: portrait layouts suit welcome messages, wayfinding and event schedules, mounted indoors away from sunlight through glazing.
Multi-campus school in Al Wakrah: myViewBoard Manager lets one administrator update announcements across several screens at the same time.

What to plan before installation

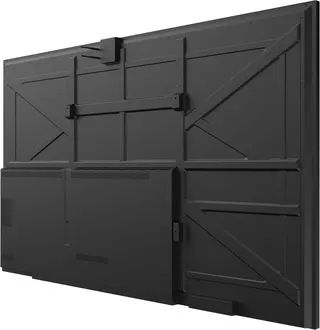

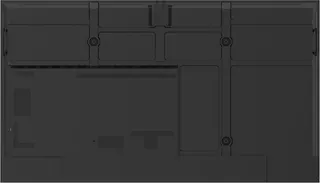

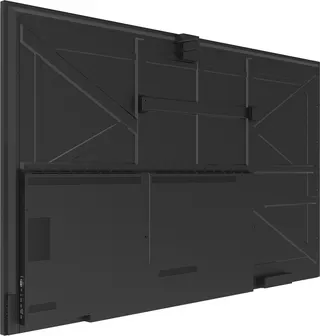

Plan the wall first. The panel weighs 69.40 kg net and 90.30 kg packed, and measures 2212.9 x 1268.4 x 79 mm, so the fixing must be engineered for that load and at least two people should handle it. The VESA pattern is 800 x 600 mm, and four wall mount screws are included. Operating conditions are 0 to 40°C at 10% to 90% relative humidity, while summer temperatures in Qatar can exceed 45°C, so keep the display away from sun-exposed glazing and hot outdoor areas.

Power input is 100-240 VAC ±10%, with a typical draw of 190 W and under 0.5 W when off. Regulatory listings include Energy Star 8.0, EPEAT, cTUVus and FCC. SmartRooms Qatar offers free site surveys, which we recommend before wall-mounting a display this size, so the bracket, power and cable route are agreed in advance. Products are covered by the manufacturer's warranty.

Request a quote from SmartRooms Qatar for the ViewSonic CDE9830. We will confirm the configuration, installation and timing in your quotation, usually within one working day. We deliver to all eight municipalities of Qatar and accept LPOs and government tenders.

Highlights

98-inch 3840 x 2160 native 4K panel in 16:9
500 nits typical brightness and 1200:1 typical contrast
Single USB-C port with 65W power delivery
Quad-core ARM Cortex A55, 4GB RAM, 32GB storage, Android 11
Landscape and portrait orientation with 25 mm bezels
VESA 800 x 600 mm mount and 69.40 kg net weight

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Size: 98"
Type/ Tech: TFT LCD Module. ADS type, DLED backlight
Display Area (mm): 2158.848 (H) × 1214.352 (V) (98” diagonal)
Native Resolution: 3840 x 2160
Aspect Ratio: 16:9
Colors: 1.07G (8bits + FRC-)
Brightness: 500 nits (typ.)
Contrast Ratio: 1200:1 (typ.), 5000:1 (DCR enabled)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hours
Surface Treatment: Anti-Glaire, 3H hardness, Haze 25%
Bezel: 25/25/25/25 mm (L/R/T/B)
Orientation: Landscape & Portrait

Platform3

Processor: Quad-core ARM Cortex A55
RAM: 4GB
Storage: 32GB

INPUT4

HDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC)
RS-232: x 1
OPS Slot: x 1
WiFi Slot: x 1

OUTPUT2

HDMI: 2.0 x1 ( 3840x2160 @60Hz )
SPDIF: x 1

LAN1

RJ45: x 1

USB2

Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)

SPEAKERS1

Value: 10W x2

Embedded OS1

Value: Android 11

POWER2

Voltage: 100-240 VAC +/- 10%
Consumption: 190 W(typ.) < 0.5W(off)

OPERATING CONDITIONS2

Temperature (º C): 0 to 40℃
Humidity: 10%-90% RH

Operating Hours1

Value: 7/24

DIMENSIONS (W x H x D)2

Physical (inch / mm): 87.12 x 49.94 x 3.11in/2212.9 x 1268.4 x 79 mm
Packaging (inch / mm): 92.91 x 56.1 x 11.02 in./2360 x 1425 x 280 mm

WEIGHT2

Net (lb / kg): 153.0 lbs/69.40 kg
Gross (lb / kg): 199.1 lbs/90.30 kg

REGULATIONS1

Value: cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65

PACKAGE CONTENTS1

Value: 1. Remote Control with batteries 2. Quick Start Guide 3. Power Cables 4. HDMI cable 5. USB-C cable 6. Wall Mount Screw x 4 7. RS232 adapter 8. Compliance statement

Downloads

16 files from the manufacturer

Questions about CDE9830

What is the ViewSonic CDE9830 built for?

The CDE9830 is a 98-inch presentation display for rooms where a large group needs to read the same content. Its 3840 x 2160 panel, 500 nits typical brightness and 16:9 format suit boardrooms, lecture halls and reception areas. It runs on its own Android 11 platform, so it can show announcements, presentations and playlists through the working day, and it is rated for 7/24 operation.

Can the CDE9830 go in a sunlit lobby or outdoor space in Qatar?

No. The operating range is 0 to 40°C with 10% to 90% relative humidity, while summer temperatures in Qatar can exceed 45°C. Install it in an air-conditioned indoor room, away from direct sunlight through glazing. Its anti-glare surface helps with reflections from windows, but that does not replace climate control. If you are unsure whether a space meets these conditions, confirm it with the SmartRooms Qatar team during the site survey.

Can the CDE9830 be mounted in portrait for signage in a hotel lobby?

Yes. The display supports landscape and portrait orientation, which suits welcome panels, wayfinding and event schedules in a hotel lobby in The Pearl or a serviced apartment reception. The panel has a VESA 800 x 600 mm wall mount pattern, and four wall mount screws are included. Because the panel weighs 69.40 kg net, confirm the bracket and wall fixing with the SmartRooms Qatar team before ordering.

How do laptops connect to the CDE9830 with a single cable?

Use the USB-C port. It supports video over DisplayPort 1.2, USB 2.0 data, 100M Ethernet and power delivery of up to 65W, so one cable can charge a compatible laptop while it shares the screen. The display also has three HDMI inputs, with HDMI 1 supporting ARC, and a USB 3.0 port that supports Smart USB. Check your laptop's USB-C charging requirements before the meeting.

Does the display need an external media player for content in Doha?

No. The platform has a quad-core ARM Cortex A55 processor, 4GB RAM and 32GB storage, running Android 11. That allows it to play multimedia playlists and handle several tasks at once without a separate media player or PC. A retail site or campus in Doha can schedule content directly on the screen. The typical power draw of 190 W is worth factoring into running costs for continuous operation.

Can staff share screens wirelessly without cables?

Yes. myViewBoard Display provides browser-based screen mirroring with no cable and no software download, which suits quick presentations and guest users in a meeting room. vCast adds split, extended and grouped screen layouts from any device, and the display also supports AirPlay and Chromecast. Wireless sharing is useful in a Doha boardroom where visitors bring their own laptops or phones and need to present within seconds.

How would an IT team manage several displays across campuses?

Use myViewBoard Manager, a web-based tool for IT teams that broadcasts messages and content to multiple displays from one place and pushes software updates. Remote Desktop allows support without a technician on site. Device usage tracking and detailed insight reports require myViewBoard Manager Advanced, so confirm which edition your school group needs. A school group with campuses in Al Wakrah and Doha, for example, can manage all its screens from one central office.

Is the CDE9830 compatible with control systems such as Crestron, Extron or AMX?

The product data lists ProAV compatibility with Crestron, Extron and AMX control systems, which matters for AV integrators on government and corporate projects. The display has an RS-232 port and includes an RS-232 adapter in the box. Before ordering, confirm the command set and integration requirements for your control processor with the SmartRooms Qatar team, so the room is commissioned correctly the first time.

What should we plan for before wall-mounting the CDE9830?

Plan for weight and access. The net weight is 69.40 kg, the packed weight is 90.30 kg, and the physical size is 2212.9 x 1268.4 x 79 mm. Confirm that the wall structure can carry the load and use the 800 x 600 mm VESA pattern. SmartRooms Qatar offers free site surveys, which we recommend before fixing a panel this size, so the bracket, cable routing and power socket position are agreed in advance.

What power supply does the CDE9830 need in Qatar?

The power input is 100-240 VAC ±10%, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 190 W, and standby draw is under 0.5 W when the display is off. Power cables are included in the box. Check the plug on the supplied cable against the BS 1363 socket in your building before installation, and ask the SmartRooms Qatar team for a different lead if you need one.

Is the CDE9830 suitable for a university lecture theatre in Education City?

It suits a teaching room of moderate size where students sit within a comfortable viewing distance. The 98-inch panel has 3840 x 2160 resolution and 178-degree viewing angles, so rows of seats see the same content clearly. Built-in 10W speakers are fitted, and an SPDIF output is available. For a large hall, review the audio requirements during the site survey, because the built-in speakers may not cover the whole room.

How do we order the CDE9830 for a government office or school tender?

Request a quote from SmartRooms Qatar and we will usually issue the quotation within one working day. We supply and deliver to all 8 municipalities of Qatar, arrange professional installation, and accept purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. The CDE9830 is covered by the manufacturer's warranty, and timing is confirmed with your quotation.
