LDV55-HAI400TL-M

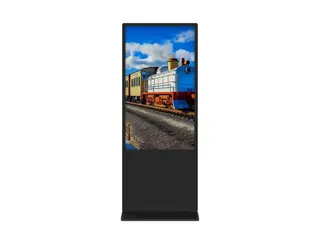

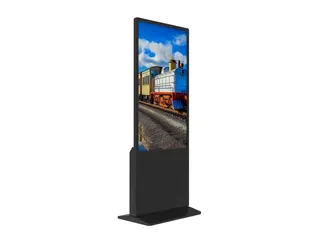

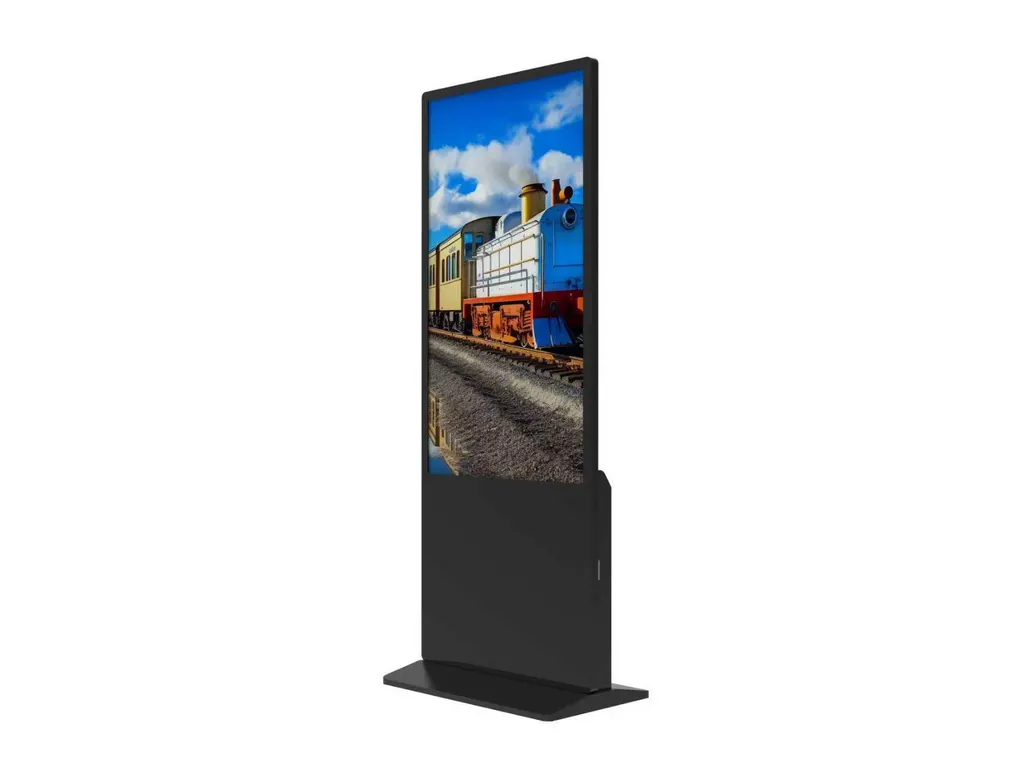

The Dahua LDV55-HAI400TL-M is a floor-standing 55-inch screen in portrait orientation, with a 9:16 aspect ratio and a 2160 × 3840 resolution. It suits spaces where content has to run through the working day, such as hotel and clinic lobbies, bank entrances, visitor reception areas and retail wayfinding points. The panel is specified for up to 24 hours of daily operation, and the package includes a base, power cord, remote control and user's manual.

Picture quality and touch response

The IPS panel offers 178° viewing angles both horizontally and vertically, so colours stay readable for people standing beside the screen rather than directly in front of it. Typical brightness is 500 cd/m² and typical contrast is 1200:1. The ELED backlight and 1% haze surface help limit glare in bright lobbies. The panel shows 10-bit colour through 8-bit plus FRC, giving 1.07 billion colours, with a typical response time of 8 ms.

Touch is capacitive, supports 10 touch points and responds in 8 ms or less, so a small group can use a directory or queue interface at the same time. Two 5 W speakers are built in, and an IR receiver is fitted for the supplied remote control.

Playback, layouts and remote management

Inside, the unit runs Android 11 on a quad-core A55 processor at 1.92 GHz, with 4 GB of RAM and 32 GB of storage. It decodes H.265 and H.264 video up to 2160p, VP9 up to 2160p at 60 fps, and plays mp4, avi, mov, mkv and wmv files. Programs can be played and released in several modes, and the intelligent split screen lets operators rearrange page layouts so video, text and images share one screen.

Programs can be scheduled by time and by location, and the device produces operation reports. Its unified platform can manage the screen remotely, which helps a facilities team that looks after units in several buildings and needs to change content without visiting each one.

Where it fits across Qatar

• A clinic in Al Sadd running a waiting-area directory on one screen, with the layout changed between morning and afternoon clinics.
• A bank branch in West Bay placing a self-service information panel inside the entrance, set back from the glass front.
• A campus building in Education City using a touch screen to show room bookings and event listings.
• A shopping centre in Lusail updating store promotions from one central platform across more than one floor.

Planning the site, power and environment

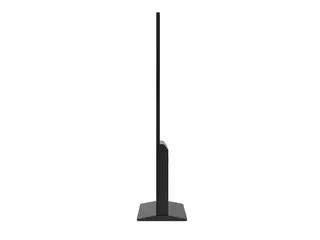

The product measures 1900 mm high, 741 mm wide and 460 mm deep, with a net weight of 50.32 kg and a gross weight of 57.4 kg. Confirm ceiling height, door widths and lift access before delivery, and make sure the floor is level for the base. A reserved space of 200 × 200 × 100 mm is provided for a third-party media box or mini PC.

The operating range is 0 °C to +40 °C, and the manufacturer advises avoiding direct sunlight. Summer temperatures in Doha can exceed 45 °C, so place the screen indoors in an air-conditioned area, away from windows and entrances that receive direct sun, and confirm the exact spot with the SmartRooms Qatar team. The power input is 100–240 VAC at 50/60 Hz with maximum consumption of 120 W, which covers Qatar's 240 V supply.

Ask SmartRooms Qatar for a quote with your intended location and number of units. Quotations are usually issued within one working day, a free site survey can confirm placement, and we provide professional installation across all eight municipalities of Qatar. Request a quote today.
