Dahua LDV65-PAI400L · Price in Qatar

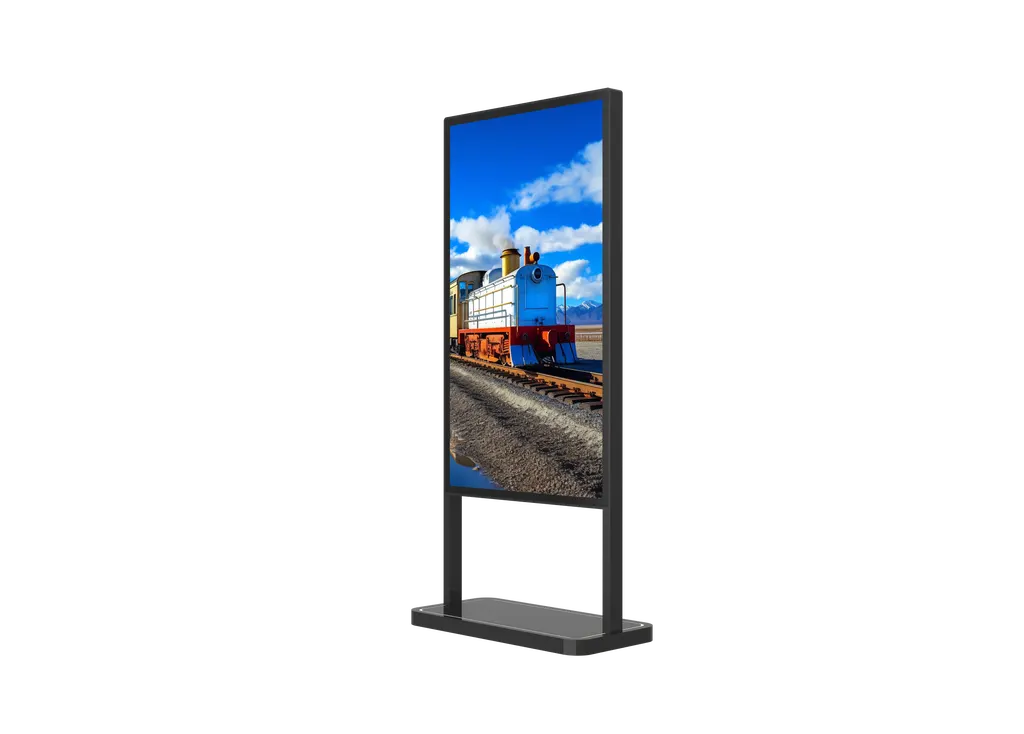

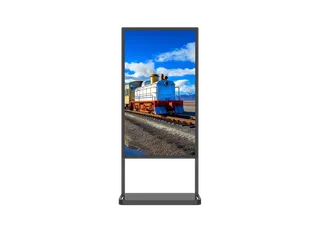

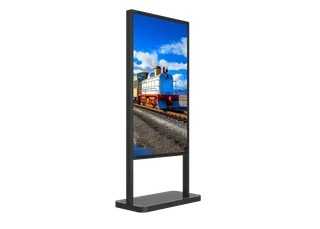

Name: Dahua LDV65-PAI400L 65-inch Vertical LCD Digital Signage
Brand: Dahua
SKU: dahua-ldv65-pai400l
Availability: InStock

Overview

The Dahua LDV65-PAI400L is a 65-inch vertical LCD signage display built for long operating hours, with a 2160 x 3840 portrait panel, Android 11.0 and 4K decoding. Its 700 cd/m² typical brightness, panel rated for up to 24-hour operation and remote platform management suit lobbies, corridors and wayfinding points in Doha's government offices, hospitals and malls. Ask SmartRooms Qatar for a quotation.

A 65-inch portrait display for long operating hours

The Dahua LDV65-PAI400L is a floor-standing LCD signage unit with a 65-inch panel set in portrait orientation, at a 9:16 aspect ratio and 2160 x 3840 resolution. That layout suits directories, queue boards, digital menus and wayfinding, where tall content reads more naturally than on a landscape screen. The panel is rated for operation of up to 24 hours a day, which matters for lobbies and corridors that stay busy from early morning into the evening.

Picture quality and playback capability

The LCD uses an ELED backlight and lists a typical brightness of 700 cd/m², a 178 degree viewing angle both horizontally and vertically, and an 8 ms typical response time. Its surface treatment is listed at 1% haze. Inside, a quad-core A55 processor running at 1.92 GHz works with Android 11.0, 4 GB of RAM and 32 GB of storage, and it decodes H.265 and VP9 up to 2160p at 60 fps.

Video input: one HDMI 2.1 port at 4K and 60 Hz
Network: one RJ-45 port at 10/100/1000 Mbps, self-adaptive
Media storage: USB 2.0 and USB 3.0 Type A ports plus a TF card slot up to 128 GB
Audio: two built-in 5 W speakers and a 3.5 mm audio output

Managing content across several screens

The device manages programmes by time and location and can generate operation reports, so you can confirm what played and when. Its intelligent split screen lets you divide the portrait panel into zones with a freely adjustable layout, such as a clock strip above a news feed. Through the unified management platform, each unit can be controlled remotely, which helps a facilities team run screens across several floors or sites from one office.

Where it fits in Qatar

Three situations show where this model earns its place. In a government ministry reception in Msheireb, a portrait screen beside the visitor desk can show service guidance and queue information in one layout. In a hospital outpatient wing in Al Sadd, timed playlists can switch between clinic directions in the morning and health information later in the day. In a shopping mall in Lusail, the screen works best inside the air-conditioned concourse, placed away from direct sunlight.

Planning the site: heat, weight and power

The operating range is 0 to +40 degrees Celsius, and the product should be kept out of direct sunlight. Qatar summer temperatures can exceed 45 degrees Celsius outdoors, so this model is intended for conditioned indoor spaces, not open plazas or unconditioned entrances. Storage range is -20 to +60 degrees Celsius, and operating humidity is 10 to 85 per cent, non-condensing.

Net weight is 68 kg and gross packed weight is 83.7 kg, with overall dimensions of 2000 x 920 x 470 mm. Input is rated 100 to 240 VAC at 50/60 Hz, with maximum consumption of 290 W and standby consumption of 0.5 W or less. That input range covers Qatar's 240 V supply, but confirm the supplied power cord suits the sockets at your chosen position. Because the unit is tall and heavy, SmartRooms Qatar offers a free site survey before delivery to check flooring, doorways and cable routes. Request a quote and the team will reply with a quotation, usually within one working day.

Highlights

65-inch portrait panel with 2160 x 3840 resolution
Rated for operation of up to 24 hours a day
Android 11.0 with quad-core A55 processor
Decodes H.265 and VP9 up to 2160p at 60 fps
HDMI 2.1 input, Gigabit-class Ethernet and USB media playback
Scheduling by time and location with remote platform control
Operating range 0 to +40 degrees Celsius, away from direct sun

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

45 specifications · Source: manufacturer · checked Oct 2026

LCD Panel11

Panel Dimensions: 65 inch
Backlight: ELED
LCD Technology: IPS/VA
Aspect Ratio: 9: 16
Brightness: 700 cd/m² (typ.)
Contrast: IPS 1200:1(typ.)/ VA 5000:1(typ.)
Display Colors: 10 bit (8 bit + FRC), 1.07B colors
Resolution: 2160 (H) × 3840 (V)
Viewing Angle: 178° (H); 178° (V)
Response Time: 8 ms (typ.)
Surface Treatment: Haze 1%

Built-in System5

Operating System: Android 11.0
CPU: 4 cores A55, 1.92 GHZ
RAM: 4 GB
ROM: 32 GB
Video Decoding: H.265 HEVC MP-10@L5.1 up to 2160p@60 fps H.264 AVC HP@L5.1 up to 2160p@30 fps VP9 Profile 2 up to 2160p@60 fps H.264 MVC up to 1080p@60 fps MPEG-4 ASP@L5 up to 1080p@60 fps (ISO-13818) WMV/VC-1 SP/MP/AP up to 1080p@60 fps

Function3

Audio Compression: MPEG-3, WMA, WAV
Video Compression: MPEG-4, H.264 AVC/MVC, H.265 HEVC
Video Format: mp4, avi, mov, mkv, wmv

Device Ports8

Network Port: 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet port
Wi-Fi: Optional (External Wi-Fi module)
Bluetooth: NO
Data Transmission Ports: 1 × USB 2.0 ports (type A) 1 × USB 3.0 ports (type A) 1 × TF card slot, up to 128 GB
Video Input: 1 × HDMI 2.1 (4K @60Hz)
Video Output: NO
Audio Port: 1 × 3.5 mm jack output
IR Receiver: Yes

Speaker1

Built-in Speaker: 2 × 5 W

General General16

Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: ≤ 290 W
Standby Power Consumpton: ≤ 0.5 W
Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Operatng Humidity: 10%–85% (RH), non-condensing
Storage Humidity: 10%–90% (RH), non-condensing
Product Material: Metal casing
Casing Color (Frame/Rear): Black
Product Dimensions: 2000mm x 920mm x 470mm(78.74" × 36.22" × 18.5")
Packaging Dimensions: 2125mm x 220mm x 1050mm(83.62" × 8.66" × 41.34")
Net Weight: 68kg (149.9lb)
Gross Weight: 83.7kg (184.50 lb)
Installation: Vertical
Display Mode: Portrait
Accessory: Base, user's manual, power cord, legal and regulatory information, remote control

Certification General1

Certifications: CE EMC, CE LVD, CE ERP

Downloads

3 files from the manufacturer

PDF Datasheets LDV65-PAI400L.pdf 2.5 MB PDF Manuals & guides Digital Signage_User's Manual_V1.0.0.pdf 6.4 MB PDF Drawings & CAD 65inch dimension.pdf 34 KB

Questions about LDV65-PAI400L

Who is the Dahua LDV65-PAI400L designed for?

It suits organisations that need a floor-standing portrait screen for directories, queue information, menus or wayfinding. The 65-inch panel at 2160 x 3840 resolution reads well in reception areas, lobbies and corridors where people pass at close range. With Android 11.0 and central platform management, facilities or IT teams can update content across units without visiting each screen. Request a quote to confirm it fits your space.

Can it run continuously for 24 hours?

Yes, the panel is rated for operation of up to 24 hours a day and is described as industrial grade. Continuous use still depends on the environment, because the operating range is 0 to +40 degrees Celsius and the unit should be kept out of direct sunlight. In an air-conditioned Doha office or mall, use the scheduling features to plan display hours, and ask SmartRooms Qatar to review the location before you order.

Can I place it outdoors or near a sunny entrance in Qatar?

No, this model is not designed for outdoor use. Its operating range tops out at 40 degrees Celsius, while Qatar summer temperatures can exceed 45 degrees Celsius and dust storms do occur. Choose an air-conditioned lobby away from glass that receives direct sun, and confirm the position with the SmartRooms Qatar team before installation.

What video formats and resolutions can it decode?

The processor decodes H.265 HEVC and VP9 Profile 2 up to 2160p at 60 fps, and H.264 AVC up to 2160p at 30 fps. It also handles H.264 MVC, MPEG-4 and WMV/VC-1 up to 1080p at 60 fps. File playback supports mp4, avi, mov, mkv and wmv containers, with audio in MPEG-3, WMA and WAV. Export portrait content in one of these formats for the smoothest playback.

How do I connect a media player or laptop to the display?

Use the single HDMI 2.1 input, which accepts 4K at 60 Hz. The RJ-45 port auto-negotiates 10/100/1000 Mbps, giving a wired connection for management and updates. Content can also be loaded from the USB 2.0 or USB 3.0 Type A ports, or from a TF card of up to 128 GB. The unit has no video output, so it cannot pass its picture on to a second screen.

Does it include Wi-Fi or Bluetooth?

Wi-Fi is optional through an external Wi-Fi module and is not part of the standard accessory list. The unit has no Bluetooth. If no network point is close to the display, plan a wired Ethernet route, or ask for the Wi-Fi module to be included in your quotation. The standard accessories are a base, power cord, remote control, user manual and legal and regulatory information.

How are programmes scheduled and monitored across several screens?

The device manages programmes by time and location and generates operation reports. Its intelligent split screen lets you change zone layouts on the portrait panel, and it supports several playback modes. For multiple units, the unified platform allows remote control of each screen, so a facilities team can schedule and check playback from one place. Confirm your network setup with the SmartRooms Qatar team before ordering several units.

Is it suitable for a government ministry reception in Doha?

Yes, a 65-inch portrait screen fits a visitor reception where people take a number and need directions to service counters. Set timed playlists so service guidance runs during office hours and general information runs in the evening. Place it indoors beside the desk, away from direct sunlight and entrance doors. The 700 cd/m² typical brightness and IPS 1200:1 typical contrast suit a well-lit lobby.

Will it work with Qatar's 240 V, 50 Hz mains supply?

The stated input range is 100 to 240 VAC at 50/60 Hz, so it includes Qatar's 240 V, 50 Hz supply. Maximum power consumption is 290 W, and standby consumption is 0.5 W or less. Check that the supplied power cord fits the sockets at your chosen position, and the SmartRooms Qatar team can confirm this during the site survey.

Is it suitable for a clinic area in a hospital in Al Sadd or a mall in Lusail?

Yes, provided the location is indoors and air-conditioned. In a clinic wing in Al Sadd, timed playlists can show department directions in the morning and health awareness content in the afternoon. In a Lusail mall, place the screen in an interior concourse or near lift lobbies, away from glazed frontages that receive direct sun. Check the ambient temperature at the chosen spot before installation.

How heavy is it, and what should be planned before delivery?

Net weight is 68 kg and gross packed weight is 83.7 kg, at 2000 mm high, 920 mm wide and 470 mm deep. Plan a level, load-bearing floor position, a clear route through doorways and lift access if the building requires it. SmartRooms Qatar offers a free site survey to check these points before delivery. Request a quote, and the team will reply usually within one working day.

Can a school or university campus order several units under a purchase order?

Yes, SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those published on Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Campus screens can run different playlists by location, which suits building entrances, halls and admissions areas. Ask for a quotation that lists the number of units, the mounting position and the power cord needed at each site.
