MWE811 Digital Signage Kiosk with Hand Sanitizer Dispenser
Marvel MWE811 32-inch Touch-Free Foam Sanitizer Dispenser Kiosk
LZ55ME
Hisense LZ55ME Kiosk Stand Accessory for 55WH80 Series
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

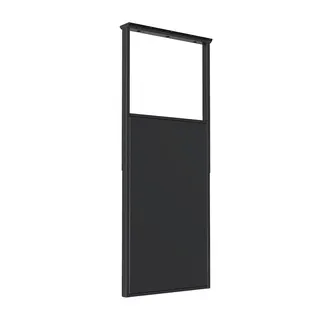

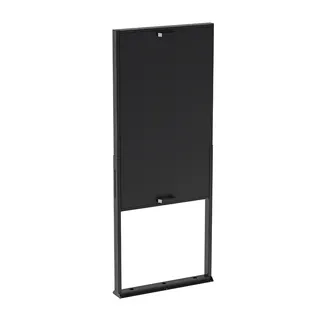

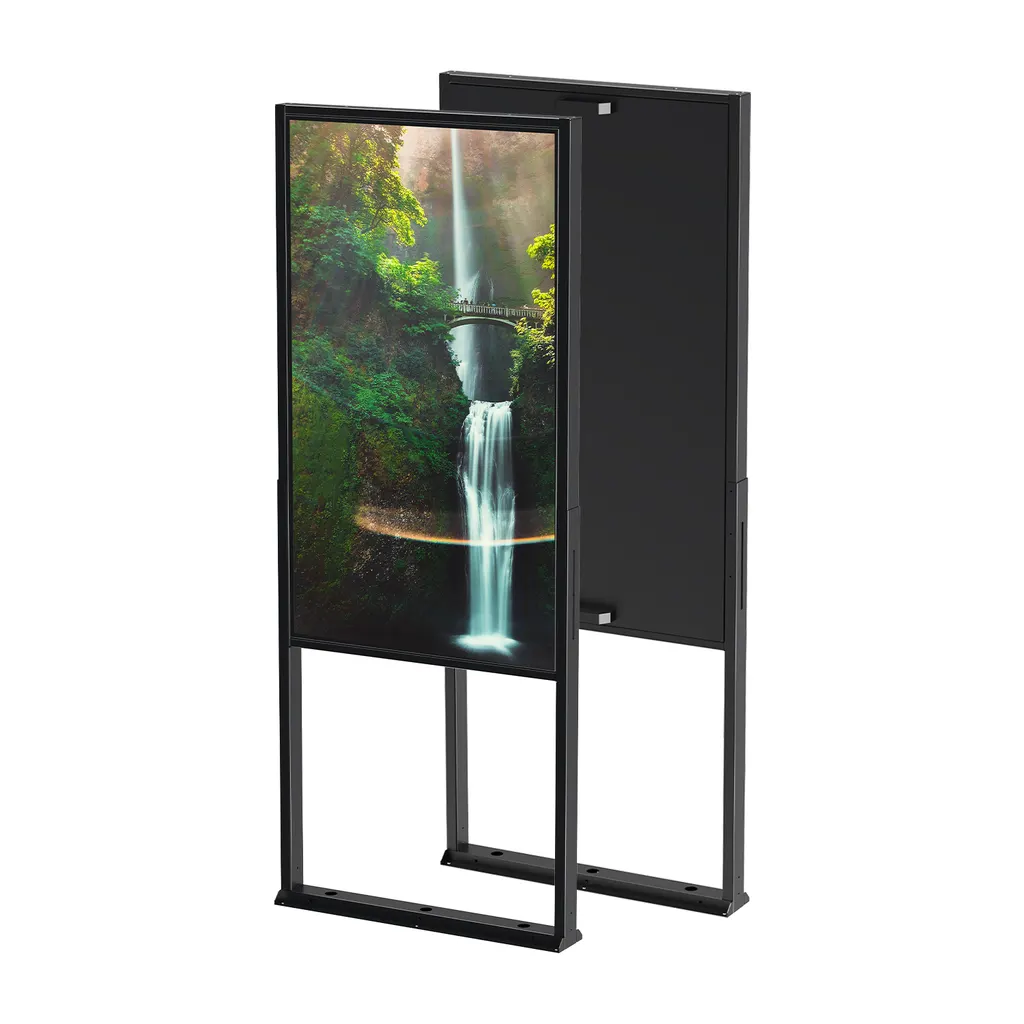

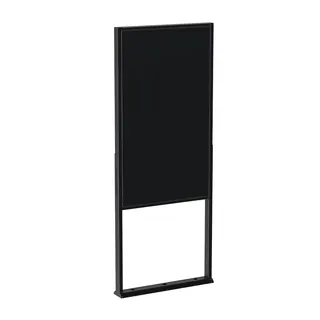

The Hisense LZ55ME is a kiosk stand accessory built to work with the 55WH80 Series. It supports floor-standing or ceiling-mounted installation, offers up to 100 mm of height adjustment and hides power and signal cables inside its structure. Rated for a 15 kg load and operation from -10°C to +45°C, it suits retail windows, pharmacies, bank branches and malls across Qatar. Request a quote to confirm fit.
What the bracket does for a 55WH80 display
The Hisense LZ55ME is a mounting accessory, not a display. Its job is to carry a 55WH80 Series screen in a kiosk or retail setup, hold it at the right height and keep the cabling tidy. Confirm your display model before ordering, because the bracket is specified for the 55WH80 Series.
Installation options and height adjustment

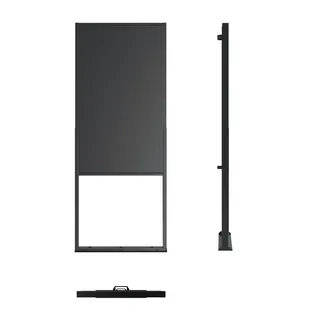

The unit supports both floor-standing and ceiling-mounted installation, so one product can suit a counter-height kiosk in a bank branch or a tall screen in a mall corridor. Height can be adjusted by up to 100 mm, which lets facilities teams position the display for the eye level of the people using it. The product measures 767 x 1906 x 120 mm, so check floor-to-ceiling clearance and the position of nearby doors and fixtures before the site visit.
Load, weight and environment limits
- Maximum load bearing: 15 kg
- Net weight: 17 kg; packed weight 18.5 kg
- Working temperature: -10°C to +45°C
- Working humidity: below 95%
Weigh the display, including any extra fittings, and make sure the total sits within the 15 kg limit. Qatar summers can push temperatures past 45°C, so a kiosk beside a glass frontage that takes direct afternoon sun may run close to the top of the rated range. Ask the SmartRooms Qatar team to review the exact position before installation.
Where it fits in Qatar
A pharmacy in Al Sadd might use a floor-standing unit beside the counter to hold an information screen at a comfortable height. A bank branch in West Bay could place a screen near the entrance for self-service queries. A shopping mall in Lusail may prefer ceiling mounting to keep walkways clear, while a showroom in the Industrial Area can use the height adjustment to match changing displays.
Planning the installation
Cable routing is the step most often overlooked. The integrated channel keeps power and signal cables out of sight, but a 55WH80 setup also needs an IR sensor cable to keep remote control reliable after the bracket is fitted, so plan that route in advance. SmartRooms Qatar offers free site surveys, which are worth booking before any wall or ceiling work. We supply, deliver to all 8 municipalities of Qatar, install professionally, and issue quotations usually within one working day.
Request a quote for the Hisense LZ55ME with your display model, mounting height and site location, and the SmartRooms Qatar team will confirm fit and the next steps.
Highlights
- Floor-standing or ceiling-mounted installation
- Height adjustment up to 100 mm
- Designed for the 55WH80 Series
- Maximum load bearing 15 kg
- Integrated concealed cable management
- Working temperature -10°C to +45°C
- Black matte finish, 17 kg net weight
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
8 specifications · Source: manufacturer · checked Oct 2026
General8
- Color Matte
- Black
- Product Size (W x H x D)
- 767 x 1906 x 120 mm / 30.20 x 75.04 x 4.72 inch
- Package Size (W x H x D)
- 838 x 1295 x 70 mm / 32.99 x 50.98 x 2.76 inch
- Net Weight
- 17 kg / 37.48 lbs
- Packed Weight
- 18.5 kg / 40.79 lbs
- Maximum Load Bearing
- 15 kg / 33.07 lbs
- Working Temperature
- -10°C ~ +45°C
- Adaptive Model
- 55WH80 Series (An IR sensor cable is required to maintain reliable remote control functionality after bracket installation)
Downloads
1 file from the manufacturerQuestions about LZ55ME
What is the Hisense LZ55ME and what is it used for?
The Hisense LZ55ME is a kiosk stand accessory, not a display. It is built to hold a 55WH80 Series screen in a floor-standing or ceiling-mounted configuration, with adjustable height and integrated cable management. It suits retail kiosks, reception points and self-service stations in Qatar where a screen needs a tidy, adjustable support.
Will the LZ55ME work with displays other than the 55WH80 Series?
The LZ55ME is designed to work with the 55WH80 Series, and that is the only compatibility listed in the manufacturer's specification. Before assuming another screen will fit, ask the SmartRooms Qatar team to check it against your model number. Mismatched brackets cause delays on site, so confirm compatibility in your quote request before ordering.
Can a bank branch in West Bay use it at counter height while a Lusail mall uses it on the ceiling?
Yes, the LZ55ME supports both floor-standing and ceiling-mounted installation, so one product can serve both sites. The counter-height unit in a West Bay bank branch sits on the floor, while the mall unit in Lusail is fixed to the ceiling to keep walkways clear. Confirm the ceiling structure and clearances during the site survey before choosing the method.
How much height adjustment does the LZ55ME offer for a kiosk in Doha?
The adjustable height range is up to 100 mm. That gives installers room to set the screen for the eye level of people using a Doha kiosk, such as a pharmacy counter or a clinic reception. Measure the target height from the finished floor and note it in your quote request so the installation can be planned.
What load can the LZ55ME carry, and what should I weigh before ordering?
The maximum load bearing is 15 kg. Weigh the display together with any mounting plate or accessories before ordering, and confirm the total stays within that limit. The LZ55ME itself has a net weight of 17 kg and a packed weight of 18.5 kg, so plan lifting equipment and the wall or ceiling structure around those figures.
Does a kiosk using the 55WH80 Series with this bracket need an IR sensor cable?
Yes. The manufacturer specifies that an IR sensor cable is required to keep remote control reliable after the bracket is installed with the 55WH80 Series. Without it, remote control performance is not assured. Confirm the IR sensor cable is included in your quotation, and check its route during the site survey so the sensor sits where the remote can reach it.
Will the LZ55ME cope with a kiosk near a sunny window in an Al Wakrah shopping centre?
The stated working temperature range is -10°C to +45°C, with humidity below 95%. Summer afternoons in Al Wakrah can push temperatures near or above 45°C, especially beside glass frontages, so avoid placing the unit in direct sun. Ask the SmartRooms Qatar team to review the exact position before you request a quote.
How are power and signal cables handled on the LZ55ME?
Integrated cable management keeps power and signal cables concealed within the unit, which gives a cleaner finish than loose cabling running down a stand. Plan the cable route before installation, including the IR sensor cable the 55WH80 setup needs, so that no cabling is left exposed at the finished site.
How much floor and wall space should a retail fit-out in Al Sadd allow for this unit?
The product measures 767 x 1906 x 120 mm, so it is tall and narrow with a shallow depth. Check floor-to-ceiling height, the 120 mm depth against the wall or counter, and room for cable routing and servicing. The packed box measures 838 x 1295 x 70 mm, so confirm doorways and the route to the fitting position before delivery.
Can a ministry or school in Doha order several LZ55ME units through an LPO?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. For multiple units, list the 55WH80 display model, the quantity and each installation location in one request, so the quotation covers every site.
