Marvel MWE832 Stand Alone Multi Touch Multimedia Kiosk

Name: Marvel MWE832 Stand Alone Multi-Touch Multimedia Kiosk
Brand: Marvel
SKU: marvel-mwe832-stand-alone-multi-touch-multimedia-kiosk
Availability: InStock

Overview

The Marvel MWE832 is a stand-alone, all-in-one multi-touch kiosk for wayfinding, advertising and product display, offered in panel sizes from 19 to 98 inches. Its reference 55-inch build has 1080*1920 resolution, 450 cd/m² brightness and infrared touch that accepts fingers or a pen. Android or Windows runs the content, so it suits malls, airports and corporate lobbies across Qatar. Request a quote to specify your size and configuration.

What the MWE832 is designed to do

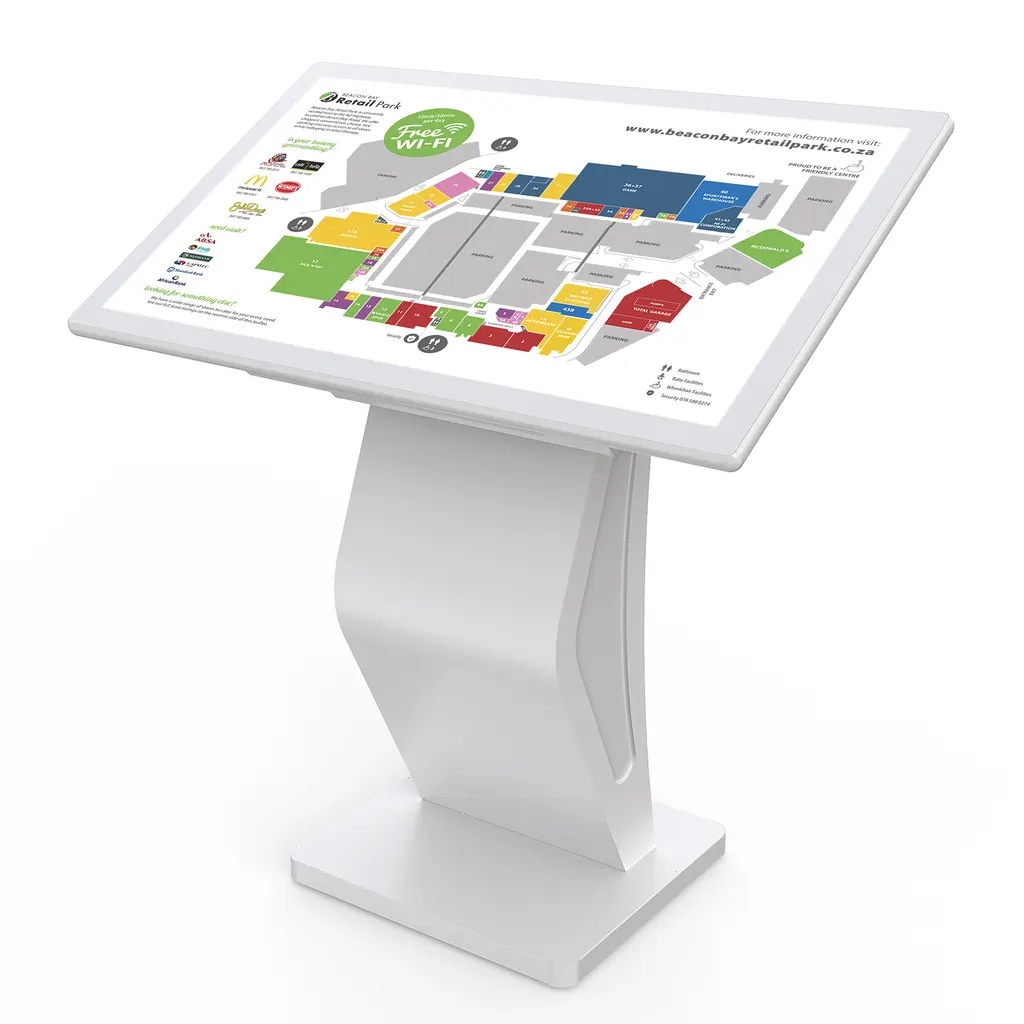

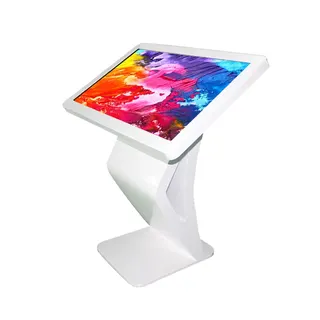

The Marvel MWE832 is a stand-alone, all-in-one touch kiosk. The display, computing hardware and enclosure sit in one unit that can stand on the floor, be fixed to a wall, or be used as a table unit. The manufacturer positions it for wayfinding, advertising, product display and interactive selection, such as finding a shop or restaurant on an interactive map of a shopping centre, or choosing products at an exhibition.

Display and touch performance

Panels are offered from 19 to 98 inches. The reference configuration uses a 55-inch panel with a 1209mm by 680mm display area, 1080*1920 resolution, a 16:9 display ratio, 450 cd/m² brightness and a 1,100:1 contrast ratio. Viewing angle is rated at 89 degrees minimum in each direction, and the panel shows 16.7 million colours with LED backlighting. The touch layer is infrared and responds to fingers or a touch pen, with 10 touch points as standard and 20 or 40 as options. The manufacturer rates the touch screen for more than 50 million touches.

Two computing platforms and their connections

The PC version uses an i5-3317U processor as an option, with 4G RAM and a 128G SSD as options, and supports Windows 7, 8, 8.1 or 10 as options. Its power rating is 140W. The Android version uses an RK3288 CPU with 2G RAM and 8G eMMC, supports Android versions from 4.2 up to 7.1.2 as options, and is rated at 120W. Networking is RJ45 Ethernet, with Wi-Fi and 4G available as options. The PC version has VGA, HDMI and USB ports, while the Android version has HDMI, USB and SD.

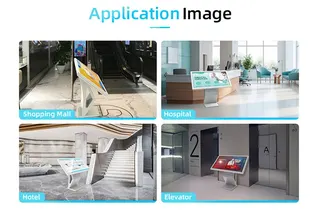

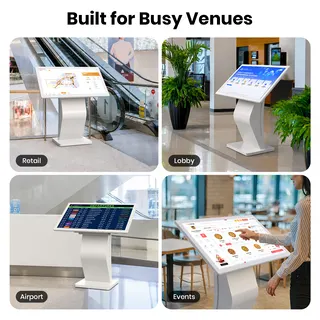

Where it fits in Qatar

A shopping mall entrance in West Bay or Lusail: a floor-standing directory for stores, restaurants and promotions, which is the interactive map use the manufacturer describes most clearly.
A hotel lobby in Msheireb: an information point for guests showing event schedules and nearby restaurants, placed away from direct sunlight.
A campus in Education City: a visitor information point displaying building maps and event listings for students and guests.

What to plan before you order

The manufacturer data does not confirm final overall dimensions or weight, so ask for both with your quotation before you allocate floor space, choose a stand or fix a wall bracket. Input is listed at 100 to 240V, 50/60 Hz, which covers the 240V, 50 Hz mains supply in Qatar. The working temperature range is 0°C to 50°C and the application is indoor, so a unit near a sun-facing window or an open entrance exposed to dust should be checked on site first. Certifications are listed as CE, FCC and RoHS, with the current compliance list available on request, and the manufacturer lists a 1 to 3 year warranty. An anti-dazzle finish and enclosure colour (black, white, silver or custom) can be specified at order.

Send SmartRooms Qatar your site, preferred panel size and content plan, and we will return a quotation, usually within one working day. We deliver to all eight municipalities of Qatar, provide professional installation and offer a free site survey. Request a quote today.

Highlights

Panel sizes listed from 19 to 98 inches, with a 55-inch reference build
1080*1920 resolution, 450 cd/m² brightness and 1,100:1 contrast
Infrared touch accepts fingers or a pen; 10 touch points standard
PC version runs Windows; Android version runs Android 4.2 to 7.1.2 options
HDMI, USB, Ethernet and optional Wi-Fi or 4G connectivity
Input 100-240V 50/60 Hz; working temperature 0°C to 50°C

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

42 specifications · Source: manufacturer · checked Oct 2026

Key Attributes8

Model Number: MWE832
Brand Name: Marvel
Certification: CE FCC ROHS
Place of Origin: Shenzhen, China
Application: Indoor
Input Voltage: AC100~240V 50 /60 HZ
Packaging: Bubble bag+packing foam+carton+wooden case
Delivery Detail: Batch order 15-30 days

Screen10

Panel Brand: Samsung & LG Full New 100% A+ Grade Brand Panel
Panel size: 55" (optional,19" ~98")
Display size: 1209mm(H)×680mm(V)
Display ratio: 16:9
Resolution: 1080*1920
Viewing angle: 89/89/89/89 (Min.)(CR≥10)
Color: 16.7M
Backlits: LED
Brightness: 450 cd/m2
Contrast: 1100:1

OS System4

OS System: MWE832 PC Version: main board:i5-3317U(optional); MWE832 Android Version: CPU:RK3288(optional)
OS System (2): MWE832 PC Version: RAM:4G,SSD:128G(optional); MWE832 Android Version: RAM:2G,EMMC:8G(optional)
Operation: MWE832 PC Version: Windows 7(optional,win8,win8.1,win10); MWE832 Android Version: Android 4.2(optional Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2)
Connection to network: MWE832 PC Version: RJ45, 4G, WIFI (optional); MWE832 Android Version: RJ45 ,4G,WIFI (optional)

Touch Screen system4

Touch screen: Infrared touch screen (touch foil, capacitive)
Touch ways: finger,touch pen
Touch dots: 10dots (optional,20dots,40dots)
Durability: More than 50 million touch

Power3

Power: MWE832 PC Version: 140W; MWE832 Android Version: 120W
Voltage: AC100-240V 50/60HZ
Stability: good

Instructions6

Interface: MWE832 PC Version: VGA/HDMI/USB; MWE832 Android Version: HDMI/USB/SD
Working temperature: 0°C-50°C
Material: Aluminum alloy,tempered glass
Surface: Spraying,frosted aluminum
Size: Undetermined
Weight: Undetermined

Body3

Shell: Mild-steel sheet. Thickness:1.0-1.5mm.
Color: Black , white , silver or customized colors
Packing: By carton with foam inside & wooden

Optional Functions1

Items: Anti-dazzle; 3G/4G Capability

Specifications (marveltechlcd.com)3

Product Type: Model Number: MWE832 Interactive Multimedia Information Kios
Application Environment: Indoor
Certifications: Contact MWE for the current compliance list (CE / FCC / RoHS commonly supported)

Downloads

2 files from the manufacturer

PDF Brochures Product Catalog.pdf 37.0 MB URL Other documents · Opens on manufacturer site Product video

Questions about MWE832 Stand Alone Multi Touch Multimedia Kiosk

Is the MWE832 suitable for a shopping mall entrance in West Bay or Lusail?

Yes, for store directories, restaurant maps and promotions at a mall entrance, which is the interactive map use the manufacturer describes. The reference build is a 55-inch panel. Ask SmartRooms Qatar for a free site survey to check walkway width, floor finish and the nearest power point before the location is fixed.

What sizes does the MWE832 come in?

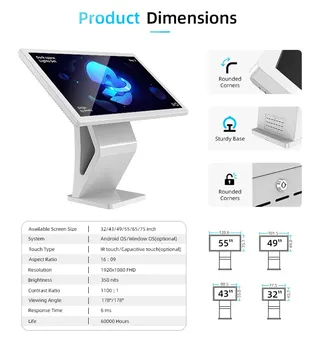

The manufacturer data lists panel sizes from 19 to 98 inches. The reference configuration uses a 55-inch panel with a 1209mm by 680mm display area. Sizes and configurations are confirmed per project, so send your target dimensions with your enquiry and SmartRooms Qatar will return a quotation for the size that fits your space, usually within one working day.

How do I choose between the Windows PC version and the Android version?

Choose by the software your team needs. The PC version supports Windows 7, 8, 8.1 and 10 as options, with an i5-3317U processor, 4G RAM and 128G SSD as options, and is rated at 140W. The Android version uses an RK3288 CPU with 2G RAM and 8G eMMC, supports Android 4.2 to 7.1.2 as options, and is rated at 120W. Ask the manufacturer to confirm the exact board for your order.

How does the touch screen work and how many touch points does it support?

The touch screen is infrared, as specified by the manufacturer, and accepts a finger or a touch pen. It has 10 touch points as standard, with 20 or 40 points as options. The manufacturer rates the touch screen for more than 50 million touches. Multiple touch points matter when several visitors use the screen close together, such as a group reading a campus map.

Will the kiosk cope with a hot lobby in Doha during summer?

The MWE832 is listed for indoor use with a working temperature range of 0°C to 50°C. An air-conditioned lobby usually falls within that range, but a unit beside a sun-facing glass wall or at an open entrance exposed to dust storms should be reviewed before installation. SmartRooms Qatar can check the chosen position during the free site survey.

Does the MWE832 work on Qatar's 240V power supply?

The input is listed as AC100 to 240V at 50 or 60 Hz, which includes Qatar's 240V, 50 Hz mains. Power draw is 140W for the PC version and 120W for the Android version. The data does not specify the plug type, so confirm the socket type and position with your quotation and plan an outlet close to the installation point.

Which ports and network options are included?

The PC version has VGA, HDMI and USB ports with RJ45 Ethernet. The Android version has HDMI, USB and SD. Wi-Fi and 4G are optional on both versions. Because the manufacturer asks buyers to confirm exact ports, check the port layout before ordering, especially if you need VGA to connect an existing computer.

Can the MWE832 be wall mounted or used as a table unit?

The manufacturer describes a slim, lightweight enclosure suited to wall mounting or a floor stand. The screen can be adjusted from 0 to 45 degrees, with a tilt option or use as a table unit. Overall dimensions and weight are not confirmed in the data, so request them before choosing a stand or bracket. Wall fixing requires a check of the structure, and SmartRooms Qatar provides professional installation.

Can a school in Al Wakrah order several units under a purchase order?

Yes. Several units can be quoted on one request, and orders can be placed by LPO, with payment by bank transfer, cheque or purchase order. For each location, such as an entrance hall or reception, state the mounting type and preferred enclosure colour among black, white, silver or a custom colour, so the quotation covers delivery and installation across Al Wakrah.

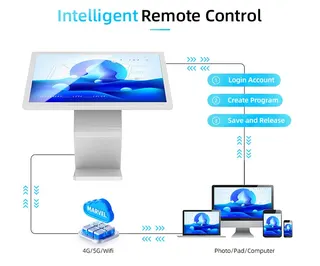

Can content be updated remotely across several kiosks?

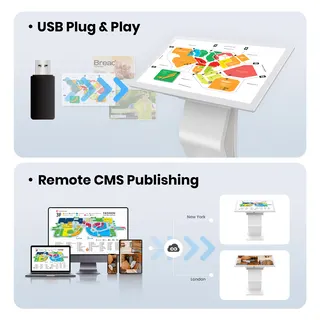

Networked remote management is available on request. Content can be delivered through the onboard player or a standard signage CMS, and MWE can integrate its own CMS Cloud or a customer-preferred platform. Board and CMS options depend on configuration, so confirm them with your quotation before planning the network for an education campus or multi-site rollout.

What certifications and warranty does the manufacturer list?

The manufacturer data lists CE, FCC and RoHS certification, with the current compliance list and any market-specific marks confirmed per order and available on request. A warranty of 1 to 3 years is stated, and the unit is covered by the manufacturer warranty. Ask for compliance documents with your quotation, as government tenders often require them.
