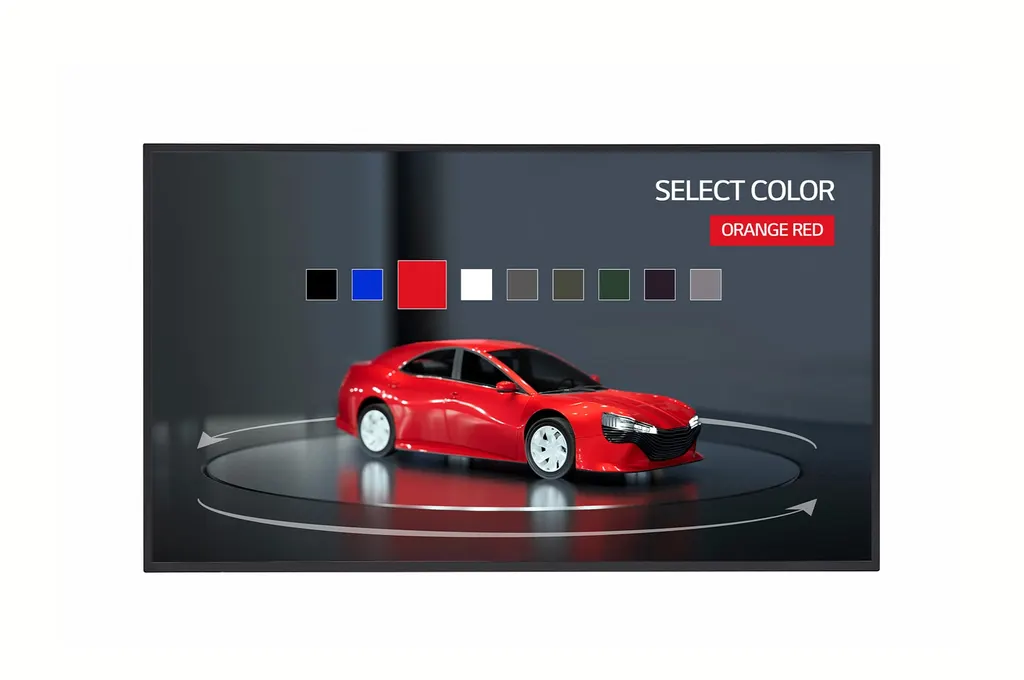

LG 43TNF5P 43-inch Touch Open Frame Kiosk Display

Overview

The LG 43TNF5P is a 43-inch open frame touch display for kiosks, wayfinding stations and reception counters. Its IPS panel delivers 3,840 × 2,160 resolution and 500 nit brightness, with 10-point multi-touch built into the screen. It runs webOS 6.0 and is rated for 24/7 operation, which suits busy public areas in Doha, Lusail and West Bay.

A touch display built into the panel

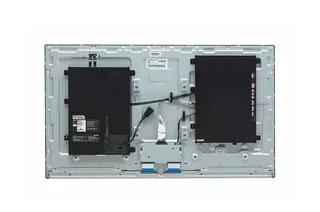

The LG 43TNF5P is an open frame display with touch sensing integrated into the LCD itself, rather than a separate film laid over the glass. That construction lets the unit stay thin and carry a narrow bezel, and it avoids the haze that film overlays can add to an image. For kiosk builders and integrators, the result is a cleaner front face and a more flexible enclosure design, because the display, touch layer and webOS 6.0 platform arrive as one unit.

Specifications that shape the buying decision

Resolution: 3,840 × 2,160 UHD on an IPS panel with 178 × 178 viewing angles, so content stays readable for people standing at either side of a counter.
Brightness: 500 nit with a 1,000:1 contrast ratio. Compare these figures with the ambient light in your lobby or hall before choosing a unit.
Touch: up to 10 simultaneous touch points, with a stated accuracy of 3.5 mm and support for objects from 6 mm in diameter, on Windows 10, Windows 11 or Android.
Operation: rated for 24 hours a day, 7 days a week, with a lifetime of 50,000 hours minimum.
Inputs: two HDMI inputs with HDCP 2.2 and 1.4, RJ45 LAN, RS232C, IR input, USB 2.0 Type A and Type B, and audio out.

Where it fits across Qatar

A government service centre in Msheireb might place the 43TNF5P in a self-service kiosk where visitors check in, print a ticket or find the right counter, connected to the building network through its RJ45 port. A hotel in West Bay could use it as an interactive wayfinding or check-in terminal beside the reception desk. In Education City, a university library could show a catalogue search or study room booking screen through the working day, with content managed through SuperSign CMS, which the data lists as compatible.

What to plan before ordering

Check the enclosure first. The stated operating range is 0°C to 40°C with 10% to 80% humidity, and Qatar summers regularly exceed 45°C, so the unit and its housing need to sit in air-conditioned space with proper ventilation. Confirm the enclosure design with the SmartRooms Qatar team before fabrication. Measurements are 967.2 × 558.4 × 38.0 mm, weight is 10.4 kg (12.4 kg packed), and mounting uses a 200 × 200 VESA pattern. The panel can be tilted up to 45 degrees for low installations. Power is AC 100-240V at 50/60Hz from a built-in supply, with typical consumption of 81 W and a maximum of 110 W, so it accepts Qatar's 240 V, 50 Hz mains. Ask us to confirm that the supplied 1.55 m power cord suits your sockets. A free site survey lets our team check cable runs, power and mounting before the kiosk is built.

Ordering with SmartRooms Qatar

Each unit includes a power cord, USB cable, user manual, quick start guide, remote controller with two batteries, RS232C adapter and IR receiver. Projects with several kiosks can be ordered on a single LPO or through a government tender, and we deliver to all eight municipalities of Qatar. Tell us your enclosure size, mounting method and content platform, and we will send a quotation, usually within one working day. Request a quote for the LG 43TNF5P today.

Highlights

43-inch IPS panel at 3,840 × 2,160 resolution
10-point multi-touch built into the display
500 nit brightness and 1,000:1 contrast ratio
Rated 24/7 with a 50,000-hour minimum lifetime
webOS 6.0 platform with 8GB internal memory
Operating range 0°C to 40°C; installs tilted up to 45 degrees

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

71 specifications · Source: manufacturer · checked Oct 2026

Panel13

Screen Size: 43"
Panel Technology: IPS
Native Resolution: 3,840 × 2,160 (UHD)
Brightness (nit): 500
Contrast Ratio: 1,000:1
Color gamut: NTSC 72%
Viewing Angle (H × V): 178 × 178
Color Depth: 10 bit (D), 1.07 Billion Colors
Response Time: 9ms (G to G)
Surface Treatment (Haze): Haze 12%
Lifetime: 50,000 Hrs (min)
Operation Hours (Hours / Day): 24 / 7
Portrait / Landscape: Yes / Yes

Connectivity2

Input: Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)
Output: Audio Out, USB2.0 Type B(1)

Mechanical Specification7

Bezel Color: Black
Bezel Width: 10.9/10.9/10.9/13.5 mm
Weight (Head): 10.4 kg
Packed Weight: 12.4 kg
Monitor Dimensions (W × H × D): 967.2 x 558.4 x 38.0 mm
Carton Dimensions (W × H × D): 1,064 x 665 x 156 mm
VESA<sup>TM</sup> Standard Mount Interface: 200 x 200

Key Feature(Hardware)3

Internal Memory: 8GB (System 5GB + Available 2.48GB)
Temperature Sensor: Yes
Acceleration(Gyro) Sensor: Yes

Key Feature(Software)21

webOS ver.: webOS 6.0
Embedded CMS: Local Contents Scheduling, Group Manager
USB Plug & Play: Yes
Fail over: Yes
Background Image: Booting Logo Image, No Signal Image
Video Tag: Yes
Play via URL: Yes
Screen Rotation: Yes
Gapless Playback: Yes
Setting Data Cloning: Yes
SNMP: Yes
ISM Method: Yes
Status Mailing: Yes
Control Manager: Yes
Cisco Certification: Yes
Crestron Connected: Yes
Power: Smart Energy Saving, PM mode, Wake on LAN, Network Ready
HDMI-CEC: Yes
SI Server Setting: Yes
webRTC: Yes
Pro:Idiom: Yes

Environment Conditions2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

Power2

Power Supply: AC 100-240V~, 50/60Hz
Power Type: Built-In Power

Power Consumption6

Typ.: 81 W
Max.: 110 W
BTU (British Thermal Unit): 276 BTU/Hr(Typ.), 375 BTU/Hr(Max.)
Smart Enegy Saving (70%): 57 W
DPM: 0.5 W↓
Power off: 0.5 W↓

Certification3

Safety: CB / NRTL
EMC: FCC Class “A” / CE / KC
ErP / Energy Star: Yes / Yes

Software Compatibility5

SuperSign CMS: Yes
SuperSign Control+: Yes
SuperSign Cloud: Yes
Mobile CMS: Yes
Connected Care: Yes

Accessory1

Basic: Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

Touch6

Available Object Size for Touch: Ø6mm ↑
Response Time (Based on 'Paint' app on Windows 10 PC): 90ms ↓
Accuracy: 3.5 mm
Interface: USB 2.0
Operating System Support: Win 10 / 11, Android
Multi Touch Point: Max. 10 Points

Downloads

6 files from the manufacturer

PDF Manuals & guides OM_ENG.pdf 1.5 MB PDF Manuals & guides · Opens on manufacturer site OM_ARA.pdf 1.7 MB URL Manuals & guides · Opens on manufacturer site User Guide PDF Manuals & guides · Opens on manufacturer site WW_IG.pdf 1.8 MB PDF Manuals & guides · Opens on manufacturer site WebOS 6.0. 6.1_ENG.pdf 4.9 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 43TNF5P

What is the LG 43TNF5P used for?

The LG 43TNF5P is a 43-inch open frame touch display for kiosks and interactive public terminals. It suits self-service check-in points in government centres, wayfinding screens in hotel lobbies and queue management stations in banks. Because touch sensing is built into the panel, it can be housed in a slim custom enclosure. Request a quote if you are building a new kiosk or replacing an older touch overlay.

How does the built-in touch differ from a film overlay?

Touch sensing is integrated into the display itself, so no separate touch film sits on the glass. According to the manufacturer, this allows a slim design and narrow bezels of 10.9 mm on three sides and 13.5 mm on the fourth, and avoids the haze that film layers can add to the picture. Compare the stated 3.5 mm touch accuracy with your current hardware before deciding.

Can it run all day in a busy lobby?

Yes. The specifications rate the 43TNF5P for 24 hours a day, 7 days a week, with a lifetime of 50,000 hours minimum. In a busy lobby in Doha or an airport-area kiosk, reliable continuous operation matters as much as brightness. Keep the unit in air-conditioned space, because its operating range is 0°C to 40°C and summer temperatures in Qatar can exceed 45°C. Check enclosure ventilation before ordering.

How many touch points does the screen support?

The screen recognises up to 10 touch points at once, with an accuracy of 3.5 mm and detection of objects from 6 mm in diameter. Touch works with Windows 10, Windows 11 and Android, and the stated response time is 90 ms or less. This lets two or more people interact with a shopping centre directory or a school reception screen at the same time.

Which connections does it have?

It has two HDMI inputs supporting HDCP 2.2 and 1.4, an RJ45 LAN port, RS232C, an IR input, one USB 2.0 Type A port, one USB 2.0 Type B port and an audio output. The Type A port supports plug and play. Confirm that your media player or PC outputs video over HDMI, and that your control system uses RS232C or the network, before deciding how many units your project needs.

Does it work with Crestron or Cisco control systems?

The specifications list Crestron Connected support and a Cisco certification, along with SuperSign CMS, SuperSign Control+, SuperSign Cloud, Mobile CMS and Connected Care. The unit also supports HDMI-CEC and Wake on LAN. Share your control system and content platform with the SmartRooms Qatar team before the quotation is issued so we can confirm what integration your project needs.

What size and mounting space does it need?

The monitor measures 967.2 × 558.4 × 38.0 mm and weighs 10.4 kg, or 12.4 kg packed. It mounts on a 200 × 200 VESA pattern and can be installed tilted up to 45 degrees for low-level kiosks. Plan the enclosure around these figures and leave room for cable entry and airflow. Our team can carry out a free site survey to check the wall or kiosk frame.

Is it compatible with Qatar's power supply?

The voltage range is compatible. The built-in power supply accepts AC 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 81 W and maximum is 110 W, and Smart Energy Saving mode reduces draw to 57 W. Confirm that the supplied 1.55 m power cord fits the sockets in your kiosk area.

Would it suit a university library in Education City?

Yes, for a catalogue search screen, study room booking or building directory. The IPS panel's 178 × 178 viewing angles let students read the screen from either side of a desk, and the 43-inch size suits an information counter. The 10 touch points allow several students to use it at once. Universities can order a small batch for several locations, with quantities and sites confirmed in the quotation.

Can a government entity buy it through a tender or LPO?

Yes. SmartRooms Qatar supplies government ministries and authorities through purchase orders (LPOs) and Monaqasat tenders, and delivers to all eight municipalities of Qatar. Payment can be made by bank transfer, cheque or purchase order. Send the tender specification or your kiosk brief, and our team will prepare a quotation, usually within one working day. Products are covered by the manufacturer's warranty.

Can it be installed outdoors or at open entrances?

The published specifications do not cover outdoor use. The stated operating range is 0°C to 40°C with 10% to 80% humidity, and the data describes no protection against dust, wind or direct sunlight. We do not recommend installing it in car parks, open stadium areas or entrances exposed to dust storms without reviewing the case first. Send a description of the location and we will confirm a suitable solution before quoting.
