MWE804 Outdoor High Brightness Digital Signage

What the MWE804 is built to do outdoors

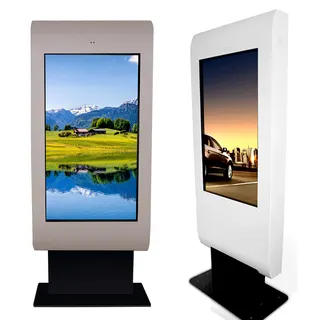

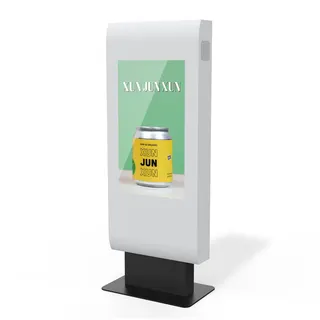

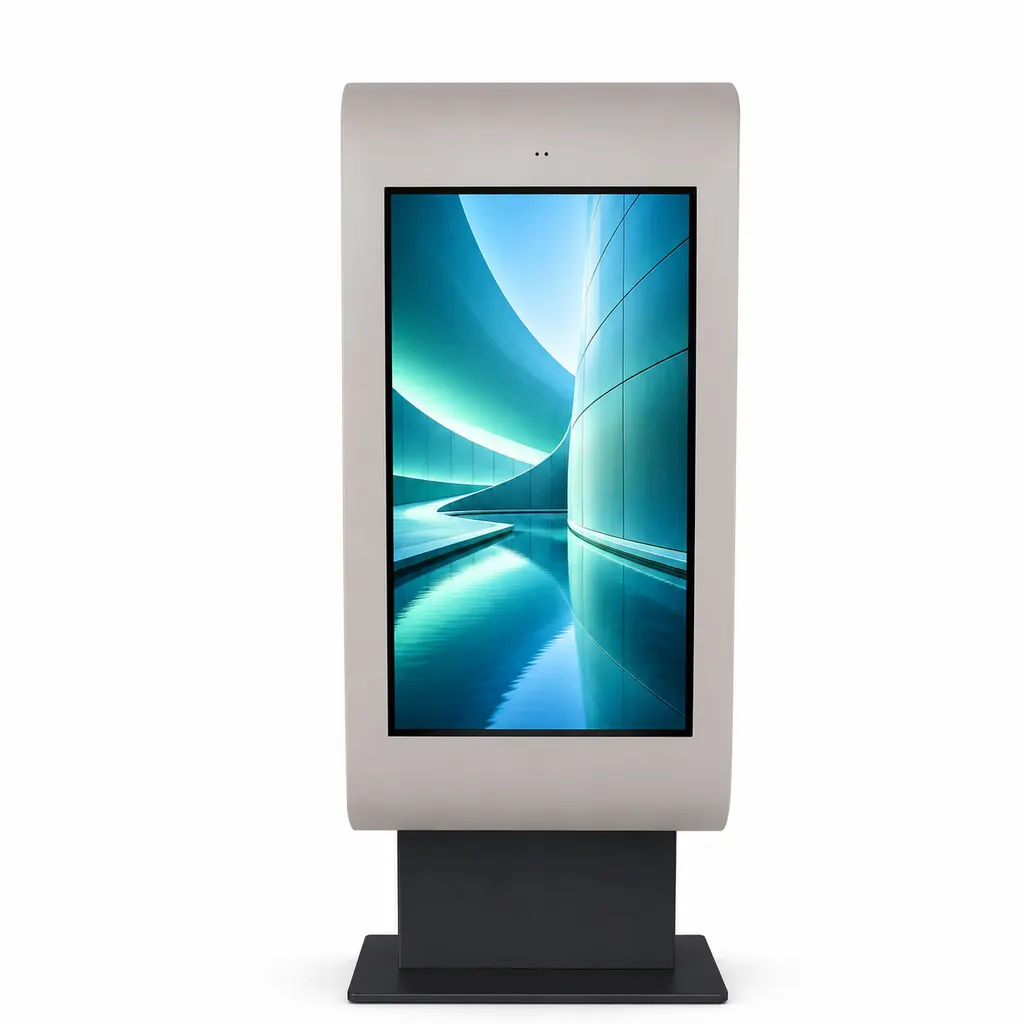

The Marvel MWE804 is an outdoor LCD digital signage display for advertising, public information and wayfinding in places where a standard indoor screen would wash out or fail. It is offered across a size range from 19 to 86 inches. The manufacturer data uses a 32-inch class panel as its reference configuration, so the exact size should be confirmed when you request a quote.

Brightness, panel and picture facts

The listed brightness is 2500 cd/m2, which is the figure that matters when midday sun falls on a screen. The LED backlit panel has a 1080 x 1920 resolution, a 178 degree horizontal and vertical viewing angle, a 3000:1 contrast ratio and 16.7M colours. The data also lists a 16:9 display ratio, which does not match a 1080 x 1920 pixel grid, so confirm whether the unit will be landscape or portrait before it is specified.

Touch is optional. The capacitive touch foil accepts a finger or touch pen, can be specified with 10, 20 or 40 touch points, and is rated for more than 50 million touches. A touch layer only makes sense where visitors select options, such as a campus wayfinding totem; a passive advertising screen does not need it.

Temperature, enclosure and protection

Summer temperatures in Qatar regularly pass 45 degrees Celsius, so the operating range is a key buying factor. The data gives three configurations: -30 to 60 degrees Celsius with air conditioning, -10 to 55 degrees with fan cooling, and -30 to 55 degrees with fan cooling plus a heater. A site with full afternoon sun should specify the air-conditioned build, which has the highest upper limit.

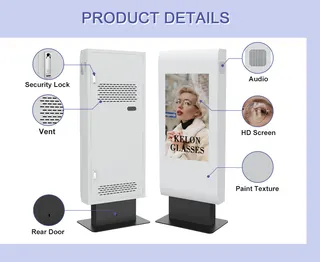

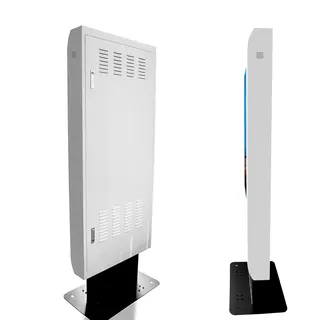

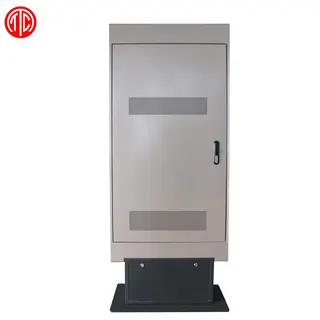

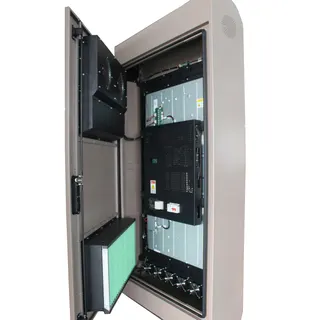

The enclosure is a 2 mm galvanised steel shell with an aluminium alloy frame and tempered glass. The specification lists IP65 alongside CE, FCC and RoHS. Optional protection includes anti-glare, anti-reflection, anti-UV, anti-IR, water-proof, dust-proof and vandal-proof builds, plus the ability to pass IK10 impact testing. The manufacturer should confirm the current compliance list before tender submission.

Where it fits in Qatar

• Bus shelters and transit points: a route information display on a busy corridor in Doha, where the screen faces direct sun for much of the day.
• Malls and fuel station forecourts: a promotional screen at a shopping centre entrance in West Bay or on a fuel station forecourt along a main road outside Doha.
• Campus and residential wayfinding: an outdoor totem guiding visitors around a campus in Education City or a new residential development in Lusail.

Planning the installation and remote management

The data does not list the weight or dimensions of each size, so ask SmartRooms Qatar for these before planning a pole, plinth or wall fixing. A free site survey is the right first step for an outdoor unit, covering power access, mounting height and shade. The input range of 100 to 240 V AC at 50/60 Hz covers Qatar's 240 V, 50 Hz mains, and the unit is rated at 330 W.

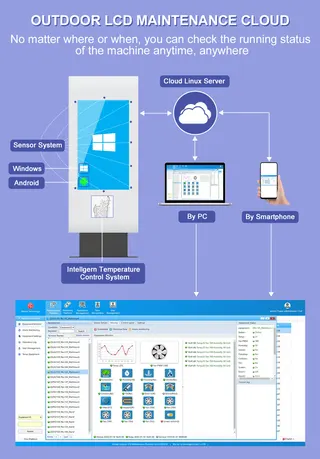

Connectivity includes RJ45 Ethernet and Wi-Fi, with 4G available as an option. The PC version offers VGA, HDMI and USB, while the Android version offers HDMI, USB and SD. Control interfaces include RS232 and TCP/IP, and the manufacturer provides an API and instruction protocol. The OMC maintenance cloud supports real-time status monitoring, remote troubleshooting and anomaly alerts, though availability depends on the board you choose. The manufacturer lists a 1 to 3 year warranty, and the term for your configuration will be stated on the quotation.

Send SmartRooms Qatar your location, the size you need and the exposure of the site, and request a quote for the MWE804 configuration that suits your installation.
