MWE863 Outdoor Wall-Mounted and Free-Standing 2-in-1 Signage

What the MWE863 is and how it is mounted

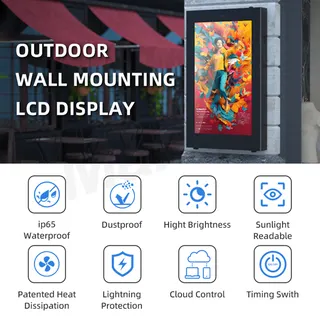

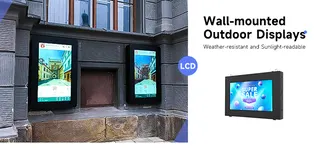

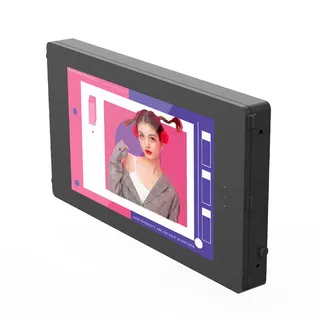

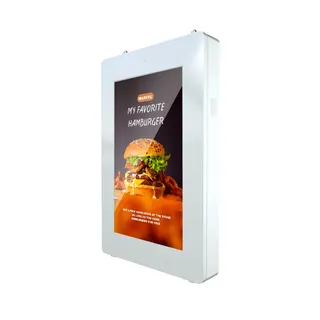

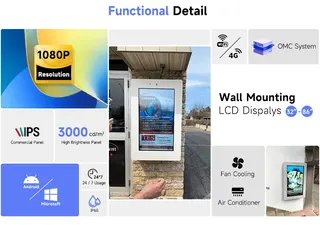

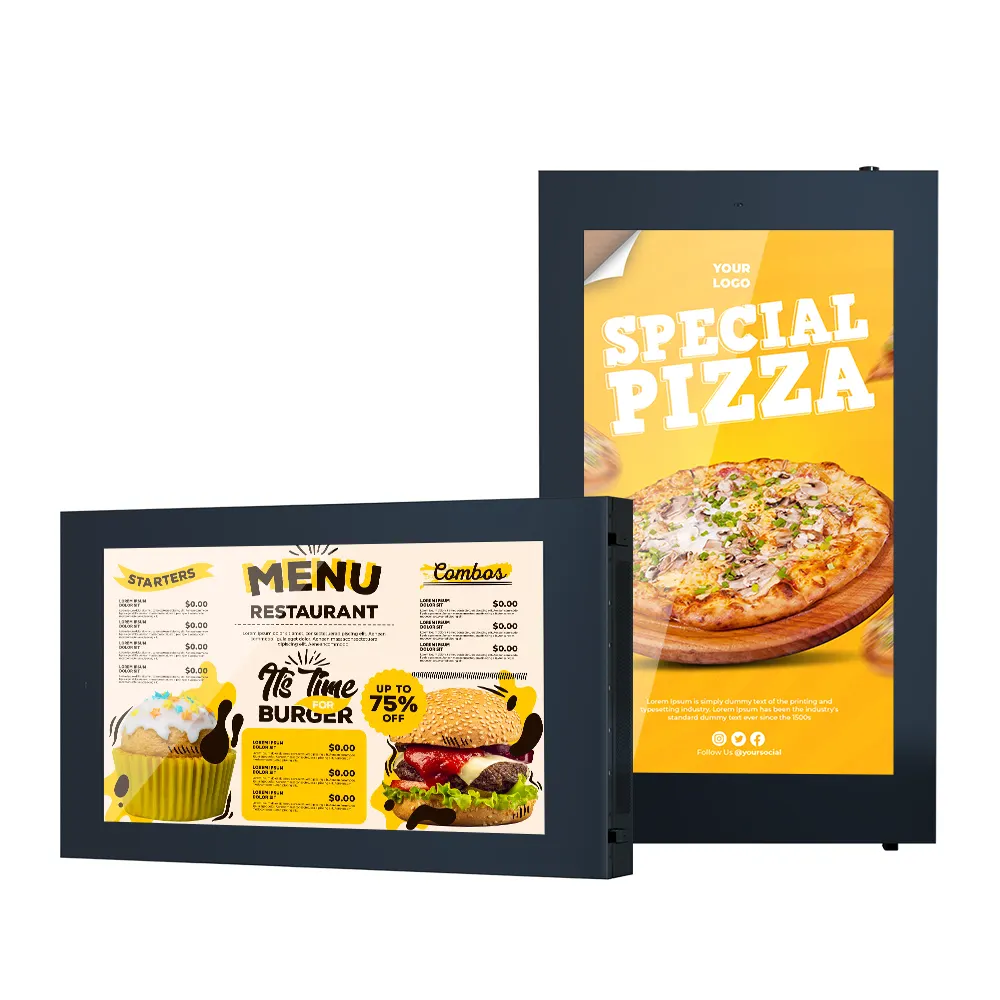

The Marvel MWE863 is a 2-in-1 outdoor digital signage totem. Fix it to a wall for a building frontage, or add the optional stand and place it free-standing on a pavement, plaza or forecourt. The enclosure combines an aluminium alloy frame with tempered glass, and its shell is listed as galvanised steel of 2 mm thickness. Standard colours are black, white and silver, and custom colours are available.

Display size, resolution and brightness

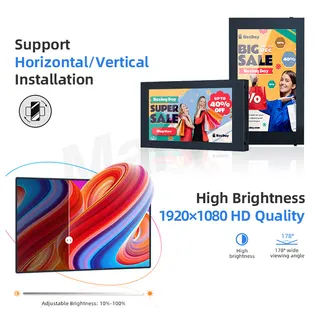

The screen is a 16:9, LED-backlit panel with 1920 x 1080 resolution and a display area of 698.4 mm by 392.85 mm. Brightness is rated at 2500 cd/m2 with a 3,000:1 contrast ratio, and the viewing angle is listed as 89/89/89/89 minimum. The range runs from 19 to 86 inches. The reference configuration in the published data is a 19-inch class panel, so confirm the exact size against your sightline and mounting height before ordering.

• Anti-reflection and anti-glare finishes are listed as options.
• Polarised sunglasses support is an option for bright conditions.

Built for Qatar heat, dust and weather

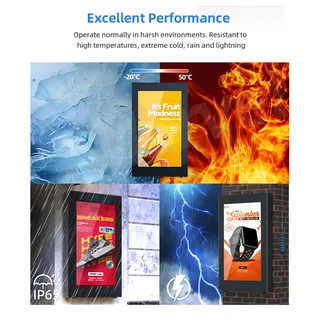

Summer afternoons in Doha, Al Khor and Ras Laffan can pass 45°C, so the cooling configuration matters as much as the panel size. The MWE863 is rated from -30°C to 60°C with air conditioning, from -10°C to 55°C with fan cooling, and from -30°C to 55°C with fan cooling plus a heater. The IP65 rating protects against dust and water ingress, and dust-proof, water-proof and vandal-proof options are listed. Optional IK10 anti-collision protection and anti-UV and IR blocking suit exposed sites. Check the cooling option against the sun exposure of your location before you order.

Connectivity, control and remote monitoring

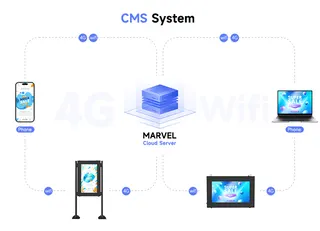

Two internal versions are offered. The PC version has VGA, HDMI and USB ports, an optional i5-3317U main board, 4 GB of RAM and 128 GB SSD, and Windows 7, 8, 8.1 or 10 as options. The Android version has HDMI, USB and SD ports, an RK3288 processor, 2 GB of RAM and 8 GB of eMMC storage, and Android releases from 4.2 to 7.1.2. Both connect through RJ45 Ethernet or Wi-Fi, with 4G as an option. The unit is rated at 290 W on a 100 to 240 V, 50/60 Hz supply.

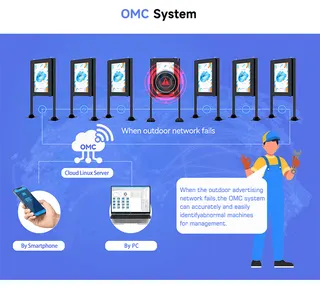

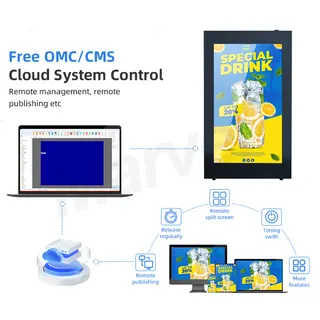

The optional Outdoor Maintenance Cloud (OMC) reports device status and faults, supports remote diagnostics and group performance checks, and can work with sensors for temperature, humidity, tilt, collision and ponding. RS232 and TCP/IP control options are also listed, with API and protocol documentation.

Where it fits in Qatar

• Retail frontages: a totem at a mall entrance in West Bay or Al Sadd can show current promotions to people on foot, with content managed remotely.
• Transit hubs: a bus station in Doha can show routes and service information in daylight.
• Campus and public information: a free-standing unit at an Education City or hospital entrance can give directions and notices.

What to plan before you order

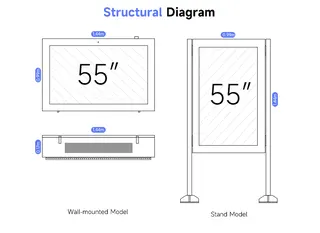

The published specification does not list the weight or full external dimensions, so confirm them before choosing a base or wall fixing. A free site survey from SmartRooms Qatar checks the mounting point, cable route, power access and exposure to wind and sand. Decide on the panel size, touch or non-touch, and the protection options you need. The source lists a 1 to 3 year warranty, and the product is covered by the manufacturer's warranty. Lead times are estimates confirmed with your quotation, based on stock. Government bodies can order by LPO or through government tenders, paying by bank transfer, cheque or purchase order.

Request a quote from SmartRooms Qatar with your location, preferred size and mounting type. Our team usually replies with a quotation within one working day.
