KOF555-1-EUK

A single-display outdoor enclosure for the XHB554

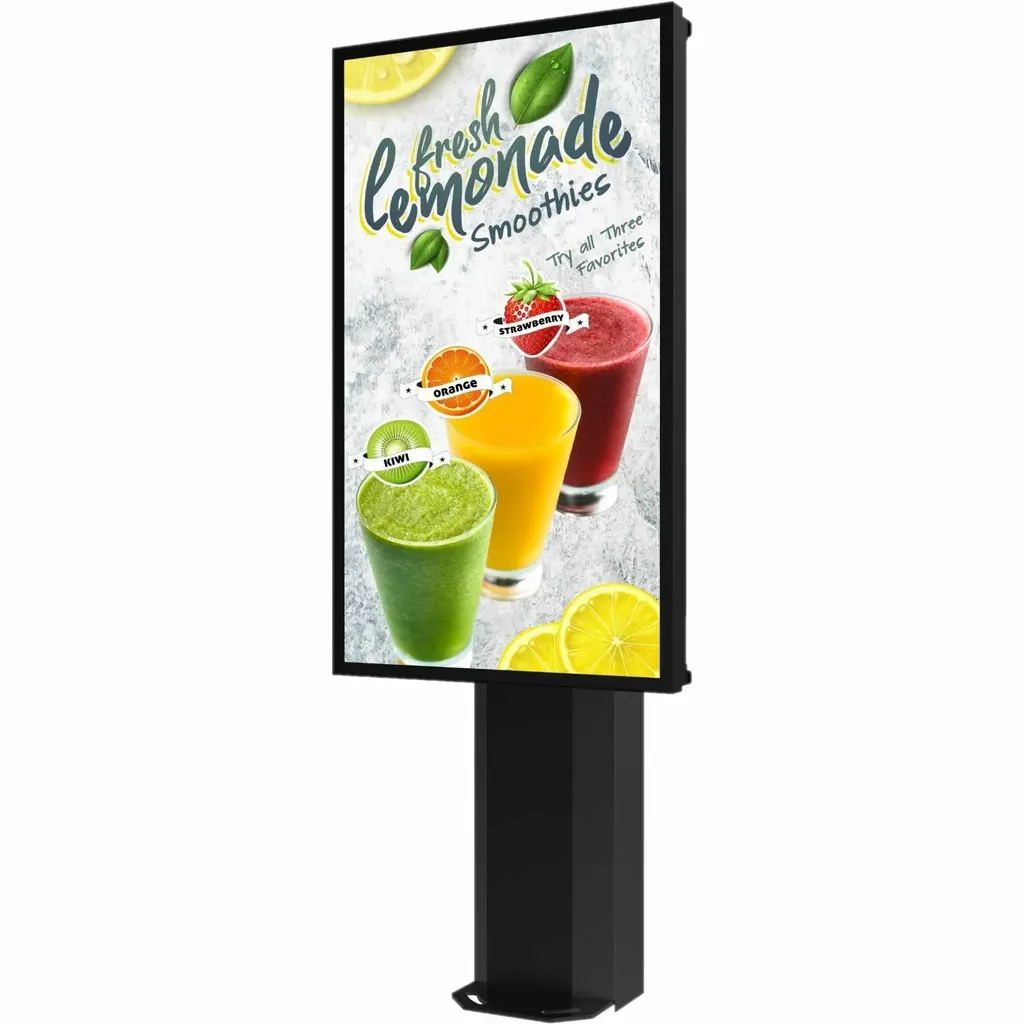

The KOF555-1-EUK is an outdoor menu board enclosure from Peerless-AV, built to hold one 55-inch Peerless-AV XHB554 outdoor display. It is the single-display configuration in the KOF555-EUK series, so it suits a drive-thru lane or outdoor counter that needs one menu panel, not two or three. The unit measures 192.20 cm (75.67 in) high, 72.09 cm (28.38 in) wide and 32.05 cm (12.62 in) deep, and weighs approximately 59.87 kg. Its black, powder-coated textured finish is designed for outdoor use.

Protection and security for 24/7 outdoor use

The source describes the enclosure as rugged, weather proof and vandal resistant. Captive security fasteners help prevent unauthorised access, which matters on a lane that runs around the clock and is reachable by the public. The enclosure is intended to protect the display and its internal equipment while keeping a clean, minimal appearance at the site entrance.

Practical features that shape the installation

• Rotation: 30 degrees of rotational positioning helps set the best viewing angle for drivers and customers.
• Mounting: an 8-inch baseplate mounting pattern, with the option to mount to an existing footing.
• Front access: the display can be installed from the front without disturbing adjacent units in a multi-lane layout.
• Audio: the enclosure does not support audio, so the speaker and microphone kit is a separate option.

Optional accessories listed for this range include the Speaker/Microphone Kit (KOF-OPT-SPK), the Media Storage Fan (KOF-OPT-FAN) and the Internal Media Player Shelf (KOF-OPT-SHELF). These allow a fully integrated drive-thru build, though each should be confirmed in the quotation.

Where it fits in Qatar

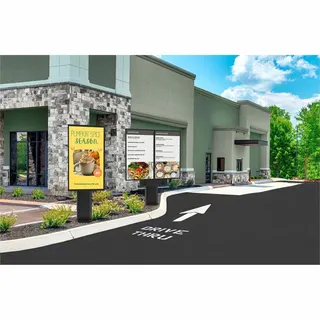

A quick-service restaurant in Al Sadd that runs a single drive-thru lane can use one unit to swap breakfast, lunch and evening menus without reprinting boards. A coffee outlet in Lusail with a short queue at the window can place the display where drivers see it before they reach the order point. An outdoor retail forecourt in the Industrial Area that needs a durable promotional screen can use the same enclosure, provided the site conditions are checked first.

Planning the installation

The enclosure is supplied with mounting hardware and instructions, and assembly is required. The manufacturer describes a two-person installation, so plan for two installers and a safe lifting method for a unit of roughly 59.87 kg. Before ordering, confirm the footing. An existing footing can be reused only if it meets the wind load requirements for the location, and SmartRooms Qatar offers a free site survey to check this.

The source does not publish an operating temperature range for the enclosure. Qatar summers can exceed 45°C, so ask the team to confirm the display's temperature rating and the site's exposure before you commit. Confirm power and cable routing for the display as well, since those details depend on the site and are set out in the quotation.

Request a quotation

To get a quote for the KOF555-1-EUK, tell us how many lanes you are equipping, the installation site and whether you need the speaker kit, media fan or media player shelf. SmartRooms Qatar delivers to all eight municipalities of Qatar, offers professional installation and usually issues quotations within one working day. Multi-lane projects can be ordered on a purchase order. Request a quote to confirm the configuration for your site.
