PDSIM43CWT6P

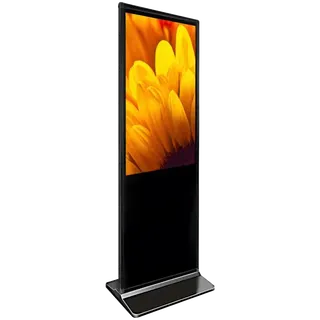

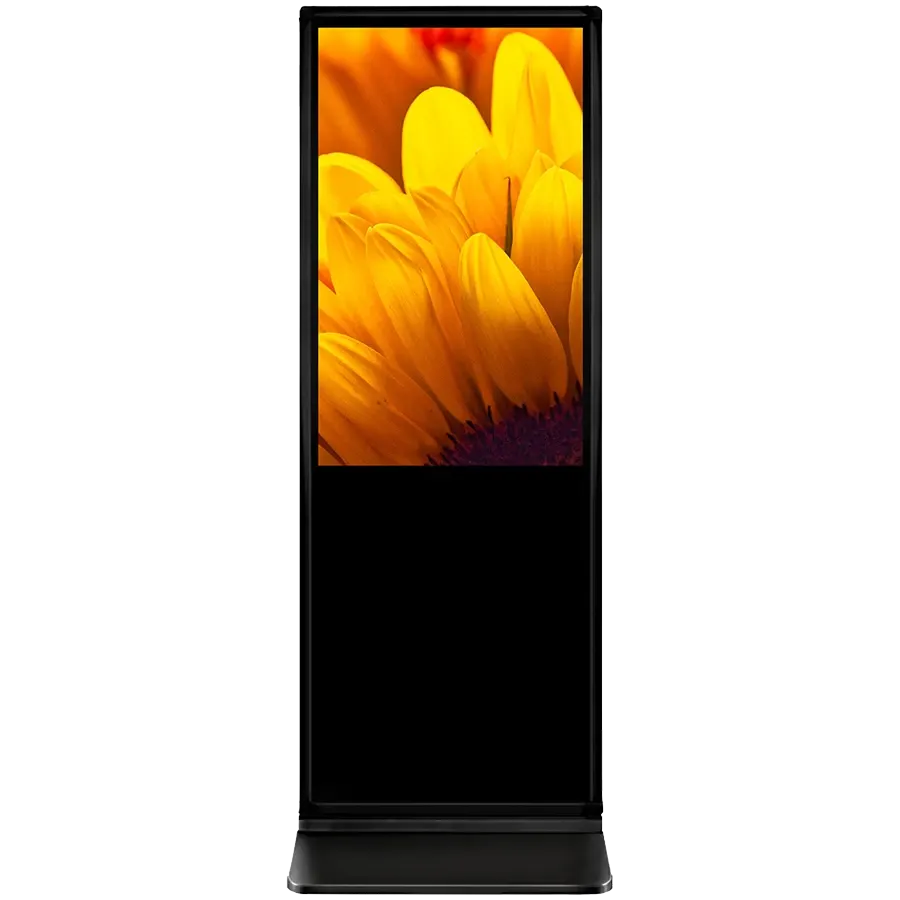

Prestigio PDSIM43CWT6P 43-inch Indoor Digital Signage Totem
- Screen size
- 43"
- Resolution
- 1080x1920@60Hz
- Brightness
- 300 cd/m²
- Touch
- Yes

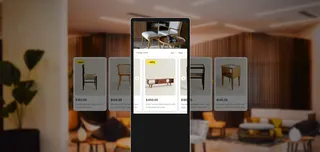

The Prestigio PDSIM43CWT6P is a 43-inch indoor digital signage totem with a full HD portrait LCD, 10-point multi-touch screen and a built-in Intel Core i5 computer running Windows 10 IoT. Its metal casing and tempered glass front suit busy retail floors, malls and lobbies across Doha. Use it for wayfinding, promotions and interactive product catalogues. Request a quote from SmartRooms Qatar.
What the PDSIM43CWT6P totem is built to do

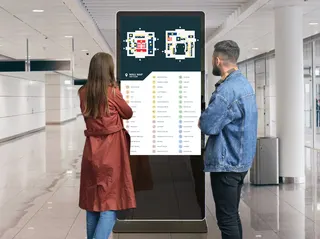

The Prestigio PDSIM43CWT6P is a freestanding indoor totem built around a 43-inch LCD in portrait orientation. Its 1080x1920 panel at 60Hz suits content designed for a tall format, such as product listings, wayfinding maps and vertical advertising loops. A 10-point touch layer lets several visitors interact with the screen at the same time, which is useful at a shop counter or information point where a single user would otherwise hold up the queue.

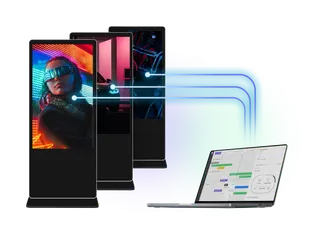

The totem runs its own Intel Core i5 computer with Windows 10 IoT, so it does not depend on a separate media player. Included specialised software creates, schedules and distributes content, and the same workflow can cover several displays across a site. A built-in card reader adds a point of interaction that many standard screens lack.
Specifications that matter when you compare totems
- Display: 43-inch TFT LCD, 1080x1920 Full HD, 300 cd/m² brightness, 1,200:1 contrast, 178° horizontal and vertical viewing angles, rated lifetime of 30,000 hours.
- Computer: Intel Core i5 processor, 4 GB DDR3 SDRAM, 128 GB SSD, Windows 10 IoT.
- Connectivity: integrated Wi-Fi and LAN, one HDMI port, four USB 2.0 ports.
- Audio: stereo speakers rated 2x5 W.
- Power: external power adapter, AC 100-240 V at 50/60 Hz, 180 W maximum draw, 5 W standby.
- Environment: operating ambient temperature 0 °C to 50 °C, humidity 10% to 80%.

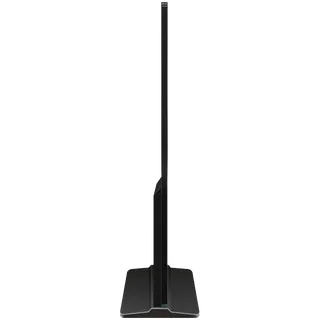

- Physical: 1787 mm high, 610 mm wide, 450 mm deep, nominal weight 40 kg, black finish.
Where it fits in Qatar

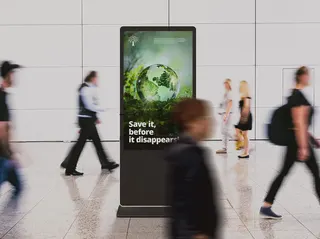

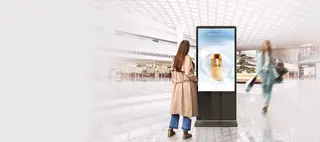

In a mall in West Bay or Lusail, a totem placed near the main entrance can show the floor plan, seasonal promotions and products that did not fit on the shelves. In a clinic or hospital reception area in Doha, it can guide visitors to departments. A private school in Al Wakrah or Al Rayyan could position one at the entrance to display events and wayfinding information.
The totem is designed for indoor use. Its rated maximum ambient temperature is 50 °C, but summer heat outdoors in Qatar can exceed 45 °C, and temperatures build up near glass frontages. Keep the unit inside air-conditioned space, and confirm the exact position against the rated range with the SmartRooms Qatar team during the site visit.
What to plan before installation
At 1787 mm tall and a nominal 40 kg, the totem needs a level, firm floor and enough open space in front for visitors to approach the screen comfortably. Check doorways, lift dimensions and the delivery route before the unit arrives. Identify the nearest power socket and network point, since the unit supports Wi-Fi and LAN connections.
A free site survey from SmartRooms Qatar helps confirm floor condition, cable routes and sight lines before installation. Orders can be raised through a purchase order (LPO), and government buyers can work through tenders, including Monaqasat. Products are covered by the manufacturer's 12-month warranty, unless local law requires otherwise.
To receive a quotation for the PDSIM43CWT6P, including installation planning, request a quote from SmartRooms Qatar. Quotations are usually issued within one working day.
Highlights
- 43-inch Full HD portrait display at 1080x1920 and 60Hz
- 10-point multi-touch screen for simultaneous interaction
- Intel Core i5, 4 GB RAM, 128 GB SSD, Windows 10 IoT
- Built-in card reader with Wi-Fi and LAN connectivity

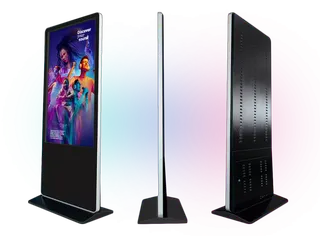

- Metal casing with tempered glass front panel
- Rated 0 to 50 °C operation; AC 100-240 V input
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Software1
- Operating System
- Windows 10 IoT
System3
- Digital Signage Type
- Indoor
- Digital Signage Device Type
- Totem
- Built-in Devices
- Card Reader
Processor1
- CPU
- Intel® Core™ i5
Memory2
- Memory Type
- DDR3 SDRAM
- RAM Capacity
- 4 GB
Display17
- Display Form Factor
- Kiosk
- Display Type
- LCD
- Display Diagonal
- 43"
- Maximum Resolution
- 1080x1920@60Hz
- Image Aspect Ratio
- 9:16
- Pitch Type
- Dot Pitch
- Pitch Width
- 0.4958 mm
- Image Brightness
- 300 cd/m²
- Image Contrast
- 1 200 : 1
- Maximum Response Time
- 8
- Image Max. V-View Angle
- 178 °
- Image Max. H-View Angle
- 178 °
- Display Features
- Full HD 10 Point Touch-Screen
- Multi-touch
- Yes
- Display Technology
- TFT Active Matrix
- Color Support
- 16.7M
- Lifetime
- 30000 hr
Speaker2
- Audio Output Mode
- Stereo
- Output Power
- 2x5 W
Networking Specifications3
- Networking Form Factor
- Integrated
- Wi-Fi
- Yes
- LAN
- Yes
Power6
- Power Device Type
- Power Adapter
- Power Device Location
- External
- Input Voltage
- AC 100-240 V
- Input Frequency
- 50/60 Hz
- Power Consumption Stand By/Sleep
- 5 W
- Maximum Power Consumption
- 180 W
Environment4
- Maximum Operating Ambient Temperature
- 50 °C
- Minimum Operating Ambient Temperature
- 0 °C
- Maximum Operating Humidity
- 80 %
- Minimum Operating Humidity
- 10 %
Dimensions & Weight Device4
- Height (mm)
- 1787 mm
- Depth (mm)
- 450 mm
- Width (mm)
- 610 mm
- Nominal Weight
- 40 kg
Warranty2
- Warranty Term (month)
- 12 month(s)
- Warranty Term Notes
- Unless otherwise required by local law (see prestigio-solutions.com/warranty)
Interface Provided2
- HDMI
- 1 (HDMI (Type A))
- USB 2.0
- 4
Miscellaneous1
- External Color
- Black
Storage1
- SSD
- 128 GB
