Samsung KM24A-P Connection Box for 24-inch Kiosk

Name: Samsung KM24A-P Connection Box for 24-inch Kiosk
Brand: Samsung
SKU: samsung-km24a-p
Availability: InStock

Overview

The Samsung KM24A-P is the connection box for a 24-inch self-service kiosk. It houses three USB ports, a thermal receipt printer with automatic cutting and a 1D and 2D barcode and QR reader. The kiosk itself needs no external PC. Its listed power input of 100 to 240 V at 50/60 Hz covers Qatar's mains. It suits retail, healthcare and government service counters across Doha.

What the KM24A-P connection box does

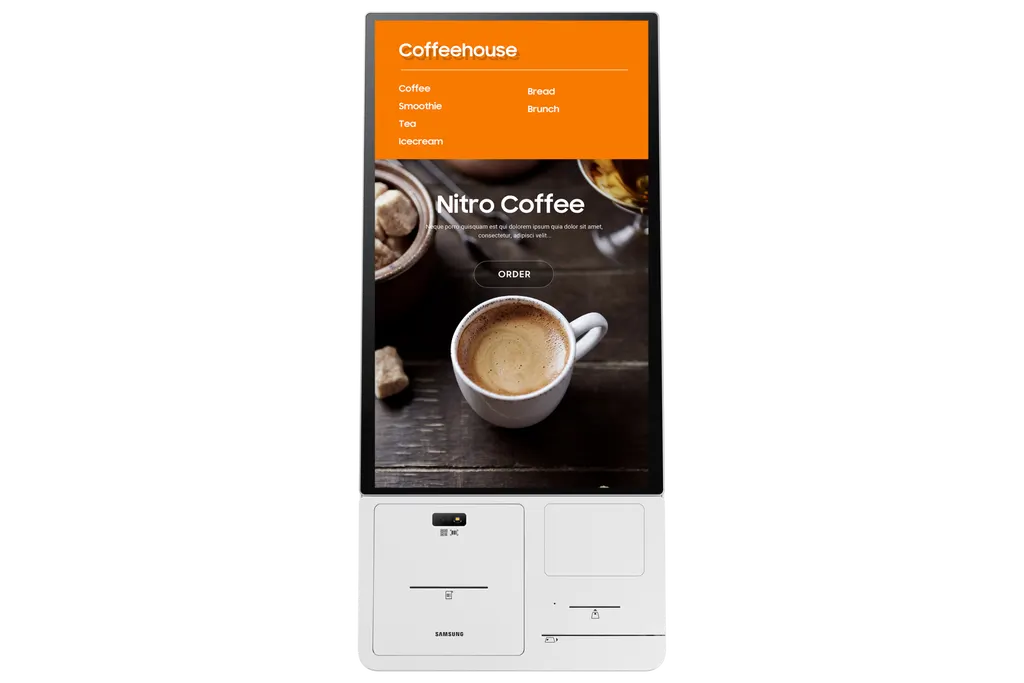

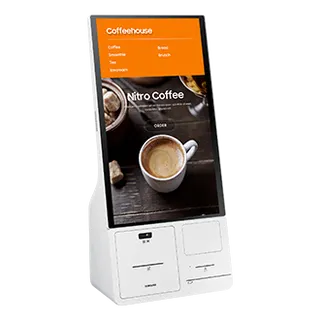

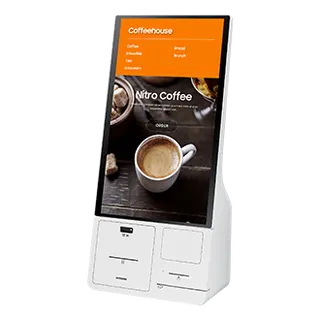

The KM24A-P is the connection box for the 24-inch Samsung kiosk, a self-service unit built from a display section, this box and an optional stand. The box carries the kiosk's ports along with the receipt printer and barcode and QR reader listed for this model, so cabling stays tidy and the unit keeps a compact footprint at the counter. According to the manufacturer, the kiosk runs without an external PC, which removes the need for a computer behind the counter or in a back office.

Specifications that matter for a purchase decision

Three USB ports on the connection box for peripheral devices.
Thermal receipt printer running at 250 mm/sec, with automatic full or partial cutting.
Paper support for 80 mm rolls, with paper widths from 20 to 83 mm and thickness from 0.05 to 0.12 mm.
1D and 2D code reading from mobile screens and printed labels, including UPC, EAN, Code 128, GS1 DataBar and QR.
Power input of AC 100 to 240 V, 50/60 Hz, with a 2.4 m power cable.

The connection box measures 334.4 x 389.6 x 236.5 mm and weighs 7.4 kg. With the display section fitted, the assembled set measures 334.4 x 733 x 236.5 mm and weighs 12.5 kg. The packed connection box weighs 9.1 kg, so two people should handle it during delivery and moves.

Where it fits in Qatar

A pharmacy in Al Sadd that wants a self-service point for prescription collections can use the receipt printer to produce a receipt and the code reader to scan a QR code shown on a customer's phone. A hospital registration area in Doha can place the kiosk beside a waiting queue, with the connection box kept in a cabinet behind the reception desk. A government service centre in Msheireb or a university office in Education City can use the 1D and 2D reader to check printed appointment slips.

What to plan before you order

Choose the installation type first. The kiosk can sit on a countertop, on an optional floor stand, or be wall-mounted using the listed optional VESA 200 x 200 mount. The operating range is 0 to 40°C with 10 to 80% humidity, so keep the kiosk in an air-conditioned interior away from windows and entrances where summer heat and dust reach it. Check the power outlet position against the 2.4 m cable length, and confirm the plug type for BS 1363 sockets when you request a quote.

SmartRooms Qatar offers a free site survey to check the counter, cable routes and sockets before installation, and professional installation is available. Delivery covers all 8 municipalities of Qatar, and purchase orders (LPOs) and government tenders are accepted for multi-unit orders. Request a quote for the KM24A-P, stating the kiosk configuration you need, and our team will return a quotation usually within one working day.

Highlights

Three USB ports for kiosk peripheral devices
Thermal receipt printer at 250 mm/sec with automatic cutting
1D and 2D barcode and QR code reader
Power input AC 100 to 240 V, 50/60 Hz
Operating range 0 to 40°C, 10 to 80% humidity
Assembled set 334.4 x 733 x 236.5 mm, 12.5 kg

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

24 specifications · Source: manufacturer · checked Oct 2026

Input & Output1

USB: 3ea

Receipt Printer4

Type: Thermal
Printing Speed: 250 mm/sec
Cutting: Automatic (Support Full cut, Partial cut)
Paper Support: Support 80mm paper roll, 20~83mm paper width, 0.05~0.12mm paper thickness

QR/Barcode Reader3

Supported Dimension: 1D, 2D
Readability: Mobile screen and printed barcodes
Supported Format: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, GS1 DataBar, Codabar, QR

Dimension2

Set Dimension (WxHxD, mm): 334.4(W) x 389.6(H) x 236.5(D)
Package Dimension (WxHxD, mm): 428(W) x 471(H) x 316(D)

Weight2

Set Weight (kg): 7.4‎
Package Weight: 9.1‎

Assembled Set12

Power Supply: AC 100~240V 50/60Hz
Power Consumption (On Mode, W): 25W/h
Power Consumption (Sleep Mode, W): 0.5W/h
Set Dimension: 334.4(W) x 733(H) x 236.5(D)
Set Weight (kg): 12.5‎
Set Color: Gray White
Protection Glass: Yes
Power Cable Length: 2.4m
Operating Temperature: 0℃~ 40℃
Operating Humidity: 10~80%
Optional Stand: Floor Stand (Optional)
Optional Mount: VESA 200 x 200

Downloads

2 files from the manufacturer

XLSX Datasheets KM24A-P_Specifications_ae.xlsx 4 KB XLSX Datasheets KM24A-P_Specifications_sa_en.xlsx 4 KB

Questions about KM24A-P

What is the Samsung KM24A-P?

The KM24A-P is the connection box for the 24-inch Samsung kiosk, a self-service unit made up of a display section, this connection box and an optional stand. It gathers three USB ports, a thermal receipt printer and a 1D and 2D barcode and QR reader. Buyers in Qatar usually order it when a retail, healthcare or government counter needs a compact self-service point.

Does the kiosk need an external PC?

No. According to the manufacturer, the kiosk is built on Samsung's SoC technology and functions without an external PC, so no computer is needed behind the counter. The connection box provides three USB ports for peripherals. Remote monitoring and display management need a MagicINFO license that is purchased separately, so confirm your management requirements when you request a quote.

What receipt printer does it include?

The printer is thermal, prints at 250 mm/sec and cuts automatically, with full or partial cut options. It takes an 80 mm paper roll and supports paper widths from 20 to 83 mm and thickness from 0.05 to 0.12 mm. Keep spare rolls on site, because a busy pharmacy or bank counter will use them quickly.

Which barcodes and QR codes can it read?

The reader handles 1D and 2D codes, including UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, GS1 DataBar, Codabar and QR. It reads both barcodes shown on mobile screens and printed barcodes, which suits scanning e-tickets, appointment slips and product labels at a counter.

Will it run on Qatar's power supply?

The listed power input is AC 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. The connection box has a 2.4 m power cable. Qatar uses BS 1363 (Type G) sockets, so confirm the plug type supplied with your order when you request a quote, and check that a socket sits within reach of the cable.

Can it stand near a window or entrance in a Doha mall?

It is not suited to direct sun or open air. The listed operating range is 0 to 40°C with 10 to 80% humidity, while summer temperatures in Doha can exceed 45°C. Place the kiosk inside an air-conditioned area away from glass frontages, doors and dust-prone lobbies. A site survey can check airflow and cable routes before installation.

What installation options are available?

The kiosk supports three installation types: countertop, floor stand and wall mounting. The floor stand is optional, and the listed optional mount is VESA 200 x 200. Hidden cabling and a power strip keep the back of the unit tidy. Confirm the full configuration, including any stand and mount, in your quotation.

How large and heavy is it for site planning?

The connection box measures 334.4 x 389.6 x 236.5 mm and weighs 7.4 kg. With the display section, the assembled set measures 334.4 x 733 x 236.5 mm and weighs 12.5 kg. Check counter depth and the load capacity of the wall or floor before fixing it, and book a free site survey with SmartRooms Qatar if the location is unclear.

Can it accept card payments?

The manufacturer describes a modular design that supports credit card, barcode, QR code and NFC payments. Card payment with a Verifone P400 terminal needs an EMV cradle, which varies by region and country, and the EMV terminal is sold separately. Confirm your payment provider's requirements before ordering, so the cradle and terminal arrive together.

Is it suitable for a pharmacy counter in Al Sadd?

Yes, for a self-service point where customers collect an order or pay using a QR code or barcode. The printer produces receipts at 250 mm/sec, and the reader scans codes from phone screens and printed labels. Place the kiosk where customers can reach it easily while staff remain nearby, and confirm the payment setup used by your pharmacy.

Can a hospital or clinic in Doha use it for registration?

A registration desk can use the kiosk to print a queue slip or read an appointment code. The operating temperature and humidity range must be respected, so place it in an air-conditioned waiting area, out of direct sunlight and away from water. Ask for a free site survey to confirm that the 2.4 m power cable reaches a suitable socket.

Can a government office or university order several units under an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those published on Monaqasat, and payment can be made by bank transfer, cheque or purchase order. State the model KM24A-P and the quantity in your request, because each kiosk needs its own connection box. Delivery covers all 8 municipalities of Qatar, and installation is professional.
