Specktron Double Sided Digital Kiosk 55-inch

Name: Specktron Double Sided Digital Kiosk 55-inch
Brand: Specktron
SKU: specktron-double-sided-digital-kiosk-55in
Availability: InStock

Overview

The Specktron 55-inch double-sided kiosk puts a 4K display and PCAP touch on both faces of one floor-standing unit, letting visitors interact from either direction. Each side offers 500 nits and a 178° viewing angle, with a rated panel life of 50,000 hours. It suits lobbies, government service points and retail floors in Doha where people approach from two sides.

A two-faced kiosk for approaches from both directions

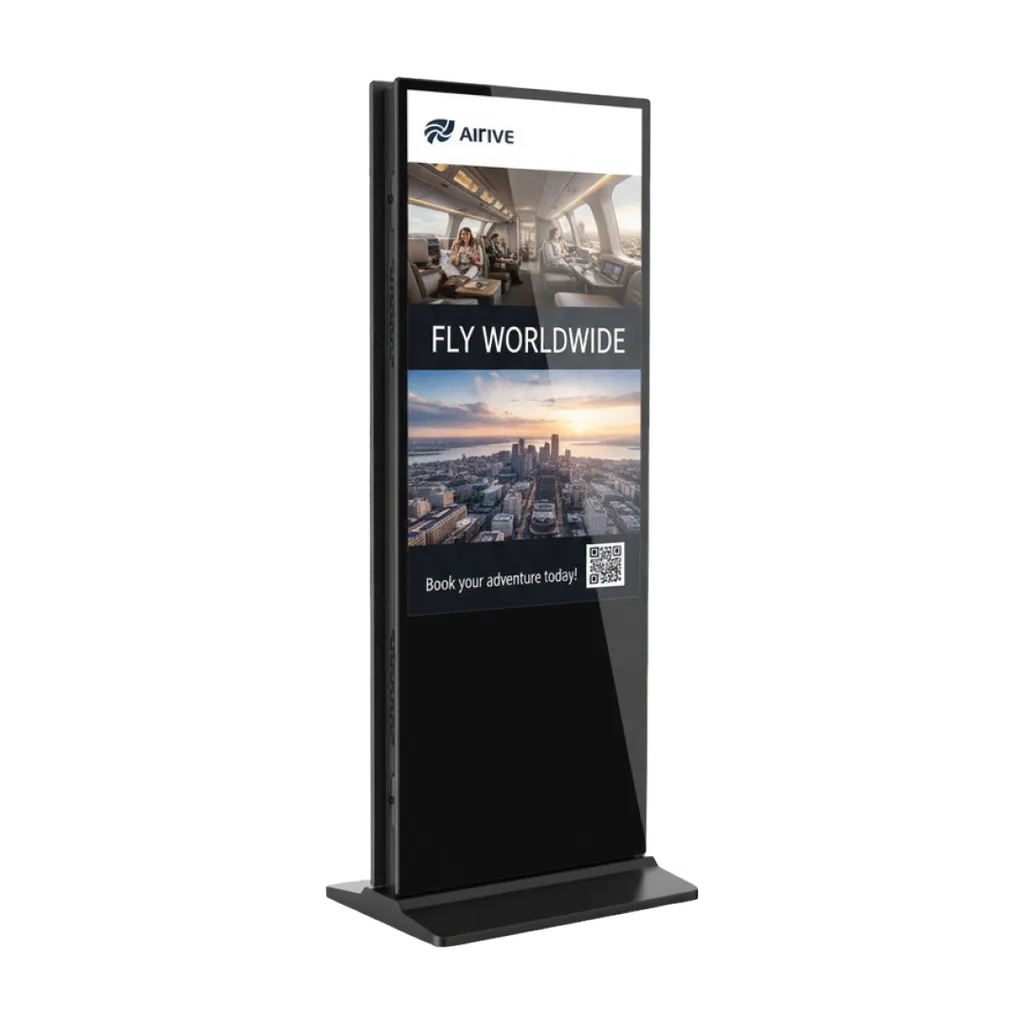

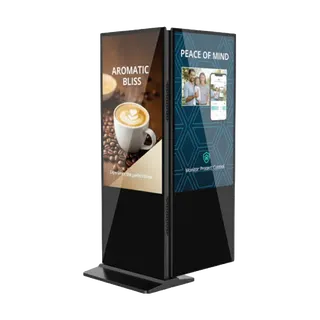

The Specktron 55-inch double-sided digital kiosk places a full display on each face of one floor-standing unit. Instead of buying two single-sided stands for a junction, an entrance or the centre of a lobby, you get one cabinet that serves people walking in from opposite directions. Each face is a 4K panel with PCAP touch, so both sides accept input from visitors.

Display and touch facts that matter on the floor

Resolution: 3840 x 2160 (4K) on each side
Brightness: 500 nits with a 1,200:1 contrast ratio
Viewing angle: 178°/178°, so the screen stays readable from the side
Active area: 1209.6 mm wide by 680.4 mm high per display
Response time: 8 ms
Colour: 16.7M display colours
Panel life: 50,000 hours

Brightness at 500 nits suits well-lit indoor areas. The wide viewing angle matters on a double-sided unit because a visitor standing beside the cabinet still sees a clear picture. Where a kiosk sits beside large glazing, direct sun can still wash out the screen, so placement should be checked before installation.

Computing platform and operating limits

Each unit runs Android 14.0 on a platform built around a quad-core ARM Cortex-A72 and quad-core Cortex-A53 CPU at 2.2GHz, with an ARM Mali G52 MC3 graphics processor, 8 GB DDR memory and 64 GB of ROM storage. An SD card of up to 128GB can extend storage. The working temperature range is 0°C to 50°C and storage is rated from -20°C to 60°C.

Qatar summers are the constraint to plan around. Outdoor temperatures can exceed 45°C, so keep the kiosk inside air-conditioned space, out of direct sunlight and away from heaters or open doors. Standby draw is listed at under 5 W, and the power supply accepts 100 to 240V at 50/60 Hz, which covers Qatar's 240 V mains.

Where it fits in Qatar

Three common settings show how the format works:

A university welcome point in Education City, where students and visitors arrive from several corridors and need directions from either side.
A mall concourse in West Bay or The Pearl, where shoppers approach from both ends of a central junction.
A government service hall in Msheireb, where a queue area needs visible information on two sides and steady, round-the-clock use.

Hotels in Lusail and The Pearl can use the same layout for check-in guidance or a guest directory in the lobby, with the unit set away from the main entrance draught.

What to plan before installation

Measure the clear floor area and allow space for visitors to reach both faces. The screen dimensions are listed above, but the overall cabinet footprint is not given in the source data, so confirm it before you order. Choose a position with a nearby socket for the 100 to 240V supply, and check ventilation and air conditioning at the spot.

SmartRooms Qatar offers a free site survey, professional installation and delivery to all eight municipalities of Qatar. Ask us to confirm the network options and content setup for your site. Quotations are usually issued within one working day.

To request a quote for the Specktron 55-inch double-sided digital kiosk, send your site location, number of units and intended use, and the SmartRooms Qatar team will prepare a quotation.

Highlights

4K resolution (3840 x 2160) on both faces
PCAP touch on both displays
500 nits brightness and 178° viewing angle
Floor-standing metal frame
50,000-hour rated panel life
Working range 0°C to 50°C; 100-240V supply

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

20 specifications · Source: manufacturer · checked Oct 2026

Specifications20

Size: 55”
Display: 1209.6(W) x 680.4(H)mm
Resolution: 3840 x 2160
Display Color: 16.7M
Contrast Ratio: 1200:1
Brightness: 500 Nits
Pixel Pitch: 0.4845(H) x 0.4845(V)
Visual Angle: 178°/178°
Life Time: 50,000 Hours
Response Time: 8 ms
Touch Point: PCAP Touch
CPU: 4 x Cortex-A72 + 4 x Cortex-A53 2.2GHZ
GPU: ARM Mali G52 MC3
DDR: 8 GB
ROM: 64 GB
SD Card: Support Max 128GB SD Card
Version: Android 14.0
Working Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 60°C
Power Supply: AC100 ~ 240V 50/60 HZ

Downloads

1 file from the manufacturer

PDF Brochures Double Sided Digital Kiosk 55in Brochure.pdf 6.0 MB

Questions about Double Sided Digital Kiosk 55in

Who is this double-sided kiosk built for?

It suits organisations that need one standing unit to serve people approaching from two directions, such as reception halls, wayfinding points, retail floors and lobbies. The 55-inch screens and 4K resolution on each side keep text and imagery sharp at reading distance, and the floor-standing frame means no wall mounting is needed. Confirm the placement and content plan during our free site survey before ordering.

Do both screens take touch input?

Yes. The manufacturer data lists PCAP touch technology on both displays, so visitors can tap, swipe and use multi-touch gestures on either side. PCAP is a projected capacitive touch method, and the glass is described as scratch-resistant and built for heavy use, which suits busy public spaces. Ask our team to confirm the touch software you plan to run, since the data does not name one.

Can the screens be read in a bright Doha lobby near windows?

Each side is rated at 500 nits with a 178° viewing angle, which suits well-lit indoor areas and lets people read the screen from the side as well as the front. Direct sunlight through large glazing can still cause glare, so position the kiosk out of the direct beam and check the spot during the free site survey before installation.

Can it stand in a covered entrance that gets hot in summer?

The working temperature range is 0°C to 50°C, and storage is rated from -20°C to 60°C. Outdoor temperatures in Qatar can exceed 45°C in summer, so a covered or semi-open entrance carries heat risk. Place the unit in air-conditioned indoor space, away from direct sun, heaters and draughts from doors, and confirm the exact spot during the site survey.

What processor, operating system and storage does it include?

The unit runs Android 14.0 on a platform with a quad-core Cortex-A72 and quad-core Cortex-A53 CPU at 2.2GHz, an ARM Mali G52 MC3 graphics processor, 8 GB DDR memory and 64 GB ROM storage. An SD card of up to 128GB can add capacity. Ask us to confirm the content and network setup for your site before you order.

What power supply does it need in Qatar?

The power supply is rated for AC 100 to 240V at 50/60 Hz, which covers Qatar's 240 V mains. Standby consumption is listed at under 5 W, a useful figure for a unit that runs continuously. Provide a socket close to the installation point, plan cable routing before installation, and our team can confirm the connection arrangement during the survey.

How much floor space should I allow?

Each display measures 1209.6 mm wide by 680.4 mm high, and both faces share one floor-standing unit. The overall cabinet footprint and depth are not listed in the source data, so do not finalise the layout from screen size alone. Measure the clear floor area, allow room for visitors to approach from both sides, and confirm the cabinet dimensions with SmartRooms Qatar before ordering.

Would this kiosk suit a university welcome point in Education City?

Yes, for a welcome or wayfinding point where students and visitors arrive from several corridors. A double-sided unit lets the same content and touch menus face each approach, so one kiosk can replace two single-sided stands. Position it in an air-conditioned atrium away from direct sun, and note that the 24/7 rating suits a busy campus.

Is it a good fit for a shopping mall entrance in West Bay or The Pearl?

It works well at a central mall junction or retail concourse where shoppers approach from two directions. The 500 nits brightness and 178° viewing angle help directories stay readable from the side, and the 4K panels show fine detail. Plan the power point in advance and check that the location is air-conditioned, since open mall entrances can raise local temperatures.

Could a hotel in Lusail use it in the lobby?

A hotel in Lusail could use it as a check-in guidance point, a welcome screen or a guest directory, placed where guests pass from both directions. The Android 14.0 platform and 64 GB storage leave room for local content, and the floor-standing frame avoids drilling into walls. Confirm the layout and content plan during the free site survey.

What should a government service hall in Msheireb consider before ordering?

A service hall needs clear direction on both sides of a queue area, reliable operation and a unit that fits the existing floor plan. The continuous-operation rating and 50,000-hour rated panel life suit heavy use near counters, while the free site survey checks clear floor space and the air-conditioned position before installation. Request a quotation based on your exact layout.

How can we order this kiosk through an LPO or a government tender?

SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat submissions, with payment by bank transfer, cheque or purchase order. Send the model name, number of units and installation site, and we usually return a quotation within one working day. Delivery covers all eight municipalities of Qatar, professional installation is available, and the product is covered by the manufacturer's warranty.
