Transparent OLED 30in Landscape Z-Shape Kiosk

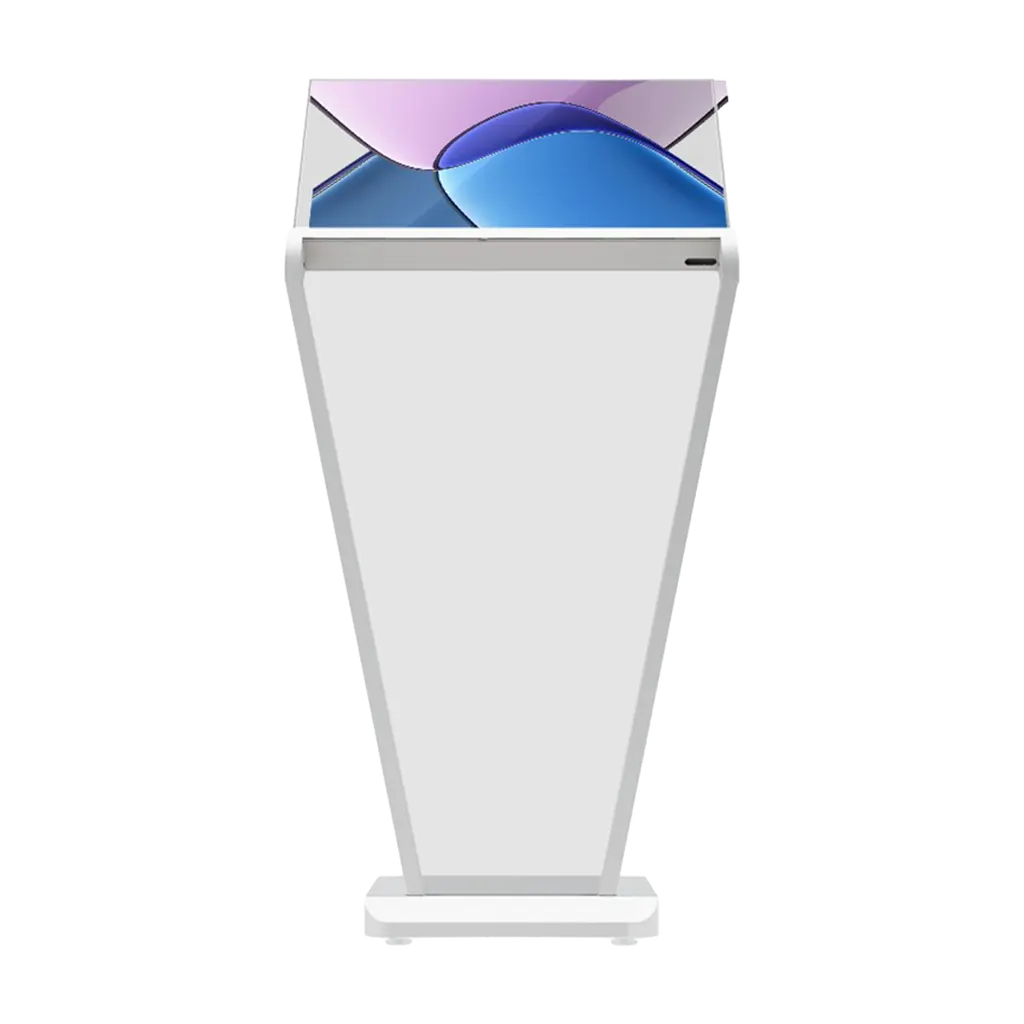

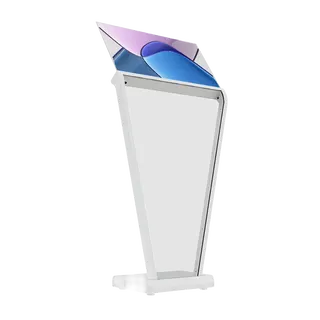

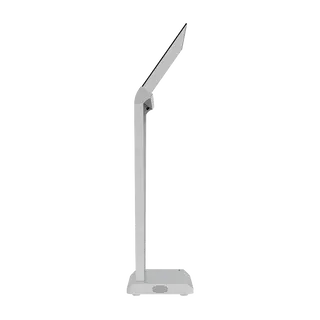

Specktron Transparent OLED 30in Landscape Z-Shape Kiosk
- Screen size
- 30”
- Resolution
- 1366 x 768
- Brightness
- 200 - 400 cd/m²
The Specktron Transparent OLED 30in Landscape Z-Shape Kiosk is a 30-inch transparent OLED display with a 1366 x 768 resolution and 43% transparency, letting viewers see the space behind the content. It offers PCAP touch or non-touch configurations, 200 to 400 cd/m² brightness, a fanless design and 100 to 240V AC power. It suits exhibition stands, retail windows, corporate lobbies and showrooms in Doha.
What the 30in transparent OLED kiosk is
The Specktron Transparent OLED 30in Landscape Z-Shape Kiosk is a 30-inch transparent OLED display built for locations where content must appear without blocking what sits behind it. The panel is rated at 43% transparency, so a visitor sees both the graphics and the room behind them. This landscape configuration measures 1373.75 x 681 x 350 mm and weighs 42 kg.
Specifications that shape the buying decision
The panel runs at 1366 x 768, which suits large graphics, headlines and short text rather than fine detail viewed up close. Brightness can be adjusted between 200 and 400 cd/m², so operators can match the screen to the light in a lobby or showroom. The data lists 10 bit (R) colour depth with 1.07 billion colours, an OLED Care System feature and a typical panel lifetime of 30,000 hours.
Inputs include HDMI, DP, USB and RS232, so a media player, a PC or a control system can be connected. The unit runs on 100 to 240V AC and consumes less than 90W. The product data describes a fanless design, which means no fan noise in quiet galleries or reception areas.
Where it fits in Qatar
A showroom in Msheireb could place the kiosk in a front window to show product content to passers-by while the displays behind it remain visible. A corporate lobby in West Bay could use it as a welcome screen above a reception desk, presenting company content without hiding the entrance. An exhibition stand at a trade event could position the panel at the front of a booth so visitors can interact with it while the products stay in view.
What to plan before ordering
- Decide between PCAP touch and non-touch, since the data lists both options for this model.
- Check the wall or stand, as the unit weighs 42 kg and is 1373.75 mm wide.
- Confirm the operating environment with the SmartRooms Qatar team. The data we hold does not list an operating temperature range, so check before placing it near glazing or in a hot area.
- Plan cable routing for HDMI or DP, and USB or RS232 where control is needed.
SmartRooms Qatar offers free site surveys, which are useful before fixing a 42 kg unit to a wall. Quotations are usually issued within one working day, and purchase orders (LPOs) and government tenders, including Monaqasat, are accepted. Products are covered by the manufacturer's warranty. Request a quote and our team will confirm the configuration, delivery estimate and installation details for your site.
Highlights
- 30-inch transparent OLED panel with 43% transparency
- 1366 x 768 resolution and 200 to 400 cd/m² brightness
- PCAP touch or non-touch configurations
- HDMI, DP, USB and RS232 inputs
- Fanless design, 100 to 240V AC, under 90W
- Weight 42 kg, size 1373.75 x 681 x 350 mm
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Specifications13
- Display Size
- 30”
- Display Resolution
- 1366 x 768
- Brightness Range
- 200 - 400 cd/m²
- Basic Interface
- HDMI / DP / USB / RS232
- Touch Option
- PCAP Touch / Non-Touch
- Transparency
- 43%
- OLED Care System
- Yes
- Frame
- Iron
- Panel Lifetime
- 30,000 Hrs (Typ.)
- Colour Depth
- 10 bit (R), 1.07 Billion Colors
- Product Dimension
- 1373.75 x 681 x 350 (mm)
- Weight(Net Weight)
- 42 kg (94.7 lbs)
- Power Requirements
- 100 to 240V AC
