TD-32OKTF55

A 32-inch portrait kiosk for outdoor messaging

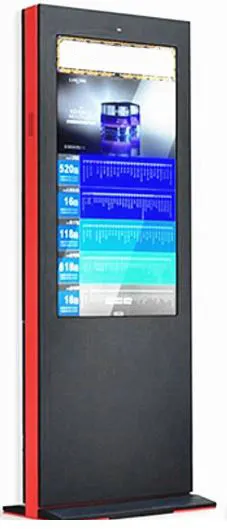

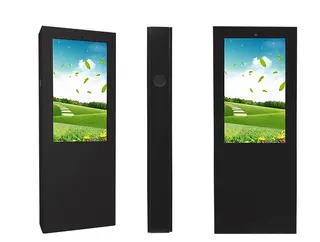

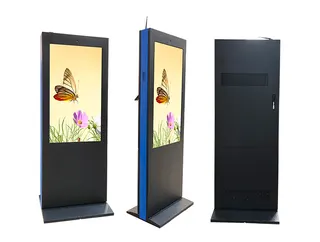

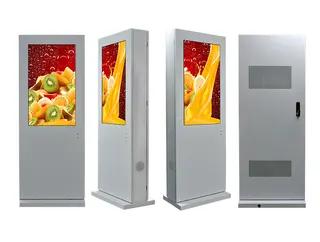

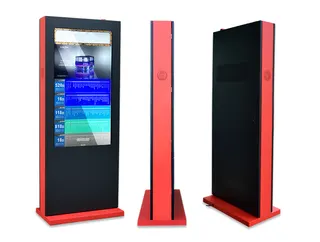

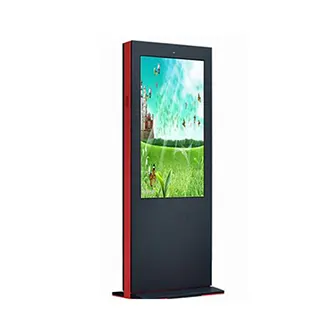

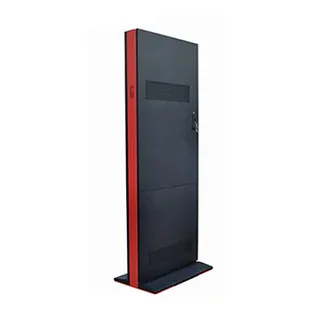

The Trend TD-32OKTF55 is a freestanding 32-inch kiosk with a 9:16 portrait screen, built to show advertising, wayfinding and public information in locations where indoor displays would not last. Its metal enclosure carries an IP55 rating, and the manufacturer describes weatherproof, dustproof, ultraviolet-resistant and lightning-resistant construction, with an anti-theft design. These features separate it from an indoor panel placed in a sheltered corridor.

Screen performance and what it means outdoors

The panel offers 1920x1080 Full HD resolution, 16.7 million colours, a 1200:1 contrast ratio, a 6 ms response time and a 178-degree viewing angle horizontally and vertically. Brightness is rated at 1500-2000 cd/m², and the LG high-brightness backlight system is the core of that rating. The manufacturer also states the screen can reach up to 2500 nits under direct sunlight. Treat that as a manufacturer claim and ask our team to confirm the figure for your site. Position matters as much as brightness, so a shaded wall or canopy will help the content read clearly.

Heat, humidity and dust in Qatar

Summer temperatures in Doha, Lusail and Mesaieed can exceed 45°C, so the operating range is the first thing to check. The TD-32OKTF55 is rated from -30°C to 50°C, with storage from -40°C to 60°C and a working humidity rating of 85%. The manufacturer advises the air conditioned model for environments above 50°C. Standard models use an air cooling system, and the unit has internal over-temperature protection that turns off the backlight above 55°C and restores it at 45°C. A shaded mounting position reduces the load on the cooling system, so plan for one.

Media player, storage and content updates

• Integrated Android player with RK3288 processor, 2GB memory and 8GB storage as standard
• Options include 4GB, 8GB or 16GB memory and larger SSD storage
• Windows media player options with i3, i5 or i7 processors, 4GB RAM and 128GB SSD
• Version with no media player and an HDMI input for an external source

Content can be loaded locally by USB or SD card, or managed remotely through the content management software over WAN or LAN from a PC or smart device. The player handles many media formats and scrolling text, and playlists can be scheduled by time. An optional digital signage software package includes 1GB of cloud server storage.

Where it fits across Qatar

In Lusail, a shopping centre could use the kiosk on an outdoor plaza to show offers and directions. At a hospital car park in Doha, it could guide visitors to clinics and entrances, and at an industrial gate in Mesaieed it could display visitor instructions and site rules for drivers. A campus in Education City might place a touch-enabled version near a pedestrian gate for student announcements. Each site needs its own content plan and cooling decision, which is why we start every project with a free site survey.

Planning power, network and installation

Plan the electrical and network routes before the kiosk arrives. The power input is 100-240 V AC at 50/60 Hz, which covers Qatar's 240 V supply, with maximum consumption of 360 W and standby below 5 W. Choose LAN as the primary connection, and confirm Wi-Fi coverage if you select the optional module. Decide on touch screen, anti-reflection glass and colour (white, black or custom) before ordering. Because the unit is freestanding, confirm the base and floor loading with our team during the site survey.

Send us your site details, quantity and preferred configuration, and request a quote. Our team will confirm the options and cooling type within the quotation, which is usually issued within one working day. We can also issue a purchase order (LPO) for government or private projects.
