TD-43OKTF65
Trend TD-43OKTF65 43-inch IP65 Outdoor Kiosk with Android Media Player
- Screen size
- 43 Inch Kiosk
- Resolution
- 1920x1080 FHD
- Brightness
- 1500-2000cd / m2
- Protection
- IP65 Outdoor waterproof grade
The Trend TD-43OKTF65 is a 43-inch outdoor kiosk rated IP65 for dust and water protection. It has a 1500-2000 cd/m² display, 1200:1 contrast, a standard air cooling system that can be upgraded to air conditioning, and an integrated Android media player. LAN is standard and WiFi is optional. It suits malls, hotel forecourts and site entrances across Qatar. Request a quote to choose the right configuration for your location.
What the TD-43OKTF65 is built to do

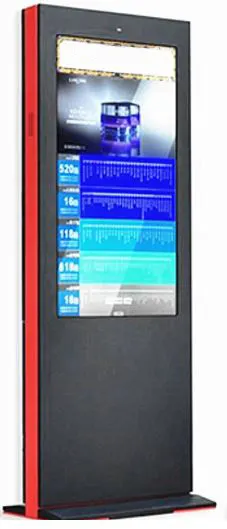

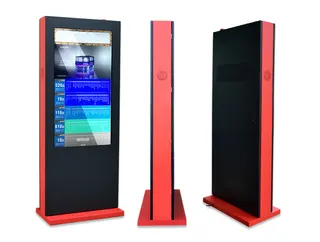

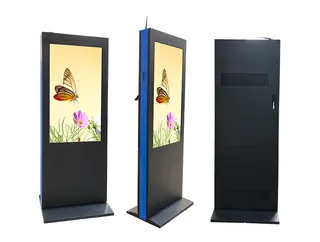

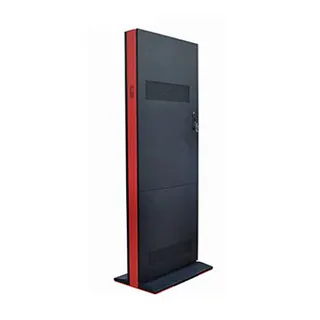

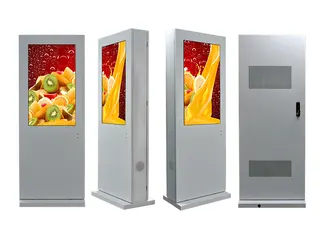

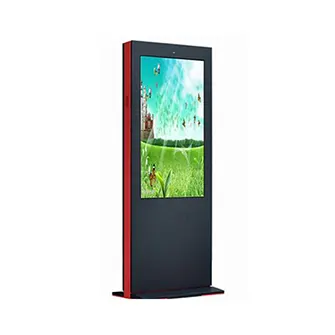

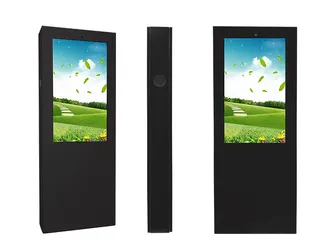

The TD-43OKTF65 is a freestanding 43-inch kiosk for outdoor digital signage and public information. A weather-protected steel enclosure, a high-brightness display and a built-in media player sit in one unit, so content can run without a separate computer on site.
The IP65 rating covers protection against dust and water. The body combines 1.5 mm galvanised steel with an SPCC metal box, and the front glass is designed to keep the screen clearly visible outdoors.
Display performance in daylight
The 1920x1080 panel is rated at 1500-2000 cd/m², with a 1200:1 contrast ratio, a 6 ms response time and a 178-degree viewing angle both horizontally and vertically. The LG high-brightness backlight is what keeps text readable under sunlight. The source also lists a 9:16 aspect ratio alongside the 1920x1080 resolution, so confirm the orientation you need before ordering.
- Anti-reflection glass is an option for screen protection.
- Touch is optional, with 43-inch IR or capacitive screens available.
Heat, power and media playback
Summer temperatures in Qatar often pass 45°C, so heat control is the first planning point. Every unit includes an air cooling system, and an air conditioning system is available as an option. The operating range is -30°C to 50°C, and the manufacturer advises the air-conditioned model where the environment is above 50°C. Storage range is -40°C to 60°C.
Power input is listed as 100-240V at 50/60 Hz, with maximum consumption of 360 W and standby below 5 W. The standard player is an integrated Android RK3288 unit with 2GB RAM and 8GB storage, running Android 5.1 or 7.1. You can raise RAM to 4, 8 or 16GB and choose SSD storage from 32GB to 256GB. Alternatives include an integrated Windows player with an i3, i5 or i7 processor, or a version without a player that accepts an HDMI input from your own source.
LAN is standard and WiFi is optional. The content management software lets you create, update and schedule messages locally or remotely over WAN or LAN, and plays multiple media formats with scrolling text.
Where it fits in Qatar and what to plan
- Mall or hotel forecourt in West Bay or Lusail: showing offers, event times and wayfinding, with schedules set around peak arrival hours.
- Site entrance in the Industrial Area or Mesaieed: displaying safety notices and delivery instructions, placed away from direct sun.
- Campus or sports venue plaza in Education City or Al Rayyan: guiding visitors and students to facilities and events.
Fix the footprint, the level base, the power point and the network route before installation. SmartRooms Qatar offers a free site survey to check sun exposure, shade options and cable routing, and quotations are usually issued within one working day. Products are covered by the manufacturer's 2-year warranty. Confirm the plug and socket arrangement when you request a quote, and ask for the air-conditioned configuration if your site regularly exceeds 50°C. Request a quote with your site details and we will confirm the right configuration for your location.
Highlights
- IP65 rated for outdoor dust and water protection
- Display rated 1500-2000 cd/m² with LG high-brightness backlight
- Standard air cooling; air conditioning available as an option
- Operating range from -30°C to 50°C
- Integrated Android player; Windows i3, i5 and i7 options
- 2-year warranty covered by the manufacturer
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Quick Details8
- Brand Name
- Trend Displays
- Model Number
- TD-43OKTF65
- Resolution
- 1920x1080 FHD
- Brightness
- 1500-2000cd / m2
- Contrast
- 1200: 1
- Warranty
- 2 Years
- Video
- PAL / NTSC / SECAM color system
- Color
- White, Black, Customized
Technical24
- Aspect Ratio
- 9:16
- Backlight system
- LG high-brightness backlight system
- Display color
- 16.7M screen color
- Media Player
- Integrated Android RK3288 2+8G Android 5.1/7.1 OS Optional RAM: 4GB/8GB/16GB Optional SSD: 32GB/64GB/128GB/256GB Optional Media Players: No Media Player with HDMI Input Integrated Windows Media Player with i3 Processor 4GB RAM 128GB SSD Integrated Windows Media Player with i5 Processor 4GB RAM 128GB SSD Integrated Windows Media Player with i7 Processor 4GB RAM 128GB SSD
- Operating temperature
- -30 ℃ ~ 50 ℃ (For the Environment higher than 50°, we suggest to take the air conditioning models)
- Pixel layout
- 0.63 (H) × 0.63 (V)
- Power supply
- AC100 ~ 240V 50/60 HZ power supply
- Support network
- LAN (Wifi Optional)
- Surface treatment
- Panel material SPCC metal box
- working environment
- Outdoor
- Viewing Angle
- 178 ° / 178 °
- Storage
- 8GB (Optional 16/32/64/128 GB)
- Response Time
- 6 ms
- IP Rating
- IP65 Outdoor waterproof grade
- structure
- 1.5 mm galvanized steel
- Maximum Power Consumption
- ≤ 360W
- Touch screen
- Optional
- Memory
- 2GB (Optional 4/8/16GB)
- Size
- 43 Inch Kiosk
- Temperature Control
- Air cooling system (Optional: Air conditioning System)
- MTBF
- 50,000 (hours)
- Storage Temperature
- -40 ℃ ~ 60 ℃
- Humidity
- Working humidity 85% Storage Humidity 85%
- Power
- ≤ 360W
