TD-43OKTF65AC
Trend TD-43OKTF65AC 43-inch Outdoor Air-Conditioned Kiosk
- Screen size
- 43 Inch Kiosk
- Resolution
- 1920x1080 FHD
- Brightness
- 1500-2000cd / m2
- Protection
- IP65 Outdoor waterproof grade
The Trend TD-43OKTF65AC is a 43-inch outdoor kiosk rated IP65 for dust and water protection, with an air-conditioned enclosure to manage heat inside the housing. It carries a 1500-2000 cd/m2 brightness rating, 1920x1080 Full HD resolution in a 9:16 portrait format, and an integrated Android media player. Suited to outdoor wayfinding, advertising and information points at Qatari malls, campuses and transport hubs. Request a quote from SmartRooms Qatar.
What the TD-43OKTF65AC is built to do
The Trend TD-43OKTF65AC is a 43-inch kiosk for open-air locations, housed in an IP65 rated enclosure with air conditioning temperature control. Indoor displays can overheat or suffer after exposure to dust and rain, whereas this unit is designed to keep working outdoors. Its 9:16 aspect ratio gives a tall portrait screen that suits directories, queue information and vertical advertising, and its Full HD panel keeps text and graphics sharp at close range.
The specifications that matter outdoors
- Brightness: a 1500-2000 cd/m2 rating from an LG high-brightness backlight, the figure to compare against sunlit sites.
- Panel: 1920x1080 Full HD, 1200:1 contrast, 6 ms response time and 178° / 178° viewing angles.
- Enclosure: IP65 outdoor waterproof grade, a 1.5 mm galvanised steel structure and an SPCC metal box.
- Temperature: operating range -30 °C to 50 °C and storage range -40 °C to 60 °C. The manufacturer recommends the air-conditioned model above 50 °C.
- Power: AC 100-240 V, 50/60 Hz, with a maximum draw of 360 W and standby below 5 W.
- Reliability: MTBF rated at 50,000 hours, backed by a 2-year warranty.
Media player, connectivity and content options
The standard build uses an integrated Android RK3288 player with 2GB memory and 8GB storage, running Android 5.1 or 7.1. Upgrades step up memory to 4GB, 8GB or 16GB and offer SSD storage from 32GB to 256GB. If your content needs a Windows environment, Intel i3, i5 and i7 media player options are available, each with 4GB RAM and 128GB SSD. A no-player version accepts HDMI input. Connectivity is by LAN, with Wi-Fi as an option, and a digital signage software option includes 1GB of cloud storage.
Where it fits in Qatar
Three situations show where this kiosk earns its place. A hotel forecourt in West Bay or Lusail can use the tall screen to show arrival information and event listings at the entrance. A logistics or industrial site in Mesaieed or the Industrial Area can position it at a gatehouse or outdoor waiting area to display visitor directions and safety messages, where dust and sun are constant. A campus in Education City can place touch-enabled wayfinding points on open plazas to help visitors find lecture halls and services.
What to plan before you order
- Choose the touch type, if any: infrared or capacitive, or none.
- Decide whether anti-reflection glass is needed for screens facing strong sun.
- Confirm the media player: Android standard, Windows i3, i5 or i7, or HDMI input.
- Allow for a maximum draw of 360 W per unit and a power point within reach.
The data sheet we hold does not list external dimensions, so SmartRooms Qatar will confirm the footprint and fixing requirements during a free site survey. Professional installation is available, and we deliver to all eight municipalities of Qatar. Quotations are usually issued within one working day, and we accept LPOs and government tenders, including Monaqasat.
To confirm the right configuration for your site, request a quote from SmartRooms Qatar and tell us the location, the expected sun exposure and the content you plan to run.
Highlights
- IP65 outdoor waterproof grade in a galvanised steel enclosure

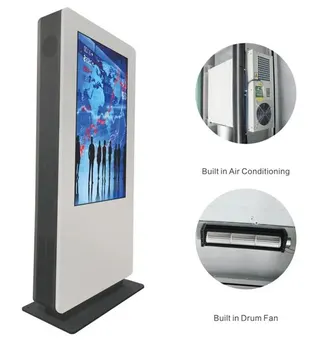

- Air conditioning temperature control with optional air cooling
- 1500-2000 cd/m2 brightness from an LG high-brightness backlight
- Operating range of -30 °C to 50 °C
- Integrated Android RK3288 player with 2GB memory and 8GB storage
- Two-year manufacturer warranty and 50,000-hour MTBF rating
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Quick Details8
- Brand Name
- Trend Displays
- Model Number
- TD-43OKTF65AC
- Resolution
- 1920x1080 FHD
- Brightness
- 1500-2000cd / m2
- Contrast
- 1200: 1
- Warranty
- 2 Years
- Video
- PAL / NTSC / SECAM color system
- Color
- White, Black, Customized
Technical24
- Aspect Ratio
- 9:16
- Backlight system
- LG high-brightness backlight system
- Display color
- 16.7M screen color
- Media Player
- Integrated Android RK3288 2+8G Android 5.1/7.1 OS Optional RAM: 4GB/8GB/16GB Optional SSD: 32GB/64GB/128GB/256GB Optional Media Players: No Media Player with HDMI Input Integrated Windows Media Player with i3 Processor 4GB RAM 128GB SSD Integrated Windows Media Player with i5 Processor 4GB RAM 128GB SSD Integrated Windows Media Player with i7 Processor 4GB RAM 128GB SSD
- Operating temperature
- -30 ℃ ~ 50 ℃ (For the Environment higher than 50°, we suggest to take the air conditioning models)
- Pixel layout
- 0.63 (H) × 0.63 (V)
- Power supply
- AC100 ~ 240V 50/60 HZ power supply
- Support network
- LAN (Wifi Optional)
- Surface treatment
- Panel material SPCC metal box
- working environment
- Outdoor
- Viewing Angle
- 178 ° / 178 °
- Storage
- 8GB (Optional 16/32/64/128 GB)
- Response Time
- 6 ms
- IP Rating
- IP65 Outdoor waterproof grade
- structure
- 1.5 mm galvanized steel
- Maximum Power Consumption
- ≤ 360W
- Touch screen
- Optional
- Memory
- 2GB (Optional 4/8/16GB)
- Size
- 43 Inch Kiosk
- Temperature Control
- Air conditioning system (Optional: Air cooling System)
- MTBF
- 50,000 (hours)
- Storage Temperature
- -40 ℃ ~ 60 ℃
- Humidity
- Working humidity 85% Storage Humidity 85%
- Power
- ≤ 360W
