TD-49OKTF65AC

What this outdoor kiosk is built to do

The Trend TD-49OKTF65AC is a 49-inch display housed in a weatherproof kiosk enclosure, designed for screens that must run outdoors rather than only in indoor lobbies. Its IP65 rating covers protection against dust and low-pressure water jets, and the structure is 1.5 mm galvanized steel with an SPCC metal box. The panel is a 1920x1080 Full HD screen with a brightness rating of 1500-2000 cd/m2, a 1200:1 contrast ratio and an LG high-brightness backlight system. The listed viewing angle is 178 degrees both horizontally and vertically, and response time is 6 ms.

Temperature control for Qatar's summers

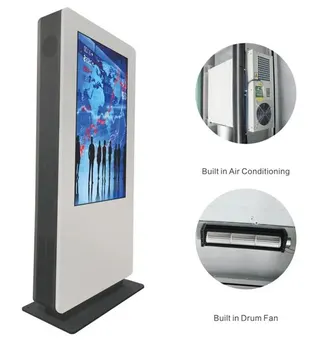

Summer heat is the main reason to specify an air-conditioned outdoor kiosk in Qatar. This model lists an operating range of -30 to 50°C and a storage range of -40 to 60°C, and it includes an air conditioning system for temperature control. The manufacturer advises choosing its air-conditioned model for environments above 50°C, which is the variant described here. On sites with heavy sun exposure, such as a west-facing forecourt in Al Sadd, the installer should check shade, orientation and mounting height during a site survey before the order is placed.

Where it fits in Qatar

• Shopping mall or retail forecourt in Lusail or West Bay: a 49-inch screen at an outdoor entrance shows promotions in daylight, with IP65 protection against wind-blown dust.
• Hotel or serviced apartment drop-off in Msheireb or The Pearl: welcome messages and directions at the entrance, with content managed over the network.
• Stadium, event venue or public plaza: information displays for visitors, with the manufacturer describing 24/7 operational capability for round-the-clock messaging.

Media player, storage and connectivity

The standard configuration includes an integrated Android RK3288 media player running Android 5.1 or 7.1, with 2GB memory and 8GB storage. Optional upgrades include memory of 4GB, 8GB or 16GB, larger SSD storage, and integrated Windows media players with i3, i5 or i7 processors, each with 4GB RAM and a 128GB SSD. The kiosk connects by LAN, with Wi-Fi available as an option. It can also be ordered with no media player and an HDMI input for an external source. Content can be loaded from USB or SD card, or managed through the signage software option that includes 1GB of cloud server storage.

What to plan before ordering

• Power: the supply is listed as AC 100 to 240V, 50/60 Hz, with maximum consumption of 360W and standby below 5W. Confirm circuit capacity and outlet position with the installer.
• Touch: the touch screen is optional, offered in capacitive or IR types. Decide early whether the screen must be interactive.
• Glass and finish: anti-reflection glass is available to protect the screen, and the housing comes in white, black or a customised colour.
• Site survey: SmartRooms Qatar offers free site surveys to confirm the fixing point, sun exposure and cable route before installation.

Request a quote

Request a quote from SmartRooms Qatar with your location, configuration and quantity. Quotations are usually issued within one working day, and we deliver to all eight municipalities of Qatar. We accept purchase orders (LPOs) and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. Lead times are confirmed with the quotation based on stock. The unit is covered by the manufacturer's 2-year warranty.
