TD-55OKTF65

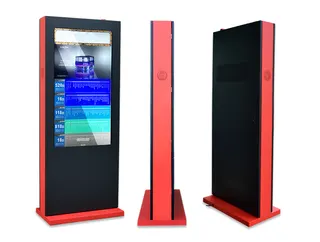

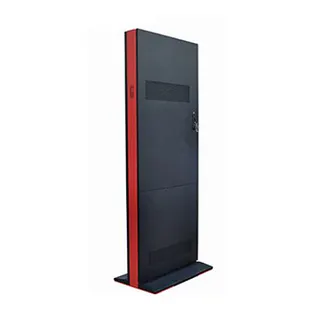

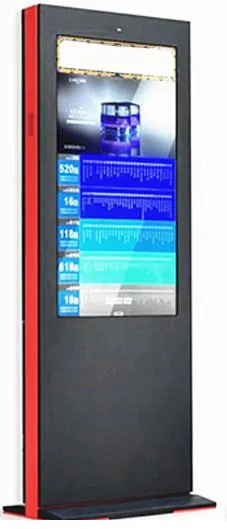

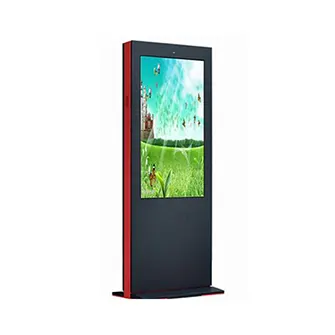

A portrait kiosk built to stand outdoors

The Trend TD-55OKTF65 is a 55-inch freestanding outdoor kiosk with a 9:16 portrait Full HD screen at 1920x1080. Its tall format suits directional maps, menus, queue information and event listings that are read from top to bottom. The enclosure carries an IP65 rating and uses 1.5 mm galvanized steel, so it is designed for exposed locations where dust and rain are constant.

Brightness and viewing angles for daylight

Outdoor readability depends on luminance, and this model is rated between 1,500 and 2,000 cd/m² with a 1200:1 contrast ratio. An LG high-brightness backlight system supports the panel, and the 6 ms response time keeps moving content clean. The 178° horizontal and 178° vertical viewing angles let visitors read the screen from the side of a walkway, not only from directly in front. Check glare against the sun path at the chosen spot during a site survey, because orientation changes how bright the screen looks.

Heat limits and planning for Qatar summers

The operating range is -30 °C to 50 °C, and storage is rated from -40 °C to 60 °C. Summer ambient temperatures in Qatar regularly exceed 45 °C, so a kiosk in full sun on a Doha plaza has little margin. The manufacturer recommends air-conditioned models for environments above 50 °C. The standard unit uses an air-cooling system, and an air-conditioning option is available. Describe the location in your request, including whether it is shaded, faces the sun or sits near reflective walls, so the team can recommend the right cooling configuration.

Media player, connectivity and content control

• Android player: RK3288 platform with 2GB RAM and 8GB storage as standard, running Android 5.1 or 7.1.
• Windows options: Intel i3, i5 or i7 players, each with 4GB RAM and 128GB SSD.
• Network: LAN as standard, with Wi-Fi as an option.
• Input-only option: a version without a media player, with HDMI input.

Content management software lets your team create, schedule and update messages locally or remotely. Remote WAN or LAN access means updates can be made from a PC or smart device, which helps when a facilities team is not on site. Scrolling text and a range of media formats are supported, and local storage keeps playlists running on the player itself.

Where it fits in Qatar and what to plan

A hotel in The Pearl might place one at a covered forecourt to display event schedules and dining offers. A shopping centre in West Bay could use one near a main entrance for promotions, changed weekly from the management office. A government authority in Doha could use one on a public plaza for service announcements. In each case, confirm the power outlet, network route and walking clearance before the unit arrives.

Power input is AC 100 to 240 V, 50/60 Hz, with maximum consumption of 360 W or less and standby under 5 W. That input range covers Qatar's 240 V mains. Ask for a free site survey so we can check where power and data arrive. Colours are white, black or a custom finish. Touch and anti-reflection glass are optional, so confirm which options are available for the 55-inch model. The manufacturer's warranty is two years.

Send us your site location, power and network details, and the options you need. SmartRooms Qatar will return a quotation, usually within one working day, and can handle LPOs and government tenders. Request a quote for the TD-55OKTF65 today.
