TD-55OKTF65AC

What the TD-55OKTF65AC is built to do

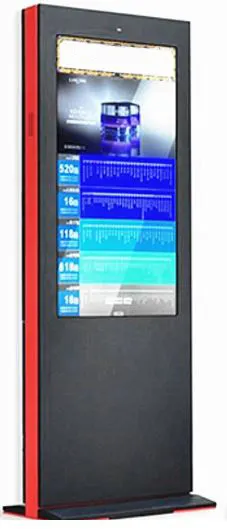

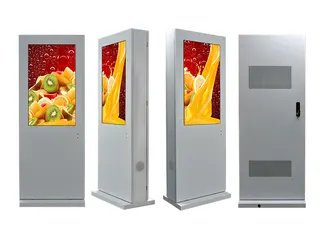

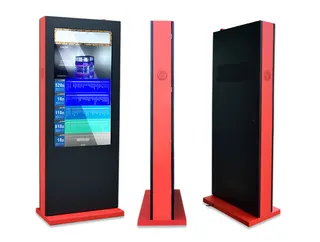

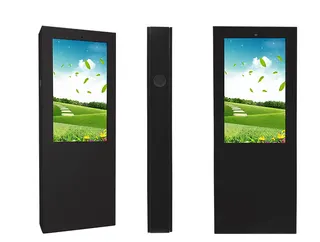

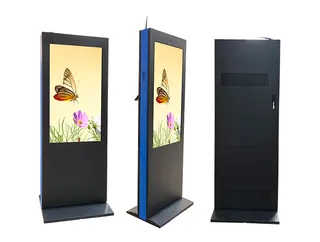

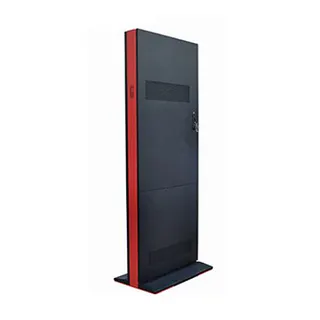

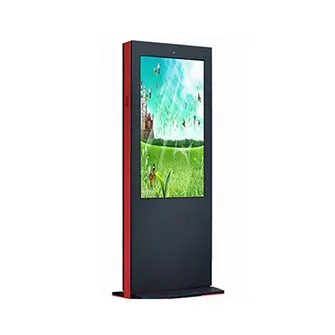

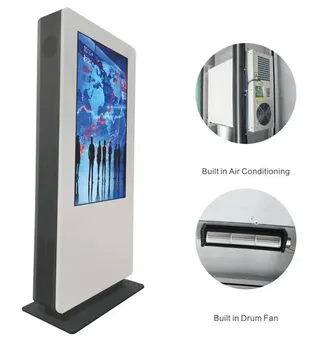

The Trend TD-55OKTF65AC is a 55-inch outdoor kiosk for digital signage, with a portrait 9:16 screen at 1920x1080 Full HD. The screen sits in a 1.5 mm galvanized steel cabinet rated IP65, which covers protection against dust and water jets. What sets this air-conditioned variant apart is its built-in temperature control, which keeps the cabinet within working limits when the surrounding air is hot, so it can stand on an open forecourt where a standard indoor display would fail.

Specifications that matter outdoors

Brightness is rated at 1500-2000 cd/m2, with a contrast ratio of 1200:1 and a viewing angle of 178 degrees both horizontally and vertically. That means messages remain readable from the side of a walkway and under strong daylight. The operating range is -30°C to 50°C, and the manufacturer advises an air-conditioned model for environments above 50°C. Storage tolerance runs from -40°C to 60°C. Anti-reflection glass is available as an option to reduce glare on a bright site. Response time is rated at 6 ms, and the MTBF is listed at 50,000 hours.

Media player, connectivity and content management

The standard build includes an integrated Android player on an RK3288 platform, with 2GB memory, 8GB storage and Android 5.1 or 7.1. Memory can be upgraded to 4GB, 8GB or 16GB, and storage options range up to 256GB depending on the configuration. Integrated Windows media players with i3, i5 or i7 processors are optional, and a version without a built-in player offers HDMI input. Networking is LAN as standard, with Wi-Fi as an option. Content is scheduled and updated through cloud-based management software, locally or remotely, and a digital signage software option includes 1GB of cloud server storage. A touch layer is optional, with infrared and capacitive choices listed.

Where it fits in Qatar

A shopping mall in Lusail could use the kiosk on its forecourt to show evening promotions and wayfinding, keeping the screen legible during the hot months. A hotel in West Bay might place one at the drop-off area to display arrival information and local guest services, updating content from head office. A municipal or public service site in Al Khor or Mesaieed could use a touch version for visitor information, where a capacitive screen gives a more responsive interface. Industrial and logistics sites in the Industrial Area could use it at a gate for safety and site notices, though the environment should be confirmed during the survey.

What to plan before installation

• Confirm the exact outdoor location, shade and sun direction before fixing the base.
• Check the supply: the input is AC100 to 240V at 50 or 60 Hz, with maximum consumption of 360W or less.
• Plan a LAN cable route, or confirm Wi-Fi coverage if that option is chosen.
• Decide on touch, memory and storage before ordering, since these are configuration choices.
• Allow for a freestanding base and clear access around the cabinet for future relocation.

SmartRooms Qatar offers supply, delivery to all eight municipalities, professional installation and a free site survey, with quotations usually issued within one working day. Request a quote for the TD-55OKTF65AC and tell us your location, quantity and preferred configuration.
