TD-65OKTF55

Built for outdoor public screens

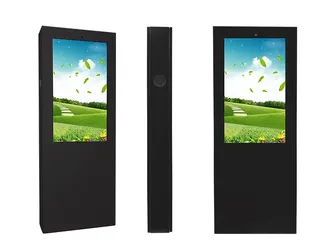

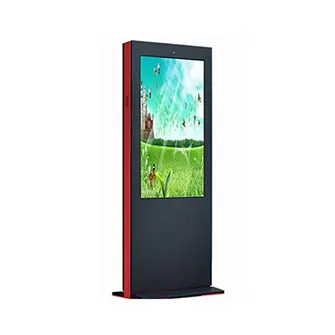

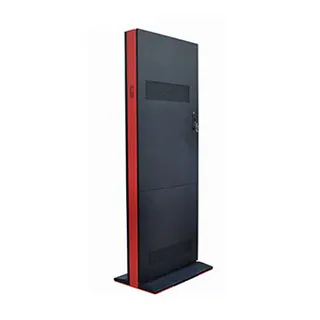

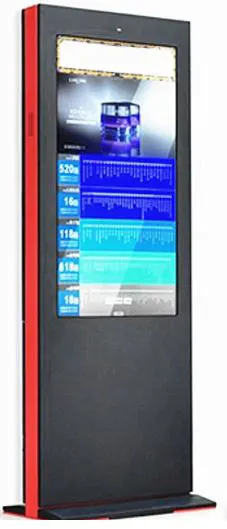

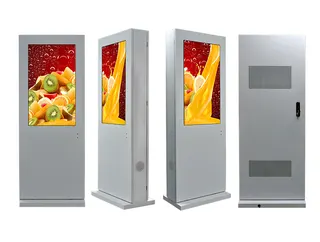

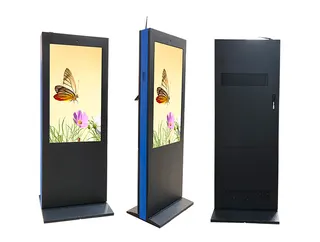

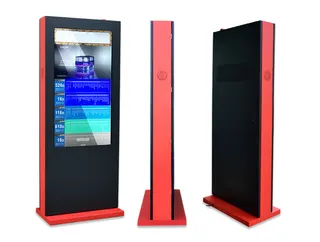

The Trend TD-65OKTF55 is a 65-inch outdoor kiosk for information, advertising and wayfinding in places where a standard indoor display would not last. Its enclosure carries an IP55 rating for protection against dust and water jets, and the housing is made from 1.5 mm galvanized steel with a metal box finish. The 9:16 aspect ratio gives a tall format that suits directory listings, queue information and vertical menus.

Brightness and clarity in Qatar daylight

The panel is rated at 1500 to 2000cd/m2 with a 1200:1 contrast ratio and a 1920x1080 Full HD resolution. Viewing angles are 178 degrees horizontally and vertically, and response time is 6 ms, so menus and moving content stay readable from the side. An anti-reflection glass option is available for screen protection, and it can be included in your quotation.

Brightness matters most where the screen faces open sky, such as a plaza, a bus stop or a car park entrance. A site survey helps identify glare angles and shade, which often decide whether the anti-reflection glass option is worth specifying.

Heat, dust and the Qatar climate

The operating temperature range is -30 to 50°C, and storage is rated from -40 to 60°C. The manufacturer advises an air conditioning model for environments above 50°C. The standard unit uses an air cooling system, and an air conditioning system is available as an option. Summer temperatures in Qatar can exceed 45°C, so a courtyard or rooftop exposed to direct sun needs a clear decision before ordering.

• Standard: air cooling system for sites within the operating range
• Option: air conditioning system for environments above 50°C

IP55 protects against dust and water jets, which matters where dust is blown onto outdoor equipment. Rain, sand and sun exposure differ from site to site, so confirm the mounting position and drainage with the SmartRooms Qatar team during the free site survey.

Media player, memory and connectivity

The standard unit integrates an Android RK3288 player with 2GB memory and 8GB storage, running Android 5.1 or 7.1. Memory can be upgraded to 4GB, 8GB or 16GB, and storage can be increased as well. Where your software needs Windows, integrated Windows media players with an Intel i3, i5 or i7 processor, 4GB RAM and 128GB SSD are available.

Network connection is LAN as standard, with Wi-Fi optional. A version without an internal media player offers an HDMI input so an external source can drive the screen. Touch is optional: a 65-inch IR touch screen or a 65-inch capacitive touch screen can be specified. Digital signage software with 1GB of cloud storage is also available as an option.

Where it fits in Qatar and what to plan

Three scenarios suit this kiosk well:

• A shopping mall courtyard in Lusail or The Pearl, showing directory and promotional content to visitors through the day.
• A campus entrance in Education City or an Arabic-curriculum school in Al Rayyan, displaying event schedules and outdoor wayfinding.
• An industrial or logistics site in Mesaieed or the Industrial Area, where a visitor information point must withstand dust and heat.

Before ordering, plan the mounting position, the power route and the network cabling. Qatar's 240V, 50Hz supply falls within the unit's AC 100 to 240V input range, with maximum power consumption of 360W and standby below 5W. The unit carries a two-year manufacturer warranty and a rated MTBF of 50,000 hours.

Request a quote from SmartRooms Qatar. We arrange a free site survey, supply, delivery to all eight municipalities of Qatar and professional installation, and quotations usually follow within one working day.
