TD-75OKTF65AC

A 75-inch outdoor kiosk with air-conditioned housing

The Trend TD-75OKTF65AC is a free-standing 75-inch kiosk built to run outdoors all day rather than inside a lobby. Its 9:16 portrait panel offers 1920x1080 Full HD resolution, a 1,200:1 contrast ratio, a 6 ms response time and a 178-degree viewing angle, so content stays readable from a pavement or a queue line.

Brightness, weatherproofing and temperature control

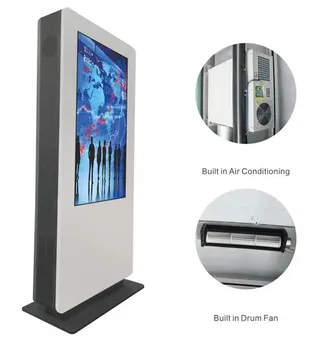

Brightness is rated between 1500 and 2000 cd/m2, which is the figure to compare against afternoon sun in a forecourt. The enclosure carries an IP65 rating for waterproof and dustproof protection, with a 1.5 mm galvanized steel structure and an SPCC metal box. The operating range is -30°C to 50°C. The manufacturer advises air-conditioned models for environments above 50°C, and this is the air-conditioned variant, which matters when Qatar summer afternoons push past 45°C.

• Maximum power consumption of 360W, standby below 5W
• Storage temperature -40°C to 60°C, with working and storage humidity rated to 85%
• Rated MTBF of 50,000 hours
• Colour options: white, black or a custom finish

Media player and connectivity options

The standard build includes an integrated Android media player with an RK3288 processor, 2GB of memory and 8GB of storage, running Android 5.1 or 7.1. Upgrades go up to 16GB of memory and 256GB SSD storage. Alternatives are an integrated Windows player with an i3, i5 or i7 processor, 4GB of RAM and a 128GB SSD, or no player at all, with an HDMI input for feeding content from your own device. Network connection is by LAN as standard, with WiFi as an option. Touch, anti-reflection glass and digital signage software with cloud storage are also available as options, so the quotation should list each one you need.

Where it fits in Qatar

• Shopping centre or hotel forecourt in West Bay or The Pearl: a wayfinding and promotions screen that stays visible under strong sun at the entrance.
• Campus walkway in Education City or Al Sadd: an outdoor notice point for events and timetables, where constant weather exposure makes a rain-tight enclosure the practical choice.
• Gate or yard at the Industrial Area or Mesaieed: visitor and safety messages where dust and heat make an indoor display unsuitable.

What to plan before you order

Because the kiosk is free-standing, the main planning points are the base, the power point and the data route. Confirm a level base, a power point within reach of the 360W maximum draw and a network route if you choose LAN. The stated input range of 100 to 240V at 50/60Hz covers Qatar's 240V, 50Hz mains, but confirm the plug type with our team before installation. Decide whether touch, anti-reflection glass or signage software are needed, since each changes the specification and the quotation. SmartRooms Qatar offers a free site survey to check the location, cable paths and sun exposure, and quotations are usually issued within one working day. Purchase orders (LPOs) and government tenders, including Monaqasat, are supported, and payment can be made by bank transfer, cheque or purchase order. The product is covered by the manufacturer's two-year warranty.

To request a quote from SmartRooms Qatar, send the number of kiosks, your media player and touch preferences and the site location, and we will prepare your quotation.
