TD-86OKTF65AC

An 86-inch outdoor kiosk with air conditioning for Qatar's heat and dust

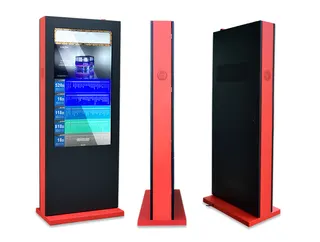

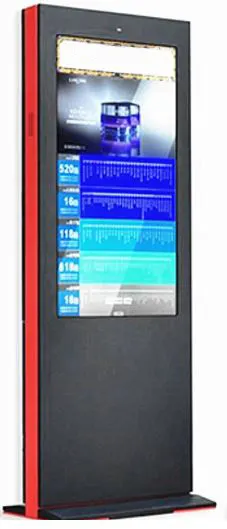

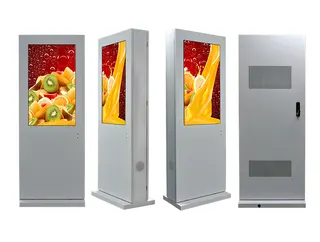

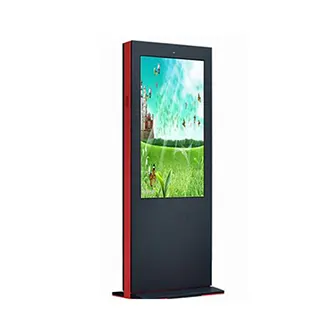

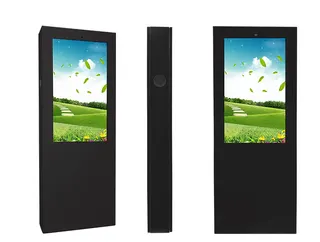

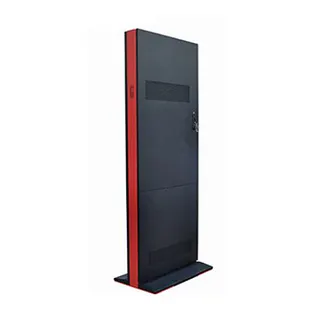

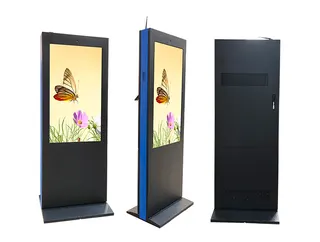

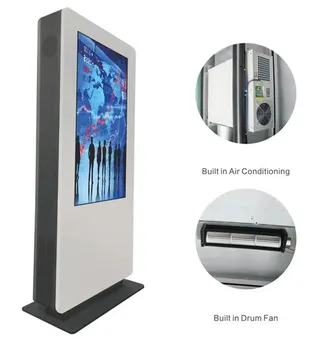

The Trend TD-86OKTF65AC is a free-standing outdoor kiosk with an 86-inch screen in a 9:16 portrait format. Its metal enclosure carries an IP65 rating, which indicates dust-tight construction and protection against low-pressure water jets. The built-in air conditioning system manages the internal temperature, so the electronics stay within limits when outdoor conditions climb. For sites exposed to summer heat, that is the feature to check first.

Specifications that matter on an outdoor site

The screen is a 1920x1080 Full HD panel with a brightness of 1500-2000 cd/m2, a contrast ratio of 1200:1 and a 178° viewing angle. An LG high-brightness backlight system supports visibility in daylight, and the 6 ms response time keeps moving content smooth. The unit operates between -30°C and 50°C and can be stored between -40°C and 60°C, with a working humidity rating of 85%.

Maximum power consumption is 360 W, and standby draw is below 5 W. The power supply accepts 100 to 240 V at 50/60 Hz, which covers the 240 V mains used in Qatar. The steel structure is 1.5 mm galvanised, and the manufacturer quotes an MTBF of 50,000 hours. The product comes with a 2-year warranty and is available in white, black or a custom colour.

Connectivity, media player and content management

The standard configuration runs an integrated Android media player on an RK3288 platform with 2GB memory and 8GB storage, on Android 5.1 or 7.1. Higher memory and SSD storage are options, as are Windows media players with i3, i5 or i7 processors, each with 4GB RAM and a 128GB SSD. A model without a media player, with an HDMI input, is also available. Network connection is by LAN, with WiFi as an option. Content can be loaded through USB or SD card, or managed remotely with digital signage software that includes 1GB of cloud server storage.

An 86-inch infrared touch screen and anti-reflection glass are both optional, so the same cabinet can serve as a non-touch advertising unit or an interactive wayfinding point.

Where it fits in Qatar

• Shopping plaza in Lusail: a daylight-visible screen at a mall entrance showing promotions and tenant directories, with content scheduled by time of day.
• Hotel forecourt in West Bay or The Pearl: arrival information and event listings for guests, updated from the front office without visiting the unit.
• Industrial gate in Mesaieed or the Industrial Area: visitor instructions and safety notices at an entry point exposed to dust, where a sealed enclosure matters.

What to plan before you order

Outdoor kiosks need planning on site. Confirm the base or fixing, the cable route for power and network, and whether the unit faces direct afternoon sun. Because the operating range tops out at 50°C, and summer temperatures in Qatar can exceed 45°C, discuss the exact exposure with the SmartRooms Qatar team before ordering. SmartRooms Qatar offers a free site survey, and it can supply and install across all eight municipalities of Qatar.

Quotations are usually issued within one working day. Request a quote with your site location, the model options you need and whether you will order by purchase order or tender.
