TP-275SSK

What the TP-275SSK does at a payment point

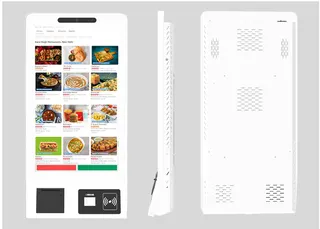

The Trend TP-275SSK is a 27-inch self-service payment kiosk designed for counters where customers choose, customise and pay for their own orders. Quick-service restaurants, staff canteens and food courts can use it to shorten queues at peak times and free staff to prepare food. The panel supports both horizontal and vertical display modes, so you can pick the layout that suits your menu.

Display and touch figures that matter

The screen is a 27-inch LED LCD with a maximum resolution of 1920x1080, brightness of 350 cd/m², a contrast ratio of 1,200:1, an 8 ms response time and a 60 Hz frequency. Anti-glare treatment with a 3% glass fog value helps reduce reflections from overhead lights and windows, and transmittance is above 85%.

The touch layer is a 10-point capacitive frame sitting behind 4mm tempered glass. More than 90% of the touch area is accurate to within ±2mm, and the rated single-touch life exceeds 50 million touches, which matters for a unit tapped throughout a busy service day.

Connectivity, power and items to confirm

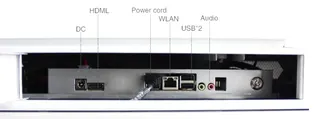

Ports include one HDMI, one VGA, one USB 2.0, one RJ45 network port and one LVDS output, plus headphone audio through an integrated sound card. Networking is wired or Wi-Fi, with 3G and 4G access available as an option, including a built-in 4G module.

• Power input AC100-240V (±10%), 50/60Hz, which includes Qatar's 240 V, 50 Hz mains
• Rated power consumption 80W, standby 1W
• Operating range 0°C to 50°C; storage range -20°C to 60°C
• Rated MTBF above 6,000 hours; warranty 1 year

The product listing describes an Android OS with 2GB RAM and 16GB storage, while the specification sheet lists Windows 7, 8 and 10, Intel processor options, 4G or 8G DDR3 memory and 120G or 240G SSD storage. Before requesting a quote, ask the SmartRooms Qatar team to confirm the exact operating system, memory and storage for the unit you are buying.

Where it fits in Qatar

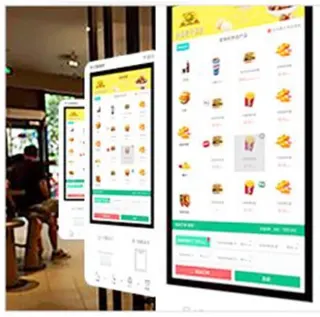

• A quick-service restaurant in Al Sadd or Al Rayyan adding a self-order point beside its counter to handle lunchtime peaks.
• A staff canteen at a plant in Mesaieed or the Industrial Area taking meal orders and card payments from workers on shift.

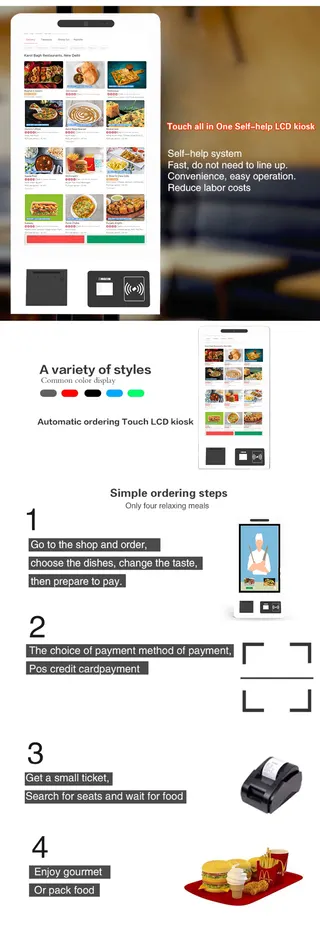

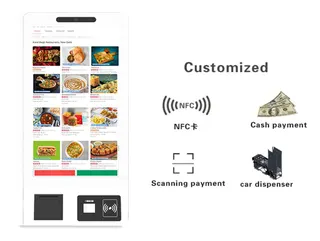

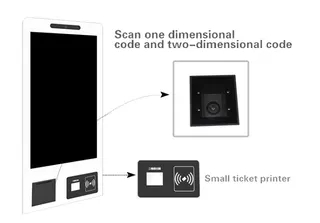

• A food court in Education City or a hospital cafeteria in Doha using a QR code scanner and 80mm thermal receipt printer as add-ons.

Heat is the main site condition to plan for. The rated operating limit is 50°C, and Qatar summer temperatures often exceed 45°C. Place the kiosk in an air-conditioned concourse, away from direct sunlight through glazing and from kitchen heat. The data does not rate the TP-275SSK for outdoor or unshaded use.

Planning the installation

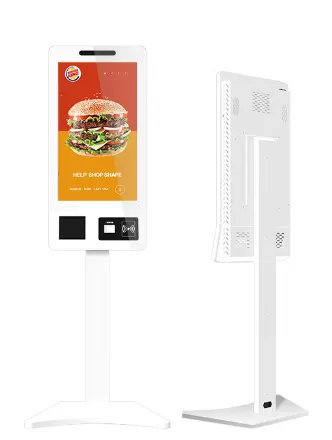

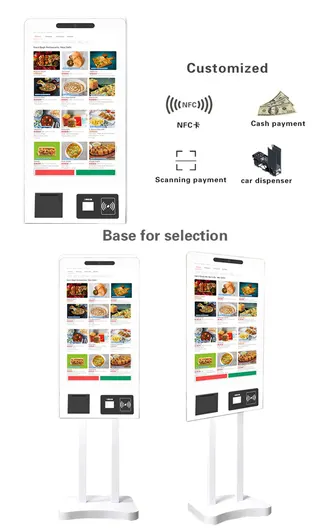

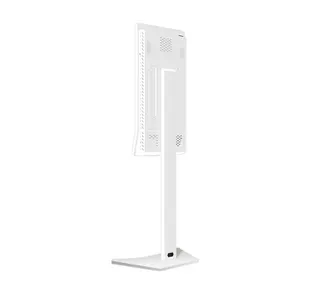

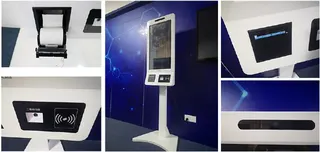

The listed installation options are wall-mounted or vertical base. The unit weighs 20.66 kg net and 23.12 kg gross, so confirm that the wall or floor position can carry it. Keep space clear around the vents so heat can escape, and plan power and network cable routes before delivery.

SmartRooms Qatar offers free site surveys before wall mounting, professional installation, and delivery to all eight municipalities of Qatar. Quotations are usually issued within one working day, and we accept purchase orders (LPOs), government tenders, and payment by bank transfer, cheque or purchase order.

To receive a quotation, send the number of units, the configuration you need, such as a 4G module or receipt printer, and a photo or plan of the mounting position. Request a quote from SmartRooms Qatar today.
