Angekis Ceiling Mic Pro ASP-C-01

Name: Angekis Ceiling Mic Pro ASP-C-01 Ceiling Microphone Kit with DSP Unit
Brand: Angekis
SKU: angekis-ceiling-mic-pro-asp-c-01
Availability: InStock

Overview

A ceiling microphone kit for boardrooms and training rooms, the Angekis ASP-C-01 pairs two suspended microphones with a DSP unit. The microphones pick up sound across 360 degrees within 10 m, while adaptive echo cancellation and noise suppression keep remote calls clear. A USB Type-B port connects to Windows or Mac computers. Suited to hybrid meetings across Doha, request a quote.

Two ceiling microphones and a DSP unit in one kit

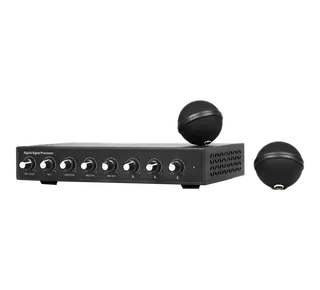

The Angekis Ceiling Mic Pro ASP-C-01 is a ceiling microphone system for meeting rooms and training spaces. It combines two suspended microphones with a central Digital Signal Processor (DSP) unit that handles audio processing, connections and the main controls. Each microphone is rated for a pick-up radius of up to 10 m with 360-degree coverage, so the pair is intended to capture speech from around a table without needing desk microphones.

Echo cancellation and noise control inside the DSP

Ceiling microphones in a room with loudspeakers face a feedback problem: sound from the speakers returns into the microphones and reaches remote participants as an echo. The ASP-C-01 uses Auctopus audio processing, which includes third-generation adaptive echo cancellation, adaptive noise suppression and adaptive gain adjustment. Intelligent remix is also listed among its audio features. The stated microphone frequency response is 50 Hz to 20 kHz, the signal-to-noise ratio is 75 dB, and the audio processor is listed with a 24-bit A/D-D/A converter and a dynamic range above 105 dB.

Connections for computers and conferencing equipment

USB Type-B control port for Windows or Mac OSX computers
6-road 3.81 mm Phoenix interface for MIX and AEC inputs
Speaker, REC and AEC outputs on the DSP unit
3.5 mm audio monitoring jack
Single adjustment knob for input and output levels

Where it fits in Qatar

A boardroom in West Bay with a central table and a display at one end is a good match. The two microphones can be placed to cover the seats within the stated 10 m radius, and the DSP unit can sit in a cabinet near the AV rack. In Education City, a training room where presenters move between the lectern and the seats benefits from ceiling pickup that does not depend on a presenter holding a microphone. A government ministry meeting room in Msheireb, where teams in Doha and abroad join by video, needs echo and noise processing to keep remote speech intelligible.

What to plan before installation

Ceiling microphones depend on the room more than most AV equipment. Check the ceiling height and construction, the position of air-conditioning diffusers and lights, and the cable route from the ceiling to the DSP unit. The data does not list cable lengths or mounting hardware, so confirm those during a free site survey. The adapter accepts 100-240 V, 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply; confirm the plug type for BS 1363 sockets before ordering. The kit is covered by the manufacturer's 3-year warranty and carries CE, FCC and CCC certifications.

Request a quote from SmartRooms Qatar for the Angekis Ceiling Mic Pro ASP-C-01, including the site survey and installation. Quotations are usually issued within one working day, and we handle purchase orders (LPOs) and government tenders.

Highlights

Two suspended ceiling microphones with 360-degree coverage
Pick-up radius of up to 10 m
Third-generation adaptive echo cancellation and noise suppression
DSP unit with USB Type-B, Phoenix inputs and Speaker, REC, AEC outputs
Control port works with Windows and Mac OSX computers
Manufacturer 3-year warranty; CE, FCC and CCC certified

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

12 specifications · Source: manufacturer · checked Oct 2026

Specifications12

Model: ASP-C-01
Component: Digital audio processor DSP processing bus structure USB Type-B connection 6 road 3.81mm phoenix interface Supports wireless microphone, mixer, acoustics, echo cancellation, recording and listening Input and output single adjustment knob Suspended spherical microphones x 2
Color: Matte black
Interface: USB Type-B interface 3.5mm audio monitoring jack. DC power interface 6 road 3.81mm phoenix interface
Power supply: Power adapter Input: 100-240v, 0.5A, 50/60Hz. Output: DC 12V,2A. Phantom power supply - + 48 VDC
Computer system requirements: Windows 8 /Windows 7 /Windows 10 /Windows XP and newer, Mac OSX
Suspended spherical microphone: Pick up radius: 10m Max. Sensor: capacitance pole of Φ25 pole type Circuit characteristics: JFET impedance transformation Electronic balance Polar Pattern: Uni- Directional ( Cardioid ) Polar Pattern Frequency response: 50hz-20khz. Sensitivity : -47 plus or minus 3dB. (1.5 K Ω drain test 1.5 V) Rated output impedance: 2.2 K Ω Minimum load impedance: 1000 Ω · SNR: 75dB. Highest pressure level: 115dB. Maximum output level: 1.6dBV (1.2V) Output connector: mini xlr-3 male. Cable: double stranded MIC cable.
Product execution standard: YD/T 993-1998 GB/T 9254-2008 GB 4843.1-2011
Audio processor: Frequency response (20hz-20khz @+4dBu) Microphone channel: +0/ -2db. Line input channel: +0/-0.5dB. THD + N Microphone channel: < 0.009%. Line input channel: < 0.007%. Equivalent noise: < -84dbu. Dynamic range: > 105dB. Maximum input level. Microphone channel: -2dbu. Line input channel: 20dBu. Maximum output level (balance) : 20dBu. Maximum gain Microphone channel: 50dB. Line input channel: 0dB. Input impedance The microphone channels: 330 Ω Line input channels: 20 k Ω Output impedance: 400 Ω A/D-D/A converter: 24bit Light Green: power on
Audio features: Adaptive echo cancellation Adaptive noise suppression Intelligent remix
Certification: CE; FCC; CCC
Warranty: 3 years warranty 1 year battery guarantee

Downloads

2 files from the manufacturer

PDF Datasheets Ceiling Mic Pro ASP-C-01 Data Sheet.pdf 3.5 MB PDF Manuals & guides Ceiling Mic Pro ASP-C-01 User Manual.pdf 2.3 MB

Questions about Ceiling Mic Pro ASP-C-01

What is the Angekis ASP-C-01 used for, and who is it suited to?

It is a ceiling microphone kit for meeting rooms and training spaces where people speak from different seats and remote participants need to hear them clearly. Two suspended microphones pick up voices from the ceiling, and a DSP unit handles the audio processing and controls. It suits rooms that run hybrid meetings more than large auditoriums, since the stated pick-up radius is 10 m.

How many microphones are included, and how much area do they cover?

The kit includes two voice area ceiling microphones. The source data gives 360-degree coverage with a pick-up radius of up to 10 m, so the two units are positioned to cover the room rather than a single point. The microphone frequency response is 50 Hz to 20 kHz, with a stated signal-to-noise ratio of 75 dB. Confirm the placement with the SmartRooms Qatar team during the site survey.

Does the kit cancel echo during video calls?

Yes. The DSP uses third-generation adaptive echo cancellation, which reduces the return of loudspeaker sound into the microphones so remote participants do not hear their own voices. It also includes adaptive noise suppression and adaptive gain adjustment. The DSP provides AEC inputs and outputs, and two AEC cables are supplied. Confirm the exact wiring with the SmartRooms Qatar team before installation.

How does the DSP unit connect to computers and conferencing equipment?

The USB Type-B control port connects to Windows or Mac OSX computers, and a USB Type-B to Type-A data cable is included. The DSP also has a 6-road 3.81 mm Phoenix interface for MIX and AEC inputs, Speaker, REC and AEC outputs, and a 3.5 mm audio monitoring jack. The stated computer requirements are Windows 7, 8, 10 and XP and newer, plus Mac OSX.

What is included in the box?

The kit includes one Digital Signal Processor unit, two voice area ceiling microphones, two microphone cables, one speaker cable, two AEC cables, one USB data cable (Type-B to Type-A) and one DC power adapter. The data does not list mounting hardware for the ceiling, so confirm the fixings with the installer during the site survey.

Will the power adapter work on Qatar's 240 V, 50 Hz supply?

The adapter's stated input is 100-240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Its output is DC 12 V, 2 A. The data does not state the plug type, so confirm with the SmartRooms Qatar team that it fits BS 1363 sockets before placing a purchase order. The DSP also provides 48 V DC phantom power, as stated in the specification.

How should a West Bay boardroom plan the microphone layout?

A boardroom in West Bay typically has a central table and a display at one end. Position the two microphones so they cover the seats within the stated 10 m pick-up radius, and keep them away from air-conditioning outlets and lights where possible. Place the DSP unit close to the video equipment. Ask for a free site survey to check the ceiling height and cable routes before installation.

Is it suitable for a training room in Education City where presenters move around?

Yes, provided the room falls within the stated pick-up radius. A presenter standing near the front or walking between seats stays within range, and ceiling pickup means the presenter does not need to hold a microphone. Check that the two microphones are placed close enough to the front of the room to pick up the lecturer clearly, and that students in the back rows remain inside the coverage area.

Does it suit a Msheireb ministry meeting with overseas teams joining by video?

It suits this use because the kit adds echo cancellation and noise suppression, which help remote participants follow the discussion. The DSP connects to a computer through USB Type-B and offers Speaker, REC and AEC outputs. Confirm with the SmartRooms Qatar team how these outputs link to the conferencing equipment already in the meeting room before ordering.

Can it be used in a hotel lobby or a hot, dusty space?

The data does not give an operating temperature range or a dust rating for the ASP-C-01, so it should not be treated as suited to hot or dusty areas until confirmed. Its product category points to meeting-room use. In an air-conditioned hotel meeting room, the main planning issues are cable routes and ceiling access. Ask the SmartRooms Qatar team to confirm the environment before ordering for any lobby or semi-open area.

What warranty and certifications apply?

The manufacturer's data states a 3-year warranty, and the kit is listed with CE, FCC and CCC certifications. The data also mentions a 1-year battery guarantee, but it does not say which component contains a battery, so ask the SmartRooms Qatar team to confirm what that guarantee covers. Products are covered by the manufacturer's warranty terms.

Does buying from SmartRooms Qatar include a site survey and purchase order support?

Yes. SmartRooms Qatar offers a free site survey before installation, which matters for ceiling microphones because layout and cable routes depend on the room. Quotations are usually issued within one working day. You can order against a purchase order (LPO), and the kit can be delivered to all eight municipalities of Qatar, with payment by bank transfer, cheque or purchase order.
