Angekis Saber 4K+ 12x Optical Zoom PTZ Camera

Name: Angekis Saber 4K+ 12x Optical Zoom PTZ Camera
Brand: Angekis
SKU: angekis-saber-4k-plus
Availability: InStock

Overview

The Angekis Saber 4K+ is a PTZ camera for IP live streaming and video conferencing, with 4K at 60fps over HDMI and IP, 12x optical zoom and an 80.5° wide field of view. Onboard autotracking is standard on units produced after 25 August 2023, and PoE+ is supported. It suits lecture halls, boardrooms and streaming rooms across Qatar. Request a quote from SmartRooms Qatar.

What the Angekis Saber 4K+ is built to do

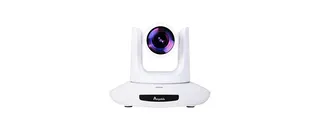

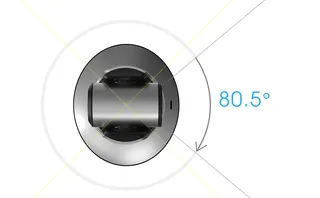

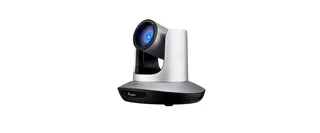

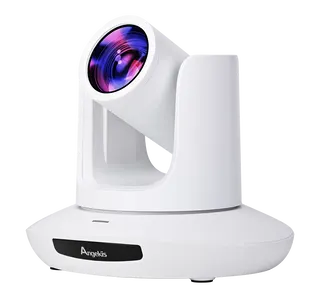

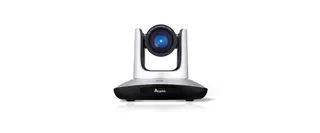

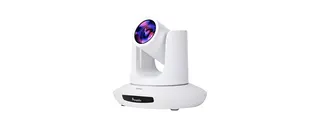

The Angekis Saber 4K+, model ANG2-12UHD-01, is a pan-tilt-zoom camera made for IP live streaming, video conferencing and production work. Its 1/2.8 inch 8.42MP CMOS sensor and 12x optical zoom let one fixed camera frame a presenter closely at the far end of a room, while the 80.5° wide setting keeps a whole table or stage area in view. Because the zoom is optical rather than digital, detail holds up when the camera is framing a distant speaker.

Picture quality and output options

The camera sends 4K at 60 frames per second over HDMI v2.0 and over its IP connection, and 4K at 30 frames per second over USB-C, which is an improvement on 1080p for the USB output. It also provides 3G-SDI, an RJ45 network port and line-in audio, so one unit can feed a conferencing codec, a laptop and a production switcher at the same time.

Video encoding: H.264 and H.265, with H.264 as the default.
Streaming protocols: RTMP, RTSP, SRT and Onvif 2.4 for platforms and encoders.
Image control: auto and manual focus, iris, shutter and white balance, with 2D and 3D noise reduction.

The stated minimum illumination is 0.01 lux and the signal-to-noise ratio is above 50dB, which helps in rooms where lighting is kept low for projection.

Control, presets and autotracking

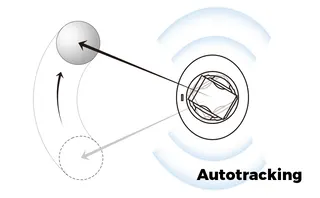

Pan runs from -170° to +170° and tilt from -30° to +90°, with pan speeds up to 120° per second and tilt speeds up to 80° per second. Operators can store 10 presets from the remote control or 128 through VISCA, with a preset precision of 0.1°. Serial control is available through RS232 and RS485 (VISCA, Pelco-P and Pelco-D), and RJ45 supports VISCA over IP, so the camera can be driven from a room controller or a control system. Onboard autotracking analyses shape and motion to follow a speaker. It is standard on units produced after 25 August 2023, so confirm the production date when you request a quote if tracking is essential to your project.

Where it fits in Qatar

A university lecture hall in Education City can use the camera to stream lectures to remote students, with the zoom keeping the lecturer and board in frame from the back row. A boardroom in West Bay running calls with teams abroad can use autotracking and presets to keep the presenter framed without a camera operator. A private school in Al Wakrah recording morning assemblies, or a training centre in Msheireb running hybrid sessions, can use saved presets for its regular camera positions.

What to plan before you order

Power: the unit takes a DC 12V, 2A input and supports PoE+, so confirm which method your switch or power supply will use.
Environment: the data sheet does not list an operating temperature range, so confirm the site with the SmartRooms Qatar team before placing the camera near glass or outdoors.
Mounting: the camera measures 220 x 190 x 173 mm and weighs 1.47 kg, so agree the mounting method and cable routes before installation.
Network: the RJ45 port runs at 1000 Mbps, so plan bandwidth for the 4K or 1080p stream you choose.

Ready to add the Saber 4K+ to your room or streaming setup? Request a quote from SmartRooms Qatar and we will confirm the installation plan and arrange a free site survey before you commit.

Highlights

4K at 60fps over HDMI v2.0 and IP output
12x optical zoom plus 4x digital zoom
Up to 80.5° horizontal field of view
Onboard autotracking on units produced after 25 August 2023
PoE+ supported, with DC 12V 2A input
RS232, RS485, VISCA over IP and USB-C control

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

36 specifications · Source: manufacturer · checked Oct 2026

Specifications36

Model: Saber 4K+ ANG2-12UHD-01
Sensor: 1/2.8 inch 8.42MP CMOS sensor
Video Formats: HDMI (v2.0): 3840*2160P60/59.94/50/30/29.97/25; 1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080160/59.94/50: 1280*720P60/59.94/50/30/29.97/25 3G-SDI: 1920*1080P 60/59.94/50/30/29.97/25/24/23.98; 1920*1080i 60/59.94/50; 1280*720P 60/59.94/50/30/29.97/25 USB-C: NV12/YUYV: 1920*1080P5: 1280*720P15; 1024*576P25; 800*448P30 MJPG: 3840*2160P30: 1920*1080P60; 1280*720P60; 1024*576P60: 800*448P60 H264/265: 3840*2160P30: 1920*1080P60: 1280*720P60: 1024*576P60: 800*448P60 IP: Main stream: 3840*2160P15-60; 1920*1080P15-60; 1280*720P15-60: 1024*576P15-60 Sub stream: 720*480P15-60；640*480P15-60；640*3
Zoom: 12x optical zoom & 4x digital zoom
ƒ-number: Wide: 1.8 Tele: 3.6
FOV: 7.6°(near)~80.5°(far)
Min. Focus Distance: Wide: 0.3m Tele: 1m
Presets: 10 via remote control; 128 via VISCA; preset precision: 0.1°
Rotation Angle: Pan: -170° ~ +170°; Tilt: -30° ~ +90°
Rotation Speed: Pan: 0°~120°/s ; Tilt: 0°~80°/s
Control Port: RS232, RS485 (Serial VISCA, Pelco-P/D), RJ45 (VISCA over IP), USB-C (Compatible with USB3.0 (UVC1.5), USB2.0 (UVC1.1))
Video Port: HDMI (v2.0) / RJ45 / SDI / USB-C
Network Speed: 1000 Mbps
Noise Reduction: 2D & 3D Digital Noise Reduction
SNR: >50dB
Focal Length: f＝3.44 (near)～40.3mm (far)
Minimum Lux: 0.01 lux
White Balance: Auto / Manual / ATW / Push / Indoor / Outdoor / Color Temperature
Anti Flicker: 50Hz/60Hz/OFF
D/N Mode: Supported
Gamma: Supported
Mirror Image: Supported
Pan Tilt Flip: Supported
Iris: Auto / Manual
Electric Shutter: Auto / Manual
BLC: Auto / Manual
Focus: Auto / Manual
Video Encoding: H.264/H.265 (default: H.264)
Bit Rate Control: Variable Bit Rate, Constant Bit Rate
Video Bit Rate: 1024Kbps~61440Kbps
Frame Rate: 50HZ: 1fps~50fps 60HZ:1fps~60fps （3840x2160 max. 30fps）
IP Protocol: TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.4, VISCA over IP (TCP&UDP), SRT Compatible
POE+: Supported
Input Voltage: DC12V, 2A
Dimensions: 220mm×190mm×173mm
Net Weight: 1.47 Kg

Downloads

2 files from the manufacturer

PDF Datasheets Saber 4K+ Data Sheet.pdf 6.4 MB PDF Manuals & guides Saber 4K+ User Manual.pdf 3.0 MB

Questions about Saber 4K+

Who is the Angekis Saber 4K+ designed for?

It suits organisations that stream or record meetings, lessons or events from a fixed room and want one camera that can frame a speaker, follow them and output 4K. Typical buyers are IT managers, AV integrators and facilities teams in schools, universities and corporate offices. The 1/2.8 inch sensor, 12x optical zoom and onboard autotracking cover medium and large rooms. Request a quote to confirm the setup for your space.

Does it output 4K at 60 frames per second?

Yes, over HDMI v2.0 and over the IP connection, where the main stream runs up to 3840x2160 at 60 fps. The USB-C output runs 4K at 30 fps, while 1080p at 60 fps is available over USB using MJPG or H.264. Check the resolution limits in your conferencing software before choosing an output. SmartRooms Qatar can confirm the best setting when you request a quote.

Is autotracking included on every unit?

Autotracking is built into the Saber 4K+ and is standard on units produced after 25 August 2023. It analyses shape and motion to follow a presenter without a camera operator. That statement covers units produced after the date, so confirm the production date of your batch with SmartRooms Qatar before ordering if tracking is a requirement for your lecture capture or meeting room.

Can one camera frame a speaker at the back of a large hall in Lusail?

Yes, within the camera's limits. The 12x optical zoom with 4x digital zoom reaches a tight framing from a distance, while the wide end at 80.5° covers the front of the room. Minimum focus distance is 0.3 m at wide and 1 m at tele. If the hall needs several camera angles, a second unit may be required, and that can be planned during a free site survey.

Which control options work with a room controller or control system?

The camera supports RS232 and RS485 with VISCA, Pelco-P and Pelco-D, plus VISCA over IP through the RJ45 port and control through USB-C. It stores 10 presets from the remote control and 128 presets via VISCA, with 0.1° preset precision. Agree the control method with your AV integrator before ordering so that cabling and software match the system.

Can it be powered over Ethernet?

Yes. The data lists PoE+ support, so a PoE+ switch can power the camera through the network cable. The unit also has a DC 12V, 2A input for installations that do not use PoE+. Choose one method at the planning stage, and check the power budget of the switch when several cameras share a PoE+ switch in an office, school or campus network rack in Doha.

What video outputs does it provide?

The camera offers HDMI v2.0, 3G-SDI, an IP output over RJ45 and USB-C, with a line-in audio input for capturing sound. HDMI and SDI suit broadcast switchers and recorders, IP suits encoders and streaming platforms using RTMP, RTSP or SRT, and USB-C connects directly to a laptop for conferencing. Confirm which outputs your system will use before requesting a quote.

Would it work in a dimly lit hotel ballroom in The Pearl?

The stated minimum illumination is 0.01 lux, and the signal-to-noise ratio is above 50dB, with 2D and 3D digital noise reduction. These specifications help at evening events where stage lighting is lowered during presentations. Test the light level with the event planner, and set exposure, iris and white balance manually to keep colour consistent through the programme.

Can it be used outdoors or near windows during Qatar's summer heat?

The data sheet does not list an operating temperature range, so heat and dust tolerance cannot be confirmed from the specification alone. Before placing the camera near glass, in a dusty lobby or outdoors, ask the SmartRooms Qatar team to confirm the installation environment. Share your site conditions when requesting the quote so the team can check suitability before anything is ordered.

How would a university lecture hall in Education City use it?

The hall can stream lectures live to remote students, with the optical zoom framing the lecturer and board from the back row. Presets can cover the lectern, the whiteboard and the seating area, and the autotracking follows movement across the front. Connect the camera to the capture system over HDMI or IP, and plan cable routes and mounting during a free site survey before the term starts.

How would a West Bay boardroom use it for calls with teams abroad?

A boardroom can use the camera for calls with overseas teams, with autotracking following the presenter and presets covering the head of the table, the screen and the whiteboard. Connect USB-C directly to a laptop for simple calls, or HDMI to a room system for a fuller setup. Ask for a quote that includes the control configuration so presets can be recalled from your control system.

Can a government ministry or school order several units on an LPO or tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. Send your specification or tender reference with the request so the quotation matches the number of cameras, mounts and cables you need across each site.
