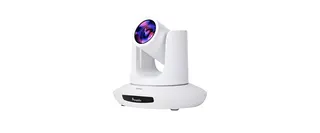

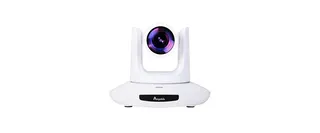

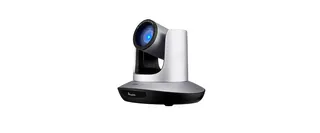

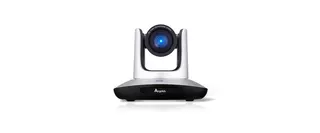

Angekis Saber IP20X NDI 20x Zoom PTZ Camera

Name: Angekis Saber IP20X NDI 20x Zoom PTZ Camera
Brand: Angekis
SKU: angekis-saber-ip20x-ndi
Availability: InStock

Overview

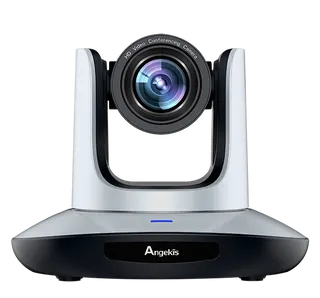

The Angekis Saber IP20X NDI (model NDI-20FHD60) is a pan-tilt-zoom camera for live streaming and video conferencing. It pairs 20x optical zoom with 1080p output, built-in NDI|HX with no additional licensing, and PoE support. HDMI, SDI, USB 3.0 and IP outputs let one camera feed a conferencing system, a switcher or a streaming platform. It suits lecture halls, boardrooms and studios in Qatar that need a camera controlled remotely.

What the Saber IP20X NDI does in a camera-led room

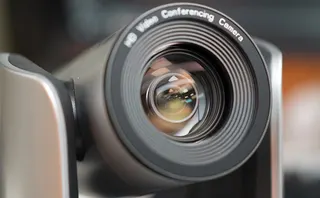

The Angekis Saber IP20X NDI, model NDI-20FHD60, is a pan-tilt-zoom camera for live streaming and video conferencing. A 1/2.8-inch 2.4MP sensor and an advanced DSP produce Full HD output. The 20x optical zoom with a 60° field of view lets one camera frame a presenter at the front of a large room or a seated group at the far end, and the 2x digital zoom adds reach beyond the optics. Manual and automatic focus are both available.

Connectivity: HDMI, SDI, USB 3.0 and NDI|HX over IP

The camera offers HDMI 1.4, SDI, USB 3.0 (compatible with USB 2.0), LAN and RS232 connections, so the same feed can go to a conferencing codec, a broadcast switcher or a streaming computer. NDI|HX is built in with no additional licensing required. The video format table lists 1080p at 60fps over HDMI and NDI, while the IP specification line lists 1080p at 30fps, so confirm the frame rate your network and software will use before ordering. H.264 and H.265 encoding, with RTSP, RTMP, SRT and ONVIF 2.4 support, are also listed.

Motion, presets and remote control

Pan ±170° and tilt 90° up, 30° down
Pan up to 120°/s and tilt up to 80°/s
Twin belt-drive motors for smooth, quiet movement
10 presets from the supplied IR remote, 128 via VISCA
Control over VISCA, Pelco-D and Pelco-P, RS232 and VISCA over IP

The IP address can be set in the on-screen menu using the supplied IR remote, or the camera can obtain one automatically. A special focusing algorithm keeps focus quick during zoom moves, and WDR plus 3D noise reduction help the image in mixed lighting. UltraOptix processing reduces digital noise and sharpens detail, which helps in dim meeting rooms and evening events.

Where it fits in Qatar

In Education City, a university lecture hall can use the camera to capture lectures for students joining from home, moving between saved presenter positions. In Msheireb, a government ministry boardroom can run hybrid meetings that connect Doha with colleagues abroad, using the USB 3.0 or NDI|HX output into the meeting platform. In West Bay, a hotel ballroom can stream conferences and award evenings to viewers outside the building, with zoom adjusted from the same control setup.

Planning the installation

Net weight 1.47 kg; package 310 x 265 x 280 mm
Reverse-mountable, with a standard tripod screw on the base
Wall and ceiling mount available as an optional extra
Working temperature -5 to 45°C; storage -20 to 60°C

Qatar summers regularly exceed 45°C, so place the camera in an air-conditioned room and keep it out of direct sun through windows. Mounting height, cable routes for the PoE or 12V DC supply, and the sight line to the presenter should be checked on site. SmartRooms Qatar offers a free site survey and professional installation.

Request a quote from SmartRooms Qatar for the Saber IP20X NDI, including any optional mount you need. We deliver to all eight municipalities of Qatar, accept purchase orders and government tenders, and the product carries a three-year manufacturer warranty. Quotations usually arrive within one working day.

Highlights

20x optical zoom plus 2x digital zoom, 60° field of view
1080p output over HDMI and NDI at up to 60fps
Native NDI|HX with no additional licensing required
Pan ±170°, tilt 90° up and 30° down
Outputs: HDMI 1.4, SDI, USB 3.0, IP; PoE and 12V DC power
Three-year manufacturer warranty

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

15 specifications · Source: manufacturer · checked Oct 2026

Specifications15

Model: NDI-20FHD60
Component: Advanced DSP, 1/2.8 inch 2.4MP sensor 20x Optical Zoom + 2x Digital Zoom, with 60° FOV 1080p @ 30fps video over IP Supports H.264, H.265 encoding; POE Outputs: HDMI (V1.4), SDI, NDI|HX, USB3.0 (Compatible with USB2.0) Able to set IP address via OSD menu with the IR Remote Controller supplied. Automatic access to the IP address Special Focusing Algorithm - fast and precise performance when camera is zooming WDR, 3D Noise Reduction feature Standard IP Visca, Serial Visca, Pelco-P/D control protocol; IP Visca over TCP/UDP
Connectivity: DC12V/2.0A , Power port: HEC3800 , VISCA In/Out RS232 , LAN , USB, SDI , HDMI
Motorized Pan and Tilt: Pan: ±170° Tilt: 90°(up)-30°(down) Rotation Speed: Pan -0 -120°/s, Tilt - 0-80°/s 10 camera pre-sets via IR Remote Control Belt drive technology – twin motors for smooth, quiet and fast movement
Video Format: HDMI – 1080p @60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps IP: 1920x1080p @ 60fps (NDI) 1280x720, 704x576, 640x480, 352x288 @ 1~30fps(substream) SDI: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps USB 3.0: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps USB 2.0: 1024x576p @ 30fps, 960x540p @ 30fps, 640x360p @ 30fps, 352x288p @ 30fps
Control: 10 presets via IR Remote Control 128 via VISCA Control SB UVC FECC and 8 pin mini DIN VISCA/Pelco D/ Pelco P Protocol via RS232 VISCA over IP –TCP/UDP
Mount: Reverse mountable, standard tripod screw on bottom of unit Camera mount for wall and ceiling (optional for additional purchase)
System Requirements: Windows® 7/ 8/8.1/10 Mac OS® X 10.7 or higher Google Chrome book version 29.0.1547.70, platform 4319.79.0
Power Supply: Consumption: 12V, 2A Max Consumption: 24W
Environmental Data: Working temperature: -5 - 45°C Storage temperature: -20 - 60°C
Dimensions: Package Dimensions: 310 x 265 x280 mm Net Weight: 1.47Kg (3.25Lbs)
Warranty: 3 Years
Compatible Applications: Zoom, Adobe Connect, BlueJeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangouts, GoToMeeting, Intel® UniteTM, Microsoft® LyncTM, SkypeTM, Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit
Control Port: RS232, RS485 (Serial Visca, Pelco-P/D, RJ45 (VISCA over IP, USB3.0 (UVC1.5), USB2.0(UVC1.1)
IP Protocol: TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.4, VISCA over IP (TCP&UDP), NDI®|HX, SRT Compatible

Downloads

2 files from the manufacturer

PDF Datasheets Saber IP20X NDI Data Sheet.pdf 6.7 MB PDF Manuals & guides Saber IP20X NDI User Manual.pdf 9.2 MB

Questions about Saber IP20X NDI

What is the Angekis Saber IP20X NDI used for?

It is a remotely controlled PTZ camera for live streaming and video conferencing, suited to rooms where one camera must follow a presenter across a large space. It fits lecture theatres, boardrooms and production studios that send video to a conferencing system, a switcher or a streaming platform. The 20x optical zoom and NDI|HX output support both meeting and broadcast workflows from the same camera.

How much zoom does it offer, and does it focus automatically?

It offers 20x optical zoom and 2x digital zoom with a 60° field of view. Both manual and automatic focus are available, and the special focusing algorithm is designed to keep focus fast and precise while the lens zooms. In a 40-seat classroom, a wide shot covering the back rows and a close shot of the teacher can be saved as two of the camera's 10 presets.

What video resolution and frame rate does it output?

The camera outputs 1080p video. The video format table lists 1080p at 60, 50, 30 and 25fps over HDMI and SDI, and 1920x1080p at 60fps over NDI. The IP specification line states 1080p at 30fps, so confirm which rate your network and software will receive before ordering. USB 3.0 also reaches 1080p at up to 60fps.

Which conferencing and streaming applications does it work with?

The manufacturer lists compatibility with Zoom, Cisco WebEx, Skype for Business, Microsoft Lync, Google Hangouts, GoToMeeting, BlueJeans, vMix, Wirecast and XSplit, alongside WebRTC and NDI|HX. Broadcasting to YouTube, Facebook Live and Twitch is described as a use case. Application support depends on software version, so check your platform version with SmartRooms Qatar before purchase.

How is the camera controlled, and how many presets can it store?

It stores 10 presets through the supplied IR remote and 128 presets through VISCA control. Control runs over VISCA over IP using TCP or UDP, over Pelco-D and Pelco-P via RS232, and over RS232 or RS485 serial links. The IP address can be set from the on-screen menu with the remote, or obtained automatically. Ask SmartRooms Qatar to confirm which protocol your control system uses.

What power does it need, and can it run on PoE?

The power supply is listed as 12V DC at 2A, with a maximum consumption of 24W, and the data also lists PoE. Qatar mains supply is 240V, 50Hz, so make sure you have a correct adapter or a PoE source ready before installation. The source data does not say whether a mains adapter is included, so confirm the power option as part of the quotation.

Can it be installed in a meeting room with windows in summer?

For example, a Doha company meeting room with west-facing glass that receives direct sun in the afternoon. The stated working range is -5 to 45°C, and Qatar summer temperatures can exceed 45°C, so the camera should sit in an air-conditioned room away from direct sunlight through glass. It should not be placed outdoors. Confirm the room conditions during the site survey before fixing the camera.

Can it be ceiling-mounted in a 40-seat classroom?

Yes. The camera is reverse-mountable, and a wall and ceiling mount is available as an optional extra. For example, a private school in Al Wakrah fitting out new classrooms could install it above the front of the room. It weighs 1.47 kg with a package size of 310 x 265 x 280 mm. A free site survey checks mounting height, sight line to the board and the cable route.

How does the UltraOptix processing help in low light?

UltraOptix Digital Noise Reduction filters out digital noise and corrects digital distortions to produce a balanced image with clarity, sharpness and definition, especially in low light. Combined with WDR and 3D noise reduction, it helps in evening events in a hotel ballroom or a dim boardroom. Good front lighting on the presenter still makes the biggest difference to the final image.

How could a university in Education City use it for lecture capture?

Consider a lecture hall in Education City where the lecturer moves between a whiteboard and a lectern. The camera switches between saved presets to follow the lecturer, sends HDMI or NDI|HX video to the capture system, and streams the lecture to remote students. Pan of ±170° and tilt of 90° up and 30° down cover most lecture hall stages. Request a quote that includes the room layout and cabling plan.

Could a government ministry in Msheireb run hybrid meetings with it?

Consider a ministry boardroom in Msheireb that holds meetings with teams abroad. The camera can send video over USB 3.0 to a conferencing computer, or over NDI|HX on the LAN to a conferencing codec, and the listed applications include Zoom and Cisco WebEx. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and installation is confirmed after a site survey.

Would a hotel in West Bay use it to stream live events?

Consider a West Bay hotel ballroom streaming conferences and award evenings to viewers outside the building. The 20x optical zoom reaches speakers on a stage from the back rows, and RTMP streaming is listed alongside YouTube, Facebook Live and Twitch as destinations. Lighting levels, camera position and the connection to the event network should be checked during the site survey.
