Angekis Saber IP20X · Price in Qatar

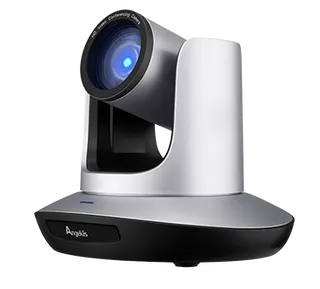

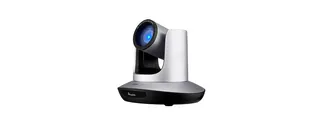

Name: Angekis Saber IP20X 20x Zoom PTZ Camera for Video Conferencing
Brand: Angekis
SKU: angekis-saber-ip20x
Availability: InStock

Overview

The Angekis Saber IP20X is a PTZ camera for video conferencing and IP live streaming. It combines 20x optical zoom with 1080p video at up to 60fps, offers HDMI, SDI, USB and IP outputs, and can be controlled over RS232, RS485 or IP. It suits large meeting rooms, lecture halls and streamed events across Qatar. Request a quote from SmartRooms Qatar.

What the Saber IP20X covers in a room

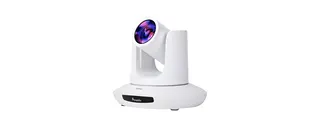

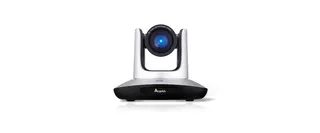

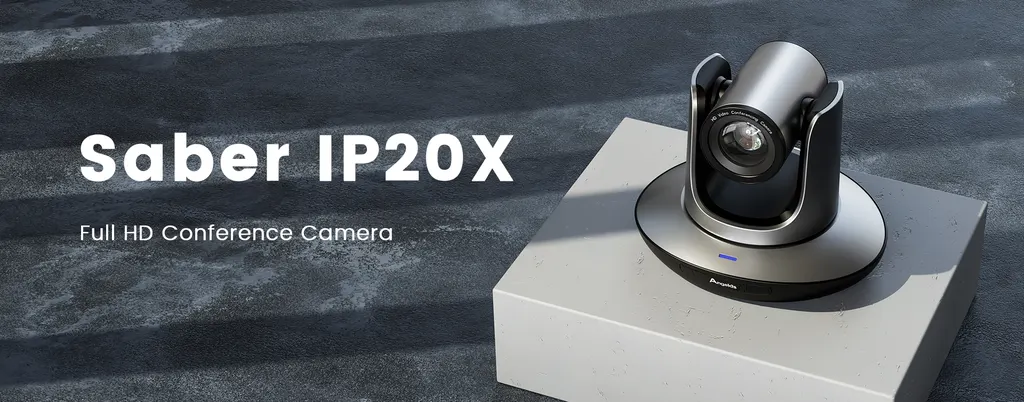

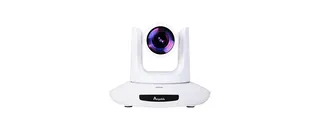

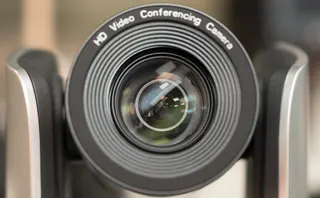

The Saber IP20X is a pan-tilt-zoom camera from Angekis for video conferencing rooms and IP live streaming. Its 20x optical zoom, with 2x digital zoom added, frames a presenter at the far end of a large room or a participant at the back without moving the lens closer. Focal length runs from 4.9 mm to 98 mm, and the horizontal field of view is 60°.

Image quality and low-light use

A 1/2.8-inch 2.4MP CMOS sensor with 2D and 3D noise reduction and a signal-to-noise ratio above 50dB delivers Full HD 1080p output. The minimum illumination of 0.01 lux helps in lecture theatres where lights are dimmed for projection. Aperture ranges from F/1.5 at wide to F/3.0 at telephoto, and iris, shutter, focus, backlight compensation and white balance can each be automatic or manual. The anti-flicker setting offers 50Hz, 60Hz or off, and 50Hz matches Qatar's mains frequency.

Control, presets and multi-camera rooms

Pan runs from -170° to +170° and tilt from -30° to +90°, at up to 120° and 80° per second. Ten presets are callable from the included IR remote, and 128 can be stored through the serial port with 0.1° precision. Control is available over RS232, RS485 (VISCA and Pelco-P/D), VISCA over IP and USB. The RS232 In/Out ports let one controller manage up to seven cameras, and the Angekis NECC controller app offers software control.

Outputs, streaming and network

HDMI and SDI: 1080p at 60, 50, 30 or 25fps
IP main stream: 1920x1080 at 60fps, with lower-resolution substreams
USB 3.0 and USB 2.0 outputs for laptops and PCs
H.264 or H.265 encoding, 1,024 Kbps to 30,720 Kbps
RTSP, RTMP, SRT and ONVIF 2.4 support on a 1000 Mbps network port

Where it fits and what to plan

Typical placements include a boardroom in West Bay linking Doha with teams abroad, a lecture hall in Education City that records lectures, and a school hall in Al Rayyan streaming assemblies to families. Before mounting, survey the sightline to the presenter and the cable route to the controller and display. The camera measures 220 mm by 173 mm by 190 mm and weighs 1.47 kg. Mounting hardware is not listed in the data, and power is listed as DC 12V 2A with PoE also supported, so confirm both when you request a quote.

The source data gives no operating temperature range or outdoor rating. Keep the camera out of direct sun and dusty areas, and confirm the environment with the SmartRooms Qatar team before placing it beside a window or in a lobby exposed to Qatar's summer heat.

SmartRooms Qatar supplies the Angekis Saber IP20X on quotation, with delivery to all eight municipalities of Qatar, professional installation and free site surveys. Payment by bank transfer, cheque or purchase order is accepted. Request a quote with your room size, mounting position and number of cameras, and the team usually replies within one working day.

Highlights

20x optical zoom with 2x digital zoom
1080p video at up to 60fps
HDMI, SDI, USB 3.0, USB 2.0 and IP video outputs
Control via RS232, RS485, VISCA over IP and USB
RS232 In/Out controls up to 7 cameras
10 remote presets and 128 serial presets; PoE supported

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

35 specifications · Source: manufacturer · checked Oct 2026

Specifications35

Model: IP-20FHD60
Sensor: 1/2.8 inch 2.4MP CMOS sensor
Video Formats: HDMI: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps IP: Main Stream: 1920x1080p @ 60fps, Substream: 1280x720, 704x576, 640x480, 352x288 SDI: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps USB 3.0: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps USB 3.0 & USB 2.0: 1024x576p @ 30fps, 960x540p @ 30fps, 640x360p @ 30fps, 352x288p @ 30fps
Zoom: 20x optical zoom & 2x digital zoom
HFOV: 60°
F/number: Wide: F/1.5 (Wide)~3.0（Tele）
Focal Length: f＝4.9mm (near)～98mm (far)
Preset: 10 via remote controller; 128 via serial port; preset precision: 0.1°
Rotation Angle: Pan: -170° ~ +170°; Tilt: -30° ~ +90°
Rotation Speed: Pan: 0°~120°/s ; Tilt: 0°~80°/s
Control Port: RS232, RS485 (Serial Visca, Pelco-P/D), RJ45 (VISCA over IP), USB3.0 (UVC1.5), USB2.0 (UVC1.1)

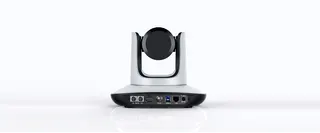

Video Port: HDMI / RJ45 / SDI / USB 3.0 / USB 2.0
Network Speed: 1000 Mbps
Noise Reduction: 2D & 3D
SNR: >50dB
Minimum Lux: 0.01 lux
White Balance: Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Anti Flicker: 50Hz/60Hz/OFF
D/N Mode: Supported
Gamma: Supported
Mirror Image: Supported
PanTilt Flip: Supported
Iris: Auto / Manual
Electric Shutter: Auto / Manual
BLC: Auto / Manual
Focus: Auto / Manual
Video Encoding: H.264/H.265 (default: H.264)
Bit Rate Control: Variable Bit Rate, Constant Bit Rate
Video Bit Rate: 1024Kbps~30720Kbps
Frames: 50HZ: 1fps~50fps 60HZ:1fps~60fps
IP Protocol: TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.4, VISCA over IP (TCP&UDP), SRT Compatible
POE: Supported
Input Voltage: DC12V, 2A
Dimension: 220mm×173mm×190mm
Net Weight: 1.47 KG

Downloads

2 files from the manufacturer

PDF Datasheets Saber IP20X Data Sheet.pdf 6.2 MB PDF Manuals & guides Saber IP20X User Manual.pdf 9.2 MB

Questions about Saber IP20X

What is the Angekis Saber IP20X used for?

The Saber IP20X is a PTZ camera for video conferencing and IP live streaming. Its 20x optical zoom lets one camera frame a presenter at the far end of a large room, so a boardroom in West Bay can give remote colleagues a clear view without a second camera. It also suits lecture halls and event spaces where the same feed goes to a stream or recorder. Choose it when one camera must cover a wide room and the picture must reach a stream, codec or recorder.

What zoom range and field of view does it offer?

It offers 20x optical zoom plus 2x digital zoom, with a focal length from 4.9 mm to 98 mm. Aperture runs from F/1.5 at wide to F/3.0 at telephoto, and the horizontal field of view is 60°. In a lecture hall in Education City, the wide setting can capture the full front row, while the telephoto setting can frame a lecturer at the whiteboard from the back of the room. Measure the distance to the furthest seat before you request a quote.

Which video resolutions and frame rates can it output?

HDMI and SDI output 1080p at 60, 50, 30 or 25fps, plus 720p at the same rates and 1080i at 60 or 50fps. The IP main stream runs at 1920x1080 at 60fps, and the USB 3.0 output supports 1080p. For the IP stream, frame rate is adjustable from 1fps to 50fps on the 50Hz setting and up to 60fps on the 60Hz setting. Match these settings to the display or encoder you use, and confirm them with SmartRooms Qatar.

Can I connect it to a laptop or PC for video calls?

Yes. The camera provides USB 3.0 and USB 2.0 video outputs, and the USB 3.0 output is listed at up to 1080p. Some USB modes are listed at lower resolutions, so check the available modes before relying on them. In a small meeting room in Doha where a laptop runs the call, you can connect the camera directly and select it in your conferencing software. Confirm your conferencing platform and laptop ports before ordering.

How many cameras can one controller manage?

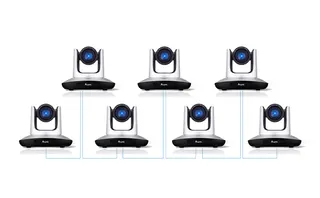

The RS232 In/Out ports allow the Saber IP20X to be chained so one controller can manage up to seven cameras simultaneously. This suits a university hall in Education City, a training centre in Lusail, or a broadcast studio where several angles must be controlled from one desk. Serial control options include RS232, RS485 with VISCA and Pelco-P/D protocols, and VISCA over IP. Plan cable routing and device addresses during the free site survey.

Can it be controlled from a touch panel, software or an IR remote?

Yes. An IR remote is included in the box and recalls 10 presets. Serial control over RS232 or RS485 can store and recall 128 presets at 0.1° precision. The Angekis NECC controller app is available on the manufacturer's website for software control, and VISCA over IP on the RJ45 port supports network control. If your control system speaks VISCA or Pelco, confirm compatibility with SmartRooms Qatar before placing your order.

What power and network connection does it need?

The source data lists PoE support and a DC 12V 2A input. The camera's network speed is 1000 Mbps, and it uses TCP/IP, DHCP and HTTP for network setup. In a government office in Doha where one network switch serves several devices, PoE can reduce cabling at the camera position. Confirm with SmartRooms Qatar whether your site will use PoE or the DC input, and check that your switch and cabling support 1000 Mbps.

Can it stream live to YouTube, Facebook Live or Twitch?

The camera supports RTMP, RTSP, SRT and HTTP protocols on its IP output, with H.264 or H.265 encoding. A school in Al Rayyan streaming assemblies to families, or a university broadcasting a public lecture online, would send this stream through an encoder or streaming platform that accepts one of these protocols. Whether a specific platform accepts a direct feed depends on your encoder setup, so confirm the workflow before purchase.

Can it be placed near a window or outdoors in Qatar's heat?

The source data does not give an operating temperature range or an outdoor rating, so do not assume it suits outdoor use. Summer temperatures in Qatar exceed 45°C and dust storms are common, so keep the camera in an air-conditioned room away from direct sunlight and glass facades. Ask SmartRooms Qatar to confirm the installation environment before placing it in a lobby, atrium or other space exposed to heat or dust.

How should I plan the mounting for a boardroom?

The camera measures 220 mm by 173 mm by 190 mm and weighs 1.47 kg. Mounting hardware is not listed in the source data, so confirm the bracket and fixing requirements with your quotation. Plan the mounting height and angle so the pan range from -170° to +170° and tilt from -30° to +90° clear the table and ceiling fittings. A free site survey helps in boardrooms in West Bay or Lusail, where ceiling layouts often limit placement.

Is the camera covered by warranty, and can we order several for a school?

Products are covered by the manufacturer's warranty, but the source data does not give warranty durations or terms, so ask for them with your quotation. A private school fitting out several classrooms or halls can request one quotation covering multiple units. SmartRooms Qatar accepts purchase orders (LPOs), and government buyers can work through Monaqasat tenders. Delivery covers all eight municipalities of Qatar, with professional installation. Include your room count and control plan in the request.

How many presets can I store for recurring meetings?

The IR remote recalls 10 presets, and the serial port can store and recall 128 presets at 0.1° precision. Pan speed reaches 120° per second and tilt speed reaches 80° per second, so the camera returns to a saved framing quickly between speakers. In a government meeting room in Msheireb where the same seating plan is used every week, saving presets for the head of the table, the screen and the whole room cuts setup time for each session.
