ClickShare Hub Pro + Sennheiser TeamConnect Bar M room system

What this Teams Rooms kit includes

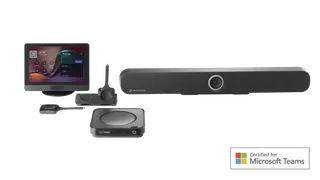

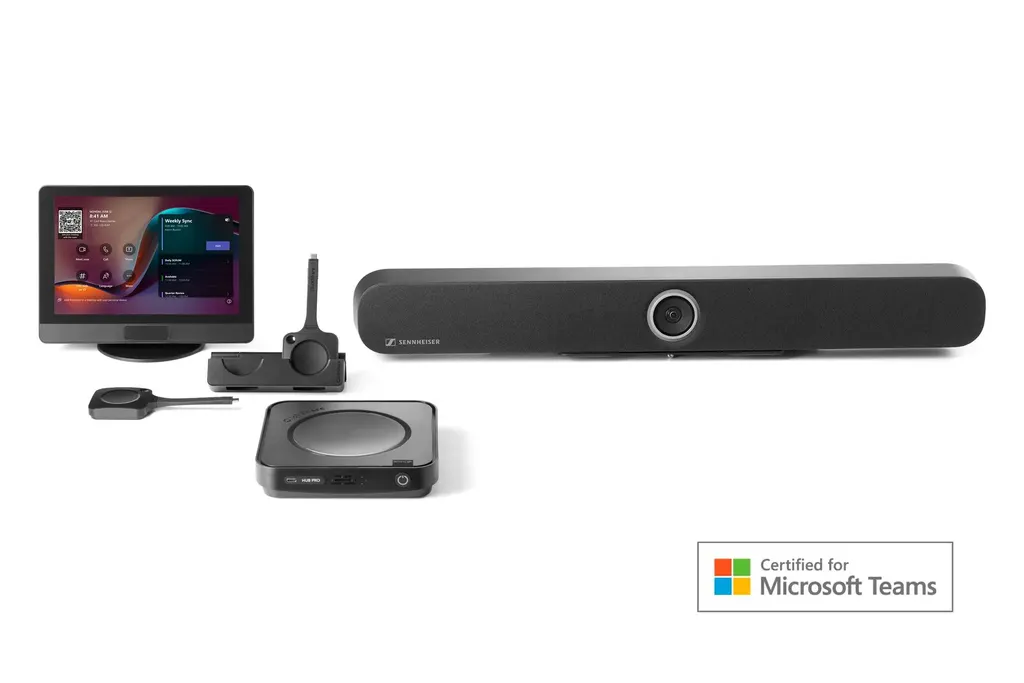

The Barco ClickShare Hub Pro and the Sennheiser TeamConnect Bar M form one certified Microsoft Teams Rooms system for medium-sized meeting rooms, so you specify, cable and support a single room rather than a set of loose devices. The system runs Android on the Microsoft Device Ecosystem Platform (MDEP). A Microsoft Teams Rooms license is required, so confirm your licensing position with your Microsoft 365 administrator before ordering.

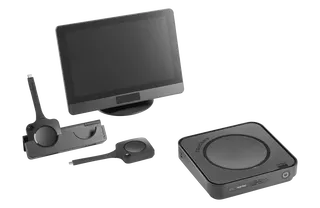

The Hub Pro base unit measures 37 x 180 x 180 mm and weighs 720 g. The 10.1-inch control panel is a touchscreen with a 1280 x 800 resolution and 300 nits of brightness. These dimensions help you decide where the base unit can sit in the room.

Wireless sharing and dual displays

Two ClickShare Buttons (5th generation), each with USB-C DisplayPort, let two presenters share 4K content from their laptops without cables. The base unit drives two screens: HDMI-1 at up to 5120 x 2160 and HDMI-2 at 3840 x 2160, both at 30 Hz over HDMI 2.0. The data lists one source on screen at a time, so confirm your display layout before ordering.

Wireless links operate on IEEE 802.11 a/b/g/n/ac/ax/be and Bluetooth 5.3, across the 2.4 GHz, 5 GHz and 6 GHz bands. The ClickShare Button has a reach of up to 30 m from the base unit. Guests can also use wireless BYOD to run other videoconferencing platforms such as Zoom, WebEx and Google Meet on the room system.

Camera, microphones and room control

The 4K Ultra HD camera offers person tiling and autoframing, so the framing follows the people in the room. The audio system uses beamforming microphones, with the option to add extension microphones for longer tables. The unit's noise level is no more than 25 dBA at 30°C, which matters in a quiet boardroom.

The control panel includes a human detection sensor that covers a 2-metre range across a 90-degree field of view and wakes the system when someone enters the room.

Where it fits in Qatar

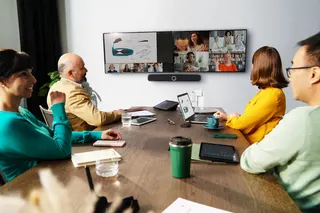

• A West Bay boardroom where an executive team holds weekly hybrid meetings with colleagues in Europe or Asia, and wants wireless sharing instead of cables running down a long table.
• A university meeting room in Education City where researchers present to international partners and need a clean, cable-free connection for each presenter.
• A development company's meeting room in Lusail, used Sunday to Thursday for supplier calls and design reviews, where two presenters share drawings without swapping cables.

Planning before you order

• Confirm the Teams Rooms license for your tenant and the room's network plan, including the 1 Gbit Ethernet connection.
• Check the room climate. The operating range is 0 to 40°C (maximum 35°C at 3,000 m) with 0 to 85% relative humidity, non-condensing. Qatar summers regularly exceed 45°C outdoors, so install the system in an air-conditioned room.
• Confirm the power cord. The adapter accepts 100 to 240 V, 50 to 60 Hz, but the listed cord plug options do not include BS 1363 (Type G). SmartRooms Qatar will confirm the correct cord with your quotation.
• Plan the route for the included 10 m USB-C AOC cable that links the control panel to the base unit.
• Book a free site survey to check screen position, camera line of sight and cable runs before installation.

Send us your room size and screen layout, and the SmartRooms Qatar team will return a quotation, usually within one working day. We supply against LPOs and government tenders, including Monaqasat. Request a quote today.
