Overview

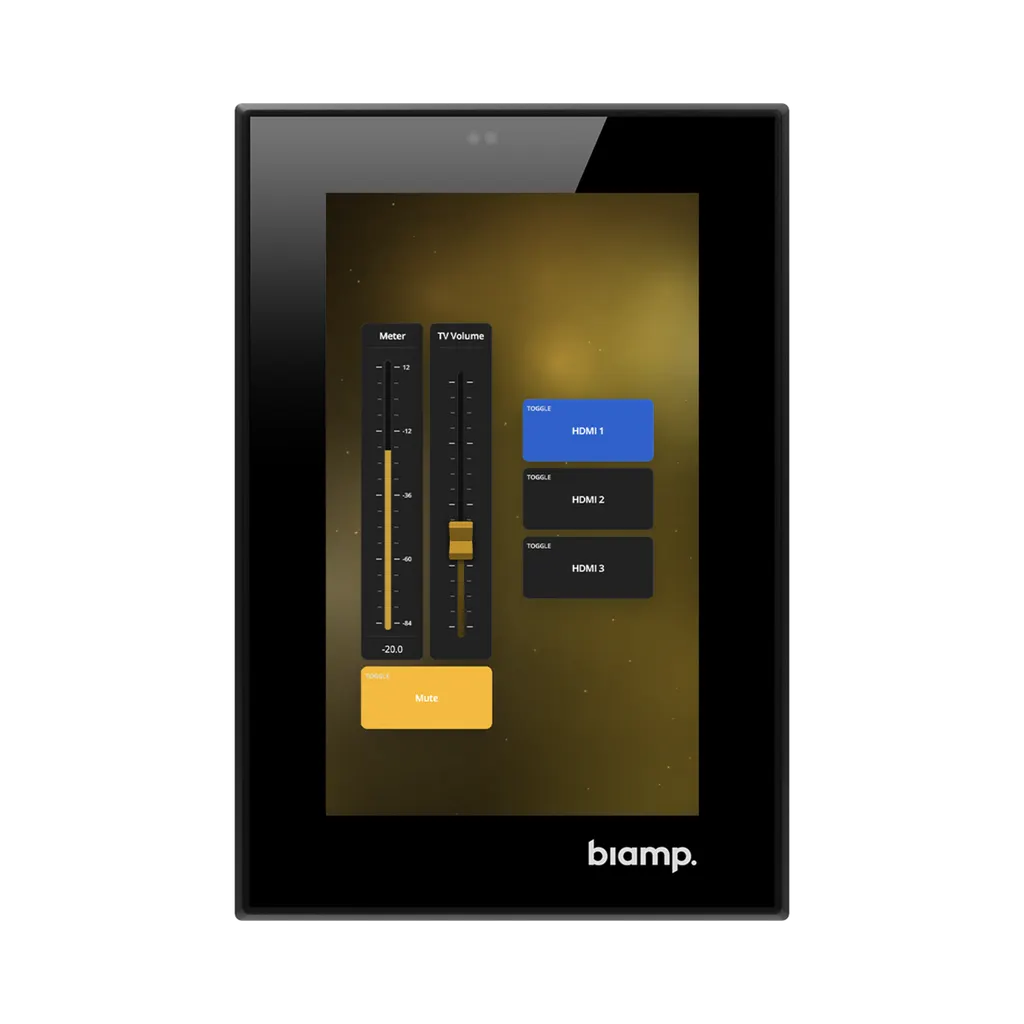

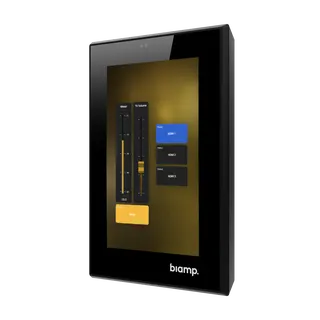

The Biamp Apprimo Touch 4 is a black 4-inch capacitive touch panel that gives small conference and meeting rooms one simple control point. It takes power over a single Ethernet cable, switches its 800x480 screen on as people approach and adjusts brightness to the room's light. Its scratch-resistant glass and single-gang wall fitting suit offices, schools and meeting rooms across Doha, Lusail and Al Wakrah that need a compact touch control.
What the Apprimo Touch 4 is for
The Apprimo Touch 4 is a 4-inch touch panel built for small conference rooms and meeting spaces, where a large touch screen would be more than the room needs. It gives people a familiar control surface at the point of use. The unit is finished in black and is configured to the exact control needs of each room rather than offering a fixed menu.
The panel is operated by a separate Impera controller. The panel handles what people see and touch, while the controller runs the system behind it. When you request a quote, we confirm which Impera model matches the rest of your room system.
Display, sensors and power in practice
The capacitive LCD measures 4 inches diagonally, runs at 800x480 resolution and reaches a maximum brightness of 400 nits. The glass is scratch-resistant, which matters in a room where many people touch the same surface every day.
Two sensors handle everyday use. A PIR sensor switches the screen on as someone approaches, and an ambient light sensor adjusts brightness to suit the light in the room, so the screen is easier to read in a bright boardroom without being glaring in a dimmed one.
- Power: PoE to IEEE 802.3at Class 2, 7 W, so the panel draws power from its Ethernet connection.
- Cabling: one RJ-45 connection using Cat 5e Ethernet cable or higher.
- Dimensions: 115 mm high, 77 mm wide and 41 mm deep, weighing 160 g.
Where it fits in Qatar
In a small meeting room in West Bay, one panel beside the door can serve as the control point for a conferencing setup that links Doha with colleagues in other countries. In a private school in Al Wakrah, the same approach suits staff meeting rooms and department offices where wall space is limited, because the panel mounts in a standard wall box. In a Lusail real-estate sales office, a compact panel beside a presentation display keeps the wall uncluttered.
Planning the installation

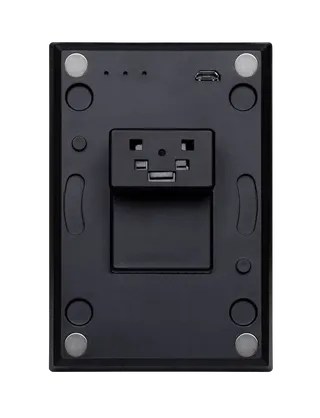

- Check that each wall box is a standard single-gang US, EU or DK type. The bracket and screws are included, and the magnetic wall plate simplifies fitting.
- Confirm the network switch can supply PoE at 7 W for each panel and that every cable run is Cat 5e or better.
- Keep the room within 0 to 40 °C and 10 to 90% relative humidity, non-condensing. Summer temperatures outside in Qatar often exceed 45 °C, so the panel should sit in an air-conditioned room away from heat, glare and dust.
- Plan the Impera controller and Project Designer configuration at the same time as the panel.
Configuration, firmware and warranty
The interface is built with Project Designer software, which includes several themes and customisable templates, so screens can follow your corporate identity. The panel also supports Workplace Control, a software-based control approach for Apprimo interfaces. Firmware is updated through the mini USB port, and a USB-OTG adapter is included in the box.
The Apprimo Touch 4 carries a 5-year warranty from the manufacturer. Request a quote and a free site survey from SmartRooms Qatar before ordering, so the wall boxes, cabling and controller are confirmed before the panel arrives. Quotations are usually issued within one working day, and we deliver to all eight municipalities of Qatar. Request a quote today and we will confirm the controller, cabling and installation plan together.
Highlights
- 4-inch capacitive touch LCD at 800x480 resolution
- PoE to IEEE 802.3at Class 2, 7 W over one Ethernet cable
- PIR sensor wakes the screen as someone approaches
- Ambient light sensing, up to 400 nits maximum brightness
- Fits standard single-gang US, EU and DK back boxes
- Operated by separate Impera controller, configured in Project Designer
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
18 specifications · Source: manufacturer · checked Oct 2026
GENERAL7
- Height
- 4.5 inches (115 mm)
- Width
- 3.0 inches (77 mm)
- Depth
- 1.6 inches (41 mm)
- Weight
- 0.35 lbs (160 g)
- Display
- Display Type: High-Contrast Capacitive Touch LCD Display Size: 4 inches (102 mm) diagonal Display Resolution: 800x480 Maximum Display Brightness: 400 nits
- Mounting
- Bracket and screws
- Included Accessories
- Mounting bracket and screws Ejector Pin USB-OTG adapter Polishing cloth
POWER2
- Power
- PoE
- Power Input
- PoE (IEEE 802.3at Class 2, 7W)
NOTES1
- Specification Notes
- Fits standard single gang US, EU, and DK back boxes.
NETWORK1
- Network Connection(s)
- RJ-45 with Ethernet cable (Cat 5e and above)
CONTROLS & INDICATORS3
- Control
- Controller Compatibility: Impera Alfa II Impera Lima Impera Tango Impera Sierra II
- Proximity Sensor
- Proximity Ambient Light
- Connectivity
- PoE (IEEE 802.3at Class 2, 7W)
COMPLIANCE1
- Environmental Ratings
- CE marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL3
- Ambient Operating Temperature Range
- 32 - 104° F (0 - 40° C)
- Humidity
- 10-90% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000m) MSL
Downloads
4 files from the manufacturerQuestions about Apprimo Touch 4
What is the Biamp Apprimo Touch 4 used for?
The Apprimo Touch 4 is a 4-inch touch panel that serves as the control surface for small conference rooms and meeting spaces. Users interact with its capacitive LCD, which runs at 800x480 resolution, while a separate Impera controller handles the system behind it. It suits rooms where a larger touch screen would be excessive, such as huddle rooms and small boardrooms, and it is finished in black to match most office interiors.
Is it suitable for a small meeting room in West Bay?
Yes, if the room is a small meeting or conference space that needs one simple control point near the door or table. A team in a West Bay office tower that joins video calls with colleagues abroad could mount one panel beside the entrance, powered over the same Ethernet cable that connects it to the network. If the room needs a large touch display or several control points, discuss that with the SmartRooms Qatar team when you request a quote.
Which Impera controllers is it compatible with?
The panel is operated by a separate Impera controller, and the manufacturer lists four compatible models: Impera Alfa II, Impera Lima, Impera Tango and Impera Sierra II. Choosing the controller early matters because it determines the system behind the panel and is configured alongside the Project Designer software. Tell the SmartRooms Qatar team which controller is already installed or which room system you plan to use, and we will confirm the match in the quotation.
Does a small meeting room in Lusail need a separate power adapter for it?
The Apprimo Touch 4 is PoE powered to IEEE 802.3at Class 2 at 7 W, drawing its power from the Ethernet connection, so no separate power adapter is part of its specification. The network switch or injector feeding it must support PoE at that level. For a Lusail office fitting out several rooms, check the PoE budget of each switch against the number of panels before ordering. The SmartRooms Qatar team can verify this during the free site survey.
What cabling does the panel need?
It connects through a single RJ-45 port using Cat 5e Ethernet cable or higher, and the same cable carries both data and power. The manufacturer describes this as a single CAT5e or CAT6 cable installation. At the wall position, the cable must reach a PoE-capable switch in the comms cupboard. During the free site survey, SmartRooms Qatar checks cable routes, distances and switch capacity before installation begins.
Will it fit our existing single-gang wall boxes?
The panel fits standard single-gang back boxes of the US, EU and DK types, which covers many office and school installations. It attaches with a magnetic wall plate, using the bracket and screws included in the box. Before ordering, check the type and depth of the existing box in each room, because older boxes can differ. A site survey by SmartRooms Qatar confirms the fit across every room in a project.
Can it be installed near a window or in a hot space in Doha?
Position it on an interior wall of an air-conditioned room. The rated ambient operating range is 0 to 40 °C with 10 to 90% relative humidity, non-condensing, while summer conditions outside in Doha often exceed 45 °C. Avoid walls facing windows, where direct sun and glare reduce how easily the screen can be read, and avoid open lobby or outdoor areas exposed to dust. Confirm the room environment with the SmartRooms Qatar team when you request a quote.
How does the screen wake up and adjust its brightness?
A PIR sensor detects someone approaching and switches the screen on automatically, so the panel is ready before anyone reaches it. An ambient light sensor adjusts the display brightness to the room's light level, up to a maximum of 400 nits. These features reduce the need for manual adjustment in meeting rooms where lighting changes through the day, such as rooms with large windows. The glass is scratch-resistant for daily touch use.
Can the interface match our corporate identity?
Yes. The user interface is customisable in Project Designer software, which includes several themes and templates that can be adapted to your brand and control requirements. The manufacturer data for this model does not specify interface languages, so confirm the languages your team needs with SmartRooms Qatar before ordering. This matters for ministries and companies whose staff work in Arabic and English side by side.
What is Workplace Control, and does this panel support it?
Workplace Control is a software-based control solution that the manufacturer supports on Apprimo interfaces, including the Apprimo Touch 4. It is designed to provide touch control across a space and to handle a range of devices, which suits organisations with mixed room systems. Because the panel depends on the controller and software setup, ask the SmartRooms Qatar team to confirm the configuration that fits your rooms when you request a quote.
Is it practical for a private school in Al Wakrah with many staff meeting rooms?
Yes, particularly for staff rooms and small meeting rooms that need simple control. A private school in Al Wakrah fitting out several rooms can standardise on the Apprimo Touch 4, because each unit uses a standard single-gang box and one Ethernet cable. The panel shows a configured control screen rather than a display, so it suits staff rooms more than classrooms. Ask for a quotation covering the number of rooms and the switches that will power them.
How do we order it for a government entity in Doha?
Request a quote from SmartRooms Qatar by sending the number of panels, the controller model and the rooms involved. Quotations are usually issued within one working day. Government buyers can order by LPO or through government tenders, including Monaqasat, and pay by bank transfer, cheque or purchase order. Products are delivered to all eight municipalities of Qatar and are covered by the manufacturer's warranty, which runs five years for this model.
