Apprimo Touch 7

A white 7-inch panel for single-cable room control

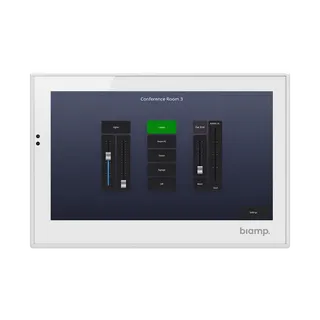

The Apprimo Touch 7 White is a control interface built around a 7-inch capacitive touch LCD. It gives people in a room one surface for switching lights, adjusting audio levels, choosing video sources and running the other functions the AV system supports. The white finish suits offices and schools where the panel sits against a light wall and should blend in with the interior.

Specifications that shape the installation

The display is 7 inches diagonal with a 1024x595 resolution and a maximum brightness of 350 nits. The glass surface is scratch-resistant. An ambient light sensor adjusts screen brightness for readability, and a proximity sensor wakes the screen as someone approaches. The panel is powered over Ethernet using IEEE 802.3at Class 3 at 15 watts, so one CAT5e or CAT6 cable carries both data and power.

• Size: 120 mm high, 180 mm wide, 41 mm deep and 330 g.
• Operating conditions: 0 to 40 °C, 10 to 90% relative humidity non-condensing, up to 2,000 m altitude.

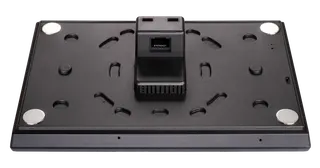

• Connectivity: RJ-45 network port and a mini USB 2.0 port for firmware updates.
• Certification: CE marked, and covered by the RoHS Directive for Europe.

Where it fits in Qatar

In a boardroom in West Bay, a panel beside the door lets the chair start a video call, lower the blinds and bring up a presentation without reaching for a stack of separate remotes. In a training room in Education City or a classroom in Al Wakrah, a teacher can run the same lesson setup from the panel every day, and the proximity sensor brings the display up as the teacher walks in.

A hotel conference room in Lusail or a government meeting room in Msheireb can use one panel per room with a consistent layout across the building. The Project Designer software offers pre-built templates and themes, so the integrator can apply the same control screens in every room.

Planning the installation

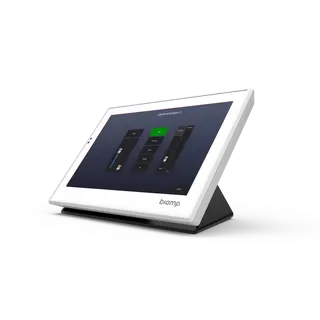

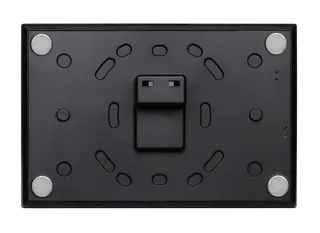

Before ordering, confirm that the network switch or injector supplies IEEE 802.3at Class 3 power, which is 15 watts per panel. Choose a single-gang back box that matches the standard used on site. Mount the panel on the wall in landscape orientation, or add the optional table stand for a desk. The panel is rated for 0 to 40 °C, so install it in air-conditioned rooms. Summer temperatures in Qatar often exceed 45 °C, so avoid unventilated cabinets and spaces without cooling. A free site survey from SmartRooms Qatar lets your integrator check cable runs, back boxes and room conditions before work begins.

The box includes a mounting bracket and screws, an ejector pin, a USB-OTG adapter and a polishing cloth. Controller compatibility covers Impera Alfa II, Impera Lima, Impera Tango and Impera Sierra II, so confirm your controller model during design, before you request a quote.

Send SmartRooms Qatar your room count, controller model and mounting plan, and request a quote. We usually send quotations within one working day. We accept purchase orders (LPOs), bank transfer and cheque, and we can work within government tenders, including Monaqasat. Delivery covers all eight municipalities of Qatar.
