Apprimo Touch 7
Biamp Apprimo Touch 7 Black 7-inch Touch Control Panel
- Platforms
- CE marked (Europe)
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Biamp Apprimo Touch 7 Black is a 7-inch capacitive touch control panel for room control with Biamp Tesira and compatible Impera controllers. Its 1024x595 display reaches 350 nits and senses people approaching to wake the screen. It runs on Power over Ethernet (IEEE 802.3at Class 3, 15 W) over one CAT5e or CAT6 cable. It suits boardrooms, classrooms and meeting rooms across Doha that need simple control of lighting, audio and video. Request a quote.
What the Apprimo Touch 7 Black does in a meeting room
The Apprimo Touch 7 Black is a control panel that mounts on a wall or sits on a table, letting users run lighting, audio, video and other connected functions from one touch screen. Its 7-inch (178 mm) capacitive LCD has a 1024x595 resolution and a maximum brightness of 350 nits. Biamp designs it for Tesira and other professional AV systems, so it fits rooms where a single panel replaces a stack of remotes.
Specifications that affect your installation
- Dimensions: 120 mm high, 180 mm wide and 41 mm deep, weighing 330 g.
- Power and network: Power over Ethernet to IEEE 802.3at Class 3 at 15 W, delivered over a single CAT5e or CAT6 cable into an RJ-45 port.
- Sensors: Proximity sensing wakes the screen as someone approaches, and ambient light sensing adjusts brightness for readability.
- Operating range: 0 to 40 degrees C, 10 to 90% relative humidity non-condensing, up to 2,000 m altitude.
- Compliance: CE marked and listed under the European RoHS Directive.
Mounting, wiring and setup
Each unit ships with a mounting bracket and screws, an ejector pin, a USB-OTG adapter and a polishing cloth. The panel is wall mounted in landscape orientation, and it accepts common single-gang back boxes in US, EU and DK formats. A tabletop installation requires the table stand, which is a separate accessory. Firmware updates go through the mini USB 2.0 port, so include that step when you plan commissioning.
Where it fits across Qatar
- A boardroom in West Bay or Lusail, where one panel beside the door controls the display, lighting and audio from a fixed point.
- A private school in Al Wakrah fitting out new classrooms, where teachers operate the same room layout in every space.
- A government ministry meeting room in Msheireb, where a standard back box and one network cable keep the wiring work simple.
Planning for Qatar heat and your Impera system
Summer temperatures in Qatar regularly exceed 45 degrees C, while the panel is rated from 0 to 40 degrees C. Mount it on an interior wall of an air-conditioned room, away from windows that take direct sun and from spaces that are not cooled. Confirm that your controller matches the listed Impera models: Alfa II, Lima, Tango and Sierra II. A free site survey from the SmartRooms Qatar team checks the back box, cable route and wall position before you order.
Projects that need several units can be issued against a purchase order (LPO) or a government tender. Request a quote from SmartRooms Qatar and we will confirm quantities, controller pairing and the mounting option in one response, usually within one working day.
Highlights
- 7-inch capacitive touch LCD with 1024x595 resolution
- 350 nits maximum brightness with ambient light sensing
- Power over Ethernet, IEEE 802.3at Class 3, 15 W
- Single CAT5e or CAT6 cable installation with magnetic wall plate
- Compatible with Impera Alfa II, Lima, Tango and Sierra II
- Covered by a 5-year manufacturer warranty
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
14 specifications · Source: manufacturer · checked Oct 2026
GENERAL6
- Height
- 4.7 inches (120 mm)
- Width
- 7.0 inches (180 mm)
- Depth
- 1.6 inches (41 mm)
- Weight
- 0.73 lbs (330 g)
- Display
- High-Contrast Capacitive Touch LCD Display Size: 7” (178 mm) diagonal Display Resolution: 1024x595 Maximum Display Brightness: 350 nits
- Included Accessories
- Mounting bracket and screws Ejector Pin USB-OTG adapter Polishing cloth
NOTES1
- Specification Notes
- Controller Compatibility: Impera Alfa II Impera Lima Impera Tango Impera Sierra II
CONFERENCING1
- USB
- Mini USB port: USB 2.0
NETWORK1
- Network Connection(s)
- RJ-45 with Ethernet cable (Cat 5e and above)
CONTROLS & INDICATORS1
- Proximity Sensor
- Proximity Ambient Light
COMPLIANCE1
- Certifications
- CE marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL3
- Ambient Operating Temperature Range
- 32 - 104° F (0 - 40° C)
- Humidity
- 10-90% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000m) MSL
Downloads
7 files from the manufacturer
PDF
Biamp Apprimo Touch 7 datasheets (PDF, 244 KB)
PDF
Biamp Apprimo Touch 7 manuals & guides (PDF, 433 KB)
PDF
Biamp Apprimo Touch 7 manuals & guides (PDF, 8.3 MB)
PDF
Biamp Apprimo Touch 7 brochures (PDF, 18.4 MB)
RFA
Biamp Apprimo Touch 7 drawings & cad (RFA)
APK
Biamp Apprimo Touch 7 software & firmware (APK)
ZIP
Biamp Apprimo Touch 7 other documents (ZIP)
Questions about Apprimo Touch 7
What is the Biamp Apprimo Touch 7 Black used for?
It is a control interface for room AV systems, letting users operate lighting, audio, video and other functions from a 7-inch touch screen. Biamp designs it for Tesira and other professional AV systems, and it works with the Impera controllers listed in its compatibility notes. It suits boardrooms, classrooms and meeting rooms that need one simple panel instead of several remotes. Request a quote to confirm the right setup for your room.
Should a school in Al Wakrah choose the black or the white model?

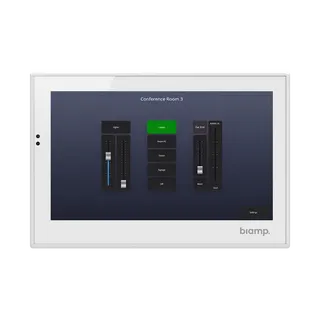

The two versions differ only in colour. The black model is item 920-01871-10000 and the white is 920-01871-20000. Both share the same 7-inch display, 1024x595 resolution, 350-nit brightness, PoE power, 120 x 180 x 41 mm size and 330 g weight. Pick black if your classroom walls or furniture are dark and you want the panel to match them. Check the item number on your quotation before ordering.
What screen resolution and brightness does it have?
The display is a high-contrast capacitive touch LCD with a 7-inch (178 mm) diagonal and a resolution of 1024x595. Maximum brightness is 350 nits, and ambient light sensing adjusts it for readability. In a West Bay boardroom with daylight through glass, the sensor helps keep the controls readable as light changes. The screen is designed to show touch controls and system status, not to serve as a video display.
Does it need a separate power supply?
The source data specifies Power over Ethernet, IEEE 802.3at Class 3, delivering 15 W over a single CAT5e or CAT6 cable into an RJ-45 port. No separate power adapter is listed. Your network switch or PoE injector must support the 802.3at standard. Ask the SmartRooms Qatar team to check available PoE ports before you order, especially if several panels will share one switch in the same building.
Will it fit an existing wall box in a hotel meeting room in The Pearl?
It accepts common single-gang back boxes in US, EU and DK formats, which makes it practical when replacing an older control panel in an existing meeting room. Installation uses the magnetic wall plate and one network cable. Check the type of back box already in place before ordering, because fit depends on the box. A free site survey from SmartRooms Qatar can confirm the box, cable route and mounting height.
Can it be placed on a conference table in a ministry meeting room?

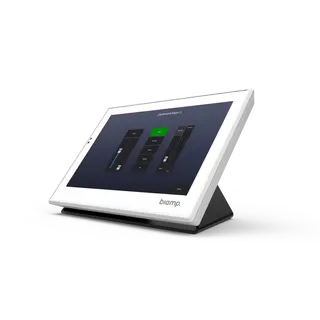

Yes, but only with the table stand, which is sold as a separate accessory and is not part of the included items. The included mounting bracket and screws are for wall mounting in landscape orientation. For a ministry meeting room in Msheireb, a table stand keeps the panel in front of the chair where it is needed. Request a quote and specify tabletop mounting so the stand is included in the order.
Which controllers is it compatible with?
The Apprimo Touch 7 is listed as compatible with Impera Alfa II, Impera Lima, Impera Tango and Impera Sierra II controllers. It is designed for Tesira and other professional AV systems. Confirm the controller in your existing system before ordering, especially when you are extending a room that already runs on one of these models. SmartRooms Qatar can check the pairing and list it in your quotation.
What software is used to design the touch interface?
The interface is configured with Project Designer software. Users can start from pre-built UI templates and design themes, or fully customise layouts to match a specific control requirement and corporate branding. Apprimo interfaces also support Workplace Control, a software-based control solution. Project Designer is the tool to plan your screens before installation, so agree the layout with your AV integrator at the quotation stage.
Can it be installed near a window or outdoors in Qatar?
No. The specified operating range is 0 to 40 degrees C, with 10 to 90% relative humidity non-condensing and altitude up to 2,000 m. Qatar summer temperatures exceed 45 degrees C, so do not mount it outdoors, in an uncooled lobby or in direct sunlight near glass. Choose an air-conditioned interior room instead. If you are unsure about a location, ask the SmartRooms Qatar team to review it before you order.
How is the firmware updated?
Firmware updates are applied through the integrated mini USB 2.0 port. The box includes a USB-OTG adapter, which is listed among the included accessories. Plan the update as part of commissioning, before the panel goes into daily use, so the control system stays current and secure. Your integrator can handle the update during handover.
What warranty comes with the Apprimo Touch 7 Black?
The product is covered by a 5-year manufacturer warranty, as stated in the source data. SmartRooms Qatar supplies the unit with that manufacturer warranty. Keep your purchase order or invoice with the commissioning records for the project. For full coverage terms, refer to the manufacturer documentation provided with the quotation.
How do I request a quote for several panels for a school or government project?
Send your room list, the back box type for each room and whether each panel is wall or table mounted. SmartRooms Qatar delivers to all eight municipalities of Qatar, accepts purchase orders (LPOs) and government tenders including Monaqasat, and usually responds within one working day. Payment is by bank transfer, cheque or purchase order. Request a quote and include your procurement reference.
