Barco
ClickShare Power Supply 100W
Barco ClickShare Power Supply 100W, 100-Watt Video Conferencing Accessory
Devio SCR-20C
Biamp Devio SCR-20C White Conferencing Hub with DCM-1 Microphone
- Platforms
- TAA Compliant
- Connectivity
- HDMI: HDCP Support: 1.4
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Devio SCR-20C White is a conferencing hub packaged with a white DCM-1 pendant microphone, built for huddle rooms and small conference rooms. It works with Microsoft Teams, Zoom, Google Meet and Cisco Webex from a laptop or in-room PC, and includes Beamtracking audio, a built-in 20 W amplifier and a 5-year warranty. It suits offices and schools across Qatar. Request a quote for this model.
A compact conferencing hub for small rooms
The Devio SCR-20C White is a conferencing hub packaged with a white DCM-1 pendant microphone. It is designed for huddle rooms and small conference rooms where a laptop or in-room PC needs to join calls on Microsoft Teams, Zoom, Google Meet, Cisco Webex or BlueJeans without a complicated setup. The hub handles the room audio path, so the meeting software on the computer keeps running as normal.
Microphone, speakers and audio quality

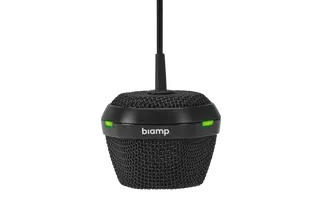

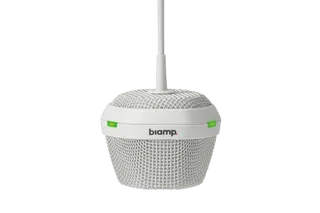

The DCM-1 pendant microphone uses Beamtracking to follow the people speaking and provides 360-degree coverage, which helps far-end participants hear a conversation naturally rather than a single voice near the microphone. During setup, Auto Setup checks the device connections, adjusts room levels and sets speaker equalisation. The built-in 20 W amplifier can drive room speakers directly, and the same audio can also leave through HDMI or an RCA line out if the room already has an audio system.
- Amplifier: one channel, 20 W continuous output into the rated load, minimum load 4 Ω.
- USB audio: 24-bit, with up to 5 W of device charging when connected to a computer.
- Indicators: green/red LEDs for microphone status, room tuning and power.

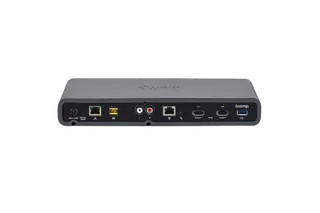

Video, connections and mounting
Video runs through HDMI with HDCP 1.4 support. Driverless pass-through supports one in-room display, while two monitors can be fed over USB video using DisplayLink graphics, which requires the DisplayLink driver on the laptop for Windows 7, 8, 8.1 or 10. The hub measures 284 mm wide, 175 mm deep and 46 mm high, weighs 0.9 kg, and includes a bracket for under-the-table installation. Connect it to the network with an RJ-45 Ethernet cable, Cat 5e or better.
Where it fits in Qatar
In a Msheireb or West Bay office, a small boardroom can host calls with colleagues in Europe or Asia, with the hub on the table and the room display on the wall. In Education City, a seminar room used for guest lectures and staff meetings can use the same setup for hybrid sessions. A private school in Al Wakrah fitting out a staff room can use it for parent and teacher meetings. Each room should be an air-conditioned indoor space, because the hub's ambient operating range is 0 to 40°C with 0 to 95% non-condensing humidity, up to 2000 m altitude.
What to plan before you order
Confirm which display and computer each room uses, and whether the display takes HDMI or needs the USB video route. Check that Ethernet is available near the table and plan the route for the microphone cable. For IT teams managing several rooms, Devio can be monitored over SNMP or with the Devio System Administration Utility, and firmware updates can be scheduled across multiple units. The unit carries a 5-year warranty and is TAA compliant, and it lists FCC Part 15B, UL and C-UL, CE and RoHS compliance.
SmartRooms Qatar supplies the Devio SCR-20C White with professional installation, free site surveys and delivery to all eight municipalities of Qatar. Request a quote and we will confirm the details with your quotation, usually within one working day.
Highlights
- White DCM-1 pendant microphone with Beamtracking and 360-degree coverage
- Built-in 20 W amplifier, plus HDMI audio and RCA line out
- HDMI video up to 1920 x 1080p; 3840 x 2160p at 30 Hz on Port 1
- Works with Teams, Zoom, Google Meet, Cisco Webex and BlueJeans
- Operating range 0 to 40°C, 0 to 95% humidity non-condensing
- 5-year warranty and TAA compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
23 specifications · Source: manufacturer · checked Oct 2026
GENERAL5
- Height
- 1.8 inches (46 mm)
- Width
- 11.2 inches (284 mm)
- Depth
- 6.9 inches (175 mm)
- Weight
- 2.0 lbs (0.9 kg)
- Included Accessories
- The SCR-20C Black ships with one Devio SCR-20 hub and one black DCM-1 pendant microphone, with 360-degree coverage
POWER1
- Power
- 24V DC 60W
AMPLIFIER1
- Amplifier
- Amplifier: Number of Channels: 1 Continuous Power Output: (THD+N < 0.025%): 20 W into Rated Load Impedance Frequency Response: (20 Hz - 20 kHz): +0.2/-0.5 dB THD+N (1 kHz, 20 kHz bandwidth, 1 W): < 0.03% Dynamic Range (THD+N < 0.5%): 100 dB, A-Weighted Minimum Operational Load: 4Ω Intermodulation distortion: (SMPTE, 60 Hz/7 kHz, 4:1, 1W): < 0.07%
NOTES1
- Specification Notes
- USB: Bit Depth: 24-bit Sample Rate: 48 kHz Device Charging: Up to 5 W (requires USB connection to computer) SNMP: See support website for the full list of attributes
NETWORK1
- Network Connection(s)
- RJ-45 with Ethernet cable (Cat 5e and above)
CERTIFIED SOLUTIONS2
- TAA Compliant
- TAA Compliant
- Certified Solutions
- TAA Compliant
CONTROLS & INDICATORS1
- Front Panel Indicator(s)
- Mic Status Indicator: (Green/Red LED) Room Tuning Indicator: (Green/Red LED) Power Indicator: (Green/Red LED)
COMPLIANCE1
- Certifications
- Compliance: FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL4
- Operating Environment
- .
- Ambient Operating Temperature Range
- 32-104° F (0-40° C)
- Humidity
- 0-95% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000 m) MSL
VIDEO2
- Supported Resolution
- 640 x 480p (60 Hz), 720 x 480p (60 Hz), 720 x 576p (50 Hz), 1280 x 720p (50/60 Hz), 1920 x 1080p (50/60 Hz), *3840 x 2160p (30 Hz) *Supported on Output Port 1 only
- Physical Interfaces
- HDMI: HDCP Support: 1.4 HDMI Audio Formats: 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
AUDIO4
- Audio
- Analog Audio Output (RCA): Frequency Response (20 Hz - 20 kHz, FS): +0/-0.25 dB THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS): < 0.005% Dynamic Range (THD+N < 0.005%): 107 dB, A-Weighted Output Impedance (unbalanced): 100Ω Maximum Output: +8.5 dBu Sampling Rate: 48 kHz D/A Converters: 24-bit
- Output Impedance
- (unbalanced): 100Ω
- Sampling Rate
- 48 kHz
- D/A Converters
- 24-bit
Downloads
10 files from the manufacturer
PDF
Biamp Devio SCR-20C datasheets (PDF, 190 KB)
PDF
Biamp Devio SCR-20C datasheets (PDF, 1.9 MB)
PDF
Biamp Devio SCR-20C datasheets (PDF, 288 KB)
PDF
Biamp Devio SCR-20C manuals & guides (PDF, 357 KB)
PDF
Biamp Devio SCR-20C manuals & guides (PDF, 565 KB)
EXE
Biamp Devio SCR-20C manuals & guides (EXE)
PDF
Biamp Devio SCR-20C brochures (PDF, 530 KB)
PDF
Biamp Devio SCR-20C brochures (PDF, 1.2 MB)
RFA
Biamp Devio SCR-20C drawings & cad (RFA)
DFA
Biamp Devio SCR-20C software & firmware (DFA)
Questions about Devio SCR-20C
What is the Devio SCR-20C White used for?
It is a conferencing hub for huddle rooms and small conference rooms. It connects a room's display and computer to web conferencing software and takes over the room audio path, using the included white DCM-1 pendant microphone. It suits a small office in West Bay where laptop calls with overseas colleagues currently sound distant or uneven.
Which conferencing platforms does it work with?
The hub works with PCs running Microsoft Teams, Zoom, Google Meet, Cisco Webex, BlueJeans and many other web-based platforms. Because it works alongside the computer rather than replacing its software, your existing meeting application stays in use. Confirm the exact application versions your IT team deploys before ordering.
Does it work with both Windows and Mac laptops?
Yes. The hub supports both Windows and Mac PCs and uses standard audio drivers. The USB video route for a second display needs the DisplayLink driver installed on the laptop, and that driver is documented for Windows 7, 8, 8.1 and 10. If your fleet uses Mac computers with a second monitor, ask the SmartRooms Qatar team to confirm the setup.
How many displays can it drive, and how?
A single in-room display can be connected driverless through HDMI pass-through. Two monitors can be fed using USB video with DisplayLink graphics technology. Your room layout decides which route to use, and the 4K output at 3840 x 2160p and 30 Hz is available on Output Port 1 only, so plan the display order before installation.
What video resolutions does the HDMI output support?
The HDMI output supports 640 x 480p at 60 Hz, 720 x 480p at 60 Hz, 720 x 576p at 50 Hz, 1280 x 720p and 1920 x 1080p at 50 or 60 Hz, and 3840 x 2160p at 30 Hz on Output Port 1. It supports HDCP 1.4, and HDMI audio runs as 2-channel L-PCM at 44.1 or 48 kHz, 16-bit.
How does the microphone pick up people around a table?
The DCM-1 pendant microphone uses Beamtracking with 360-degree coverage, so people seated around a table are picked up without passing the microphone around. Auto Setup checks connections, adjusts room levels and sets speaker EQ during setup. A green or red LED on the hub shows microphone status, which helps staff spot a problem quickly during a call.
Can it drive room speakers directly?
Yes. The built-in amplifier provides one channel with 20 W continuous output into the rated load and a minimum operational load of 4 Ω. Audio can also leave through HDMI or an RCA line out, which suits a room that already has a wall or ceiling speaker system. Check speaker levels during Auto Setup.
Is it suitable for a hot Qatar summer and unconditioned rooms?
The hub is rated for an ambient operating range of 0 to 40°C, 0 to 95% relative humidity non-condensing, and altitudes up to 2000 m. Outdoor temperatures in Qatar summers can exceed 45°C, so install it only in air-conditioned indoor rooms. Avoid outdoor areas, unventilated cabinets and uncooled rooms, and confirm the environment with the SmartRooms Qatar team.
What network and power connections does it need?
The hub connects to the network with an RJ-45 Ethernet cable, Cat 5e or better. Its power rating is 24V DC 60W, so confirm the power arrangement for each room when you request a quote. On managed networks, it can be monitored remotely over SNMP and updated through the Devio System Administration Utility.
Can an IT team manage several units from one place?
Yes. Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility, and firmware updates can be scheduled and deployed to multiple units. A university with training rooms across several floors, or a ministry with meeting rooms in different buildings, can keep firmware consistent without visiting each room.
How would it suit a school classroom or university seminar room?
It includes a mounting bracket for under-the-table installation, so the hub can sit out of sight beneath a table or desk. It measures 284 mm wide, 175 mm deep and 46 mm high and weighs 0.9 kg. In a classroom or a seminar room in Education City, plan the routes for the Ethernet and microphone cables before installation, and book a free site survey with SmartRooms Qatar.
