Devio SCR-20CX

What the Devio SCR-20CX Black is for

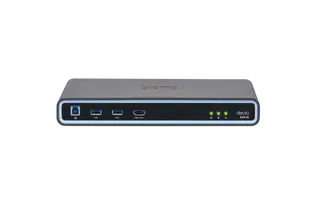

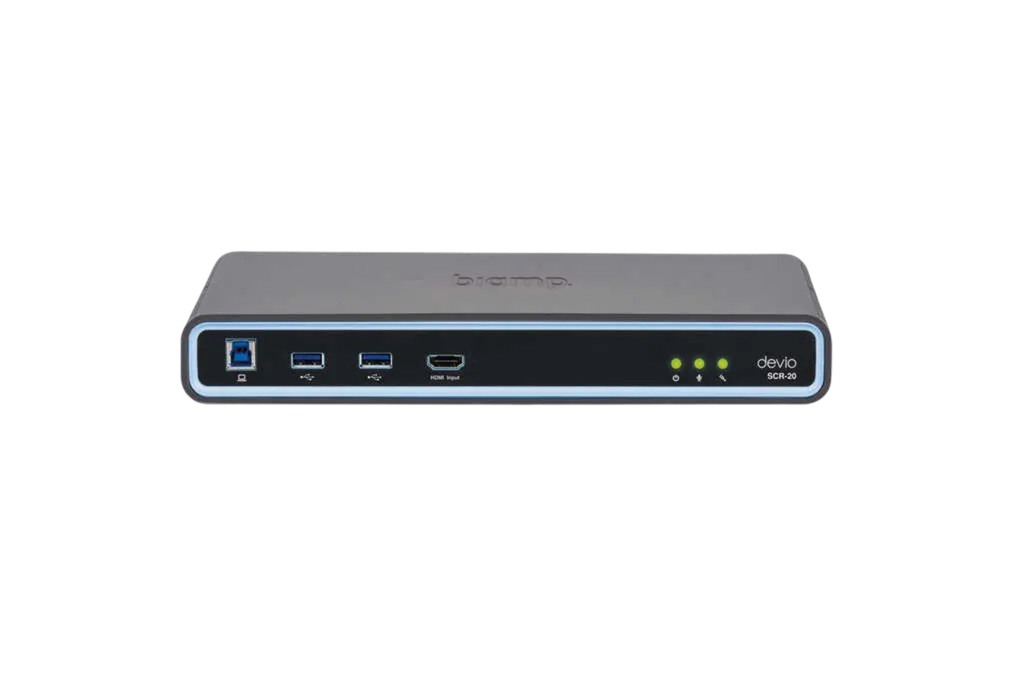

The Devio SCR-20CX Black is a conferencing hub built for huddle rooms and small conference rooms where a PC already runs the meeting software. It is sold as a bundle: one Devio SCR-20 hub and one TCM-XEX black ceiling microphone with 360-degree coverage. The hub works alongside the PC rather than replacing it, so staff keep the apps they already use while remote participants hear the room more naturally.

Because the hub links the PC, the microphone and the room audio in one unit, it suits a team that holds frequent calls with colleagues across Doha, other Gulf offices or overseas sites, without needing a full video system in every room.

Audio and microphone performance

The microphone uses Beamtracking technology, and the hub applies professional-grade DSP to shape the sound. Auto Setup checks the connections, adjusts room levels and sets speaker EQ, which reduces the manual tuning that an IT or facilities team must do after installation. The key audio figures are:

• Amplifier: one channel, 20 W continuous output into its rated load
• Minimum load: 4Ω
• Frequency response: +0.2/-0.5 dB from 20 Hz to 20 kHz

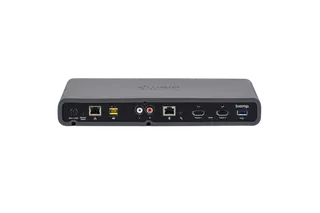

• Outputs: HDMI audio, the built-in amplifier or RCA line out

Compatibility, connections and management

The hub works with Windows and Mac PCs and uses standard audio drivers, supporting Microsoft Teams, Zoom, Google Meet and other web-based conferencing platforms. For video, it offers driverless pass-through HDMI to one in-room display. Two monitors can be driven over USB video using DisplayLink graphics, which requires the DisplayLink driver on the laptop and supports Windows 7, 8, 8.1 and 10. The 4K output of 3840 x 2160 at 30 Hz is available on Output Port 1 only.

The network connection is RJ-45 with Cat 5e or higher Ethernet cable. IT teams can monitor and manage each unit remotely via SNMP or the Devio System Administration Utility, and schedule firmware updates across several Devio units at once.

Where it fits in Qatar

• Government office in Msheireb: a small meeting room where officials join calls with colleagues in other cities, using the PC already on the desk.
• Private school in Al Wakrah: a staff huddle room for meetings held in Arabic and English with parents and branch teams.
• Developer sales office in Lusail: a small presentation room where a PC runs Zoom or Google Meet for remote investor calls.

Planning the installation

The hub measures 46 mm high, 284 mm wide and 175 mm deep, and weighs 0.9 kg. A mounting bracket for under-table installation is included, so the unit can sit out of sight beneath a meeting table. The power rating is 24V DC 60W. The ambient operating range is 0 to 40°C with 0 to 95% relative humidity, non-condensing, up to 2,000 m altitude. Summer temperatures in Qatar can pass 45°C, so keep the hub inside an air-conditioned room rather than a hot cabinet or a poorly ventilated space.

Before ordering, SmartRooms Qatar offers a free site survey to confirm table layout, ceiling microphone position, cable routes and the network point. Quotations are usually issued within one working day, and we accept purchase orders (LPOs), government tenders, and payment by bank transfer, cheque or purchase order. The unit is covered by a 5-year manufacturer warranty.

Request a quote for the Devio SCR-20CX Black today, and tell us your room size and the conferencing platform your team uses so we can confirm the fit.
