Devio SCR-20TX
Biamp Devio SCR-20TX White Conferencing Hub and Microphone Kit
- Microphones
- Microsoft Teams Certified
- Platforms
- Microsoft Certified
- Connectivity
- HDMI: HDCP Support: 1.4
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Biamp Devio SCR-20TX White is a white conferencing hub packaged with one TTM-XEX tabletop microphone, built for huddle rooms and small conference rooms. It works with PCs running Microsoft Teams, Zoom, Google Meet and Cisco Webex, outputs video up to 3840 x 2160 at 30 Hz, and carries a 5-year manufacturer warranty. It suits offices, schools and ministries in Doha, Lusail and Al Wakrah that need clear remote audio. Request a quote.
A white conferencing hub for huddle and small meeting rooms

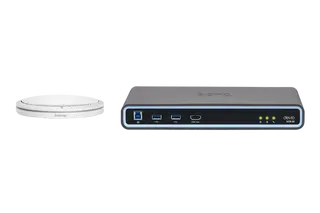

The Biamp Devio SCR-20TX White pairs a Devio SCR-20 conferencing hub with one white TTM-XEX tabletop microphone. It is intended for huddle rooms and small conference rooms, where a laptop or in-room PC runs the call and the hub takes care of microphone pickup and speaker output. The white finish suits offices with light interiors. The hub measures 11.2 inches wide, 6.9 inches deep and 1.8 inches high, and weighs 2.0 lbs.
Audio pickup and playback that carries the room
The microphone uses Beamtracking technology and professional-grade DSP, so far-end participants hear the conversation in a natural way. Auto Setup confirms device connections, adjusts room levels and sets speaker EQ. Playback can go through HDMI audio to the display, through the built-in 20 W amplifier, or through RCA line out to an external speaker system.
- Continuous amplifier output of 20 W into the rated load
- Analog RCA line out with 24-bit D/A converters at 48 kHz
- USB audio at 24-bit and 48 kHz, with device charging up to 5 W when connected to a computer
Connecting to Teams, Zoom and other platforms
The hub works alongside PCs running Microsoft Teams, Zoom, Google Meet, Cisco Webex and BlueJeans, and supports both Windows and Mac computers using standard audio drivers. A single display connects over HDMI without driver installation. To run two monitors with USB video, the laptop needs the DisplayLink driver, which supports Windows 7, 8, 8.1 and 10. The hub is Microsoft Teams Certified, and its 4K output reaches 3840 x 2160 at 30 Hz on Output Port 1 only.
Managing several rooms from one place
Each unit connects by RJ-45 Ethernet using Cat 5e cable or better. IT teams can monitor and manage units remotely via SNMP or the Devio System Administration Utility, and firmware updates can be scheduled and pushed to several Devio units at once. That matters for a school or ministry running a row of identical rooms. The front panel shows microphone status, room tuning and power through green or red LEDs.
Where it fits in Qatar
Three typical situations show where this hub earns its place:
- A ministry in West Bay fitting out small boardrooms where staff join calls with colleagues abroad, with the hub mounted under the table using the supplied bracket.
- A private school in Al Wakrah equipping staff meeting rooms, where centrally scheduled firmware updates keep every room configured the same way.
- A real estate developer's sales office in Lusail or The Pearl needing a tidy, single-hub setup in a compact room.
What to plan before installation
Keep the unit in an air-conditioned room. The ambient operating range is 0 to 40 °C, humidity 0 to 95% non-condensing, and altitude up to 2,000 m. Outdoor summer temperatures in Qatar go well beyond 40 °C, so the hub should never sit in a hot cabinet or unventilated AV rack. Confirm the 24V DC 60W power arrangement, the cable route to the table and the Ethernet drop before ordering. SmartRooms Qatar offers a free site survey, and quotations usually come within one working day. Purchase orders and LPOs are accepted. The hub is TAA compliant, carries FCC Part 15B, UL, C-UL, CE and RoHS marks, and is covered by a 5-year manufacturer warranty.
Request a quote from SmartRooms Qatar for the Devio SCR-20TX White, and tell us the room size and the number of units you need so we can suggest the right setup.
Highlights
- Ships with Devio SCR-20 hub and one white TTM-XEX microphone
- Beamtracking microphone with 360-degree pickup coverage
- Works with Teams, Zoom, Google Meet, Cisco Webex and BlueJeans
- Video output up to 3840 x 2160 at 30 Hz on Output Port 1
- 20 W built-in amplifier, HDMI audio or RCA line out
- Remote management via SNMP and scheduled firmware updates
- 5-year manufacturer warranty; TAA compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
24 specifications · Source: manufacturer · checked Oct 2026
GENERAL5
- Height
- 1.8 inches (46 mm)
- Width
- 11.2 inches (284 mm)
- Depth
- 6.9 inches (175 mm)
- Weight
- 2.0 lbs (0.9 kg)
- Included Accessories
- The SCR-20TX Black ships with one Devio SCR-20 hub and one TTM-XEX black tabletop microphone with 360-degree coverage
POWER1
- Power
- 24V DC 60W
AMPLIFIER1
- Amplifier
- Amplifier: Number of Channels: 1 Continuous Power Output: (THD+N < 0.025%): 20 W into Rated Load Impedance Frequency Response: (20 Hz - 20 kHz): +0.2/-0.5 dB THD+N (1 kHz, 20 kHz bandwidth, 1 W): < 0.03% Dynamic Range (THD+N < 0.5%): 100 dB, A-Weighted Minimum Operational Load: 4Ω Intermodulation distortion: (SMPTE, 60 Hz/7 kHz, 4:1, 1W): < 0.07%
NOTES1
- Specification Notes
- USB: Bit Depth: 24-bit Sample Rate: 48 kHz Device Charging: Up to 5 W (requires USB connection to computer) SNMP: See support website for the full list of attributes
CERTIFIED SOLUTIONS3
- Microsoft Teams
- Microsoft Teams Certified
- TAA Compliant
- TAA Compliant
- Certified Solutions
- Microsoft Certified TAA Compliant
NETWORK1
- Network Connection(s)
- RJ-45 with Ethernet cable (Cat 5e and above)
CONTROLS & INDICATORS1
- Front Panel Indicator(s)
- Mic Status Indicator: (Green/Red LED) Room Tuning Indicator: (Green/Red LED) Power Indicator: (Green/Red LED)
COMPLIANCE1
- Certifications
- Compliance: FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL4
- Operating Environment
- .
- Ambient Operating Temperature Range
- 32-104° F (0-40° C)
- Humidity
- 0-95% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000 m) MSL
VIDEO2
- Supported Resolution
- 640 x 480p (60 Hz), 720 x 480p (60 Hz), 720 x 576p (50 Hz), 1280 x 720p (50/60 Hz), 1920 x 1080p (50/60 Hz), *3840 x 2160p (30 Hz) *Supported on Output Port 1 only
- Physical Interfaces
- HDMI: HDCP Support: 1.4 HDMI Audio Formats: 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
AUDIO4
- Audio
- Analog Audio Output (RCA): Frequency Response (20 Hz - 20 kHz, FS): +0/-0.25 dB THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS): < 0.005% Dynamic Range (THD+N < 0.005%): 107 dB, A-Weighted Output Impedance (unbalanced): 100Ω Maximum Output: +8.5 dBu Sampling Rate: 48 kHz D/A Converters: 24-bit
- Output Impedance
- (unbalanced): 100Ω
- Sampling Rate
- 48 kHz
- D/A Converters
- 24-bit
Downloads
8 files from the manufacturer
PDF
Biamp Devio SCR-20TX datasheets (PDF, 1.9 MB)
PDF
Biamp Devio SCR-20TX datasheets (PDF, 288 KB)
PDF
Biamp Devio SCR-20TX manuals & guides (PDF, 357 KB)
PDF
Biamp Devio SCR-20TX manuals & guides (PDF, 565 KB)
EXE
Biamp Devio SCR-20TX manuals & guides (EXE)
PDF
Biamp Devio SCR-20TX brochures (PDF, 530 KB)
RFA
Biamp Devio SCR-20TX drawings & cad (RFA)
DFA
Biamp Devio SCR-20TX software & firmware (DFA)
Questions about Devio SCR-20TX
What comes in the box with the SCR-20TX White?
The package includes one Devio SCR-20 conferencing hub and one TTM-XEX white tabletop microphone with 360-degree coverage. A mounting bracket for under-table installation is also included. The hub is designed for huddle rooms and small conference rooms, so one hub and one microphone cover a single room. Confirm the quantity needed for each room when you request a quote from SmartRooms Qatar.
Which video conferencing platforms does it work with?
It works alongside PCs running Microsoft Teams, Zoom, Google Meet, Cisco Webex and BlueJeans, along with many other web-based conferencing solutions. The hub is Microsoft Teams Certified. It supports Windows and Mac computers using standard audio drivers, so the call application on the laptop or in-room PC controls the meeting while the hub handles microphone pickup and speaker output.
Does it need driver installation?
A single display connected over HDMI works without a driver, using pass-through connectivity. Running two monitors with USB video requires the DisplayLink driver on the laptop, which supports Windows 7, 8, 8.1 and 10. Plan for this in rooms where staff bring their own laptops, because each laptop that uses the second screen needs the driver installed before the first meeting.
What video resolution does the hub output?
The hub supports 1920 x 1080p at 50 or 60 Hz and 1280 x 720p at 50 or 60 Hz, and 3840 x 2160 at 30 Hz for 4K. The 4K mode is available on Output Port 1 only. If you want 4K on a shared screen, connect the display to that port and check the display's input capability before ordering, so the boardroom screen matches the hub's output.
Is it suited to a small boardroom in Lusail?
Yes. The hub is intended for huddle rooms and small conference rooms, which describes a compact boardroom where a small team gathers around one table and remote colleagues join by video. The microphone uses Beamtracking with 360-degree coverage, so it can pick up voices around the table without a microphone for each seat. A site survey will confirm whether the room layout suits a single tabletop microphone.
How is it managed across multiple rooms?
Each unit connects by RJ-45 Ethernet using Cat 5e cable or better. It can be monitored remotely via SNMP or the Devio System Administration Utility, and firmware updates can be scheduled and deployed to multiple units. For a school with a row of identical rooms, this lets the IT team update every hub from one place rather than visiting each room individually.
What power does it need?
The hub is rated 24V DC 60W. When you request a quote, ask SmartRooms Qatar to confirm how the 24V DC supply will reach the hub from the wall outlet, and where the outlet sits relative to the table. Planning this early avoids last-minute cable runs under the table and keeps the installation tidy in a meeting room used every day.
Can it be used in Qatar's summer heat?
The ambient operating range is 0 to 40 °C, with 0 to 95% humidity non-condensing and altitude up to 2,000 m. Install it in an air-conditioned meeting room, not in a hot cabinet, outdoor enclosure or unventilated rack. Outdoor summer temperatures in Qatar go well beyond 40 °C, so the room's cooling should be part of the planning, particularly in rooms with heavy afternoon sun through windows.
What warranty applies to the SCR-20TX White?
The Devio SCR-20TX is covered by a 5-year manufacturer warranty. The warranty applies to the hub and the bundled TTM-XEX microphone as supplied. When you request a quote, ask SmartRooms Qatar to confirm the warranty terms that appear on your quotation so your facilities or procurement team has them documented before the purchase order is raised.
Is it suitable for government tenders in Qatar?
The hub is TAA compliant and carries FCC Part 15B, UL and C-UL listings, CE marking and RoHS compliance. These details can be referenced in tender documentation for a ministry or authority bidding on audiovisual upgrades. SmartRooms Qatar supplies against purchase orders and government tenders, including Monaqasat, and quotations usually come within one working day.
Can it connect to the speakers already in my room?
Yes, through three options: HDMI audio to the display, the built-in 20 W amplifier, or RCA line out. The amplifier has a minimum operational load of 4 Ω. Before choosing, check whether your existing speakers are powered and what input they accept, so you pick the connection that delivers clean audio without overloading the speakers in the room.
What is the difference between the white and black versions?
The white version ships with a white TTM-XEX microphone, while the black version ships with a black one. The Devio SCR-20 hub, dimensions, amplifier, video output and connectivity are the same across both finishes. Choose white for rooms with light interiors, or match the finish to the room's furniture and existing AV equipment when you request a quote.
Is a site survey needed before installation?
A site survey is recommended for a under-table installation because the bracket, cable route and power outlet all depend on the furniture and the room's layout. SmartRooms Qatar offers free site surveys across Doha and the surrounding municipalities. The survey lets the installer confirm where the microphone sits relative to participants and where the Ethernet point and display connection should go.
