Devio SCR-25C
Biamp Devio SCR-25C Black Conferencing Hub with DCM-1 Microphone
- Platforms
- TAA Compliant
- Connectivity
- HDMI: HDCP Support: 1.4
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

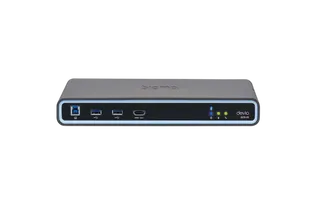

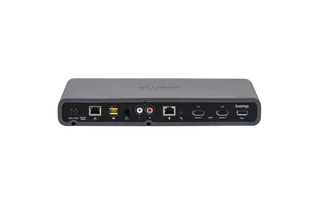

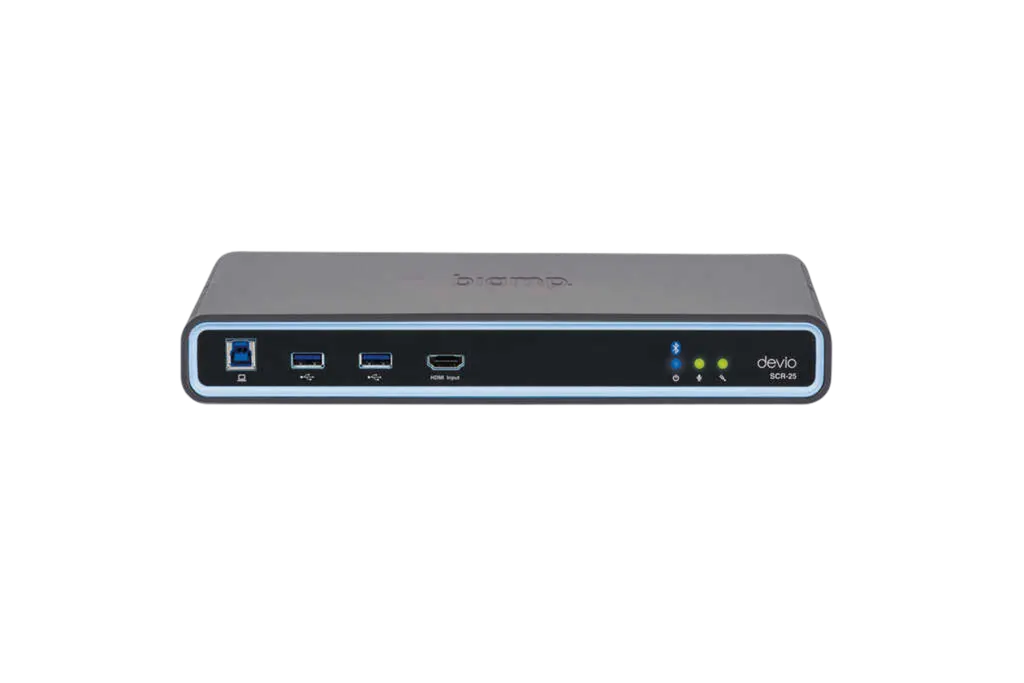

The Biamp Devio SCR-25C Black is a conferencing hub sold with one black DCM-1 pendant microphone. It is built for huddle rooms and small meeting spaces, and it works with PCs running Microsoft Teams, Zoom, Google Meet and Cisco Webex. A built-in 20 W amplifier, Beamtracking microphone pickup and Bluetooth 4.2 make it practical for offices and schools in Doha and Lusail. Request a quote.
A huddle-room hub with its microphone in the box
The Devio SCR-25C Black combines the Devio SCR-25 hub with one black DCM-1 pendant microphone, so a small room gets pickup and processing from a single kit. The microphone covers 360 degrees, and the hub applies professional-grade DSP with Beamtracking microphone technology to shape the signal, so remote participants hear speech clearly rather than an echoing room.
Ways to join a call from the room
The hub supports three room designs. Staff can bring their own laptop, use a dedicated in-room PC, or dial in through a POTS or VoIP handset placed in the room. Bluetooth 4.2 adds a cable-free route for people who prefer joining from a mobile phone, with a stated wireless range of up to 30 m. On the display side, a single screen connects by HDMI pass-through with no driver needed. For two monitors, USB video uses DisplayLink graphics, which requires the DisplayLink driver on the laptop.
Specifications that shape your installation
- Video output up to 3840 x 2160 at 30 Hz, on Output Port 1 only
- Built-in 20 W amplifier, plus HDMI audio or RCA line-out for existing speakers
- Auto Setup checks connections, adjusts room levels and sets speaker EQ
- Remote management by SNMP or the Devio System Administration Utility
- Firmware can be scheduled and deployed to several units
The hub measures 46 mm high, 284 mm wide and 175 mm deep, and weighs 0.9 kg. An under-table mounting bracket is included, which keeps the unit out of sight. It is rated at 24V DC 60W and connects to the network by RJ-45 using Cat 5e cable or better. Its front LEDs show microphone status, room tuning and power.
Where it fits in Qatar
A government office in Msheireb with a small ministry meeting room could use the hub for Microsoft Teams calls with colleagues in other locations, without fitting a full video system. A private school in Al Rayyan setting up a staff room for parent and teacher calls could run the hub from a dedicated PC. A consultancy in West Bay with a small client room could use the phone-in and Bluetooth options for visitors who arrive without a laptop.
What to plan before you order
Plan for the environment first. The rated ambient range is 0 to 40 degrees C, with 0 to 95% humidity, non-condensing. Qatar summers regularly push outdoor temperatures above 45 degrees C, so the hub should sit in an air-conditioned room, away from direct sun through a window and other heat sources. Confirm the cable route from the table to the display and the network point before installation, and check that your conferencing platform is supported on the PC you intend to use.
The hub is covered by the manufacturer's 5-year warranty and is TAA compliant, which helps with procurement reviews. SmartRooms Qatar offers a free site survey before installation, quotations usually within one working day, and delivery to all 8 municipalities of Qatar. Organisations can order by LPO, through a government tender, or by bank transfer, cheque or purchase order.
Request a quote for the Devio SCR-25C Black and tell us your room size, display, conferencing platform and whether you need a single unit or several, and our team will recommend the right setup.
Highlights
- Bundled with one black DCM-1 pendant microphone with 360-degree coverage
- Runs Microsoft Teams, Zoom, Google Meet and Cisco Webex through a connected PC
- Built-in 20 W amplifier, plus HDMI audio and RCA line-out options
- Video output up to 3840 x 2160 at 30 Hz on Output Port 1
- Bluetooth 4.2 for cable-free phone connections up to 30 m
- 5-year manufacturer warranty and TAA compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
23 specifications · Source: manufacturer · checked Oct 2026
GENERAL5
- Height
- 1.8 inches (46 mm)
- Width
- 11.2 inches (284 mm)
- Depth
- 6.9 inches (175 mm)
- Weight
- 2.0 lbs (0.9 kg)
- Included Accessories
- The SCR-25C Black ships with one Devio SCR-25 hub and one DCM-1 black pendant microphone with 360-degree coverage
POWER1
- Power
- 24V DC 60W
AMPLIFIER1
- Amplifier
- Amplifier: Number of Channels: 1 Continuous Power Output: (THD+N < 0.025%): 20 W into Rated Load Impedance Frequency Response: (20 Hz - 20 kHz): +0.2/-0.5 dB THD+N (1 kHz, 20 kHz bandwidth, 1 W): < 0.03% Dynamic Range (THD+N < 0.5%): 100 dB, A-Weighted Minimum Operational Load: 4Ω Intermodulation distortion: (SMPTE, 60 Hz/7 kHz, 4:1, 1W): < 0.07%
NOTES1
- Specification Notes
- USB: Bit Depth: 24-bit Sample Rate: 48 kHz Device Charging: Up to 5 W (requires USB connection to computer) Bluetooth Wireless Technology: Version: 4.2, Class 2 Mode: Bluetooth Classic Supported Profiles: Hands-Free Profile 1.7 (HFP), Audio/Video Remote, Control Profile 1.6 (AVRCP), Advanced Audio, Distribution Profile 1.3 (A2DP) Supported Codecs: CVSD (8 kHz), mSBC (16 kHz), SBC (44.1 kHz), SBC (48 kHz) Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP), BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2402-2480 MHz Wireless Range: Up to 100 feet (30 m) SNMP: See sup
NETWORK1
- Network Connection(s)
- RJ-45 with Ethernet cable (Cat 5e and above)
CERTIFIED SOLUTIONS2
- TAA Compliant
- TAA Compliant
- Certified Solutions
- TAA Compliant
CONTROLS & INDICATORS1
- Front Panel Indicator(s)
- Mic Status Indicator: (Green/Red LED) Room Tuning Indicator: (Green/Red LED) Power Indicator: (Green/Red LED)
COMPLIANCE1
- Certifications
- Compliance: FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL4
- Operating Environment
- .
- Ambient Operating Temperature Range
- 32-104° F (0-40° C)
- Humidity
- 0-95% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000 m) MSL
VIDEO2
- Supported Resolution
- 640 x 480p (60 Hz), 720 x 480p (60 Hz), 720 x 576p (50 Hz), 1280 x 720p (50/60 Hz), 1920 x 1080p (50/60 Hz), *3840 x 2160p (30 Hz) *Supported on Output Port 1 only
- Physical Interfaces
- HDMI: HDCP Support: 1.4 HDMI Audio Formats: 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
AUDIO4
- Audio
- Headset: Frequency Response (200 Hz - 8 kHz, FS): ±0.5 dB THD+N (1 kHz - 4 kHz, 8 kHz B/W, FS): < 0.05% Dynamic Range (THD+N < 0.05%): 80 dB, A-Weighted Maximum Output: -3 dBu Analog Audio Output (RCA): Frequency Response (20 Hz - 20 kHz, FS): +0/-0.25 dB THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS): < 0.005% Dynamic Range (THD+N < 0.005%): 107 dB, A-Weighted Output Impedance (unbalanced): 100Ω Maximum Output: +8.5 dBu Sampling Rate: 48 kHz D/A Converters: 24-bit
- Output Impedance
- (unbalanced): 100Ω
- Sampling Rate
- 48 kHz
- D/A Converters
- 24-bit
Downloads
10 files from the manufacturer
PDF
Biamp Devio SCR-25C datasheets (PDF, 190 KB)
PDF
Biamp Devio SCR-25C datasheets (PDF, 1.9 MB)
PDF
Biamp Devio SCR-25C datasheets (PDF, 293 KB)
PDF
Biamp Devio SCR-25C manuals & guides (PDF, 357 KB)
PDF
Biamp Devio SCR-25C manuals & guides (PDF, 565 KB)
EXE
Biamp Devio SCR-25C manuals & guides (EXE)
PDF
Biamp Devio SCR-25C brochures (PDF, 530 KB)
PDF
Biamp Devio SCR-25C brochures (PDF, 1.2 MB)
RFA
Biamp Devio SCR-25C drawings & cad (RFA)
DFA
Biamp Devio SCR-25C software & firmware (DFA)
Questions about Devio SCR-25C
What is the Devio SCR-25C Black and what is in the box?
The Devio SCR-25C Black is a conferencing hub sold together with its microphone. The kit contains one Devio SCR-25 hub and one DCM-1 black pendant microphone with 360-degree coverage. It is aimed at huddle rooms and small conference rooms where a full video system would be more than the space needs. The black version carries item number 930-00459-00007, and your quotation will confirm the exact kit you receive.
Which conferencing platforms does the Devio SCR-25C work with?
The hub works with PCs running web-based conferencing software, including Microsoft Teams, Zoom, Google Meet, Cisco Webex and BlueJeans. It supports both Windows and Mac PCs and uses standard audio drivers. A Doha office that uses Teams for internal meetings and Zoom for clients can use the same hub for both, as long as the connected PC runs the software in use.
Can visitors connect their own laptop to the hub during a meeting?
Yes. Bring-your-own-device is one of the supported room designs. A visitor connects a laptop to the hub, and the HDMI pass-through to a single in-room display needs no driver. This suits a ministry meeting room in Msheireb where guests present from their own machines and the room has no dedicated PC. Both Windows and Mac laptops are supported for the conferencing software.
Can the hub drive two monitors at once?
It can, with a condition. Two monitors are supported through USB video using DisplayLink graphics, and the laptop must have the DisplayLink driver installed. The manufacturer lists Windows 7, 8, 8.1 and 10 for that driver, so confirm Mac support before specifying a dual-monitor setup for an office in West Bay. A single display works without any driver through HDMI.
What video resolutions does the hub output?
Supported outputs run from 640 x 480p and 720 x 480p up to 1920 x 1080p at 50 or 60 Hz, and 3840 x 2160p at 30 Hz on Output Port 1 only. HDMI supports HDCP 1.4 and carries 2-channel audio at 44.1 kHz or 48 kHz. For a 4K screen in a boardroom, connect the display to Output Port 1 so the 3840 x 2160 resolution is available.
Can people join a call by phone instead of a laptop?
Yes. One of the supported room designs lets attendees join through a POTS or VoIP handset placed in the room, which is useful when not everyone carries a laptop. A factory office in Mesaieed that holds short coordination calls with head office could use this route. Bluetooth 4.2 adds a second cable-free option for mobile phones within about 30 m of the hub.
How does the Bluetooth connection work and how far does it reach?
The hub uses Bluetooth 4.2, Class 2, in Bluetooth Classic mode, with a stated wireless range of up to 100 feet or 30 m. It supports hands-free, remote control and A2DP audio profiles, and it can use CVSD, mSBC and SBC codecs. A consultant in West Bay could pair a visitor phone to the hub without any cable, but the range should be checked against the actual room layout during the site survey.
Do I need separate speakers, or does the hub have its own amplifier?
The hub includes a built-in 20 W, single-channel amplifier, with a minimum operational load of 4 ohms. If the room already has ceiling or wall speakers, you can connect them through HDMI audio or RCA line-out instead. Auto Setup checks connections, adjusts room levels and sets speaker EQ, which helps a school classroom or meeting room reach consistent audio without manual tuning.
How can an IT team manage several Devio units across a site?
The Devio can be monitored and managed remotely via SNMP, and the Devio System Administration Utility lets you schedule firmware updates and deploy them to multiple units. A private school in Al Rayyan with several staff rooms or a ministry with many meeting rooms can keep the units on a single update schedule. SNMP attributes are listed on the manufacturer support website.
Where should the hub be installed, and can it go in a hot room?
The hub is rated for an ambient operating range of 0 to 40 degrees C and 0 to 95% humidity, non-condensing. Qatar summer temperatures often exceed 45 degrees C outdoors, so place it in an air-conditioned room, not in a sun-facing corner or near a heat source. An under-table bracket is included. SmartRooms Qatar offers a free site survey to confirm the location before installation.
What certifications and warranty does the Devio SCR-25C carry?
The hub is TAA compliant and listed for FCC Part 15B, UL and C-UL in the USA and Canada, CE marked and RoHS compliant for Europe. The manufacturer provides a 5-year warranty. These details help when a government entity or a procurement team needs documented compliance. SmartRooms Qatar can quote the unit against an LPO or a government tender, with payment by bank transfer, cheque or purchase order.
How does the black version differ from the white Devio SCR-25C?
The two versions share the same hub, specifications, connections and certifications. The difference is the finish: the black version ships with a black DCM-1 pendant microphone and the white version with a white one. Choose black to match a dark or neutral meeting table and interior, and check the item number 930-00459-00007 on your quotation before ordering.
