Devio SCR-25CX

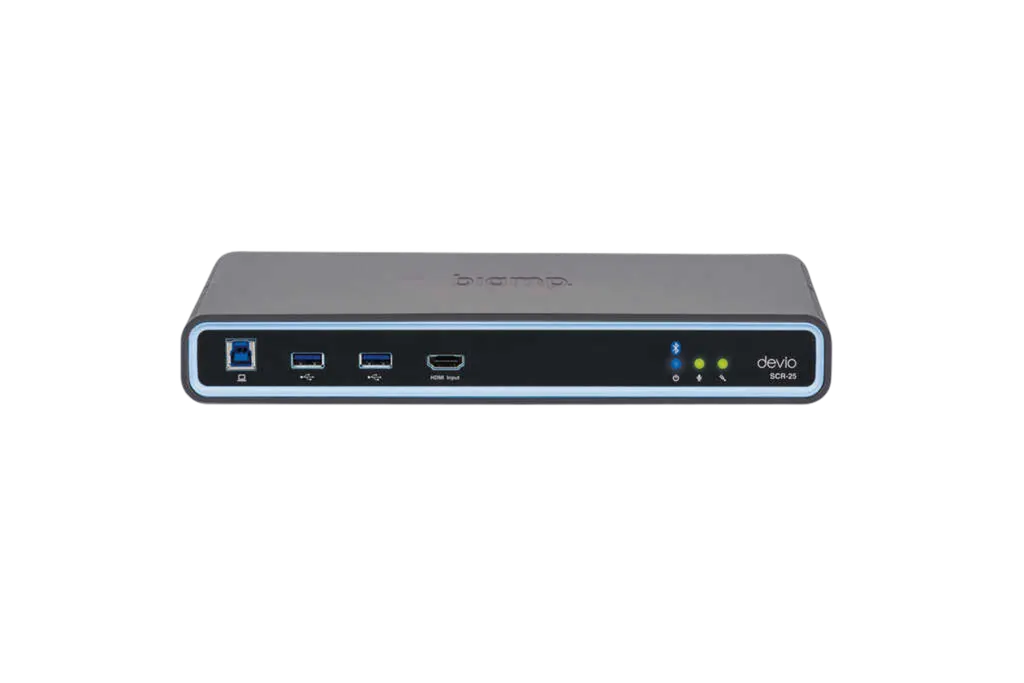

Biamp Devio SCR-25CX White Conferencing Hub with Ceiling Microphone
- Platforms
- TAA Compliant
- Connectivity
- HDMI: HDCP Support: 1.4
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Biamp Devio SCR-25CX White pairs a conferencing hub with one white ceiling microphone for huddle rooms and small conference rooms. It runs web-based meetings from a PC or laptop, uses Beamtracking microphone and DSP processing so remote participants hear the room naturally, and comes with a 5-year warranty. Suited to Doha offices, schools and training rooms that need a simple video meeting setup.
What the SCR-25CX White does in a small meeting room
The Biamp Devio SCR-25CX White is a conferencing hub supplied with one white ceiling microphone. It is designed for huddle rooms and small conference rooms where a PC or laptop runs a web-based meeting and people at the far end need to follow the discussion without strain. The hub measures 46 mm high, 284 mm wide and 175 mm deep and weighs 0.9 kg, so it suits a cabinet or an under-table position, while the microphone picks up the room from above.
Audio and video figures that matter to buyers
Audio quality is the main reason to choose a hub like this. The unit combines Beamtracking microphone technology with professional-grade DSP, and its automatic setup routine checks connections, adjusts room levels and sets speaker EQ. The key figures are:
- Amplifier: one channel, 20 W continuous output into the rated load, with a minimum load of 4 Ω.
- Speaker options: HDMI audio, a built-in amplifier or RCA line out, with 24-bit D/A converters at 48 kHz.
- Video: up to 1920 x 1080p at 50/60 Hz, and 3840 x 2160p at 30 Hz on Output Port 1 only.
- Power: 24V DC 60W.
Connecting to computers, displays and the network
The hub supports both Windows and Mac computers using standard audio drivers, and it works with Microsoft Teams, Zoom, Google Meet, Cisco Webex and BlueJeans. A single in-room display connects over HDMI with no driver needed. Running two monitors through USB video requires the DisplayLink driver on the laptop, and the listed Windows versions are 7, 8, 8.1 and 10. The hub connects to the network through an RJ-45 port using Cat 5e or higher cable, and Bluetooth 4.2 covers wireless audio within up to 30 m.
Where it fits in Qatar
- A private school in Al Wakrah fitting out a staff room, where teachers join meetings with colleagues or partners abroad from a single laptop.
- A consultancy office in West Bay with a huddle room where staff join calls with overseas teams, on a Sunday to Thursday working schedule.
- A government department in Doha that holds short coordination meetings and wants the same setup in several rooms, managed from one place.
Planning the installation and the environment
Plan the room before the hub arrives. The operating range is 0 to 40 °C, with 0 to 95 per cent humidity (non-condensing) and altitudes up to 2,000 m. Summer temperatures in Qatar regularly exceed 45 °C, so keep the hub in an air-conditioned room and avoid unventilated cabinets that trap heat. Our free site survey checks the ceiling microphone position, the cable run to the computer and display, and the power arrangement before installation. If you are unsure about the room conditions, confirm them with the SmartRooms Qatar team before ordering.
Management, warranty and next steps
IT teams can monitor the hub remotely via SNMP or the Devio System Administration Utility, and firmware updates can be scheduled and deployed to several Devio units at once. The product carries a 5-year warranty, is TAA compliant, and is listed for FCC Part 15B, UL and C-UL, CE and RoHS compliance. To request a quote, send us your room size and your display, PC and network setup. We usually return a quotation within one working day, covering supply, delivery and professional installation, and we accept purchase orders (LPOs) and government tenders.
Highlights
- Hub bundled with one white ceiling microphone with 360-degree coverage
- Single-channel amplifier with 20 W continuous output
- Video up to 1920 x 1080p; 3840 x 2160p at 30 Hz on Output Port 1
- Bluetooth 4.2 wireless audio with a range of up to 30 m
- Remote management via SNMP or Devio System Administration Utility
- 5-year warranty and TAA compliant
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
23 specifications · Source: manufacturer · checked Oct 2026
GENERAL5
- Height
- 1.8 inches (46 mm)
- Width
- 11.2 inches (284 mm)
- Depth
- 6.9 inches (175 mm)
- Weight
- 2.0 lbs (0.9 kg)
- Included Accessories
- The SCR-25C Black ships with one Devio SCR-25 hub and one TCM-XEX black ceiling microphone with 360-degree coverage
POWER1
- Power
- 24V DC 60W
AMPLIFIER1
- Amplifier
- Amplifier: Number of Channels: 1 Continuous Power Output: (THD+N < 0.025%): 20 W into Rated Load Impedance Frequency Response: (20 Hz - 20 kHz): +0.2/-0.5 dB THD+N (1 kHz, 20 kHz bandwidth, 1 W): < 0.03% Dynamic Range (THD+N < 0.5%): 100 dB, A-Weighted Minimum Operational Load: 4Ω Intermodulation distortion: (SMPTE, 60 Hz/7 kHz, 4:1, 1W): < 0.07%
NOTES1
- Specification Notes
- USB: Bit Depth: 24-bit Sample Rate: 48 kHz Device Charging: Up to 5 W (requires USB connection to computer) Bluetooth Wireless Technology: Version: 4.2, Class 2 Mode: Bluetooth Classic Supported Profiles: Hands-Free Profile 1.7 (HFP), Audio/Video Remote, Control Profile 1.6 (AVRCP), Advanced Audio, Distribution Profile 1.3 (A2DP) Supported Codecs: CVSD (8 kHz), mSBC (16 kHz), SBC (44.1 kHz), SBC (48 kHz) Maximum Transmit Power: BER/EDR: 6.43 dBm (EIRP), BLE: 7.69 dBm (EIRP) Receive Sensitivity (0.1% BER): -88 dBm Frequency Band: 2402-2480 MHz Wireless Range: Up to 100 feet (30 m) SNMP: See sup
NETWORK1
- Network Connection(s)
- RJ-45 with Ethernet cable (Cat 5e and above)
CERTIFIED SOLUTIONS2
- TAA Compliant
- TAA Compliant
- Certified Solutions
- TAA Compliant
CONTROLS & INDICATORS1
- Front Panel Indicator(s)
- Mic Status Indicator: (Green/Red LED) Room Tuning Indicator: (Green/Red LED) Power Indicator: (Green/Red LED)
COMPLIANCE1
- Certifications
- Compliance: FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe)
ENVIRONMENTAL4
- Operating Environment
- .
- Ambient Operating Temperature Range
- 32-104° F (0-40° C)
- Humidity
- 0-95% relative humidity (non-condensing)
- Altitude
- 0-6,600 ft (0-2000 m) MSL
VIDEO2
- Supported Resolution
- 640 x 480p (60 Hz), 720 x 480p (60 Hz), 720 x 576p (50 Hz), 1280 x 720p (50/60 Hz), 1920 x 1080p (50/60 Hz), *3840 x 2160p (30 Hz) *Supported on Output Port 1 only
- Physical Interfaces
- HDMI: HDCP Support: 1.4 HDMI Audio Formats: 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
AUDIO4
- Audio
- Headset: Frequency Response (200 Hz - 8 kHz, FS): ±0.5 dB THD+N (1 kHz - 4 kHz, 8 kHz B/W, FS): < 0.05% Dynamic Range (THD+N < 0.05%): 80 dB, A-Weighted Maximum Output: -3 dBu Analog Audio Output (RCA): Frequency Response (20 Hz - 20 kHz, FS): +0/-0.25 dB THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS): < 0.005% Dynamic Range (THD+N < 0.005%): 107 dB, A-Weighted Output Impedance (unbalanced): 100Ω Maximum Output: +8.5 dBu Sampling Rate: 48 kHz D/A Converters: 24-bit
- Output Impedance
- (unbalanced): 100Ω
- Sampling Rate
- 48 kHz
- D/A Converters
- 24-bit
Downloads
10 files from the manufacturer
PDF
Biamp Devio SCR-25CX datasheets (PDF, 190 KB)
PDF
Biamp Devio SCR-25CX datasheets (PDF, 1.9 MB)
PDF
Biamp Devio SCR-25CX datasheets (PDF, 293 KB)
PDF
Biamp Devio SCR-25CX manuals & guides (PDF, 357 KB)
PDF
Biamp Devio SCR-25CX manuals & guides (PDF, 565 KB)
EXE
Biamp Devio SCR-25CX manuals & guides (EXE)
PDF
Biamp Devio SCR-25CX brochures (PDF, 530 KB)
PDF
Biamp Devio SCR-25CX brochures (PDF, 1.2 MB)
RFA
Biamp Devio SCR-25CX drawings & cad (RFA)
DFA
Biamp Devio SCR-25CX software & firmware (DFA)
Questions about Devio SCR-25CX
What is the Biamp Devio SCR-25CX White used for?
It is a conferencing hub packaged with one white ceiling microphone, designed for huddle rooms and small conference rooms. A PC or laptop runs the meeting through a web-based platform, while the hub handles microphone pickup, DSP audio processing and room audio output. Beamtracking microphone technology and professional-grade DSP help far-end participants hear the discussion naturally. It suits offices, schools and training rooms in Qatar that need a simple video meeting setup.
What room size is it best suited to?
It is intended for huddle rooms and small conference rooms, where a small group sits around one table and joins calls from one computer. The white ceiling microphone covers the seating area with 360-degree pickup, so the seating layout matters as much as the table size. For a large boardroom or lecture hall, send us your room dimensions and seating plan, and we will confirm whether this hub is the right fit before you order.
How could a private school in Al Wakrah use it?
A private school in Al Wakrah could place the SCR-25CX White in a staff room where teachers join meetings with colleagues or partner institutions abroad from one laptop. The ceiling microphone picks up the whole table, and a display connected over HDMI can show shared material. Its footprint of 284 mm by 175 mm suits a small AV cabinet, and the setup needs only a laptop, a display and a network connection.
Does it suit a consultancy office in West Bay with overseas teams?
Yes, for a huddle room where staff join calls with teams abroad. The hub works with Microsoft Teams, Zoom, Google Meet, Cisco Webex and BlueJeans, so the office can keep its existing meeting platform. When Arabic and English speakers take turns in the same meeting, the DSP and Beamtracking microphone help remote listeners follow who is speaking across the table. Confirm which platform your office uses before ordering.
Can a government department in Doha use it across several meeting rooms?
Yes. A department running short coordination meetings can standardise on the same hub across several rooms, which keeps training and support simple. Devio can be monitored remotely via SNMP or the Devio System Administration Utility, and firmware updates can be scheduled and deployed to multiple units. This lets the IT team manage every room from one place and plan updates outside working hours, which fit a Sunday to Thursday schedule.
Can it be installed in a room without air conditioning, such as a storeroom or lobby?
Not as a general rule. The operating range is 0 to 40 °C (32 to 104 °F) with 0 to 95 per cent non-condensing humidity, and summer temperatures in Qatar regularly exceed 45 °C. Install it in an air-conditioned meeting room and avoid cabinets that trap heat. If you are unsure whether a space is suitable, describe the room to the SmartRooms Qatar team during the free site survey before any equipment is ordered.
Which meeting platforms and operating systems does it support?
Devio works with PCs running web-based conferencing solutions, including Microsoft Teams, Zoom, Google Meet, Cisco Webex and BlueJeans, and many more. It supports both Windows and Mac PCs and uses standard audio drivers. The source data does not give a full compatibility list for every platform version, so confirm with our team which platform your organisation uses before approving a quotation.
How do I connect a display, and what is the highest resolution?
For a single in-room display, connect over HDMI, which needs no driver and supports HDCP 1.4. The hub outputs up to 1920 x 1080p at 50/60 Hz, while 3840 x 2160p at 30 Hz is supported on Output Port 1 only. To run two monitors through USB video, install the DisplayLink driver on the laptop. That driver is supported on Windows 7, 8, 8.1 and 10, so ask us which setup your room needs.
Does it support Bluetooth, and how far does it reach?
Yes. The hub supports Bluetooth 4.2, Class 2, with a wireless range of up to 30 m (100 feet). It supports hands-free, audio and remote control profiles, and codecs including SBC and mSBC. On the speaker side, you can use HDMI audio, the built-in 20 W amplifier or RCA line out, so you can choose between a simple HDMI setup and a separate amplifier arrangement depending on the room.
How is it mounted, and what should we plan before installation?
The hub includes a mounting bracket for under-table installation, and the ceiling microphone is positioned on the ceiling above the seating area. Before installation, plan the microphone position relative to the table, the cable run to the computer and display, and an Ethernet connection using Cat 5e or higher cable. Our free site survey checks these points so the installer can route cables cleanly. The hub measures 46 mm high, 284 mm wide and 175 mm deep, and weighs 0.9 kg.
What is included in the box?

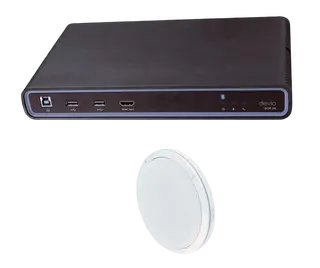

The package includes one Devio SCR-25 hub and one white ceiling microphone with 360-degree coverage. The hub has a single-channel amplifier rated at 20 W continuous output, a power specification of 24V DC 60W, and a mounting bracket for under-table installation. The item number for the white version is 930-00459-00025. The source data gives the microphone model inconsistently, so ask the team to confirm the exact microphone model before you approve a quotation.
What warranty applies, and how do I request a quote?
The Biamp Devio SCR-25CX White carries a 5-year warranty. To request a quote, send SmartRooms Qatar your room size and details of your display, computer and network. We usually return a quotation within one working day. We supply to all eight municipalities of Qatar, arrange professional installation, and accept bank transfer, cheque or purchase orders, including LPOs and government tenders such as Monaqasat.
