Devio SCR-25CX

What the Devio SCR-25CX Black bundle contains

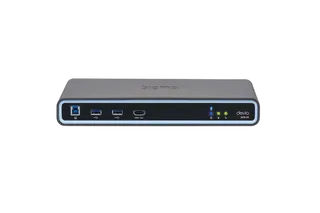

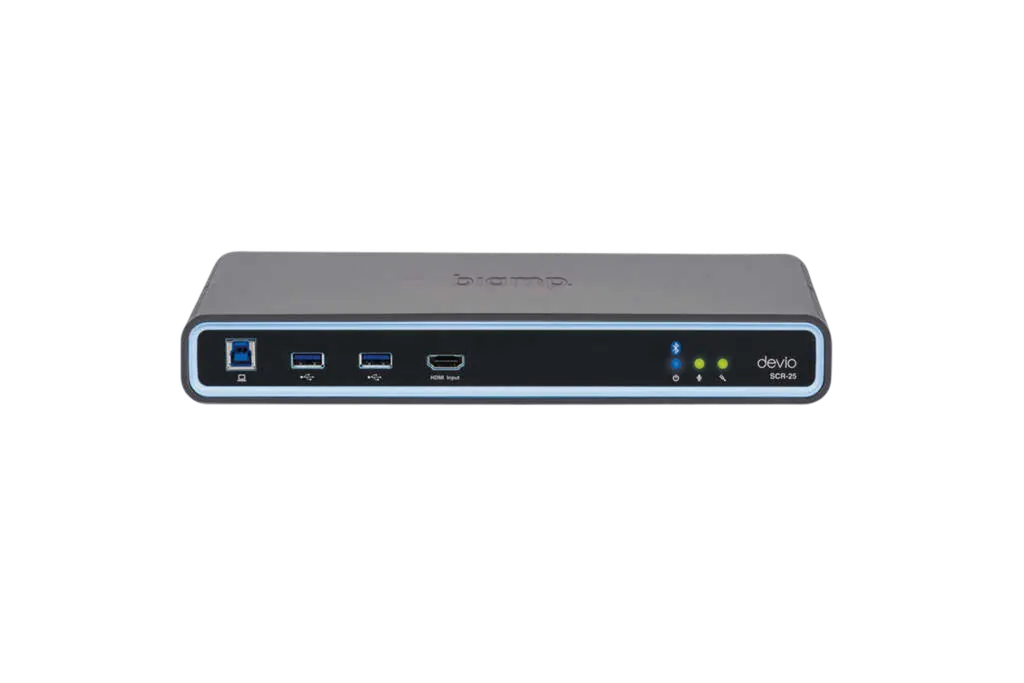

This order gives you two components in one package: the Devio SCR-25 conferencing hub and one black TCM-XEX ceiling microphone with 360-degree coverage. The microphone captures the voices in the room, while the hub handles audio processing, the video connection to the display and the link to the conferencing PC. The hub measures 46 mm high, 284 mm wide and 175 mm deep and weighs 0.9 kg, which keeps it compact enough for an under-table position.

The unit is rated at 24V DC 60W. Its one-channel amplifier is rated at 20 W continuous output into a rated load, with a minimum operational load of 4 Ω, so speaker choice should be checked against these figures during planning. Confirm the power arrangement in your quotation so cabling is planned from the start.

Audio, video and connectivity in practice

The audio chain combines Beamtracking pickup with digital signal processing, so people on the far side of the call get a clearer, more natural voice signal. Auto Setup checks device connections, adjusts room levels and sets the speaker EQ, which reduces manual tuning after installation.

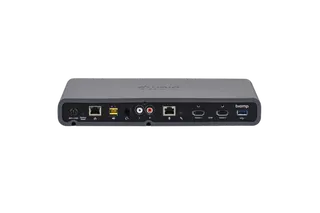

• Video in: driverless pass-through HDMI to one in-room display, or two monitors via USB video using DisplayLink, which needs its driver on the laptop (Windows 7, 8, 8.1 and 10).
• Resolutions: up to 3840 x 2160 at 30 Hz on output port 1 only, plus 1920 x 1080 at 50/60 Hz. HDMI supports HDCP 1.4.
• Audio out: HDMI audio, the built-in 20 W amplifier, or RCA line out.
• Wireless: Bluetooth 4.2 Class 2 with a wireless range of up to 30 m.
• Network: RJ-45 with Ethernet cable of Cat 5e or higher.

Managing Devio across several rooms

For an organisation with several huddle rooms, IT teams can monitor units via SNMP or through the Devio System Administration Utility (SAU). The SAU also schedules firmware updates and deploys them to multiple Devio units as needed. The hub works with Windows and Mac PCs and uses standard audio drivers, so it fits existing laptop fleets and the platforms staff already use.

Where it fits in Qatar

• A government office in Msheireb fitting out a compact meeting room that links Doha staff with colleagues abroad on one platform.
• A private school in Al Wakrah equipping a staff meeting room for video calls with parents and external partners.
• A sales office or serviced apartment in Lusail needing a small space for client calls with teams outside Qatar.

Heat is a planning point. The rated ambient range is 0 to 40°C, with 0 to 95 percent non-condensing humidity, below Qatar's summer outdoor peaks. Install the hub only in air-conditioned rooms, away from sun-exposed windows, unventilated cabinets and outdoor enclosures.

Planning the installation

The included bracket supports under-table mounting, so measure the table underside and cable route before ordering. The ceiling microphone should be positioned to cover every seat, and a free site survey from SmartRooms Qatar can confirm the microphone position and cable runs before installation. The bundle also suits schools and government offices ordering several rooms at once through a purchase order (LPO) or a government tender.

Choose the black version when the room palette is dark; a white variant is also available. Request a quote from SmartRooms Qatar with your room count, display and PC setup, and we will confirm the lead time and power arrangements in the quotation.
