Devio SCR-25TX

A white hub and microphone pair for small meeting rooms

The Biamp Devio SCR-25TX White is sold as a matched set: one Devio SCR-25 conferencing hub and one white TTM-XEX tabletop microphone with 360-degree pickup. It is built for huddle rooms and small conference rooms, where a few people sit around one table and need the far end of a web call to hear them clearly. The hub handles the audio processing, so the microphone is the only item that sits on the table.

The black edition, item 930-00459-00037, comes with the same hub and a black microphone. If the room furniture is light-coloured, the white version keeps the table tidy. The core hub specifications are listed the same for both, so choose by finish.

How the audio is processed in the room

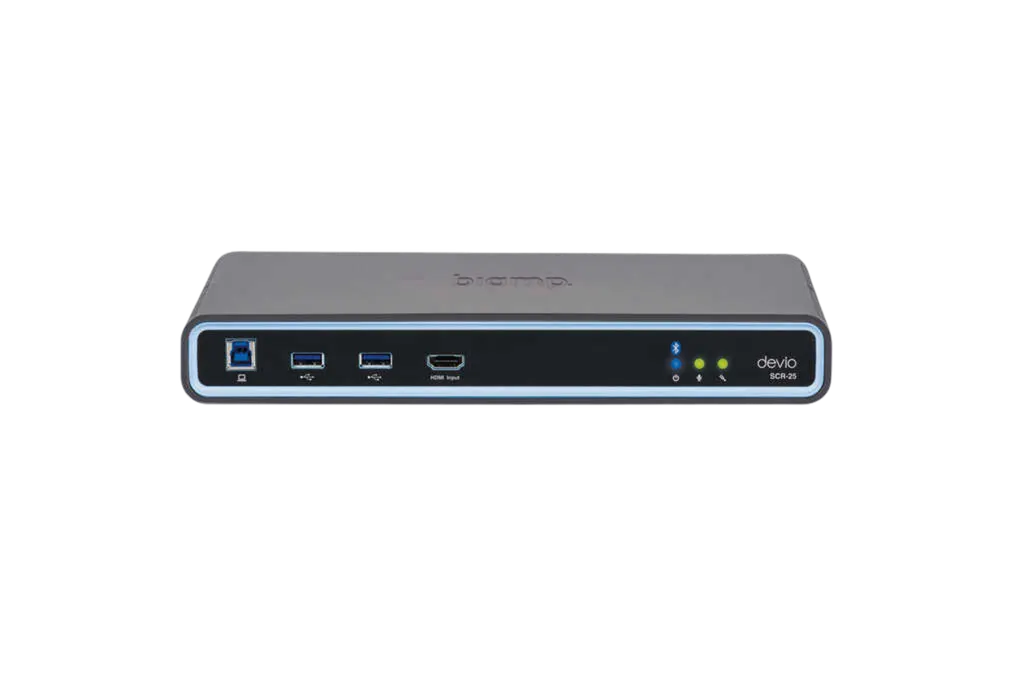

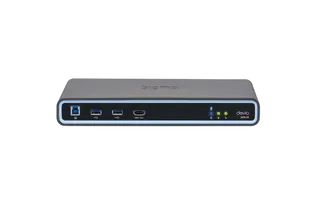

The microphone uses Beamtracking technology, and the hub applies professional-grade digital signal processing to the sound. Auto Setup checks device connections, adjusts room levels and sets speaker equalisation, which reduces the manual tuning a small room would otherwise need. Green or red LEDs on the front panel show microphone status, room tuning and power, so staff can see at a glance whether the microphone is live.

When sound is sent out of the room, the built-in amplifier provides 20 W of continuous output into a minimum 4 Ω load. Speaker options include HDMI audio, the built-in amplifier or an RCA line output, so the hub can feed a room loudspeaker system if one is needed.

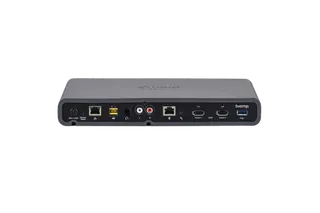

Connecting it to PCs, displays and the network

The hub works with Windows and Mac computers and uses standard audio drivers. For video, it supports driverless HDMI pass-through to a single in-room display, or to two monitors over USB using DisplayLink graphics technology. The DisplayLink route requires the DisplayLink driver on the laptop and is supported on Windows 7, 8, 8.1 and 10. HDMI output reaches 3840 x 2160 at 30 Hz on output port 1 only, and HDCP support is 1.4.

• USB audio with 24-bit depth and 48 kHz sampling
• Bluetooth 4.2 Class 2 for wireless audio from paired devices
• RJ-45 Ethernet port, with Cat 5e cable or higher

Where it fits in Qatar

In West Bay, a company office with a small leadership team can use the hub for Microsoft Teams calls with colleagues in Europe or Asia, with the microphone placed in the middle of the table. A school in Al Wakrah setting up a staff meeting room can run Zoom sessions with external trainers without installing a full AV rack. In Lusail, a consultancy can keep a small client room ready for Google Meet calls through the afternoon.

Planning the installation in Qatar's climate

The hub is rated for ambient operating temperatures from 0 to 40°C, relative humidity from 0 to 95% non-condensing, and altitudes up to 2,000 m. Outdoor temperatures in Qatar often exceed 45°C in summer, so the hub belongs in an air-conditioned meeting room with clear airflow around it, not in a space that heats up in afternoon sun. The under-table mounting bracket is included, so the hub can be fixed out of sight beneath the table.

Before ordering, plan the cable routes for the Ethernet connection, the HDMI display and the USB link to the PC. Power is rated at 24V DC 60W, so confirm the power supply arrangement with the SmartRooms Qatar team at quotation stage. The manufacturer's five-year warranty applies, and a free site survey checks the table, cable run and room layout before installation. Schools, ministries and companies equipping several rooms can order by LPO or through government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. Request a quote for the Biamp Devio SCR-25TX White, and the SmartRooms Qatar team will confirm lead time with the quotation.
